Challenge

Week 9 Part 4 Project 5 - Attachment Feature Creation

Aim:

The main aim is to complete the given Class A model into a surface with a thickness of 2.5 mm.

Procedure:

Initially, the model is opened using the Open Command. Once, the model is opened, we check the given Class-A surface of the given Applique and the Door attachment.
We rotate the model to see at which plane the whole surface can be seen completely.
Here we can see the whole model on Y-axis.

Since we already know that the whole Surface is seen at Y-Axis, the direction of the tooling axis is in the Y-axis.
Now, the direction is known but the position is unknown. Therefore, the Base is selected.
Once the base is selected, the Extract option is used. (Extract option can be found in Operation Toolbox in the Generative Shape Design)
A point is selected on the extracted base and the point dimensions are given as ‘0’ such that the point falls on the center.
A line is created in the Y-Axis direction with the reference of the point created.

Once the Tooling axis is created, the Draft analysis is done on the surface.
To perform Draft Analysis, Go to the insert Menu >> Click Analysis >> Click Feature Draft Analysis option >> New Dialog boxes opens.
Select the Elements as the Class A Model and the Direction as the Tooling Axis using the Compass option to define a new direction of the draft.
Click OK to check if all the surface comes under the within the limits of 0 to 3 degrees.
If the draft is more than 3 Degree then the surface will be shown as green.

To create a B surface, we need to offset the Class A Surface but the Surface cannot be the same as the Class A as it would create errors while the model is sent for prototyping.
We start with extracting the Top surface and Offset it to the thickness of the model (that is 2.5mm). Now, extract the groove parts and the base part and offset it to the same thickness.
Now un-trim the extracted surfaces and extrapolate the surfaces such that every surface intersects with the neighboring surfaces. After completing the extrapolating, trim the surface such that the extracted surface is similar to that of the class A-surface (without fillets).
The surface then needs to be filleted as the Class A surface with the 2.5mm added or removed by fillet radius.

After creating the B surface, the C surface needs to be created. To create the C surface, the sweep option is used.
To create a sweep, there should be a boundary created to it. The boundary should be created separately as creating the boundary completely doesn’t create the sweep smoothly as the model contains the main unnecessary lines.
To cover those, the smooth option is used to create the smooth surface and the Class A surface model is swept smoothly over the plane areas. Over the draft angled areas, the boundary should be created separately to create the sweep over that area.
Now join the Class C surfaces together to create the surface.

Now, start with joining the Class A and Class C surfaces together.
Next, trim the combined surface with the Class B Surface to create the final surface.

After creating the surface, go to the Part design option and create the solid using the closed surface option.
The solid is created.

To create 4 Way locators, the ribs should be created intersecting with each other.
Open the Sketcher Workbench and Draw 2 lines intersecting each other and constraint it.
Exit the Sketcher Workbench and Pad the Sketch with a thickness of 1 or 1.3mm.
Chamfer the Ribs and give the Fillets to it.
For the 2 way locators, only a planar line needs to be created. And the process is similar to that of the 4-way locator.
Now add these locators to the Applique Part.

To create the heat stakes, open the Sketcher Workbench and Draw 2 circles with the Diameter of 7 and 5mm.
Exit the Sketcher Workbench and Pad the Heat Stakes and draft it to 0.5 degrees.
Now add these locators to the Applique part.

For the Door attachment component, Use Thicken option to create the solid.
For the created Locators and Heat skates created, there should be holes created such that the component gets fixed in the Door attachment component constraining the Degrees of freedom.

Results:

The Applique component is created from the Class A surface and performed the Draft Analysis.

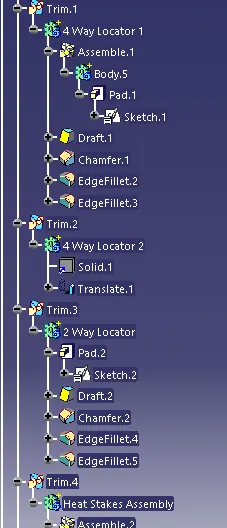

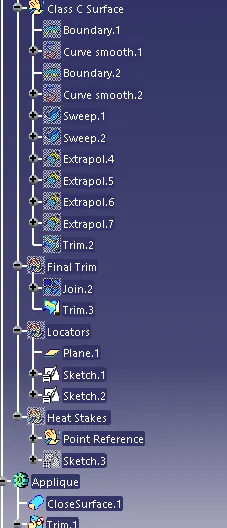

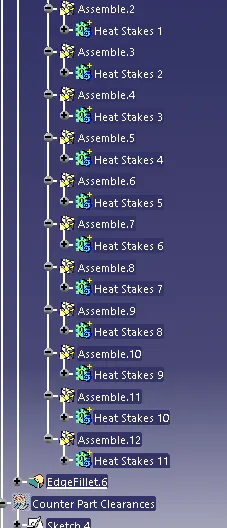

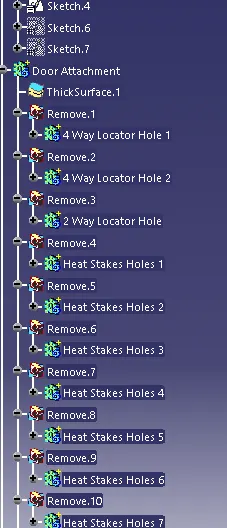

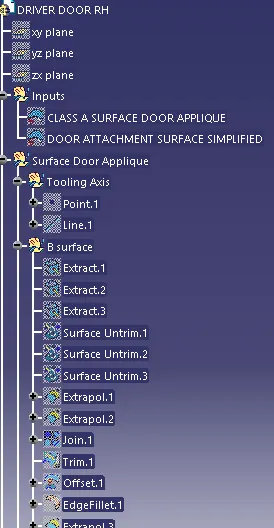

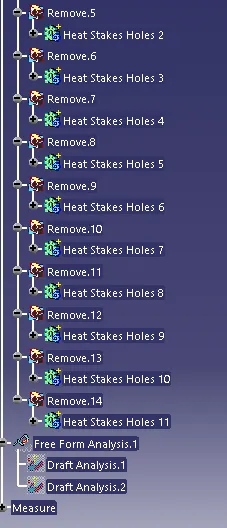

Tree Structure:

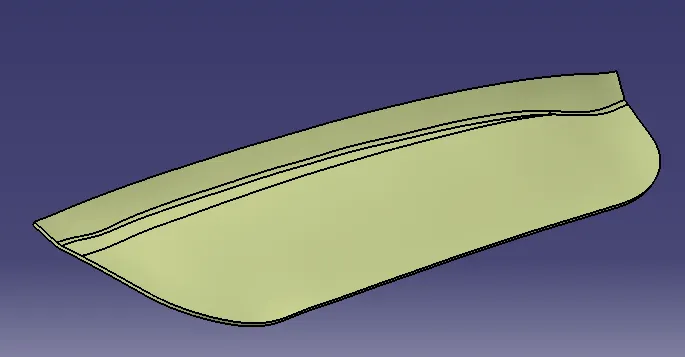

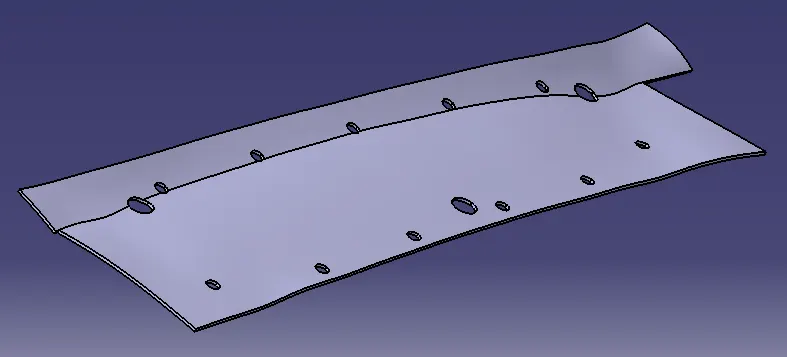

Surface CAD:

Solid CAD:

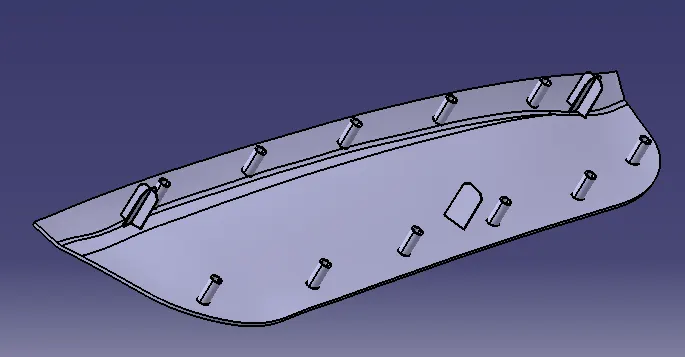

Applique:

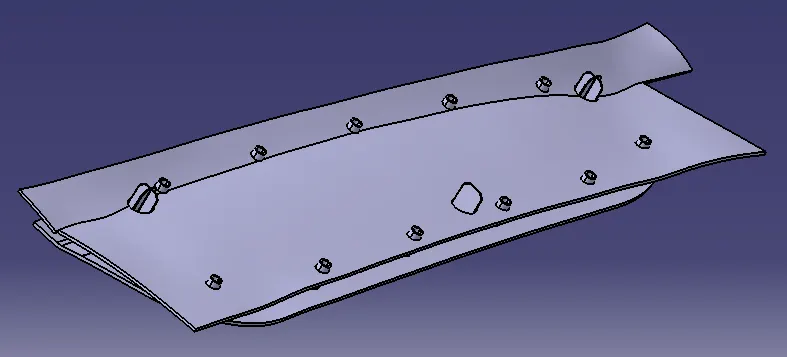

Door Attachment:

Final:

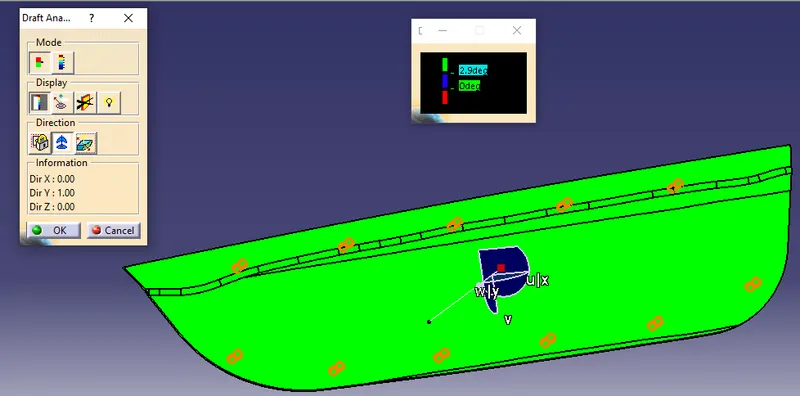

Draft Analysis:
