Week 9 Machining with Planer Challenge

Aim: To see the mechanical bevahior of the tool and workpiece when tool get machining on the workpiece with different velocity(speed)

Case 1: Velocity of cutting tool -15000 mm/s

Results for Case 1:

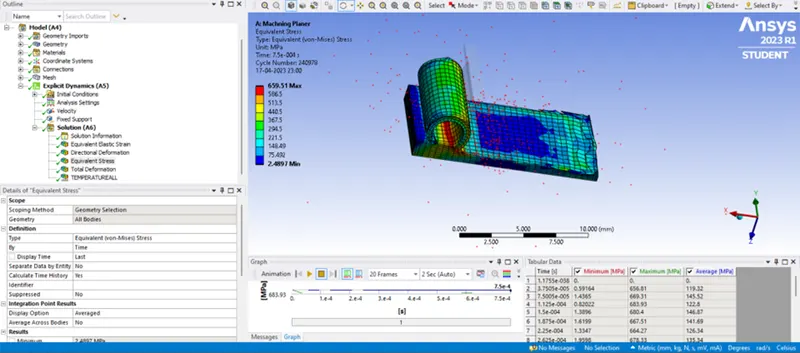

1. Equivalent Stress:

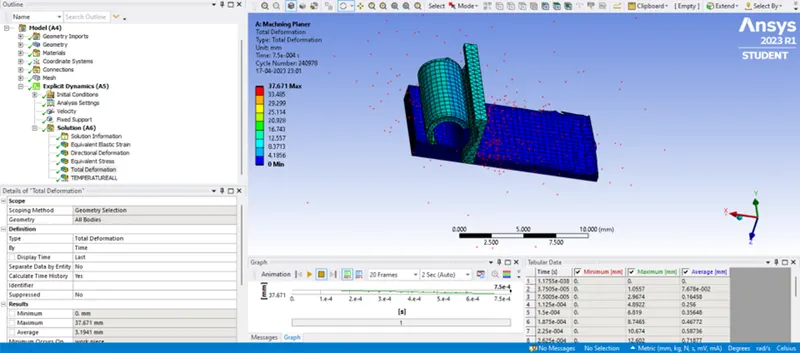

2.Total Deformation

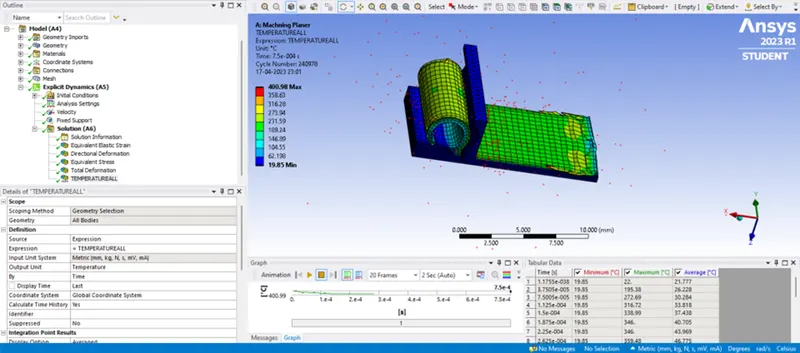

3. Temperature

Case 2:Velocity of cutting tool -20000 mm/s

Results for Case 2:

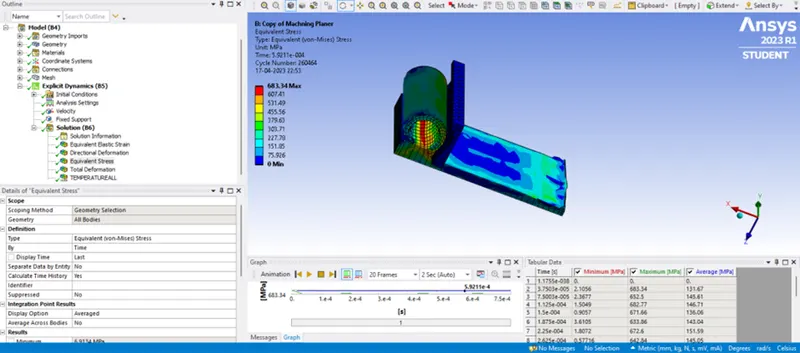

1. Equivalent Stress:

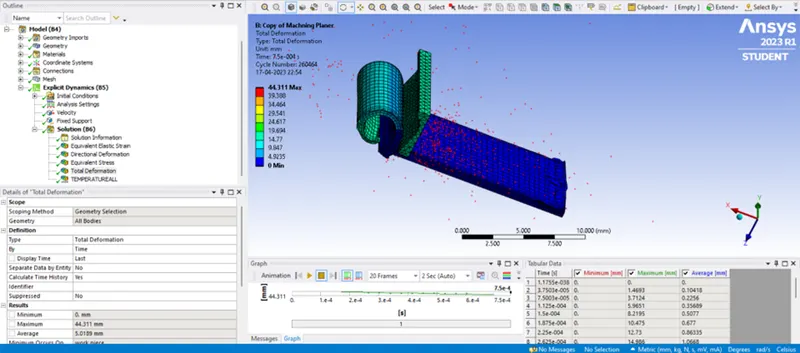

2. Total deformation

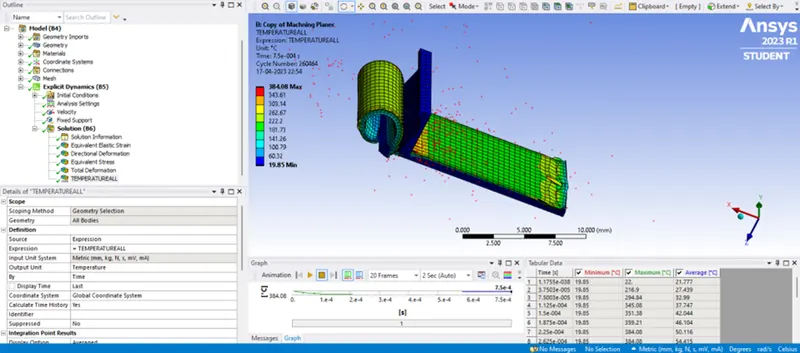

3. Temperature

Observation:

Sr.No	Result parameter	Case 1 (V=15000 mm/s)	Case 2 (V=20000 mm/s)
1	Equivalent Stress	659.51 Mpa	600.05 Mpa
2	Total deformation	37.67 mm	44.31 mm
3	Temperature	400.96 C	384.08 C
