Week 9 Machining with Planer Challenge
Machining with Planer Challenge
AIM
To carry out a explicit dynamics simulation analysis on Machining with Plane with given material and give proper velocity are carry out in this analysis.
PROCEDURE
To find and compare the results of Equivalent stress, Total deformation, Equivalent strain on the Machining with Plane challenge
For this week's challenge,
You will have to perform an explicit dynamics simulation to find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body. You need to perform this for 2 cases. One will be with a cutting velocity of 20000mm/s and the other will be with a cutting velocity of 15000mm/s.
CASE 1 cutting velocity of 20000mm/s
CASE 2 cutting velocity of 15000mm/s.
to find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body.
CASE 1 cutting velocity of 20000mm/s

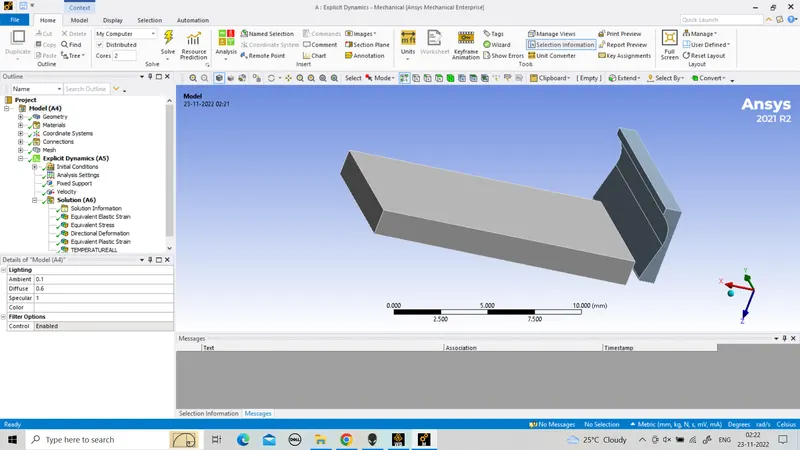

Import the geometry.

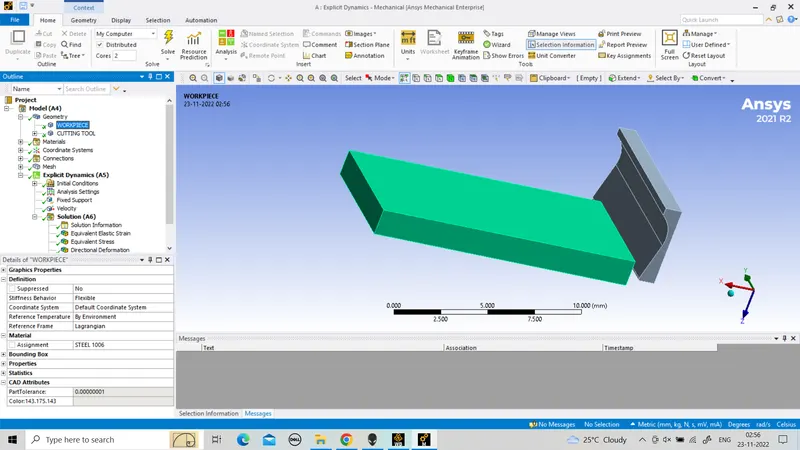

select the material.
strainless steel.
steel 1006

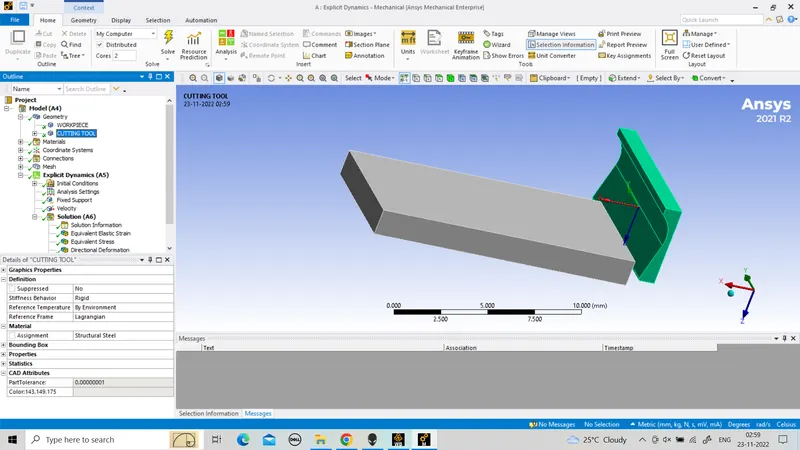

rigit body to cutting piece
And open the model panel.
delete all contact

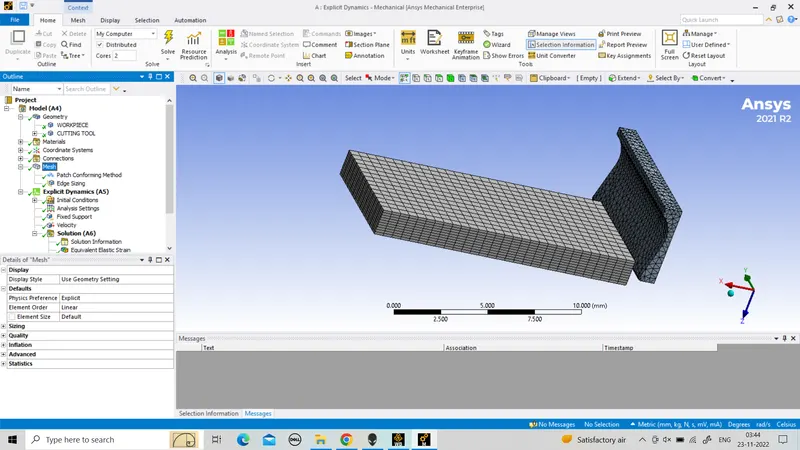

mesh the component with mesh option
by methord option and
by side sizing option

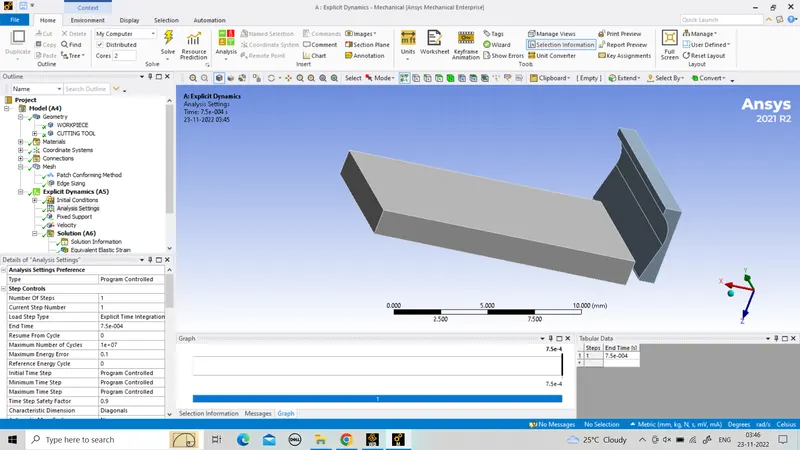

analysis setting
end time 7.5e-4

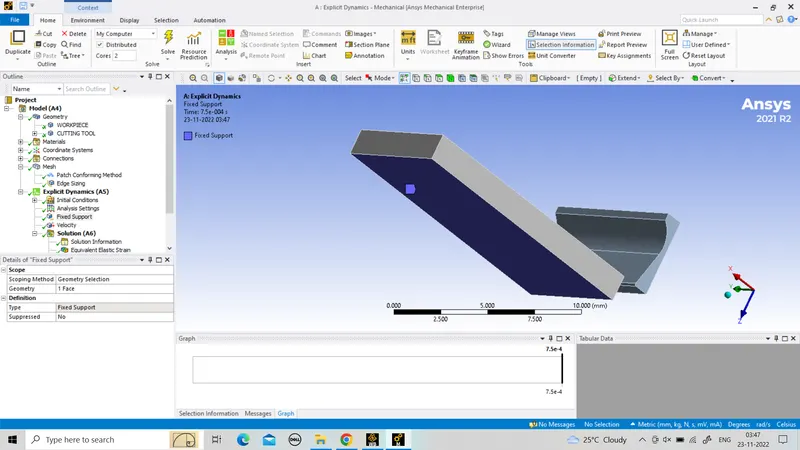

and create fixed support
velocity load
CASE 2
cutting velocity of 15000mm/s.
to perform an explicit dynamics simulation to find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body.
Import the geometry.
select the material.
strainless steel.
steel 1006
rigit body to cutting piece
And open the model panel.
delete all contact
mesh the component with mesh option
by methord option and
by side sizing option
analysis setting
end time 7.5e-4
and create fixed support

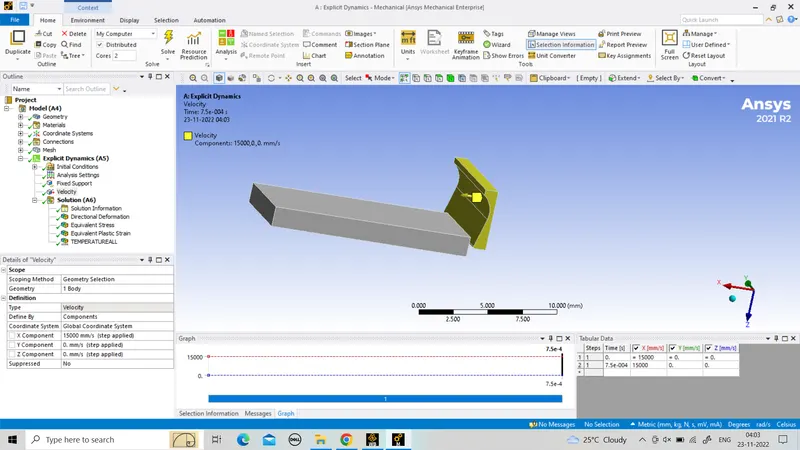

velocity load
RESULT
to perform an explicit dynamics simulation to find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body. You need to perform this for 2 cases. One will be with a cutting velocity of 20000mm/s and the other will be with a cutting velocity of 15000mm/s.
CASE 1

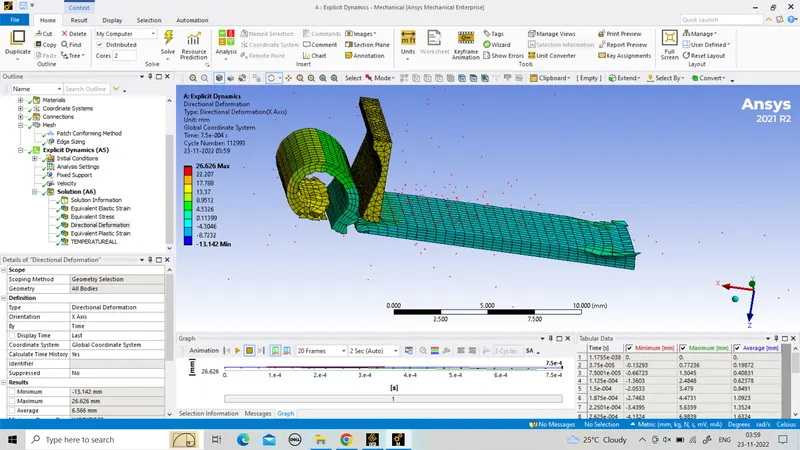

Total Deformation

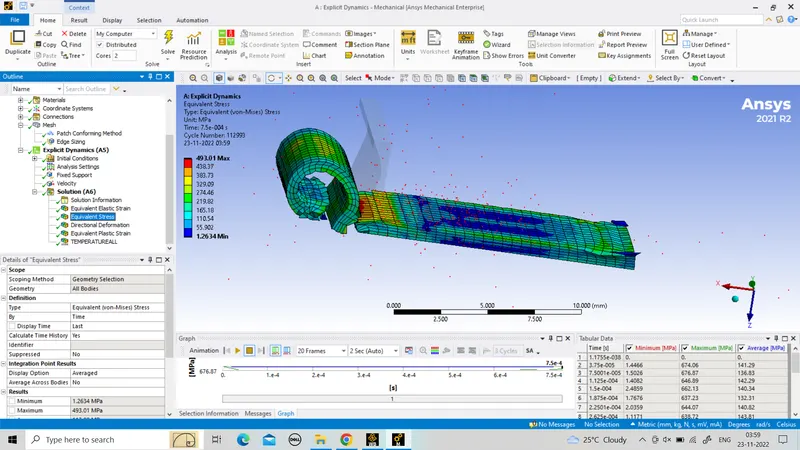

Equivalent Stress

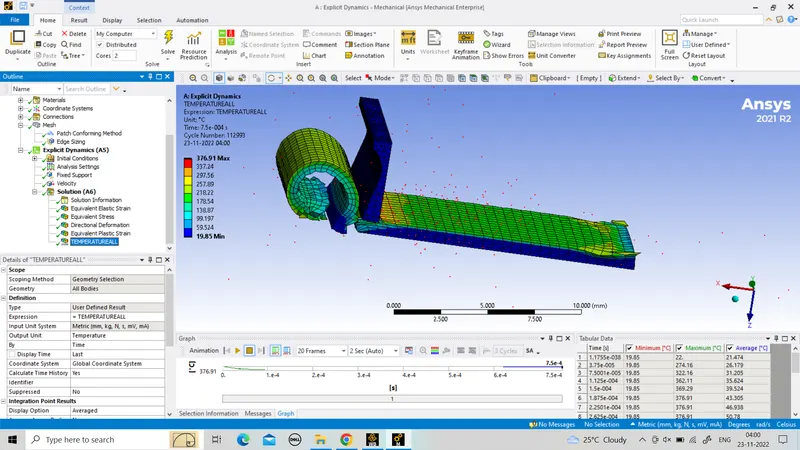

temperature of the body
CASE 2
Total Deformation

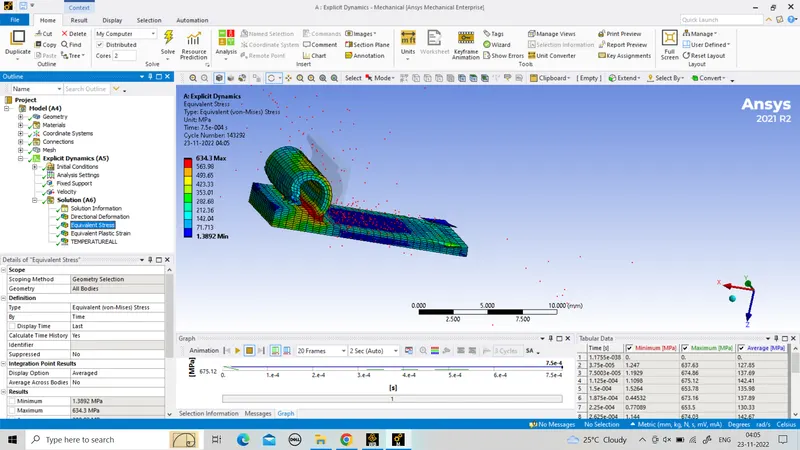

Equivalent Stress

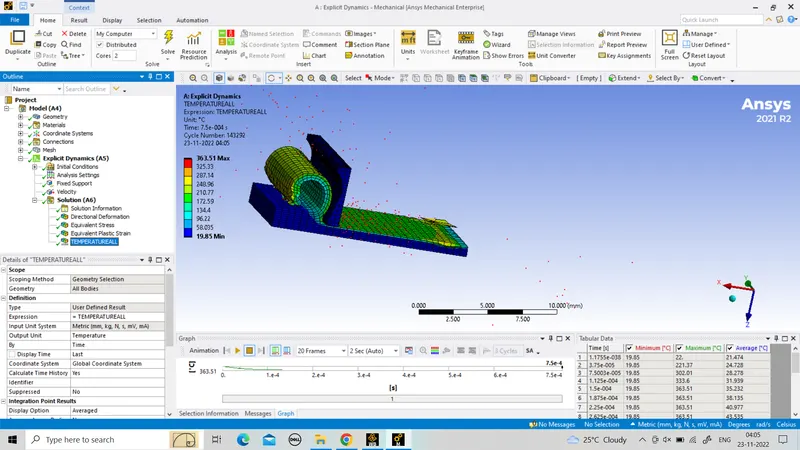

temperature of the body
to perform an explicit dynamics simulation to find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body. You need to perform this for 2 cases. One will be with a cutting velocity of 20000mm/s and the other will be with a cutting velocity of 15000mm/s.
CASE TOTAL DEFORMATION STRESS STRAIN TEMPERATURE
20000mm/s 26.626MAX 493.01MAX 0.0025193MAX 376.91MAX
15000mm/s. 20.312MAX 634.3MAX 1.2412MAX 363.51MAX
