Week 9-Creation of 1D Connectors Challenge

Week 9-Creation of 1D Connectors Challenge

Observation:

Create connector and the various parts of the given model

1. Right_Rail_2 & Front_truss_1: - Seam-Quad(angled+capped+L)
2. Left_Rail_2 & Front_truss_1: - Quad elements
3. Front_truss_2, Front_truss_1 & Right_Rail_1: - Spot weld with 2 Layers and 5 mm Diameter
4. Front_truss_2, Front_truss_1 & Left_Rail_1: - Hexa (Adhesive)
5. Rear_truss_2 & Right_Rail_2: - Bolt Connector
6. Rear_truss_2 & Left_Rail_2: - Bolt Connector
7. Right_Rail_1 & Right_Rail_2: - Spot-weld with Rigid Elements
8. Left_Rail_1 & Left_Rail_2: - Spot-weld with Spring Elements
9. Rest all the component left Join them with suitable connectors

Procedure:

1.Make new quality file for given Quality Criteriasave as new file.

2.Make mesh for given mid surface as per quality criteria.

3.Make connection for given

Go to 2D connecter -select (spot or bolt or steam)-select location-select comps-select type of connection-create

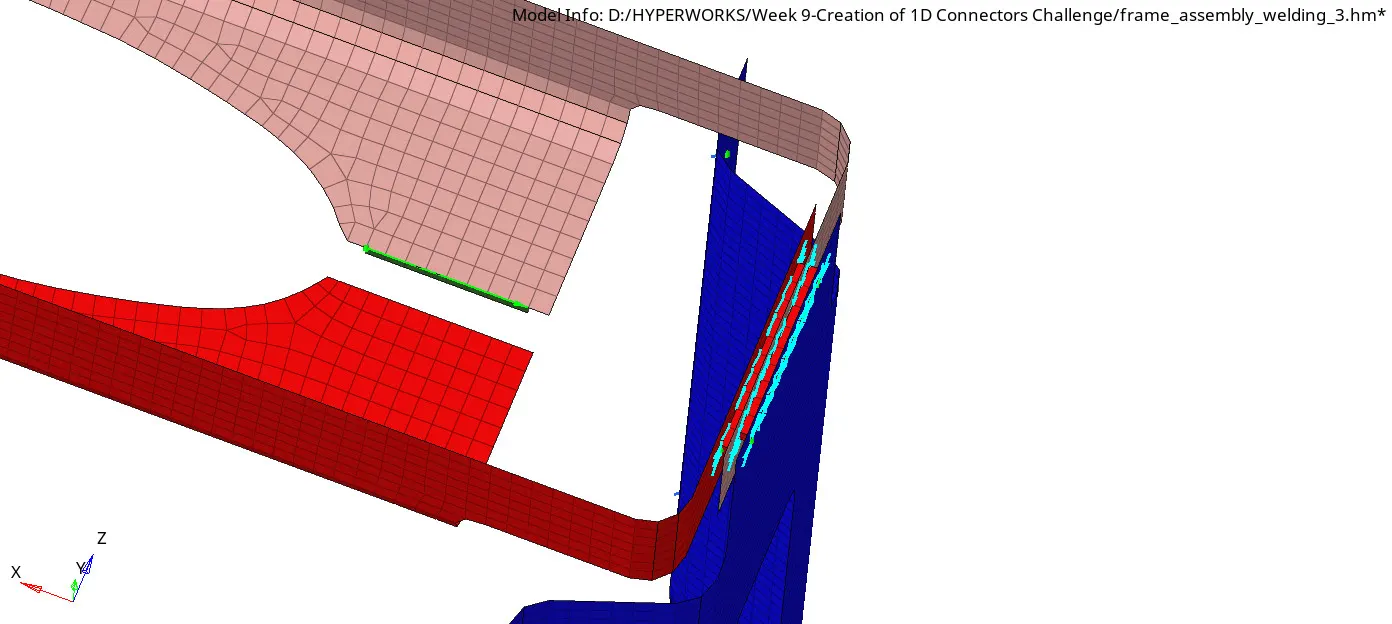

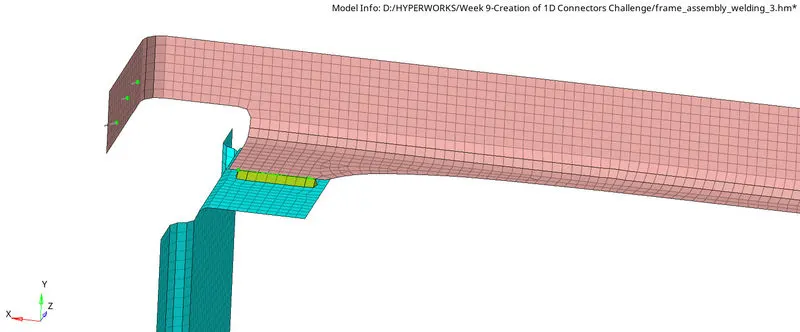

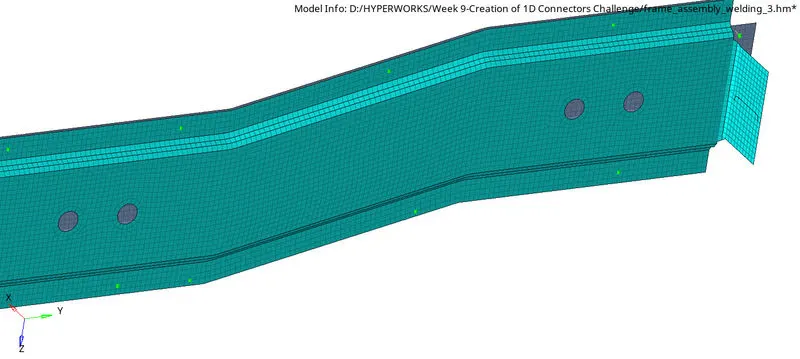

Right_Rail_2 & Front_truss_1: - Seam-Quad(angled+capped+L):

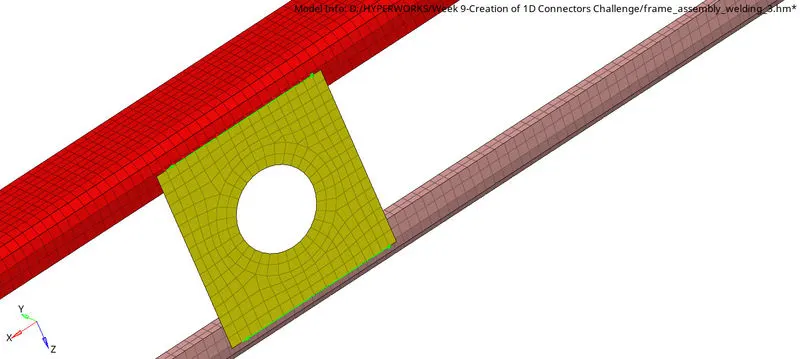

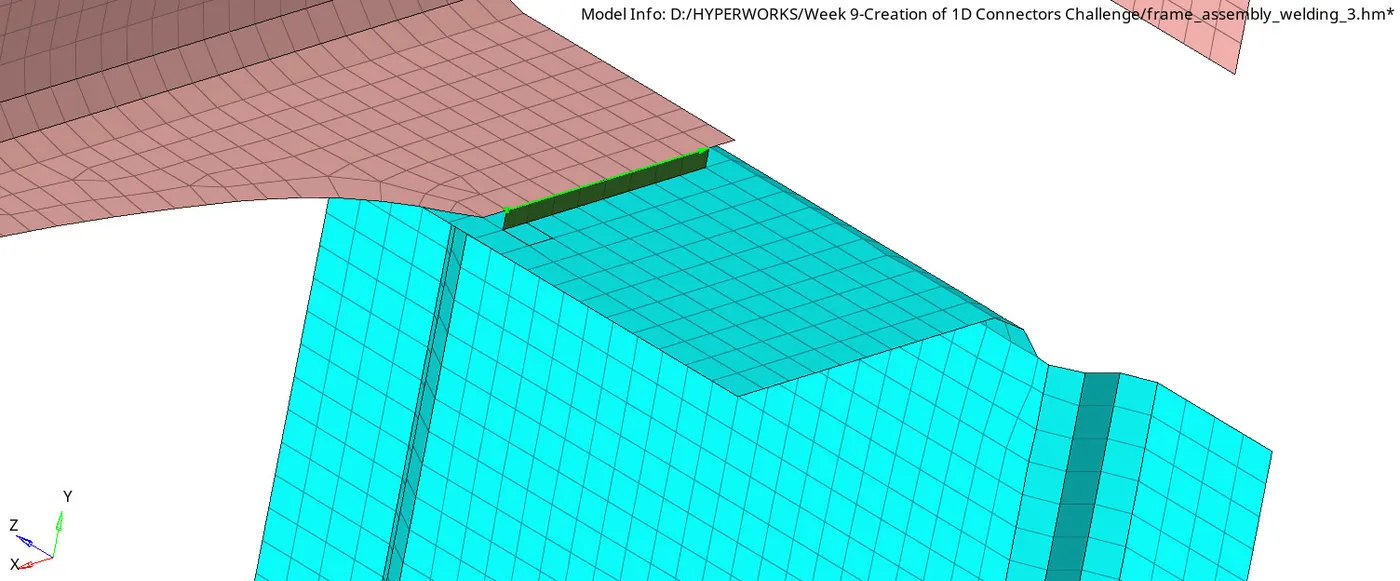

Left_Rail_2 & Front_truss_1: - Quad elements:

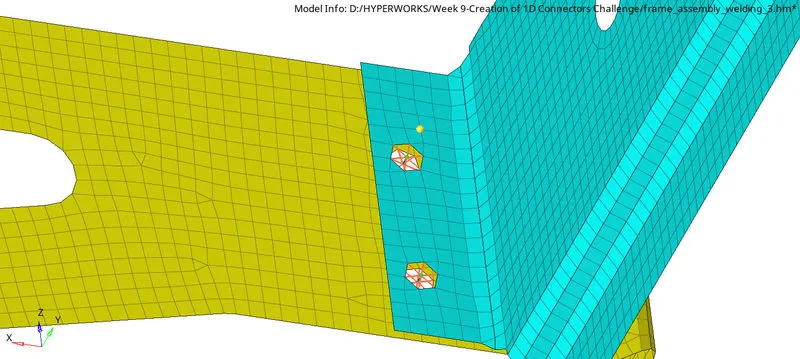

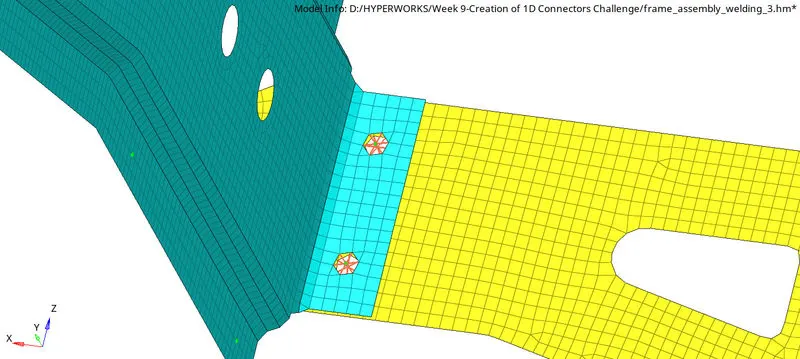

Front_truss_2, Front_truss_1 & Right_Rail_1: - Spot weld with 2 Layers and 5 mm Diameter:

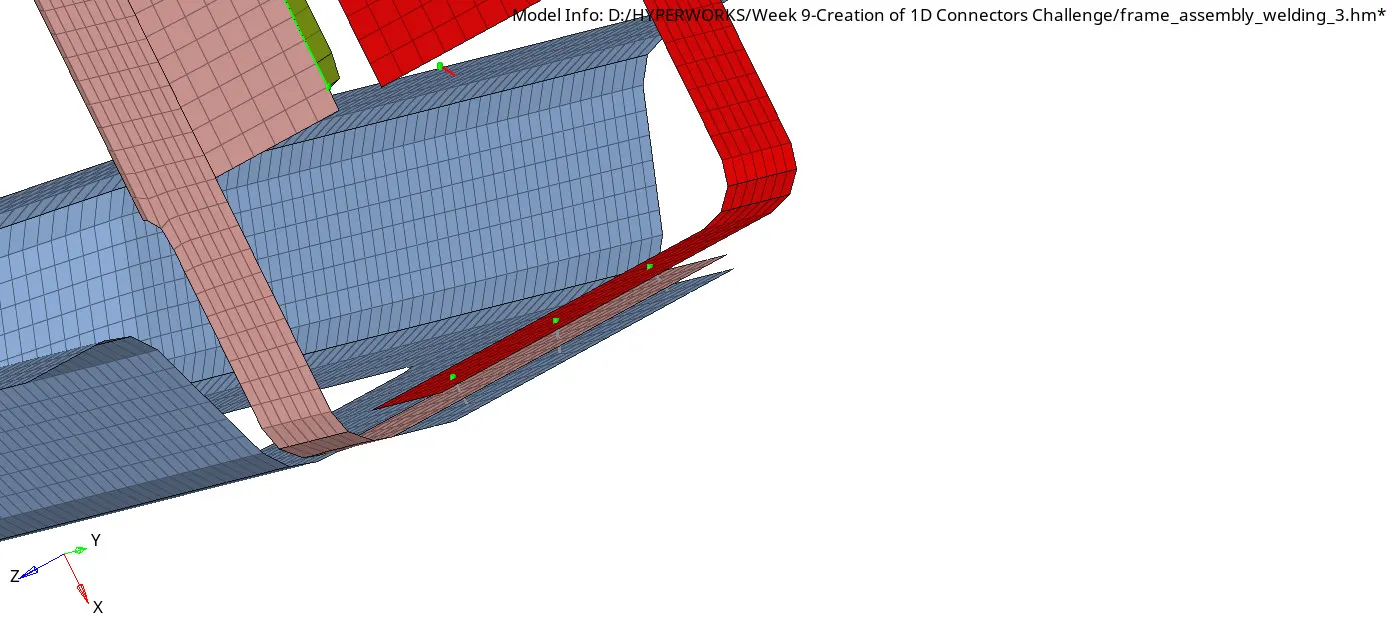

Front_truss_2, Front_truss_1 & Left_Rail_1: - Hexa (Adhesive):

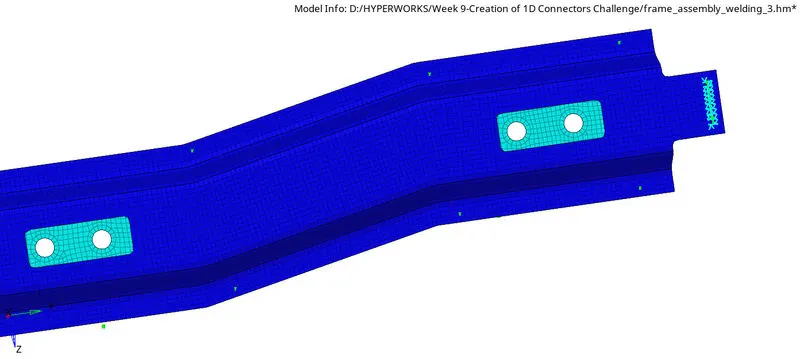

Rear_truss_2 & Right_Rail_2: - Bolt Connector:

Rear_truss_2 & Left_Rail_2: - Bolt Connector:

Right_Rail_1 & Right_Rail_2: - Spot-weld with Rigid Elements:

Left_Rail_1 & Left_Rail_2: - Spot-weld with Spring Elements:

Rest all the component left Join them with suitable connectors:

Result;-

given model did as per given connection.
