Week- 5 - Solid meshing

Aim:

To determine Closed volume for defining a volume, No Min length & Max length error should present in surface meshing, Use Tria and Ortho tria elements appropriately for surface meshing, Only check for Tet collapse errors and solve it for volume meshed elements, No kinks and raised edges should be present after finishing challenge.

Procedure:

For this module I am using spot mesh with ortho tria for curved surface and flat area tria element type. After converting to volume mesh in tetra FEM mode.

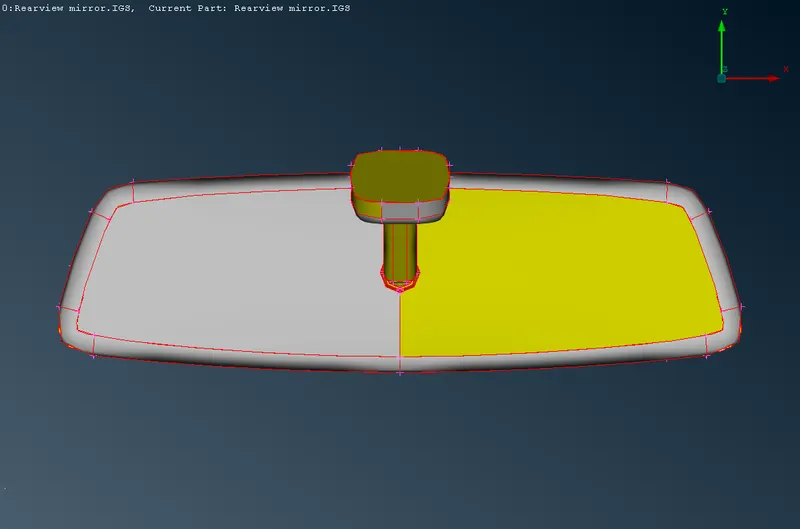

Before TopoBefore Topo:

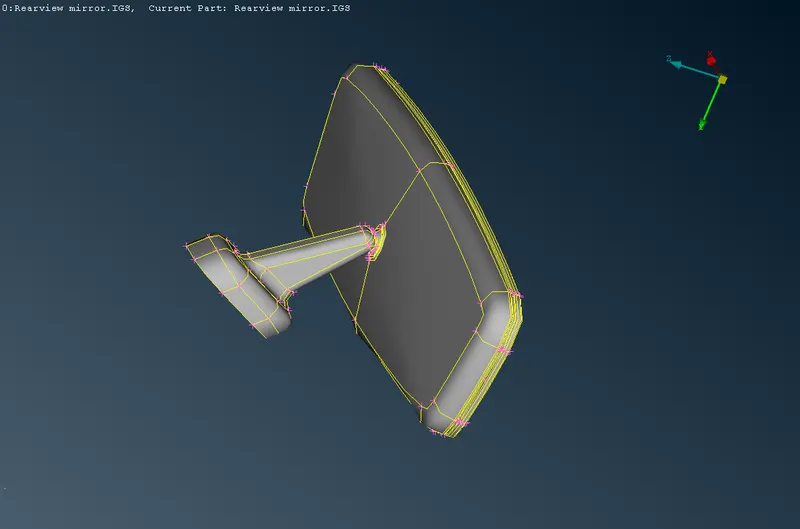

After Topo:

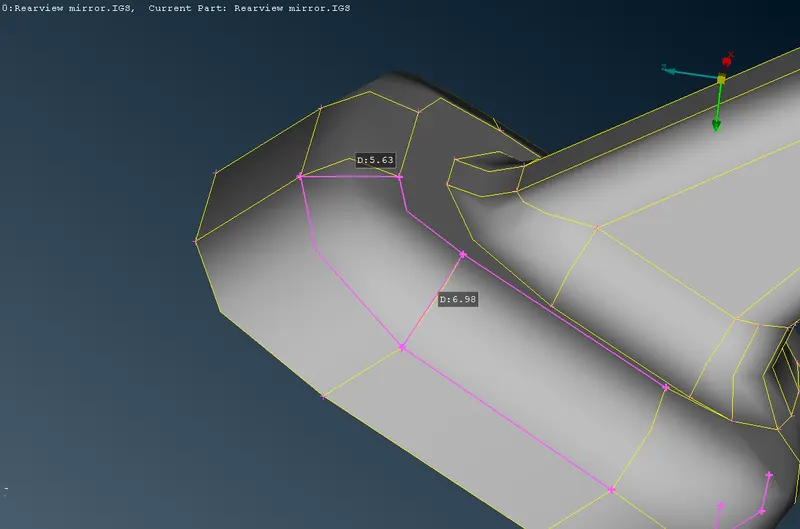

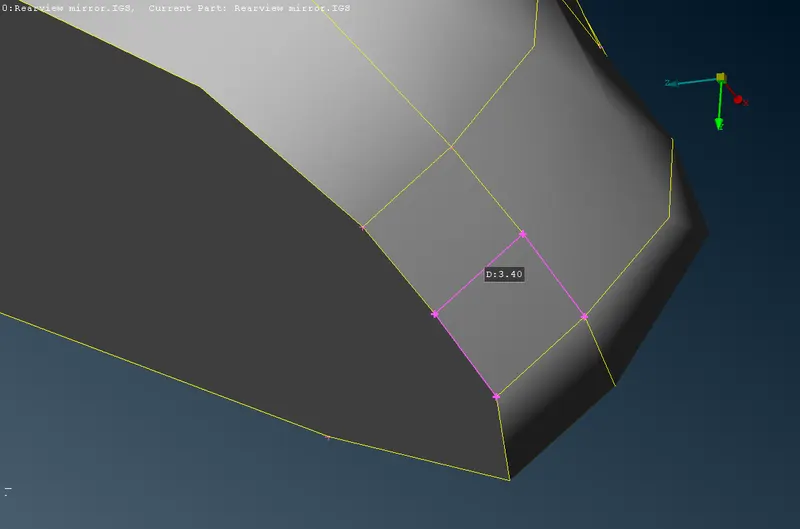

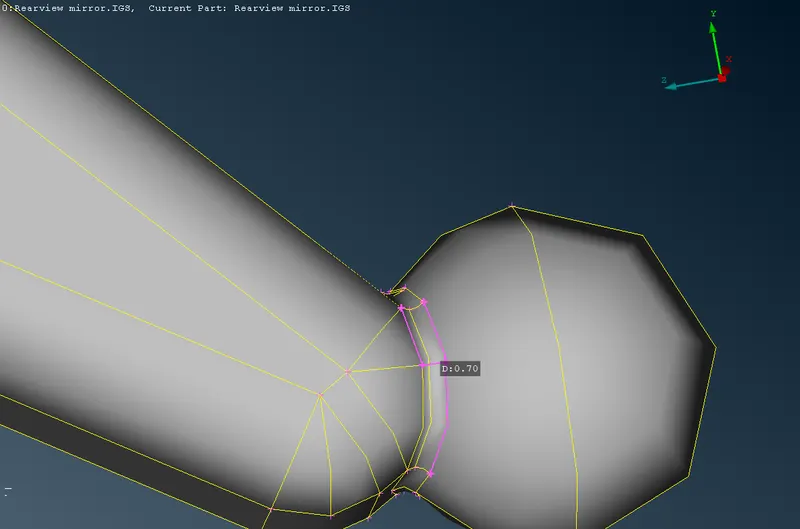

For dimension check:

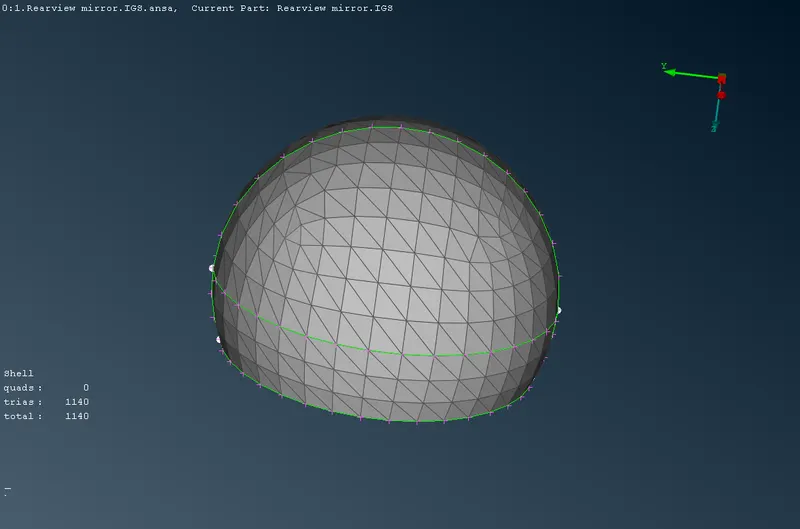

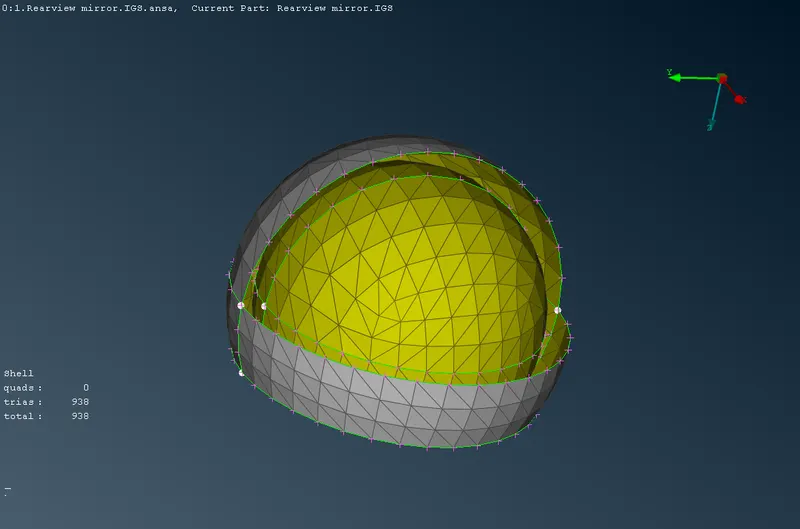

2D meshing:

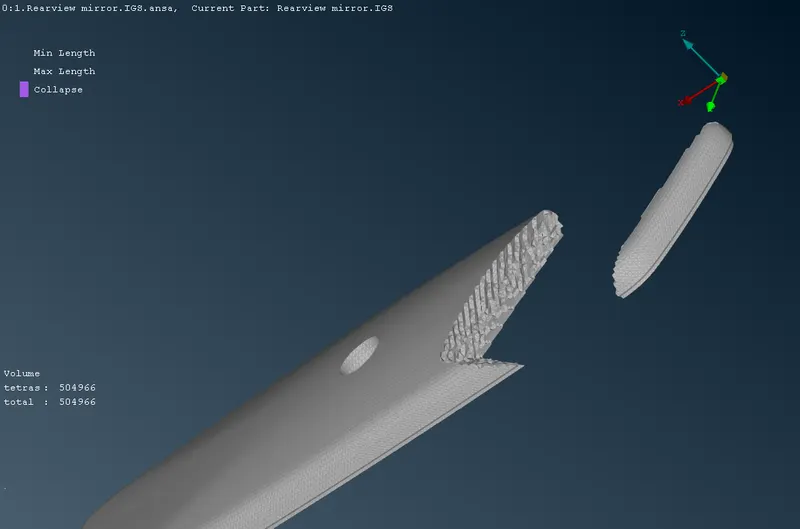

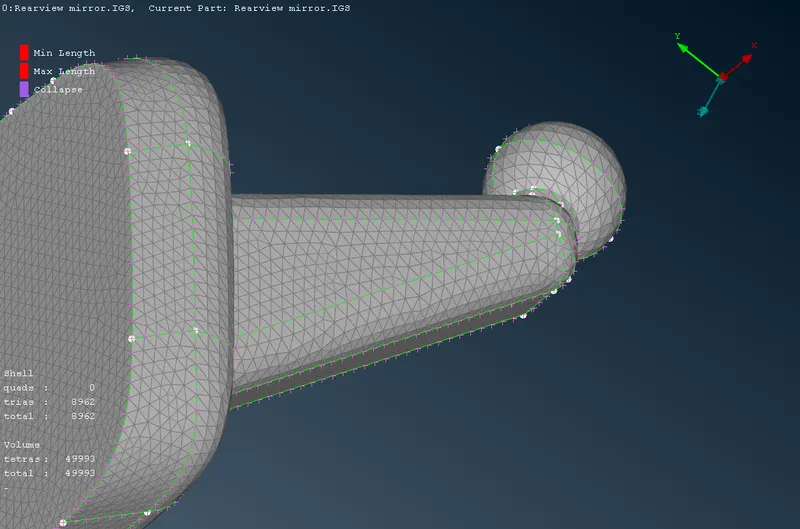

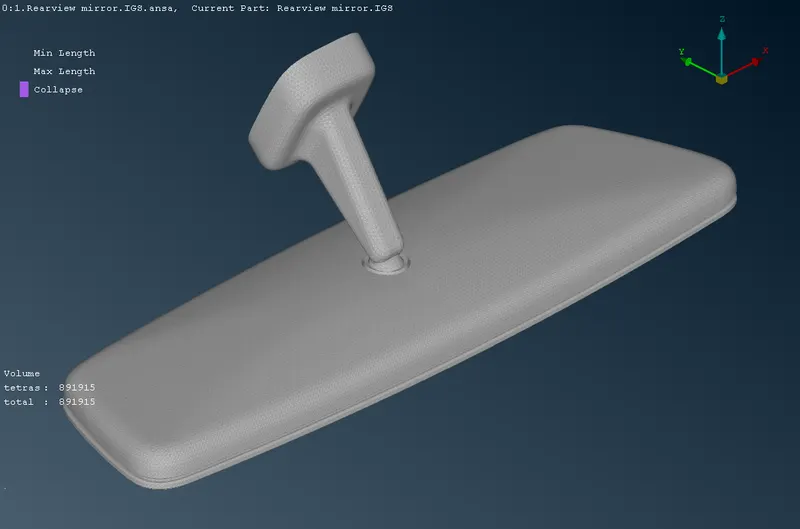

volume mesh:

Learning:

solid meshing with using ortho tria and tria elements also volume mesh in tetra fem mesh.

Conclusion:

Given geometry was done as per given quality check and no element collapse.
