Week 9-Creation of 1D Connectors Challenge

Aim: To create the mesh on the given components with given parameters and give the 1d connections.

Working procrdure: Import the model and mesh the components with quad elements.

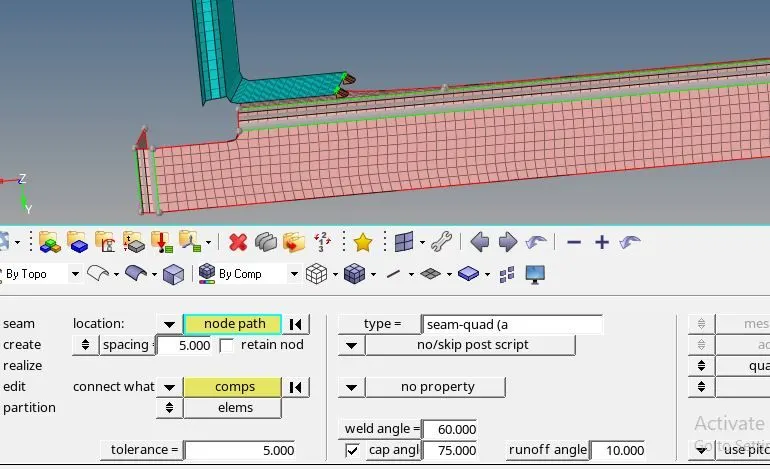

1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

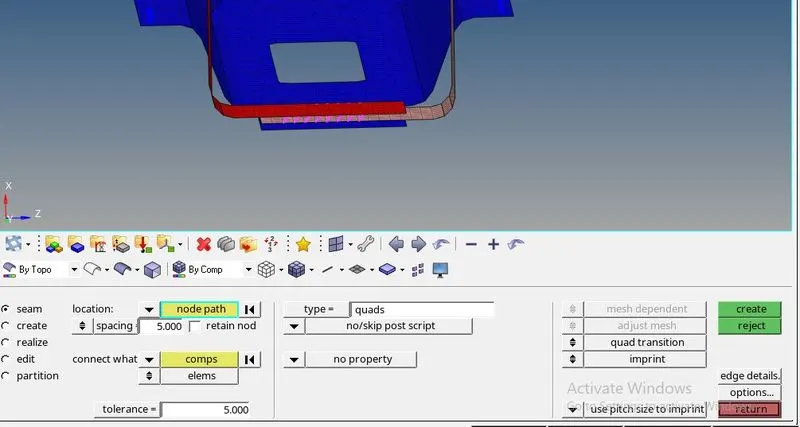

2. Left_Rail_2 & Front_truss_1:- Quad elements

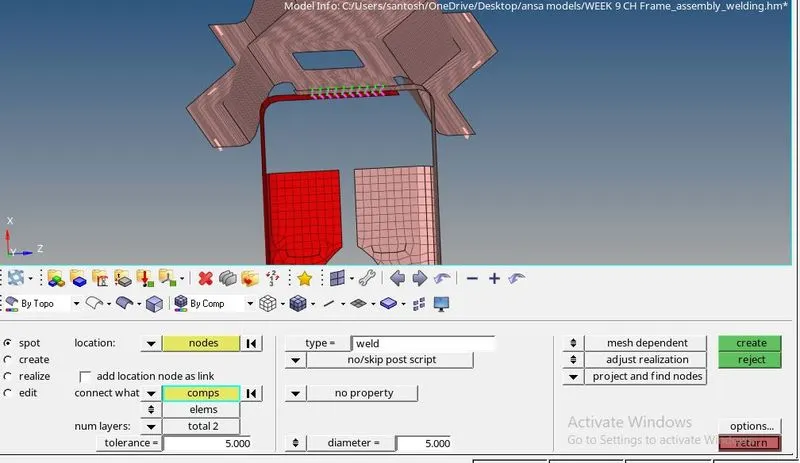

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 2 Layers and 5 mm Diameter

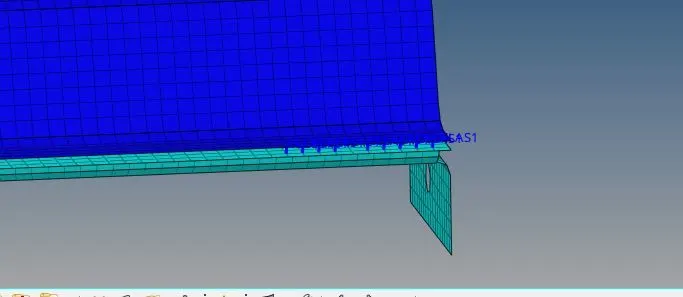

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

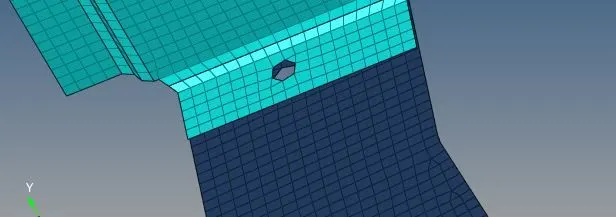

5. Rear_truss_2 & Right_Rail_2:- Bolt Connector

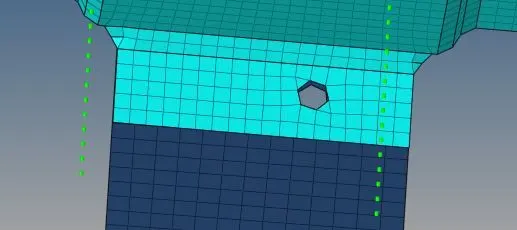

6. Rear_truss_2 & Left_Rail_2:- Bolt Connector

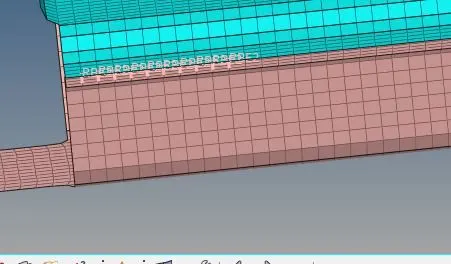

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements

8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements

9. Rest all the component left Join them with suitable connectors

Learning outcome: In this assignmet 1D element connections learnd.

Conclusion: Connection takes less time but selection of nodes and components should be right one.
