Week 9-Creation of 1D Connectors Challenge

OBJECTIVE

To attach the parts of given model using specific connectors after clean up and meshing said parts.

REQUIREMENTS

1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

2. Left_Rail_2 & Front_truss_1:- Quad elements

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 3 Layers and 5 mm Diameter

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

5. Rear_truss_2 & Right_Rail_2:- Bolt Connector

6. Rear_truss_2 & Left_Rail_2:- Bolt Connector

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements

8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements

9. Join remaining components with suitable connectors

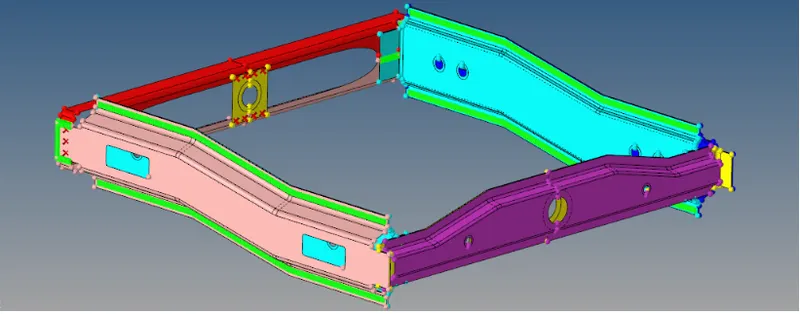

MODEL IMAGE

PROCEDURE-

The model is meshed with element size 4.

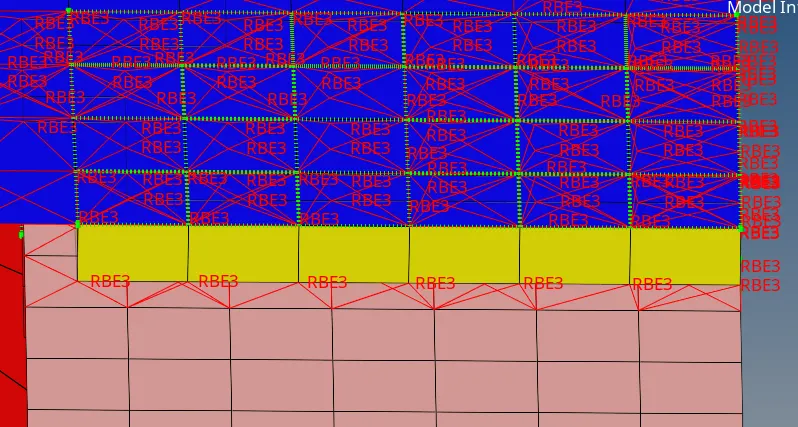

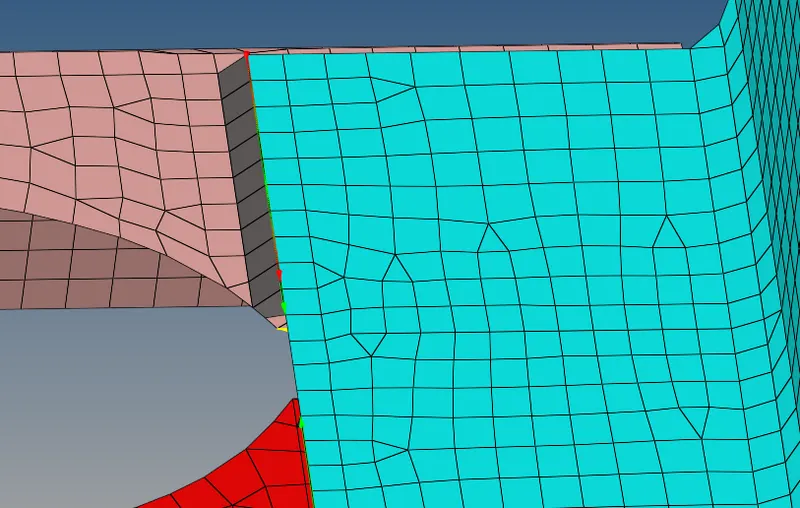

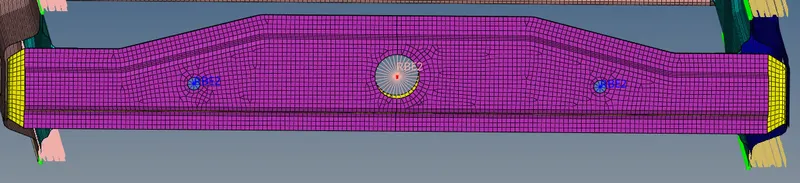

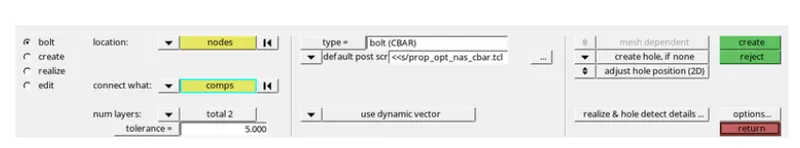

Now apply the connectors as required-

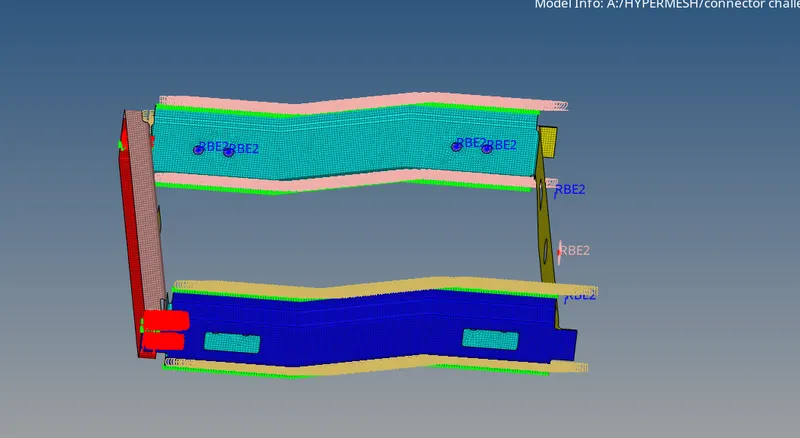

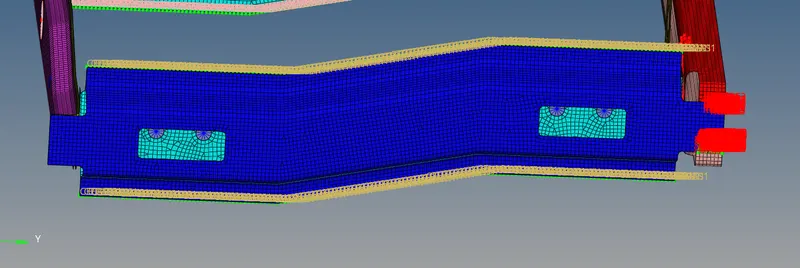

FINAL MODEL IMAGE-
