Week 9-Creation of 1D Connectors Challenge
AIM
------------------------------------------------------------------------------------------------------------------------------------------
Meshing the Geometry and provide suitable connection.
OBJECTIVE
------------------------------------------------------------------------------------------------------------------------------------------
- Mesh the geometry

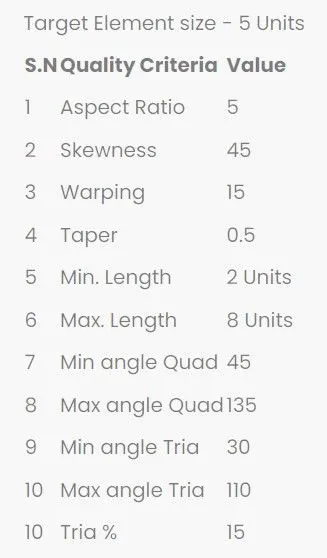

- Elements should pass all the quality criteria
- Connection should be provided
MESHING
------------------------------------------------------------------------------------------------------------------------------------------

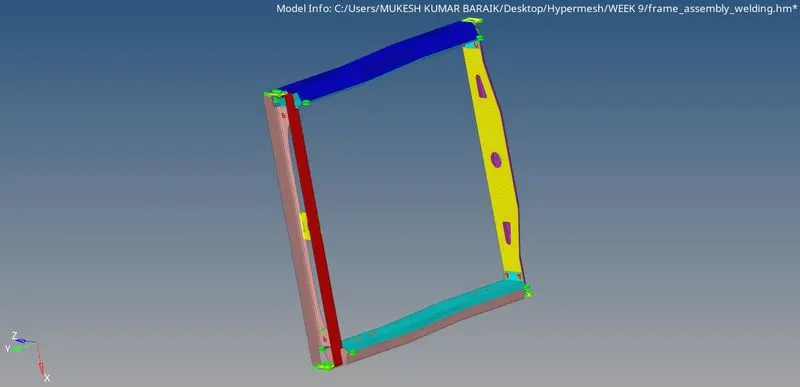

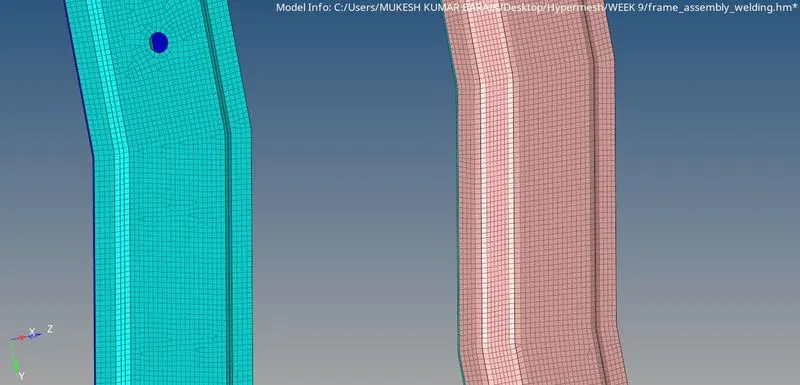

All the components are mesh with element size 5 units.

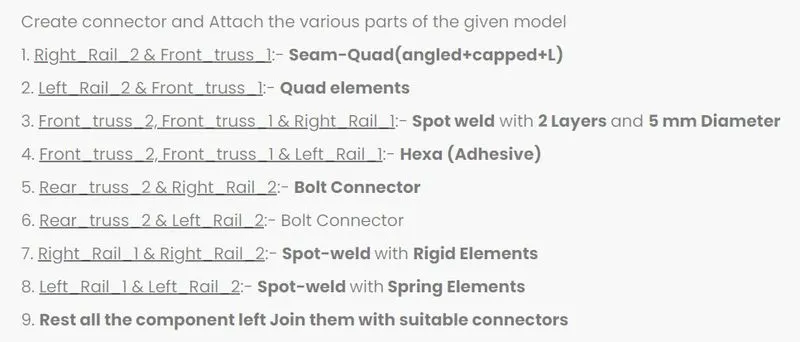

Connections
------------------------------------------------------------------------------------------------------------------------------------------

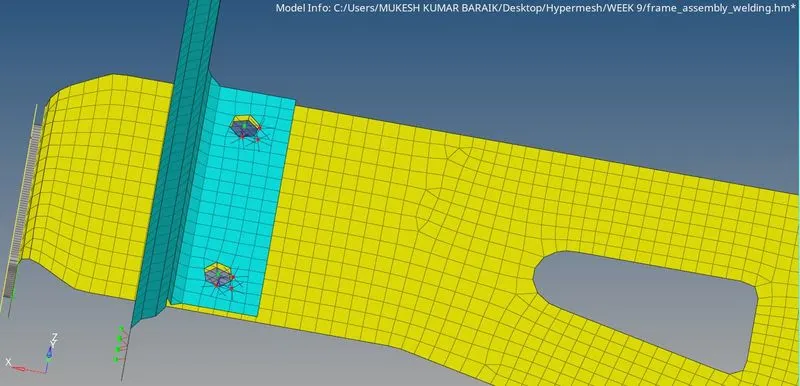

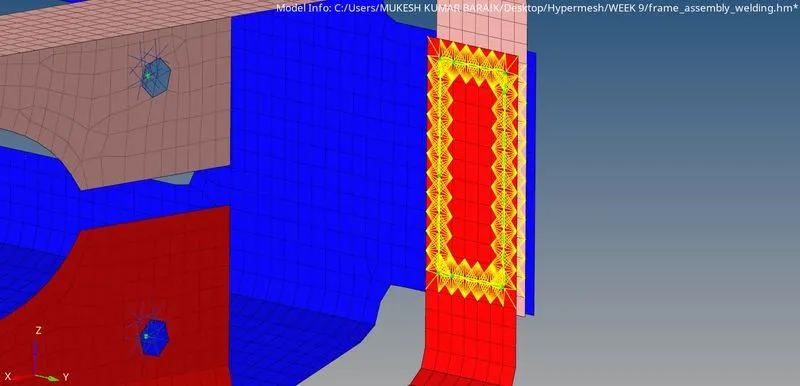

1 Bolt connection between REAR TRUSS 2 & RIGHT RAIL 2

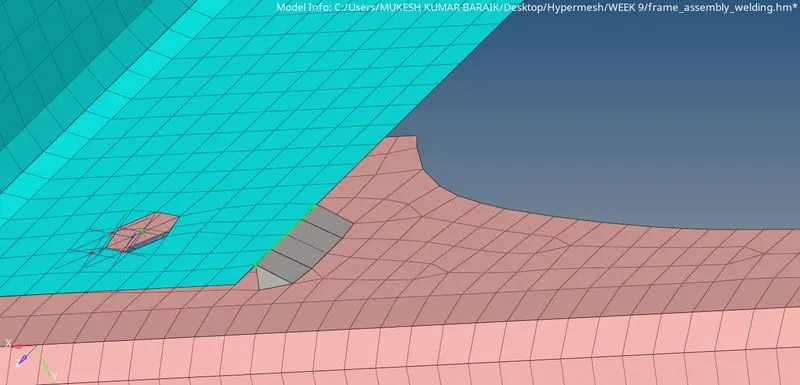

2 Seam Quad (angled+capped+L) between RIGHT RAIL 2 & FRONT TRUSS 1

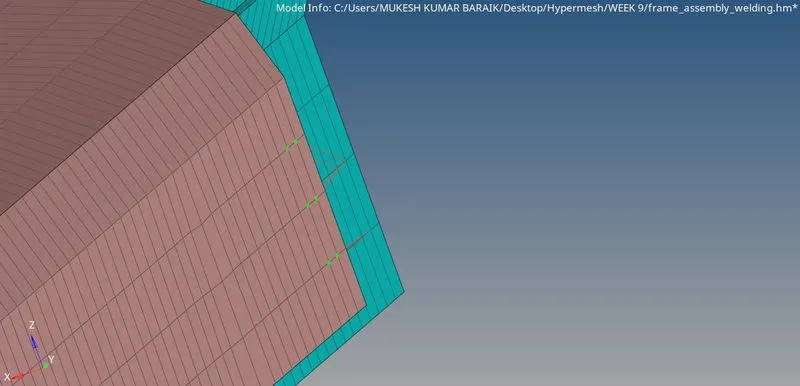

3 Spot weld between FRONT TRUSS 2 & FRONT TRUSS 1 & LEFT RAIL 1
4 Hexa (adhesive) between FRONT TRUSS 2 & FRONT TRUSS 1 & LEFT RAIL 1

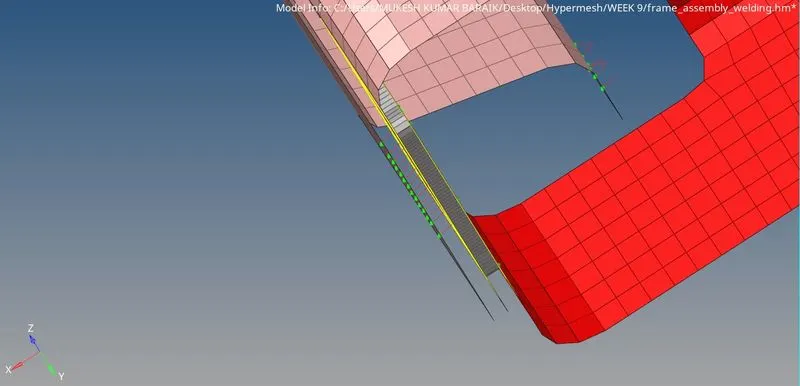

5 Spot weld with rigid elements

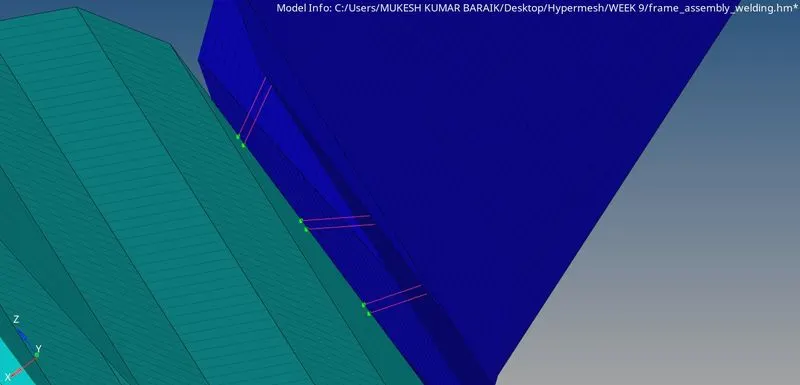

6 Spot weld with spring elements between LEFT RAIL 1 & LEFT RAIL 2
CONCLUSION
------------------------------------------------------------------------------------------------------------------------------------------
Hence all components are mesh properly and connection is provided.
