Week 9-Creation of 1D Connectors Challenge

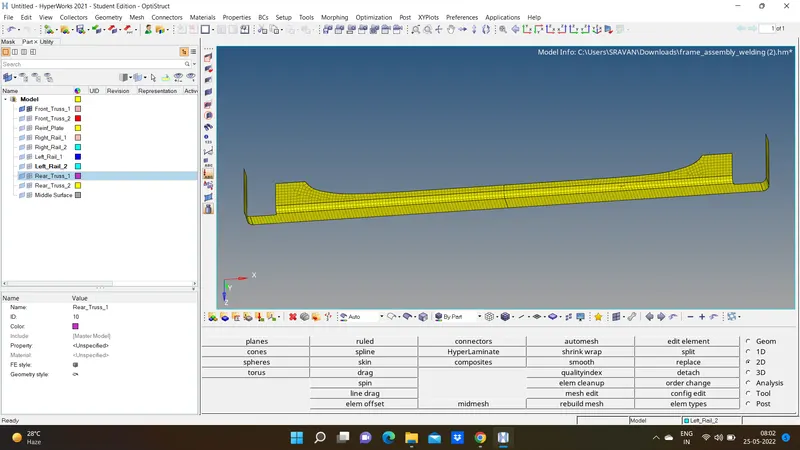

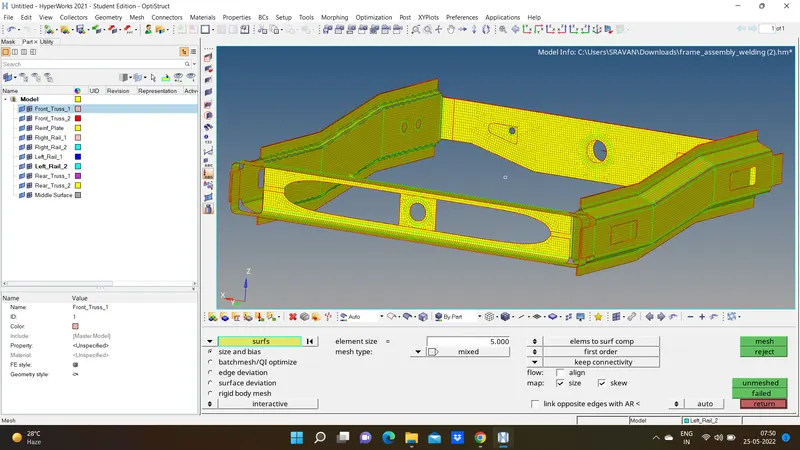

 Setting up model

front trusss

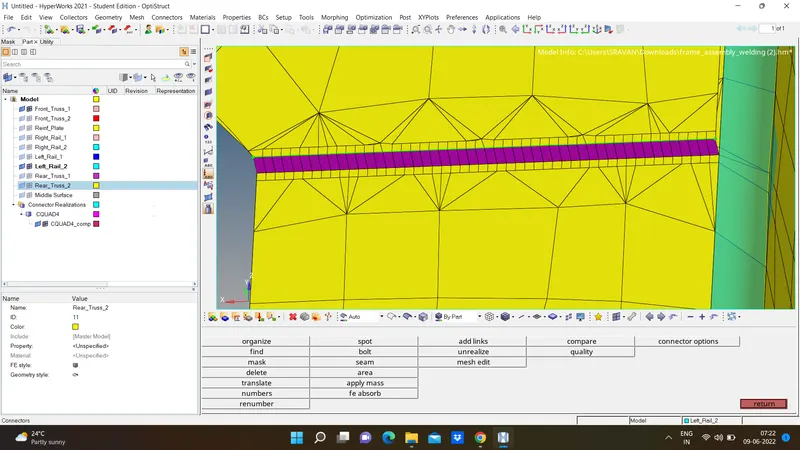

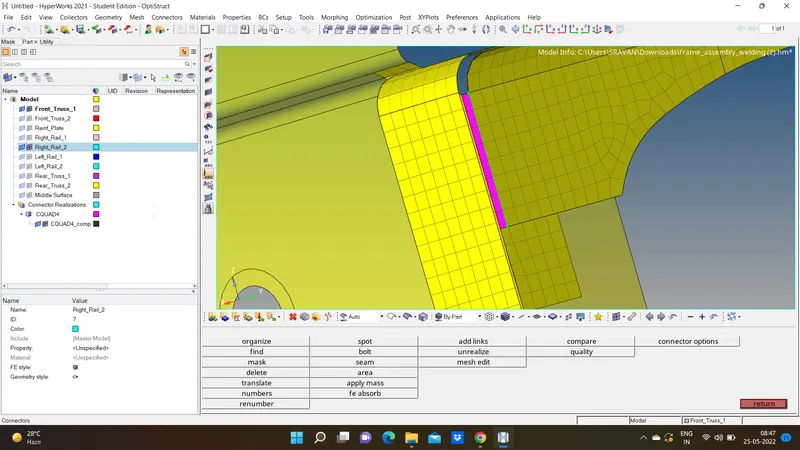

1.Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

2. Left_Rail_2 & Front_truss_1:- Quad elements

3.Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 2 Layers and 5 mm Diameter

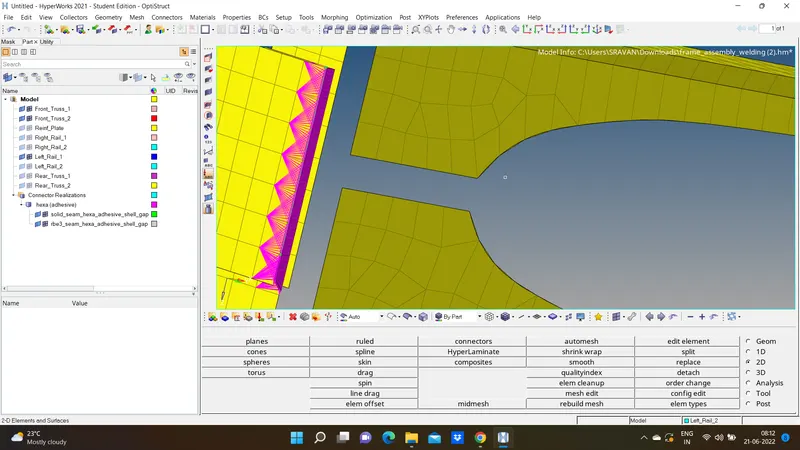

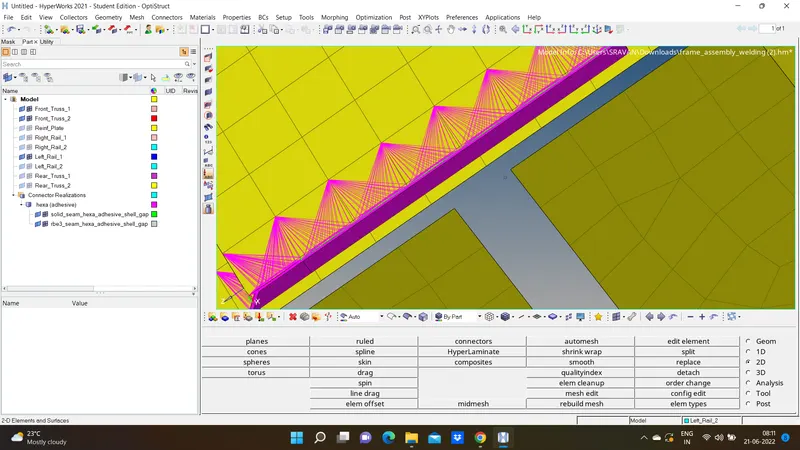

4.Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

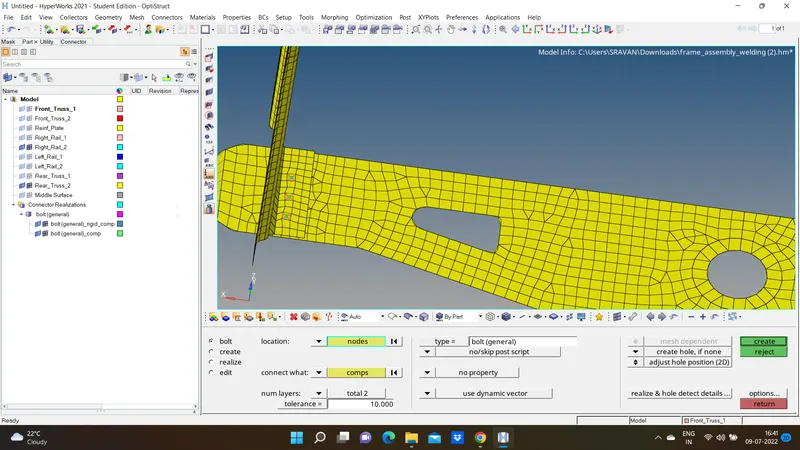

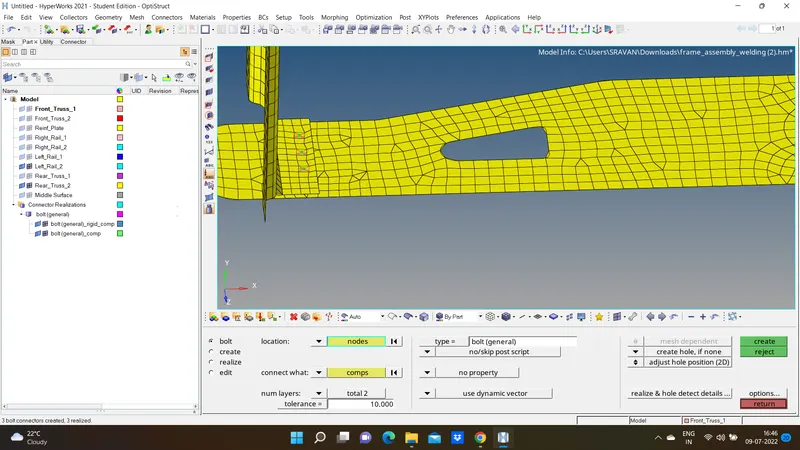

Rear_truss_2 & Right_Rail_2:- Bolt Connector

6. Rear_truss_2 & Left_Rail_2:- Bolt Connector

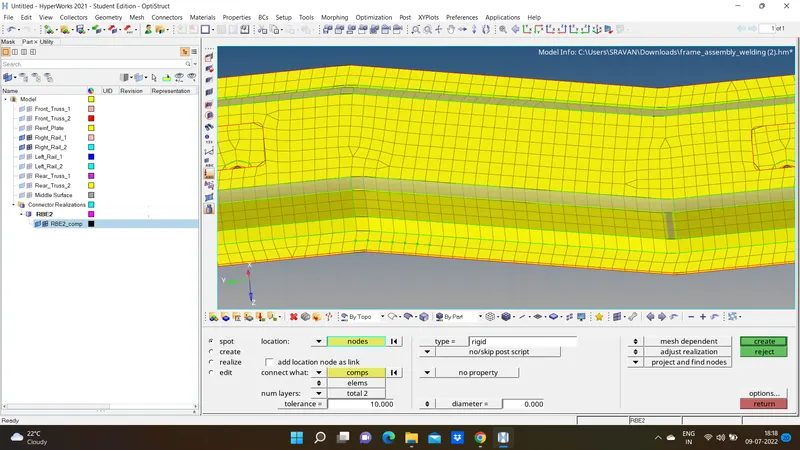

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements

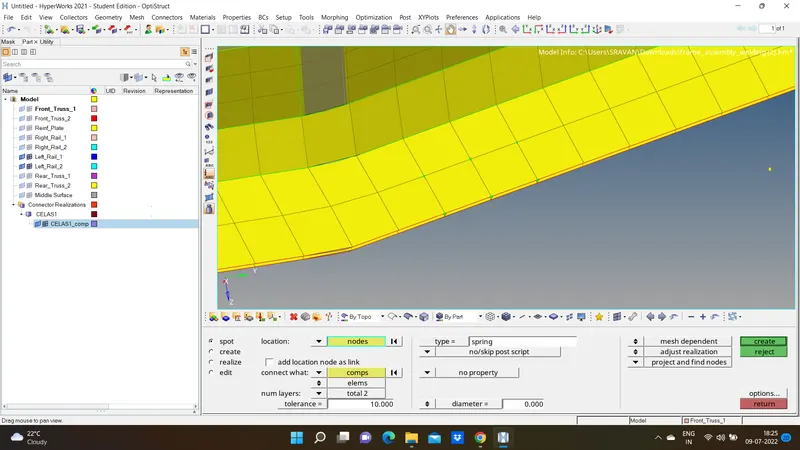

8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements
