Week 1 Stress Concentration on a Plate with hole

Case 1: Plate with Hole

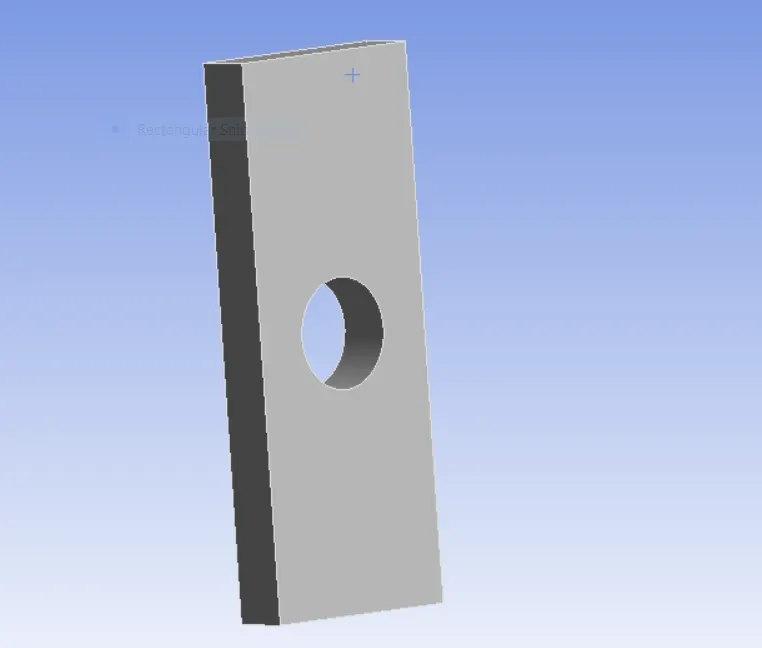

The model is created with the following dimensions,

Length=300mm
Height=120mm
Thickness=30mm
Circular Hole at the center:
Diameter=60mm

Boundary conditions:

Material : Structural Steel

Fixed end:

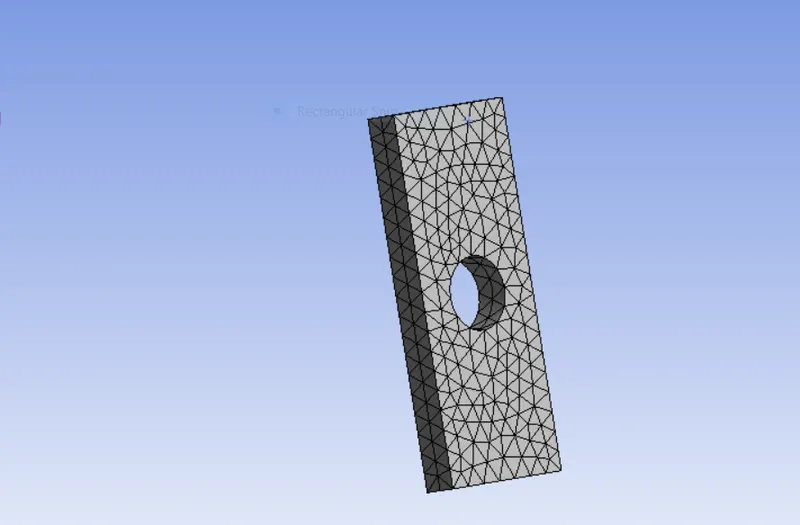

Meshing :The mesh size of 2mm

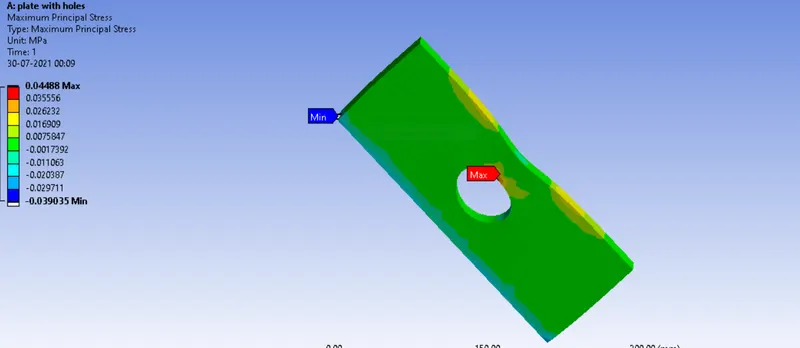

Results : The plate with hole of the Max. principle stress is 0.04488MPa

Case 2: Plate with Holes

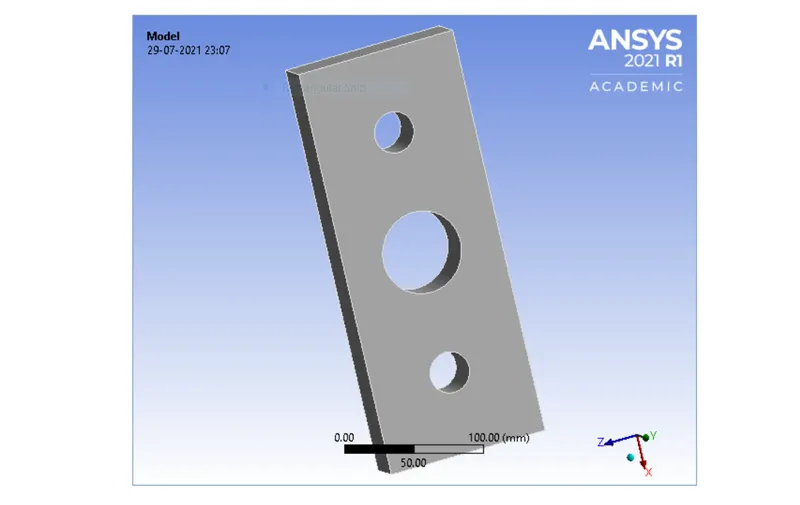

smaller holes 90mm away from the center:

Diameter=30mm
Boundary Conditions:

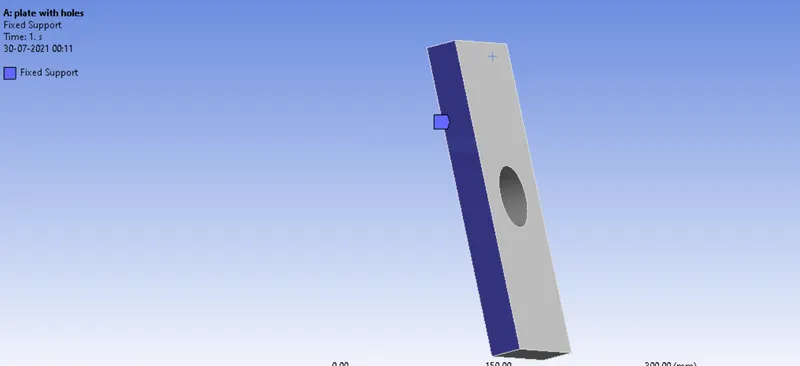

Plate fixed at left face.

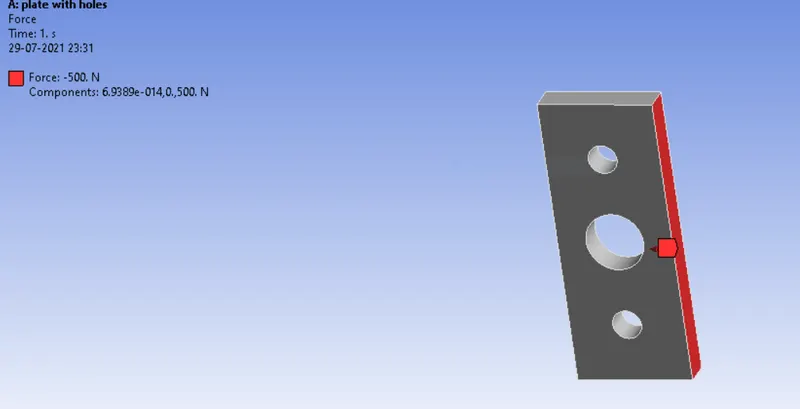

Load of 500N on the right face.

Boundary conditions:

Material : Structural Steel

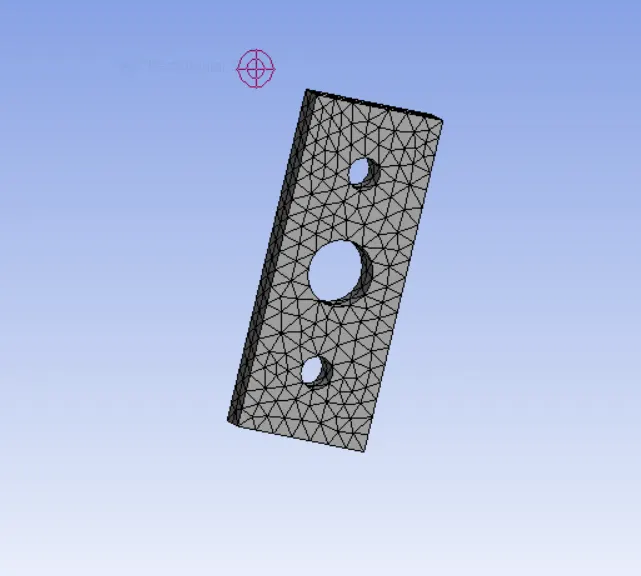

Meshing : The mesh size of 2mm

Force : apply 500N

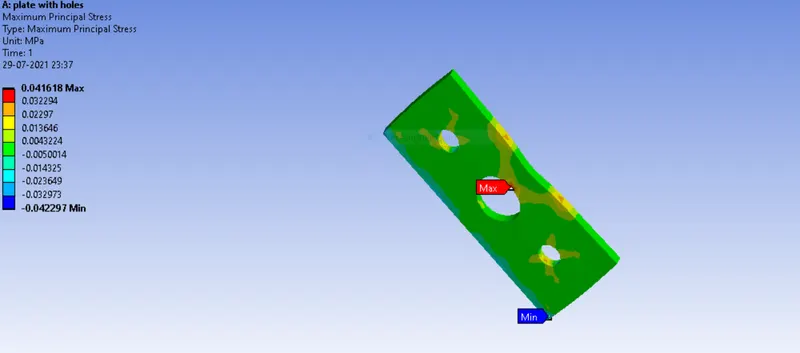

Results : The plate with holes of the Max. principle stress is 0.041618MPa
