Week 9 - Creating connection for Rear door

Aim :

Create and Apply different PIDs for different components. By using connection methods parts to be conneced

Operations Performed :

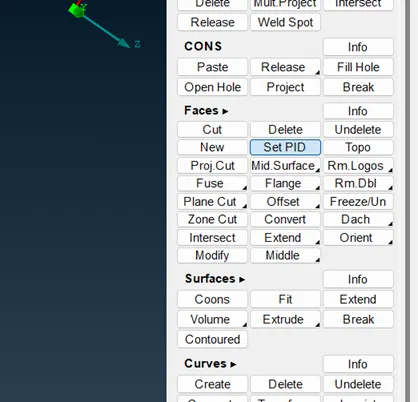

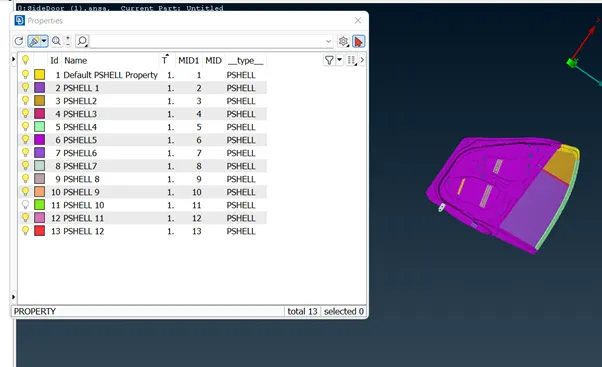

1. Creating seperate PID for connections.

2. using NASTRAN Deck RBE 2 elements are connected.

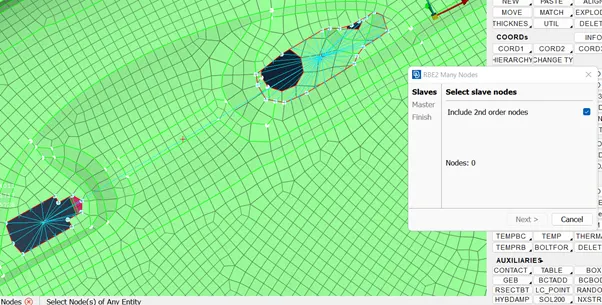

3.Using cluster RBE 2 operations two objects are connected. Many nodes and two nodes are used in RBE2.

4. For mirror connections, seam bush connection method used.

Images Captured :

Result :

Using above techniques parts are connected. It will be ready for next simulation process.
