Week 9 - Creating connection for Rear door

Aim:Creating connection for Rear door

Solution:

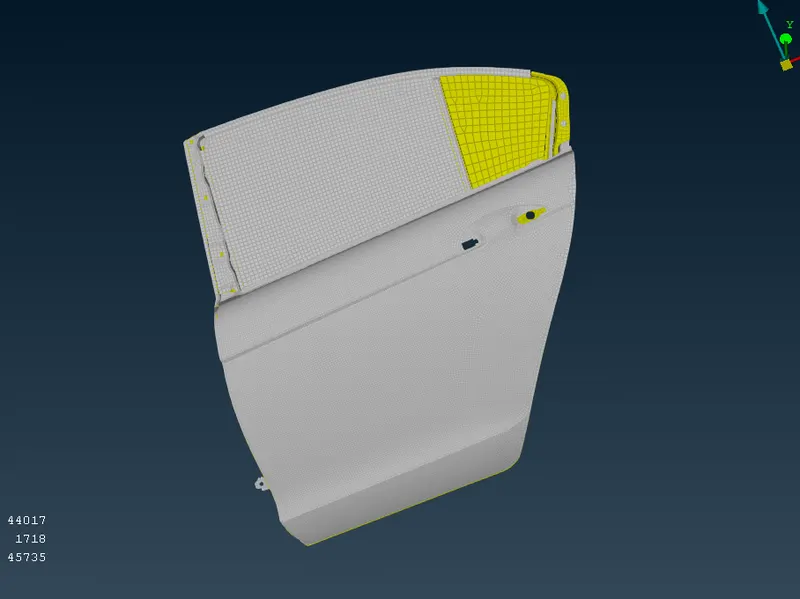

first Import the File

Now,Create suitable Connections

In this I have made Rbe2 elements for Bolt because it will be fixed connection.

Go to Rbe2- select many nodes- then select nodes - then click on next- Rbe2 is done.

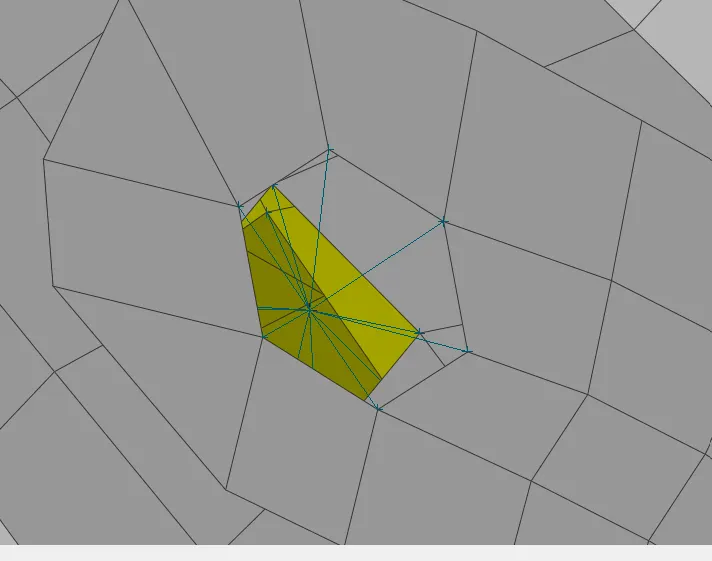

Some Images of Rbe2 elements

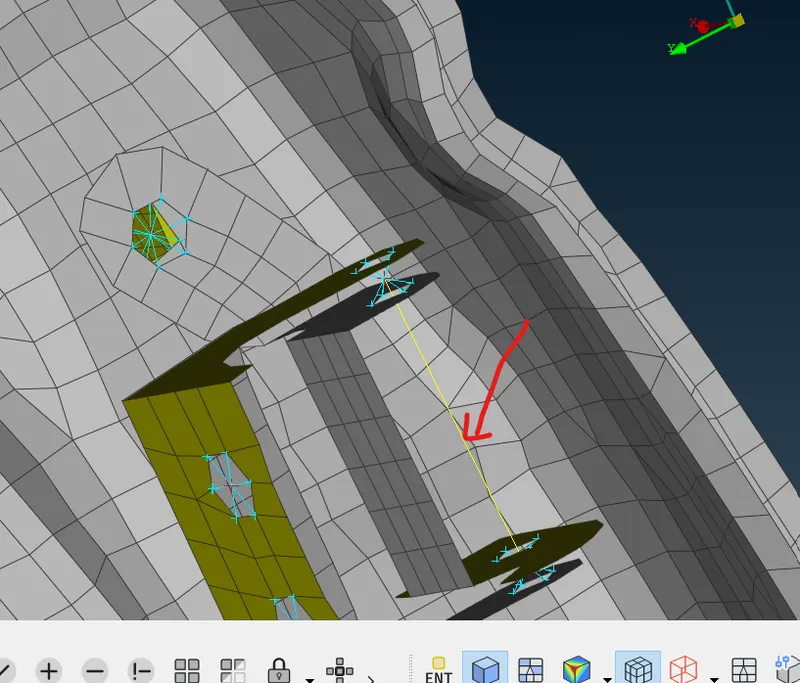

Red Marked element is hinge joint and it can move freely in Z-direction

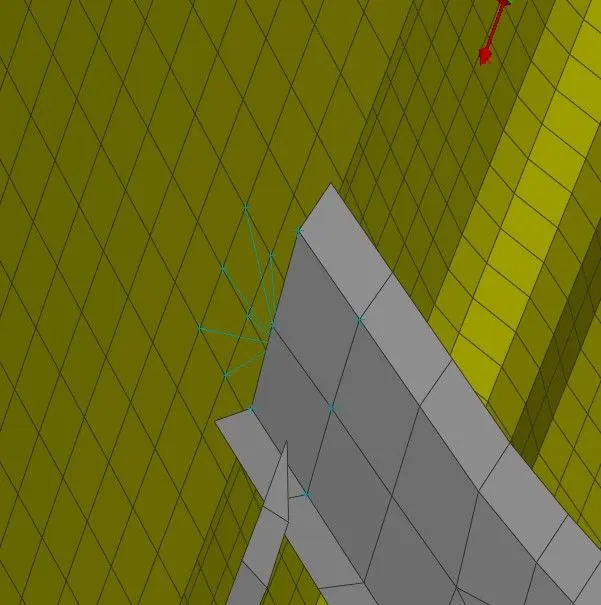

Rbe3 Elements

here I have used Rbe3 because it is fixed

Go to Rbe3 to select elements and then click on next.

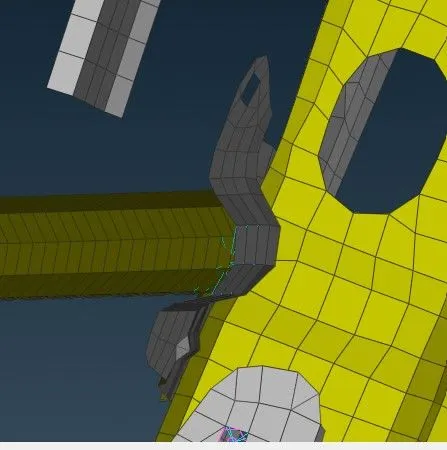

Rbe3 with move nodes

In this I have first move nodes upto glass because it will be fixed to glass and help it to go Up and Down.

then I have select Rbe3 and made the fixed connection.

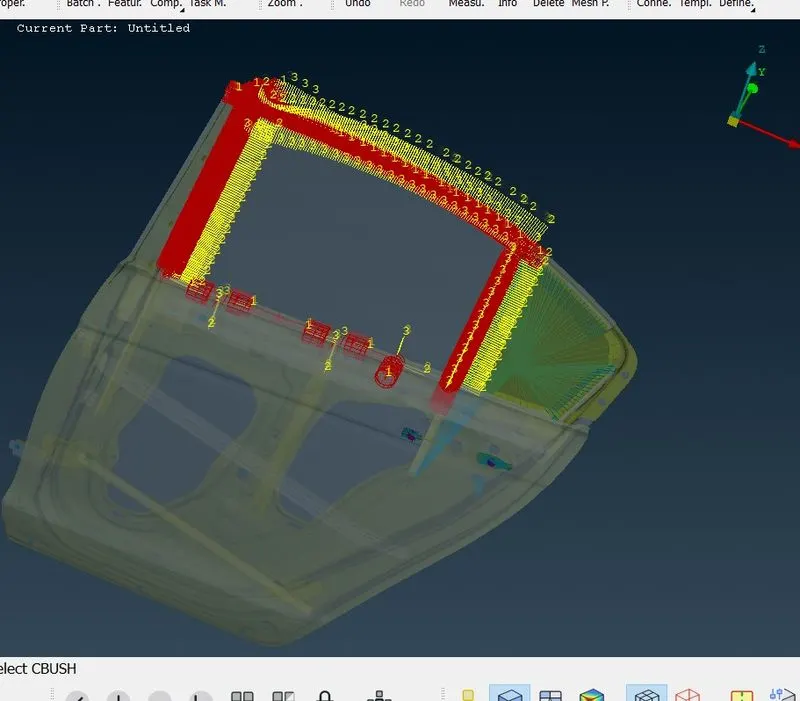

Cbush connection

I have used Cbush connection for moving window because glass is Brittle.

we use weather strips around window glass so it will cushion it.

so, for Cbush connection

first make curve by using Feat2curve from Classic mesh

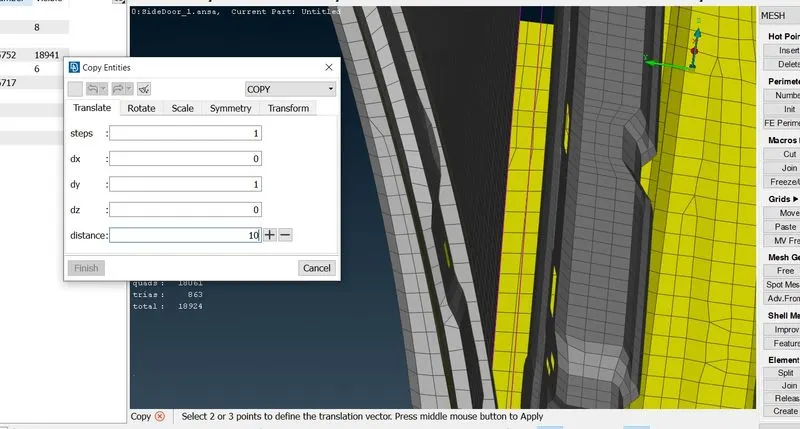

make curve on both sides of glass by 10 mm gap on each side by using copy option from Transform.

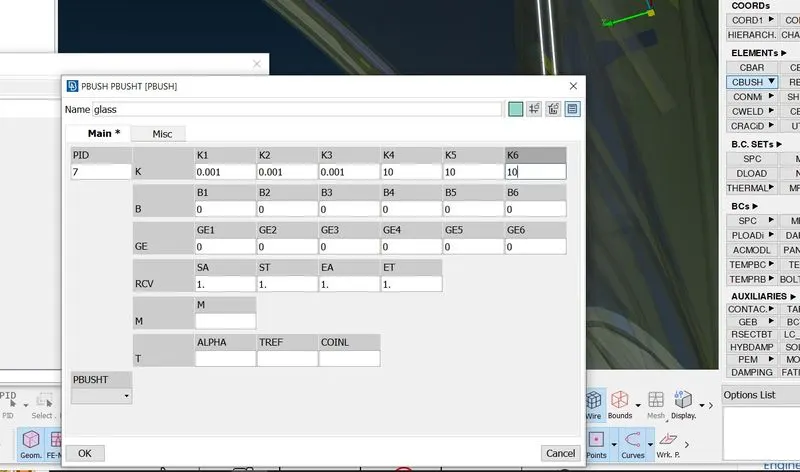

then go to nastran deck and go to cbush and select the curve and then give stiffness value and then make pbush property and then click ok.

Conclusion

Connections are Done.
