Assignment 1-2D Meshing Challenge
REPORT
Objective:
1. Carry out geometry clean-up operation on the given models.
2. Extract mid surface.
3. Clean mid-surface geometry.
4. Ignore holes less than diameter 5mm.
5. Create a 2D mesh with target length 5mm, min 3.5mm max 7mm.
6. Assign proper thickness, by creating a generic property.
7. Save in .hm format.
Procedure
Part 1:
Given model is imported to Hyperworks using import model option.

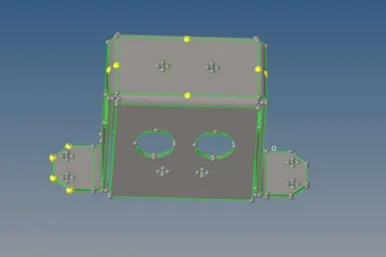

Step 1: Topo view mode
The given model is viewed in top mode by pressing f11 shortcut
Step 2: Geometry clean-up

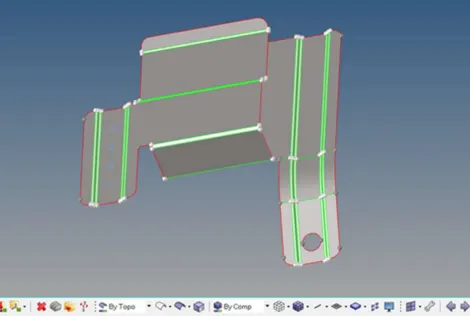

The surface irregularities in the given model should be cleared before the mid surface of the model is obtained. The geometric clean-up of the imported model is done using the following tools: For missing surfaces, the filler surf option is used for disconnected edges, the toggle edge option under the quick edit tab..And also increase the tolerance valule .
Step 3: Extraction of mid surface
In the next step extract the mid-surface. The mid-surface is available in the geometry panel.After opening the mid-surface tool, the surfaces should be selected and the option used to extract the mid surface is offset-planes-sweeps. And the mid-surface panel the extracted
mid-surface.After that find the surface fillet and reduce element size error.some of the holes are of small diameter which is less than 5 mm.we can directly ignore them.
Step 4: Generating mesh

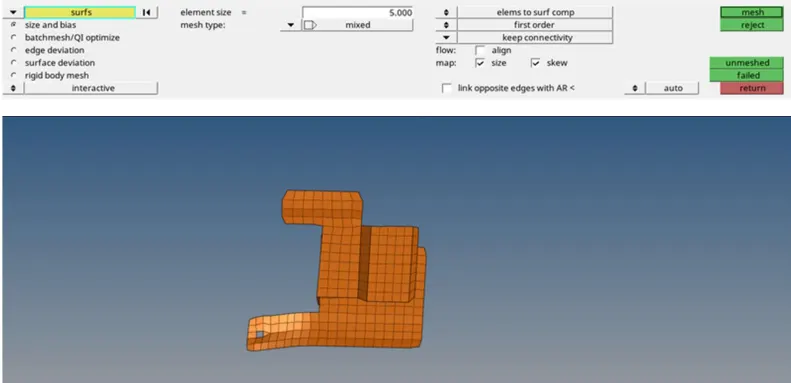

After geometry clean up, the next step is to generate the mesh. Before generating the mesh,there are some prerequisites. They are filling up the criteria editor. The meshing is done byusing auto mesh tool under the 2-D tab with elements size as 5 and element type as mixed.
The meshing of each component is done surface wise from one small surface. Similarly,meshing is progressed into adjacent attached surfaces to mesh the whole model.
Step 5: Quality index
Using the quality index tool, all components' mesh elements are verified. The elements thado not meet the required quality requirements have yellow and red markings. To optimise the infringing elements, optimization methods like element optimise and position node inside the quality index are applied. The Elem cleaning tool is used for elements that, after optimization using the quality index tool, are not within the criterion range. The auto mesh tool is used to
Re-mesh the non-optimized elements in cases when the quality index and Elem cleaning tools were unable to correct the violating elements. If any further infringing elements are found, the elements of all components are examined. The procedures above are repeated until all
items meet the specified quality standards, if they are present.
Model 2
Given model is imported to Hyperworks using import model option.
Step 1: Topo view mode
To view the surface edges the given model is viewed in topo mode.
Step 2: Geometry clean-up

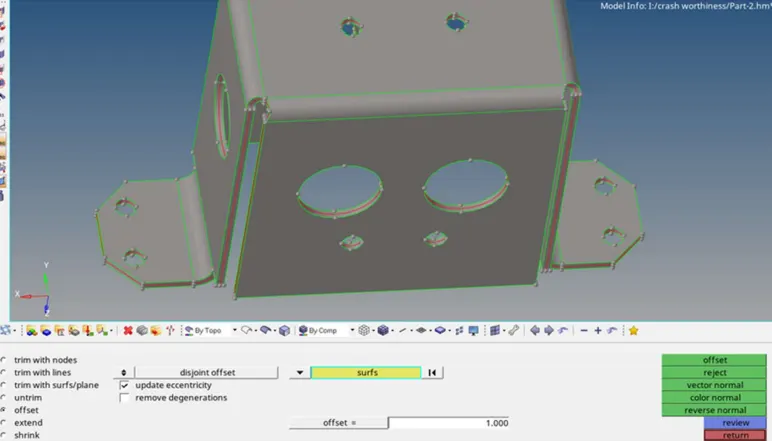

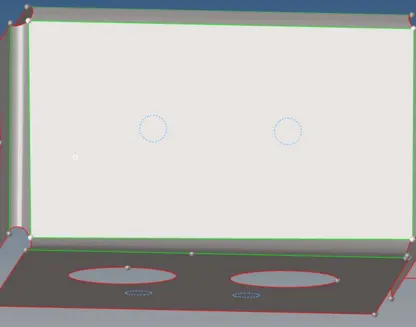

Geometry correction was required on Part 2 when viewed under topo mode .The Mid-surface is extracted using the Surface-edit tool under the geometry tab. The Mid surface is used to obtain the mid-surface with an offset option.Mid surface generated is stored under an initial collector. we need to move to another component
Step 3: Extraction of mid surface
some of the region violates quality criteria.This can be
overcome by replacing those points.
The holes with a diameter less than 5mm can be ignored.
Step 4: Generating mesh

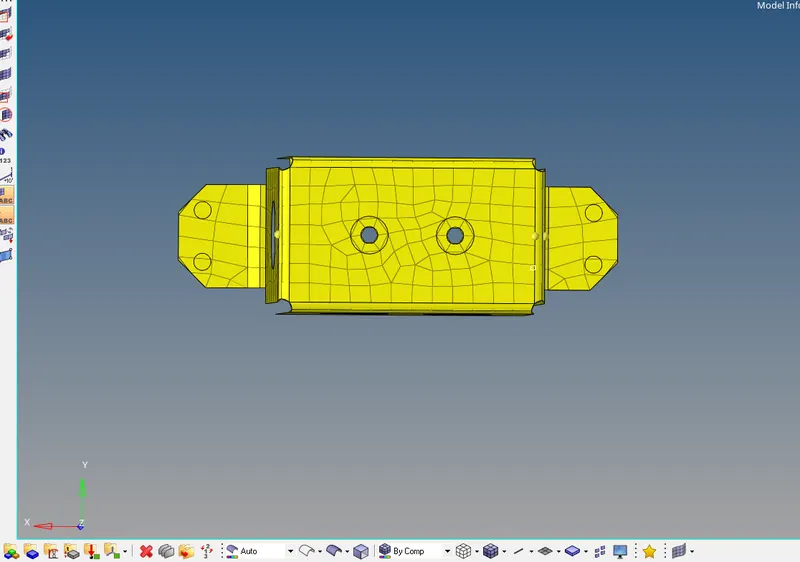

In order to mesh the component faster, only some surfaces have meshed. For the remaining surfaces, the elements are reflected. The reflect option is available in the "Tool" panel .The elements to be reflected are duplicated, the direction to which the elements should be
reflected(Y-axis) & the base point is selected at the center. After reflecting the elements on one side, the component
The quality crieteria are verified in order to make sure that the elements falling are zeor.
Part 3

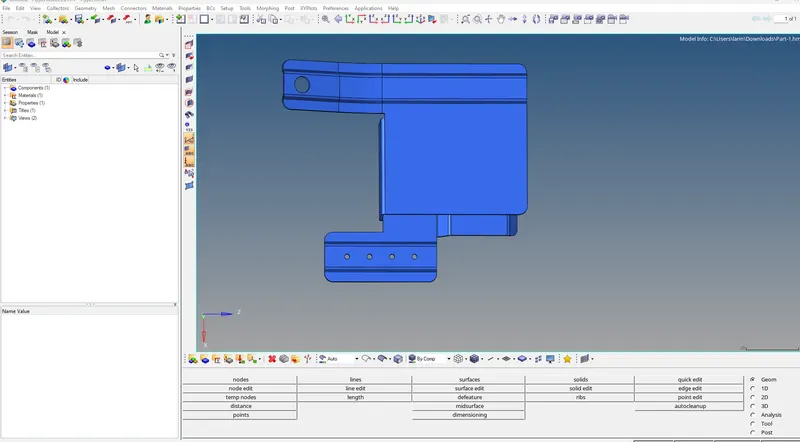

Given model is imported to Hyperworks using import model option.

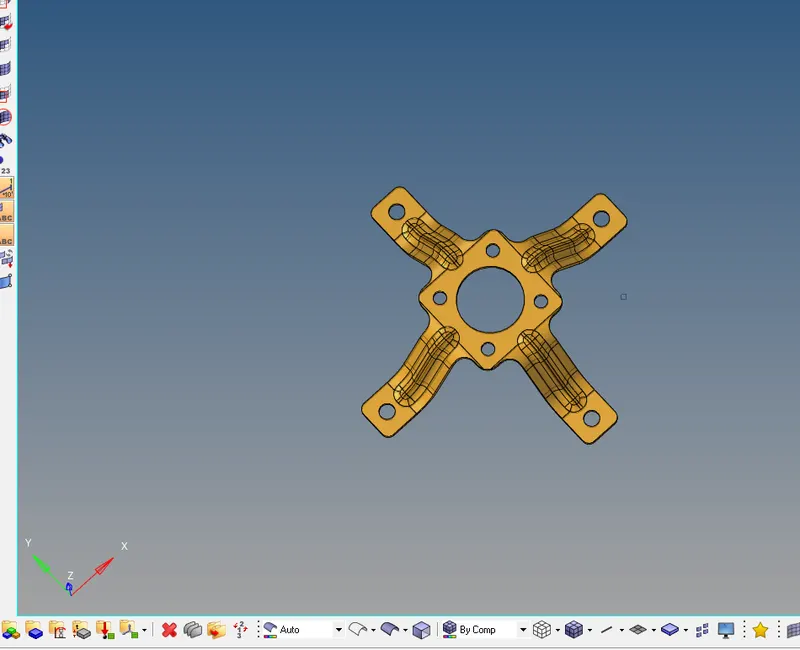

Step 1: Topo mode view
The given model is viewed in topo mode to view the surface edges.
Step 2: Geometry clean-up
The model part-3 when viewed under topo mode does not have any sort of geometrical error hence no geometry correction was required.
Step 3: Extraction of mid surface
The Mid-surface of the closed solid is extracted using the Surface-edit tool under the Geometry tab.The Mid surface is used to obtain the mid-surface with an offset option.Midsurface generated is stored under an initial collector. we need to move to another component

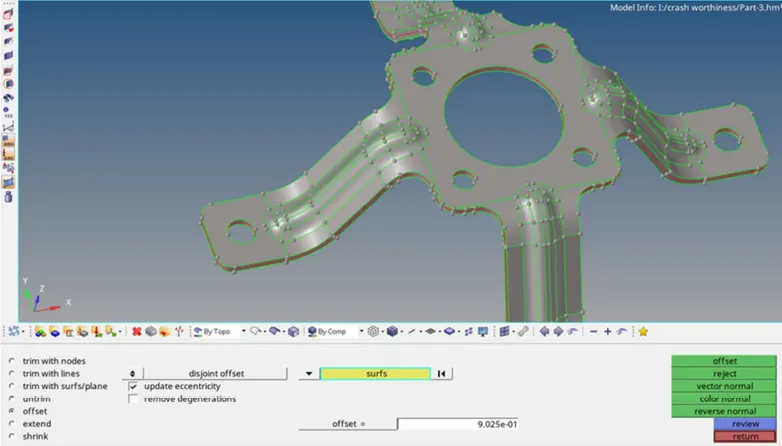

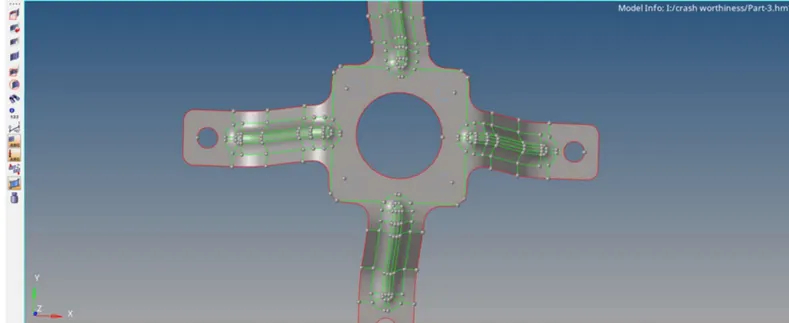

The extracted mid-surface is shown below placed exactly in the middle of the given model

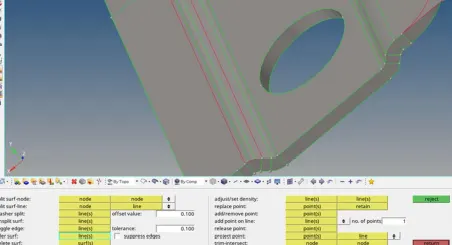

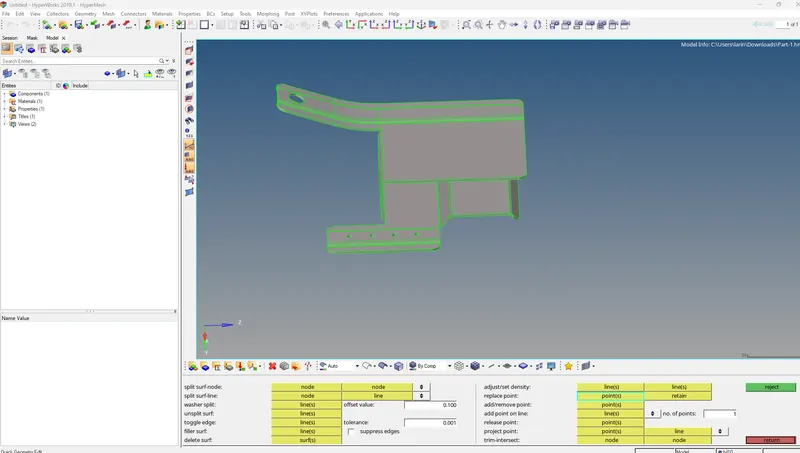

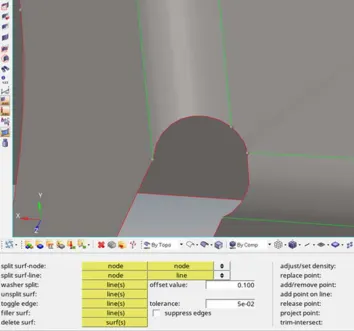

Geometry clean-up is done with the help of the auto cleanup tool under the Geometry tab. Some of the edges are manually suppressed using the toggle edge option .Larger surfaces are further divided using a split surf-node/split surf-line option under the quick edit panel to obtain a proper mesh.
Holes up to 5mm diameter is avoided

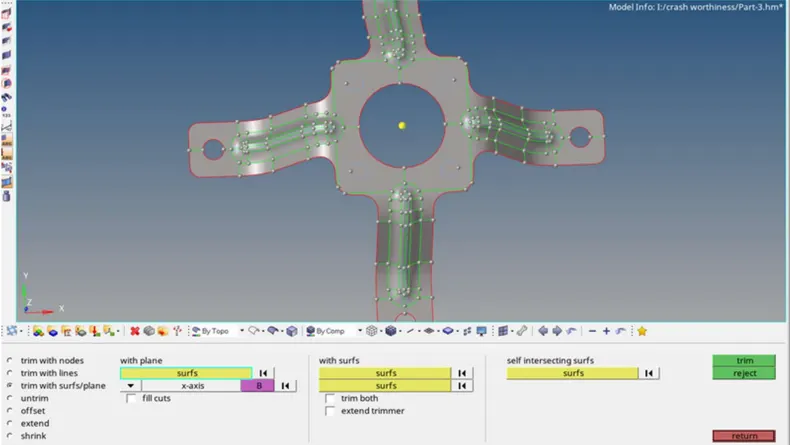

The next step is to form a midline between two surfaces with trim with surface/plane options on both sides
Step 4: Generating mesh

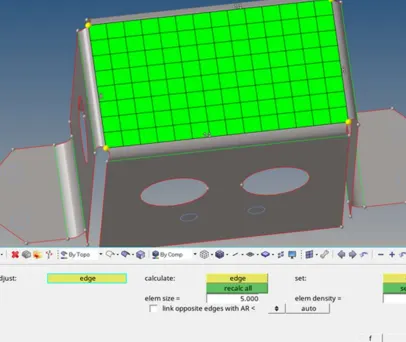

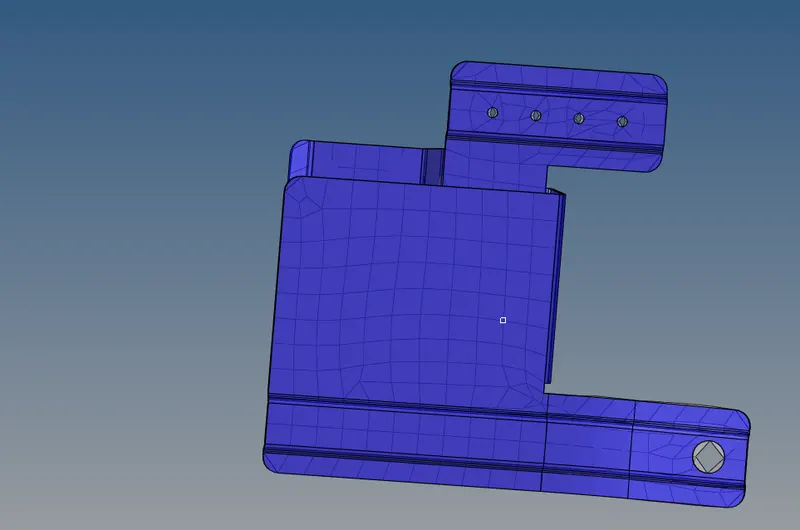

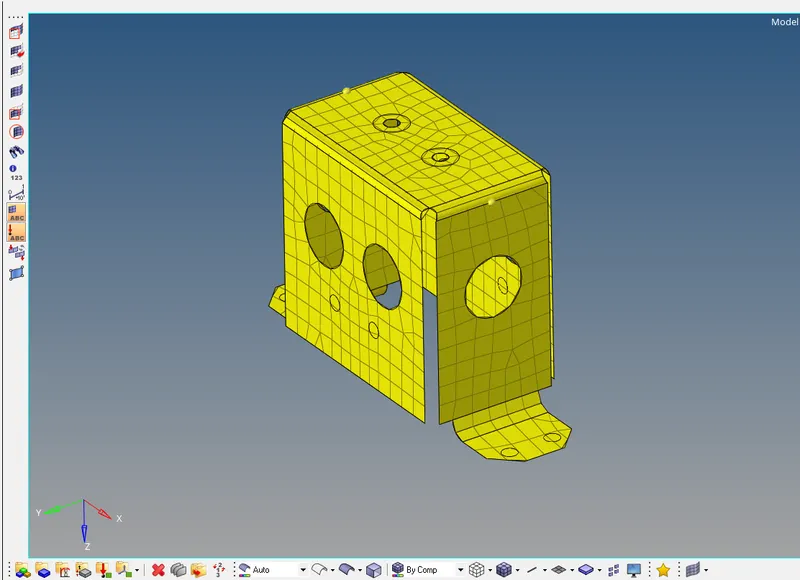

The next step is to generate the mesh. In order to mesh faster with proper mesh flow, only some surfaces have meshed.

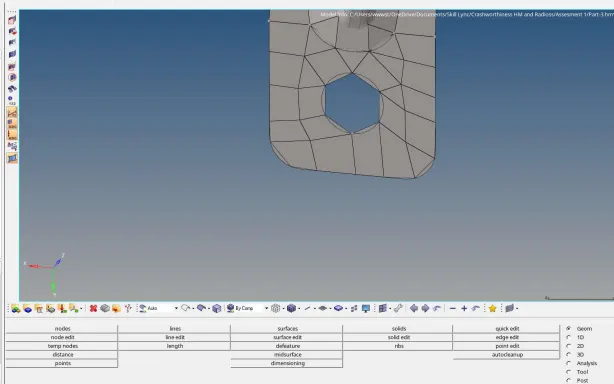

The mesh near the holes is to be rotated in order to obtain the proper mesh flow
Quality of the mesh

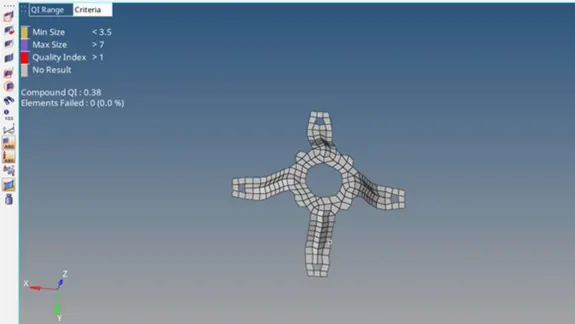

The meshed elements of all components are checked using the quality index tool.The elements violating the specified quality criteria are marked yellow and red.
Cleanup tools like element optimize and place node within the quality index is used to optimize the violating elements.
For elements that are not optimized to within the criteria range with the quality index tool, the Elem cleanup tool is used.
In situations where quality index and elem cleanup tools failed to rectify the violating elements, the auto mesh tool is used to remesh the non-optimized elements. The elements of all components are checked if any more violating elements are present.If present, the above steps are repeated until all elements fall under the given quality criteria.
The next step is to check for free edges.

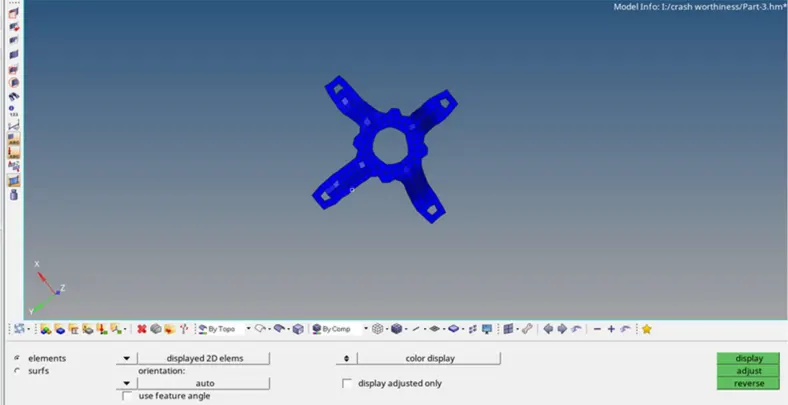

Then check for the normals. The normals for the given component with the color is shown
