Week 9 - Creating connection for Rear door

AIM

To create connection in the given model for nvh analysis

PROCEDURE

import the given model

set different pids to make a connections

connection

BODY OF THE CONTENT

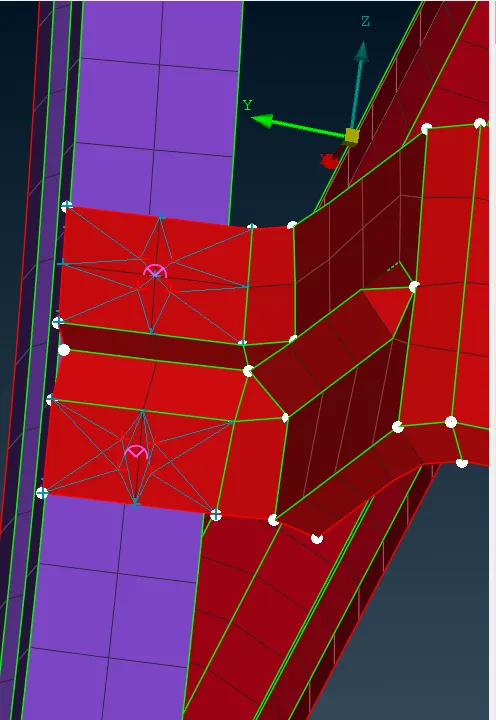

spot weld

in order to do the spot weld

make 3d points-convert to spot weld points-goto connection manager-set p1 and p2-put to rbe3-hexa-rbe3-create psolid -realize

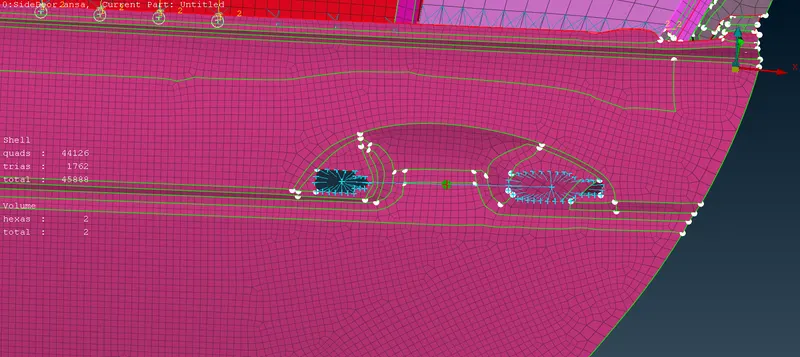

HANDLE BAR CONNECTION

in order to do the handle bar connection,do the rbe2 connection on both holes and make connection on the both rbe2 with rbe2 many nodes option and provide mass on the rbe2 connection which rbe2 connect the other two rbe2

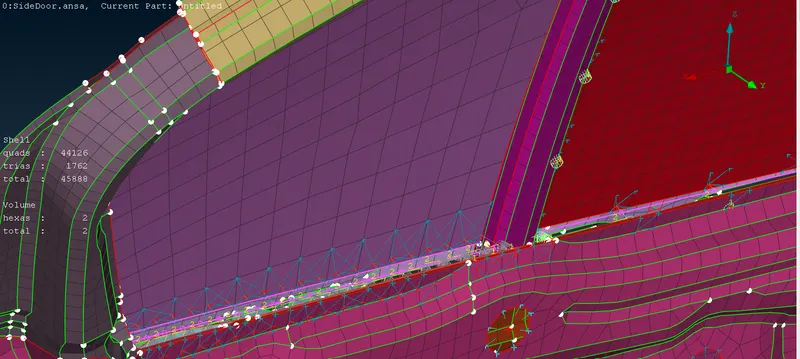

SEAM CONNECTION

in order to do seam connection,make a curve -convert to seam line-set p1 and p2-over lap- shell-realize

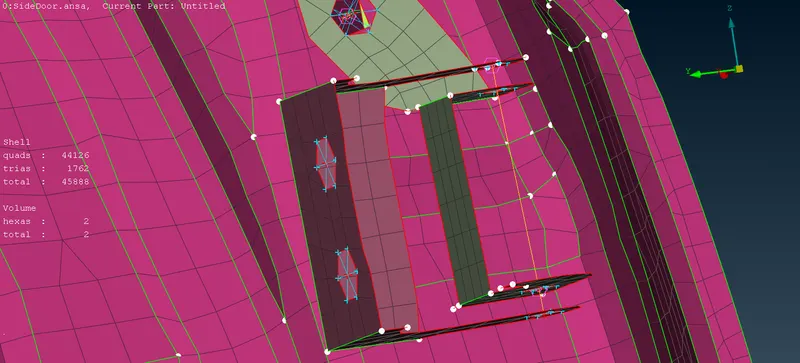

HINGE CONNECTION

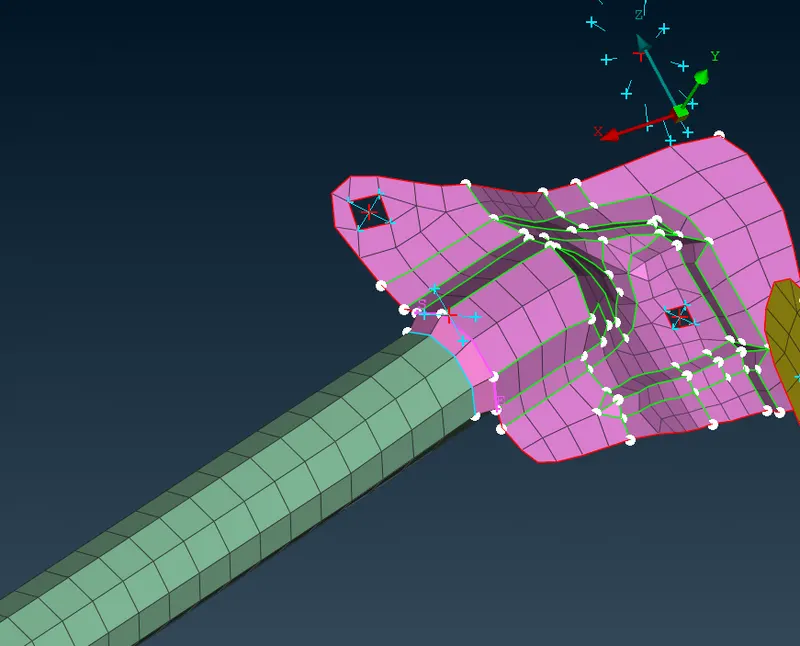

C-BUSH CONNECTION

in order to do the c-bush connetion,make a curve-convert to spot line -set p1 and p2-rbe3 c-bush -rbe3 cbush-realize
