Week 9 - Challenge 3 - Bumper

Project Objective: I have Designed the Plastic bumper part thickness Creation of the B surface along with the tooling axis and draft analysis.

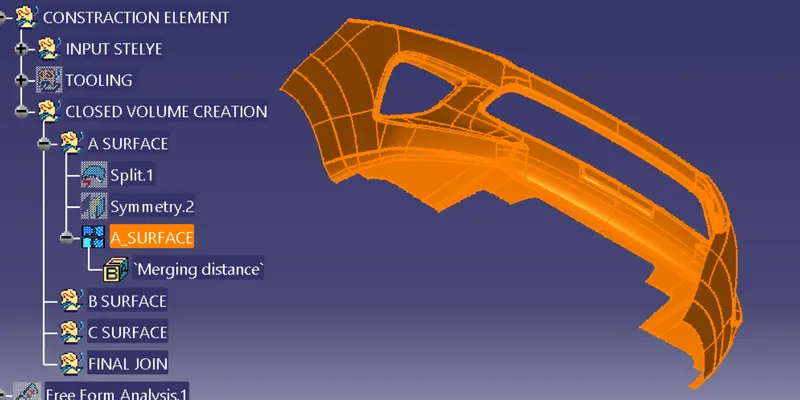

1. Work on A surface:

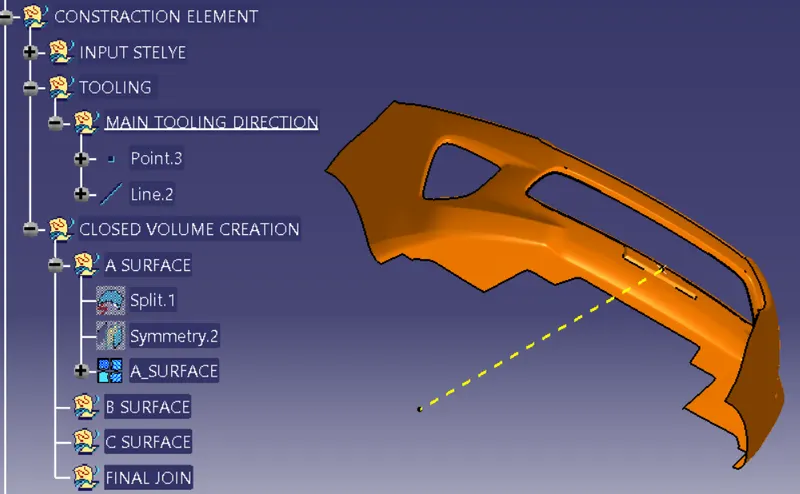

01.B. Tooling direction of A surface:

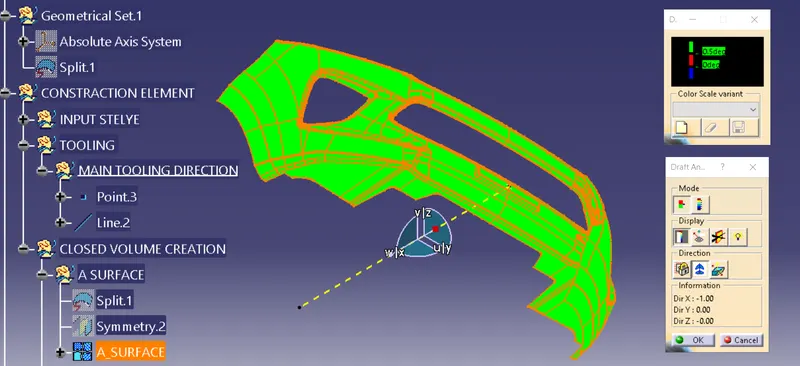

01.C. Draft analysis of A surface:

02. Working on B surface Operation:

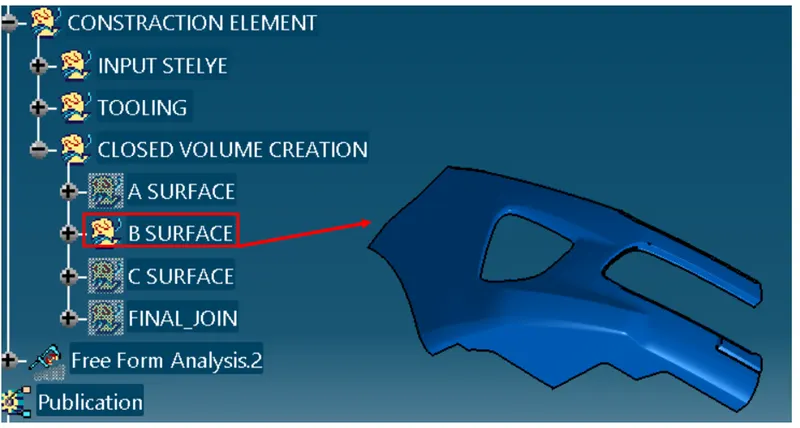

2A. Final B Surface:

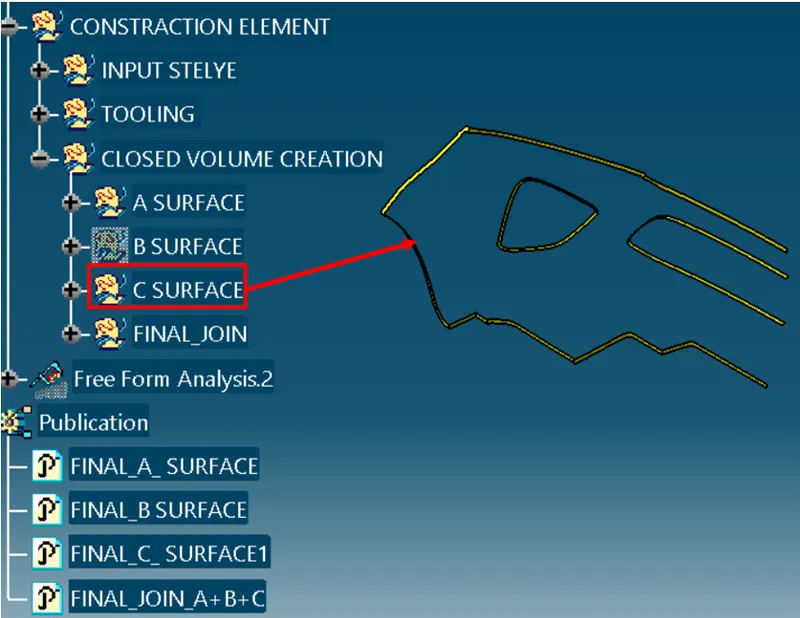

03. Working on C surface Operation:

3A. Final C Surface:

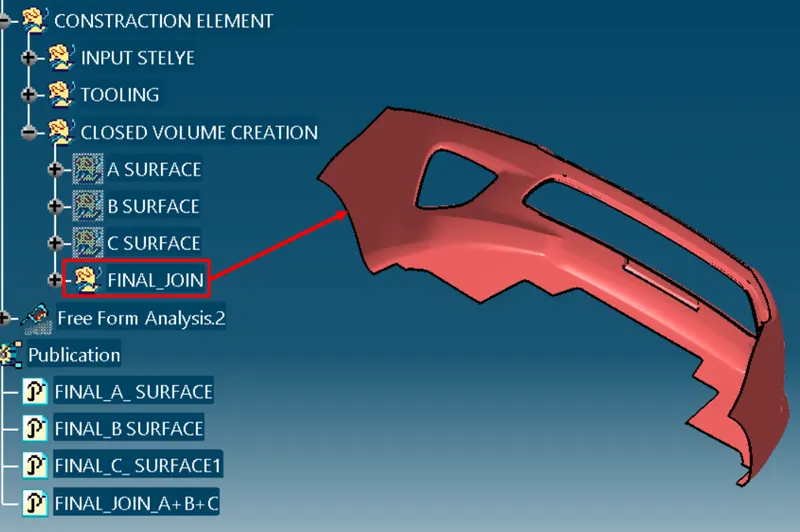

4. Final join A, C +B surface:

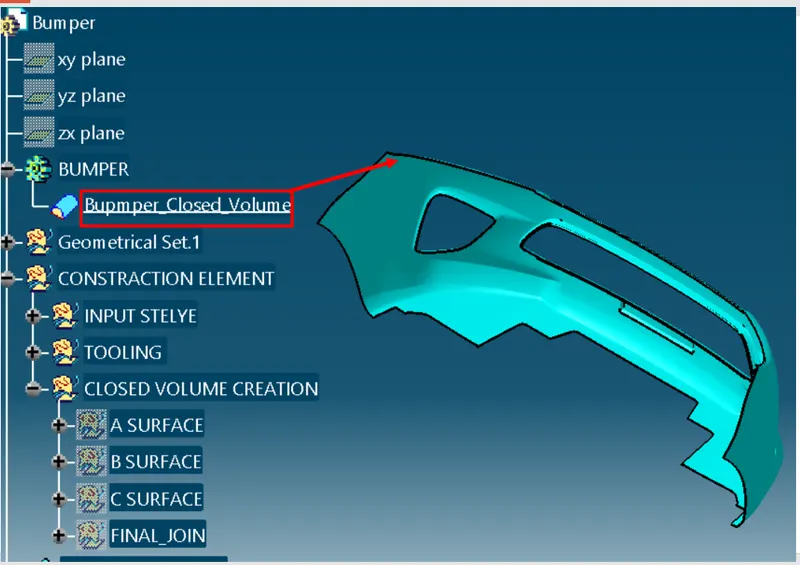

5. Closed Volume Bumper:

5. Conclusion: I have designed the bumper as given A surface and make a closed volume using advance surfacing and its process.
