Draft Analysis on Bumper

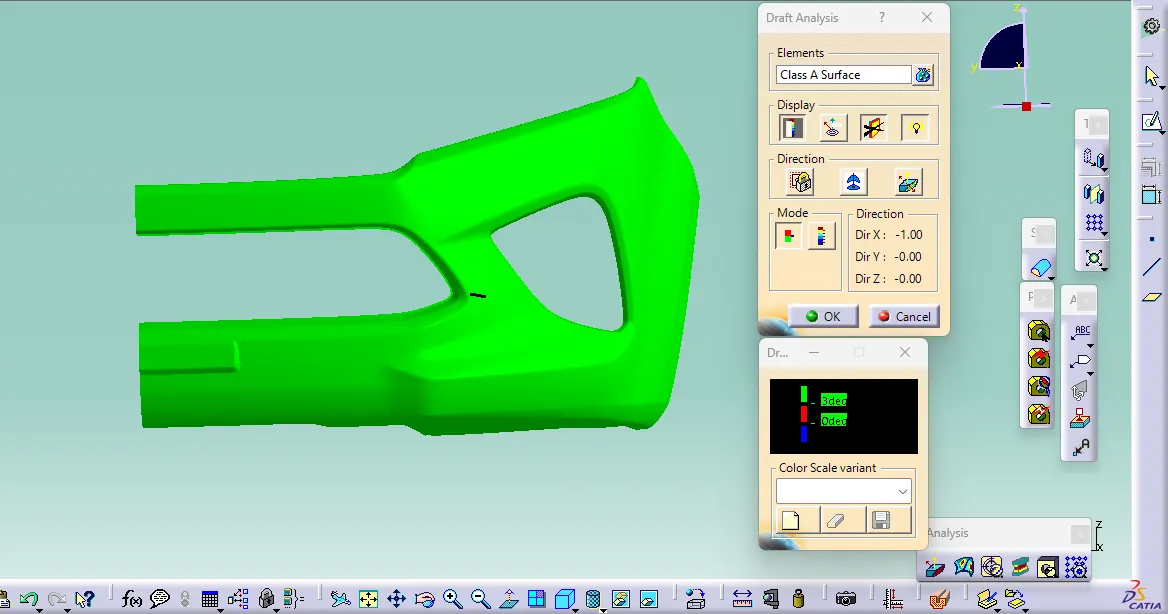

Tooling axis - First of all we have a class A Surface. We need to decide the tooling axis direction so that part doesn’t hamper & automatically comes out from the mold. Check the axis through which all the surfaces are visible then consider that axis as a dummy tooling axis then doing the draft analysis, we can check which surface can create problems in mold.

As we can see through the dummy axis all the surface has a good draft, we will consider the dummy tooling axis as the main tooling axis.

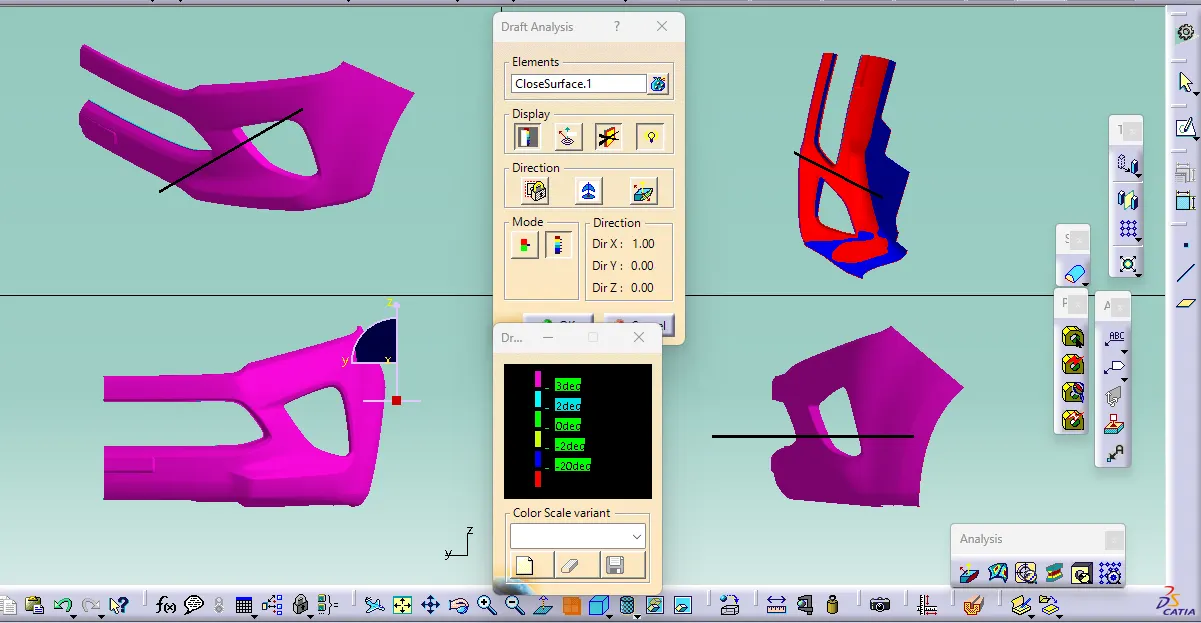

Draft analysis on final product-
