Week 9 - Challenge 3 - Bumper

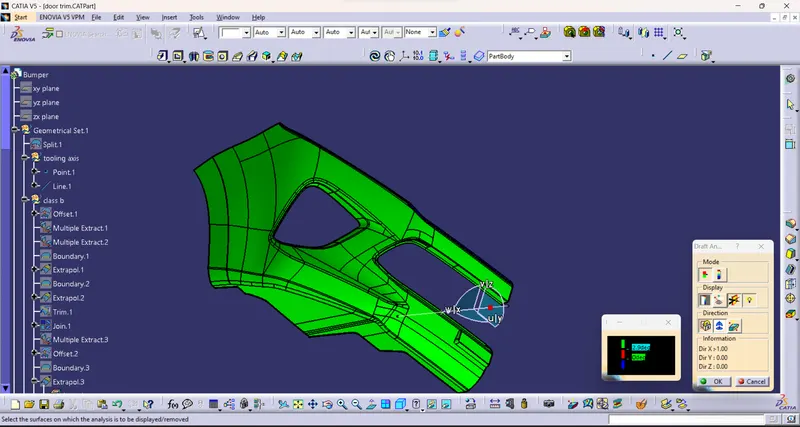

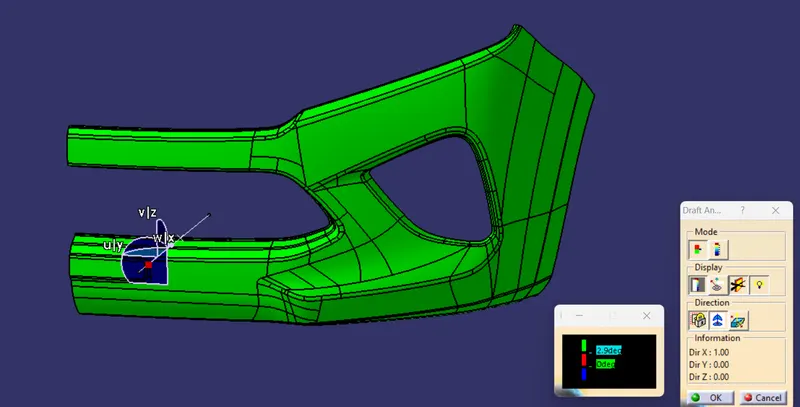

DRAFT ANALYSIS OF A SURFACE:

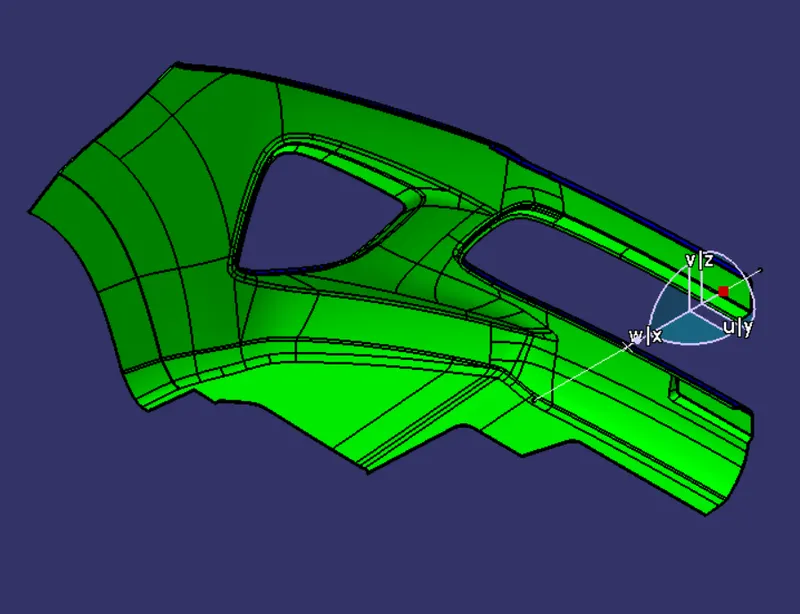

 Draft analysis of the surface is carried to check if the surface or part can be manufactured with the required draft angle.

Draft angle is needed for the component to clear the core and cavity surface as it would have shrunk towards the center while cooling.

The draft angle in this design is 2.9 degrees. As A surface is a single surface there won't be much difference in color.

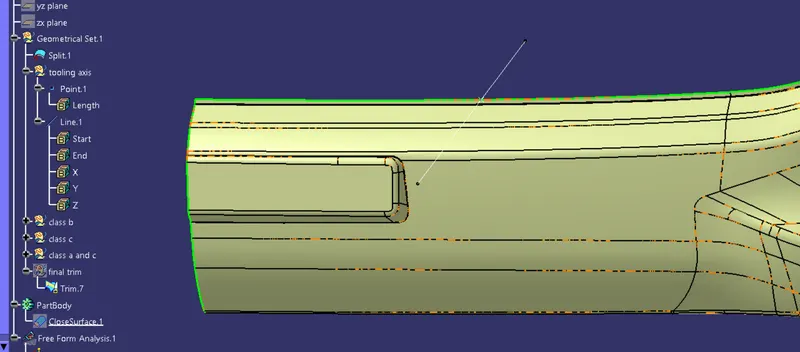

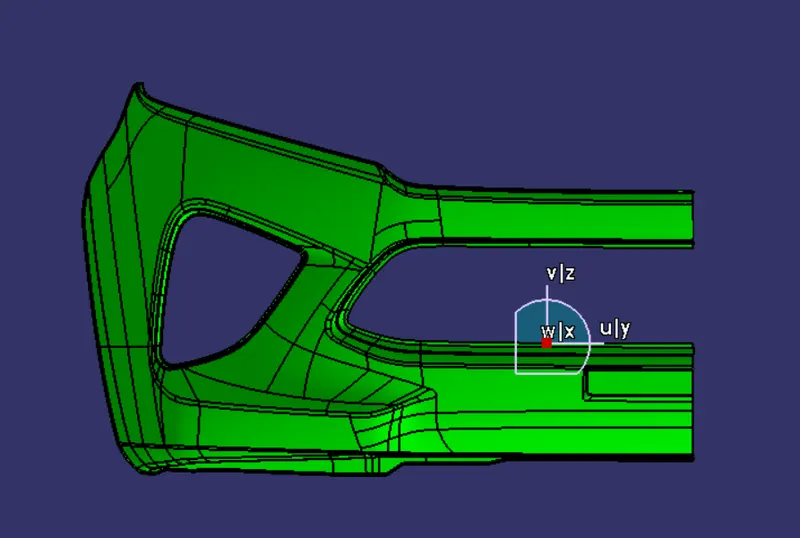

Tooling axis

Tooling axis is the direction in which a core or cavity of mold opens. This Axis is very important to determine the orientation of the component in mold, core and cavity design.

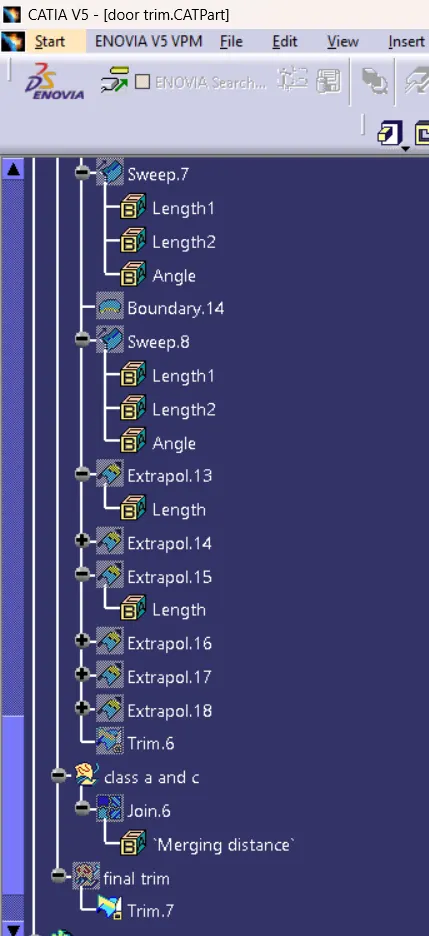

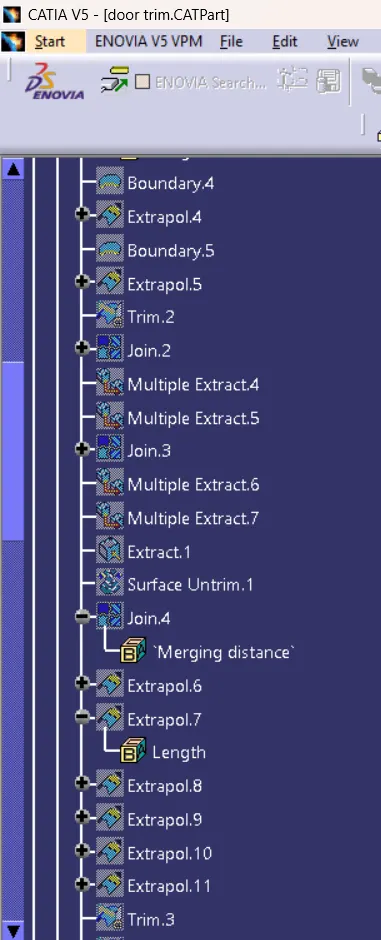

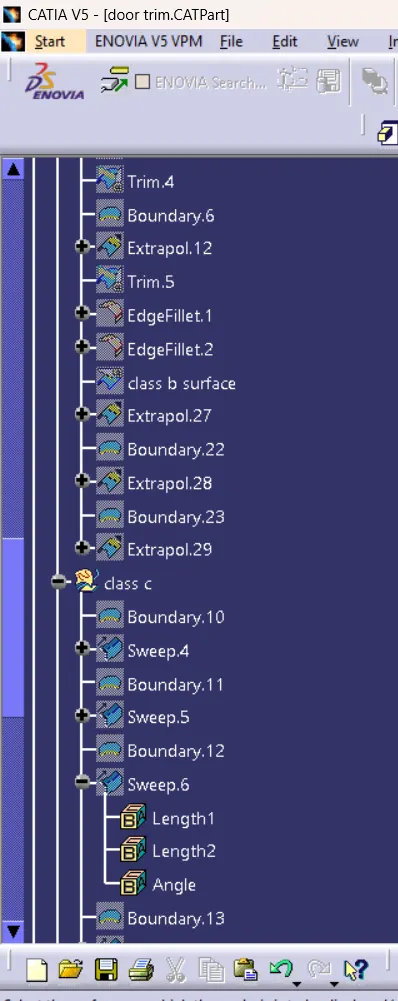

Tree Structure

Front view

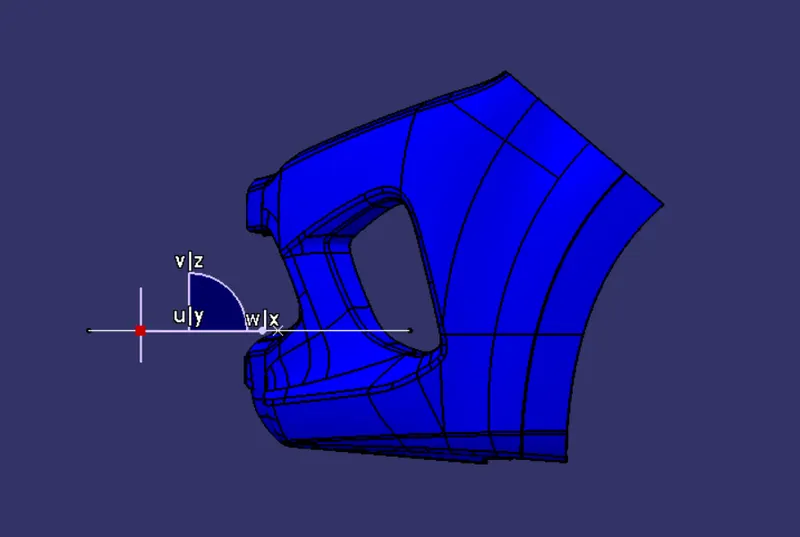

Left view

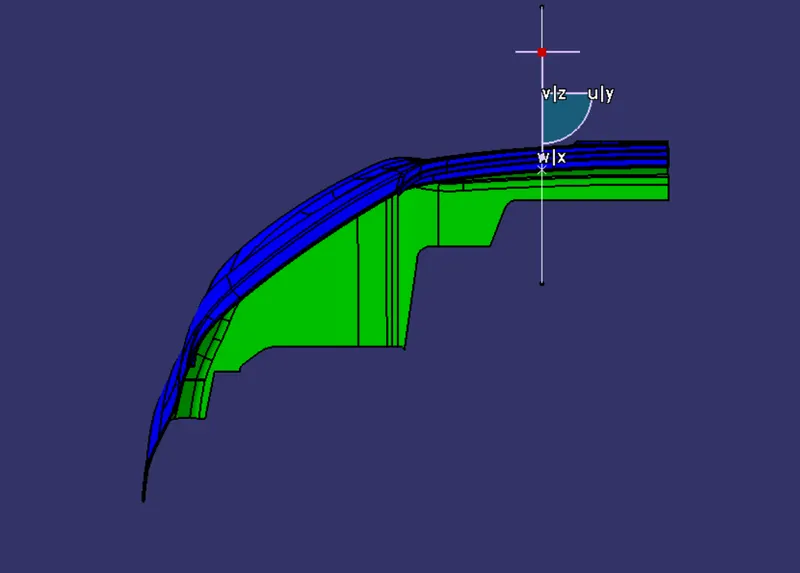

Top view

Isometric view
