Week 9 - Challenge 3 - Bumper

Bumper Challenge

Aim

To create a bumper using the given Class A surface of a bumper

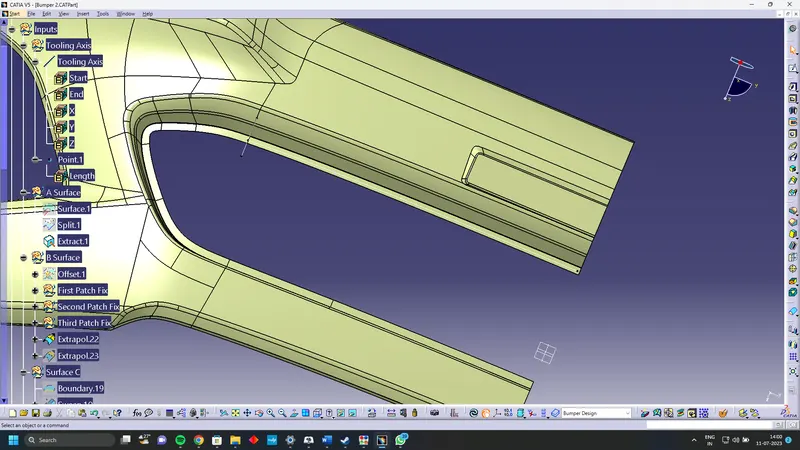

Tooling Axis Creation

Class B Creation

There will some open patches on the offset surface we have to close the patches

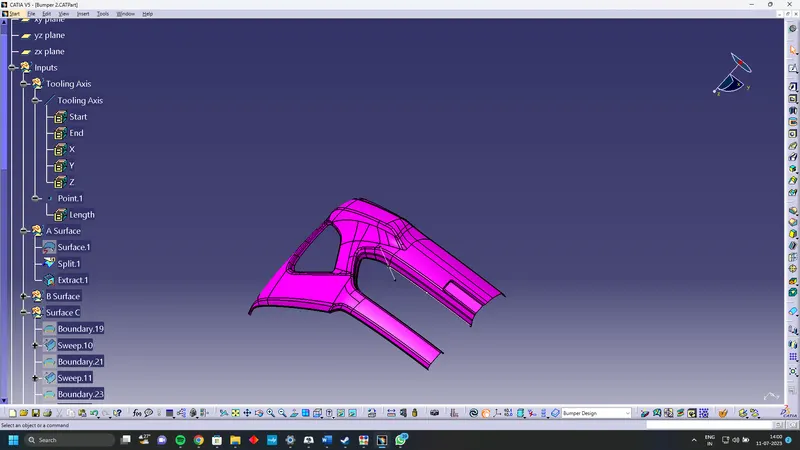

Creation of Surface C

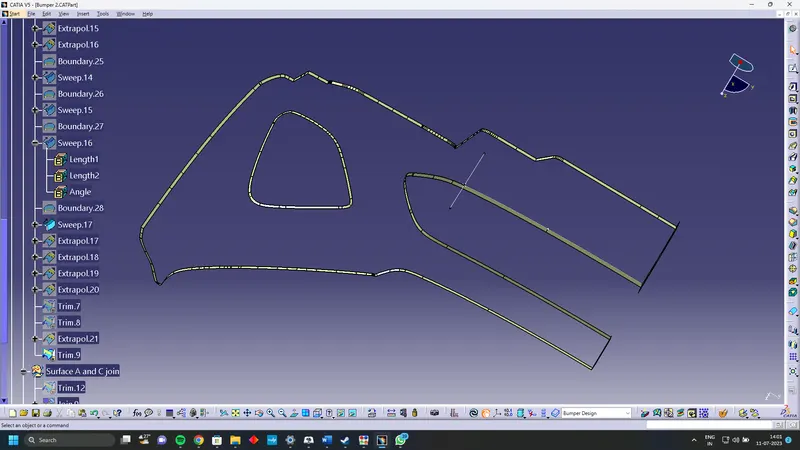

Using Sweep command and considering the draft angle create a sweep along the edges

Joining Surface A and C

Using Join or Trim command depending on the use join the surface A and C

Final Trim

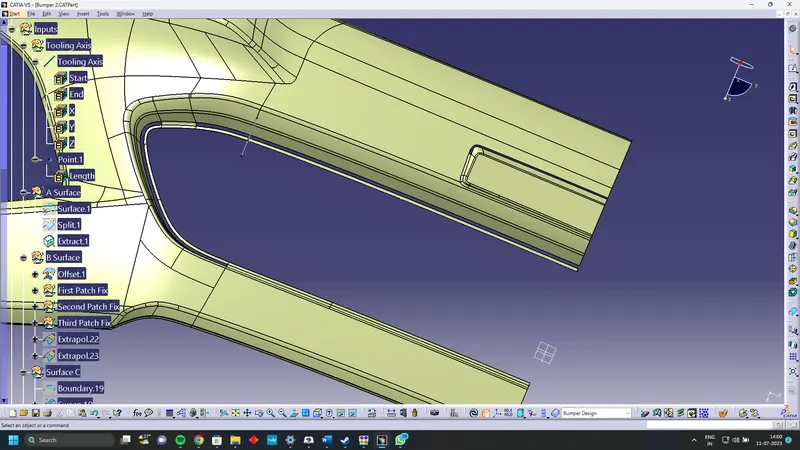

For the final trim, Trim Surface B with joined A and C surface. You will get a closed output

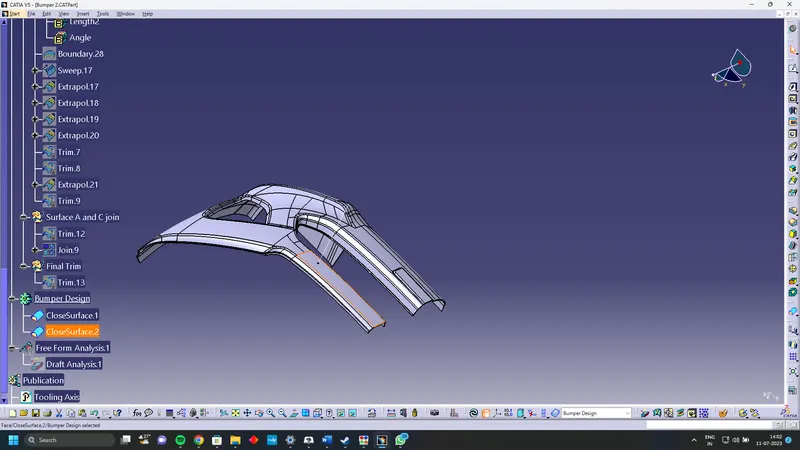

Converting to Solid

using close surface in the part desing tab convert the closed surface into a complete solid

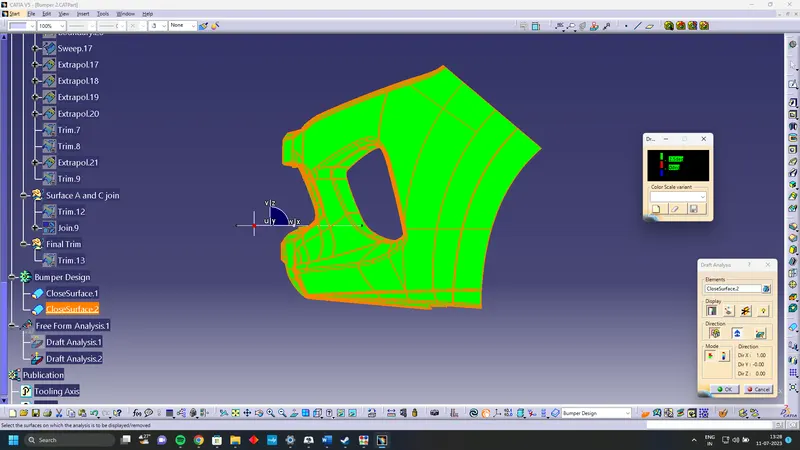

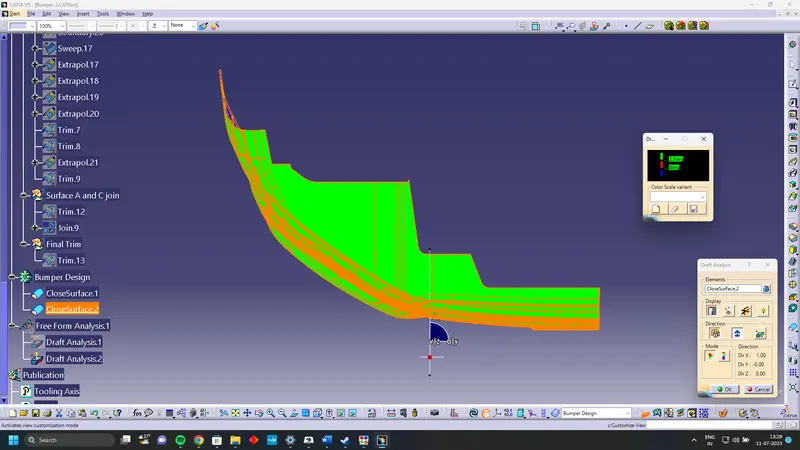

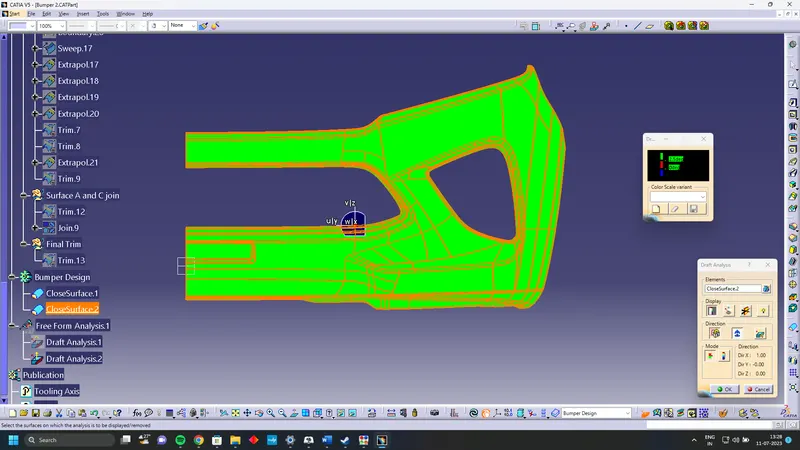

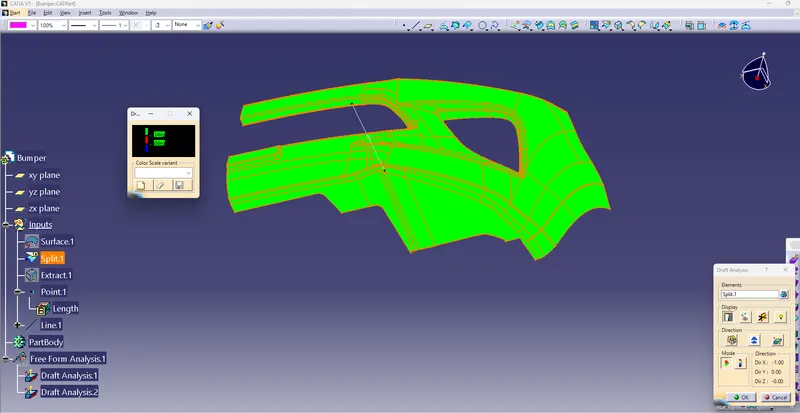

Draft Analysis

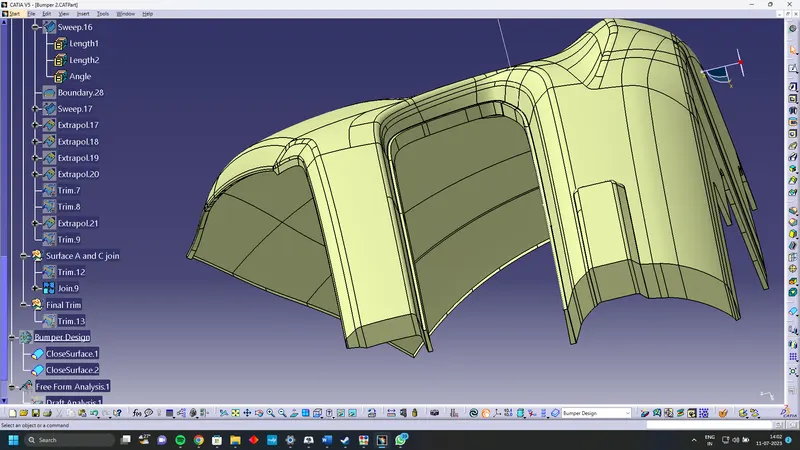

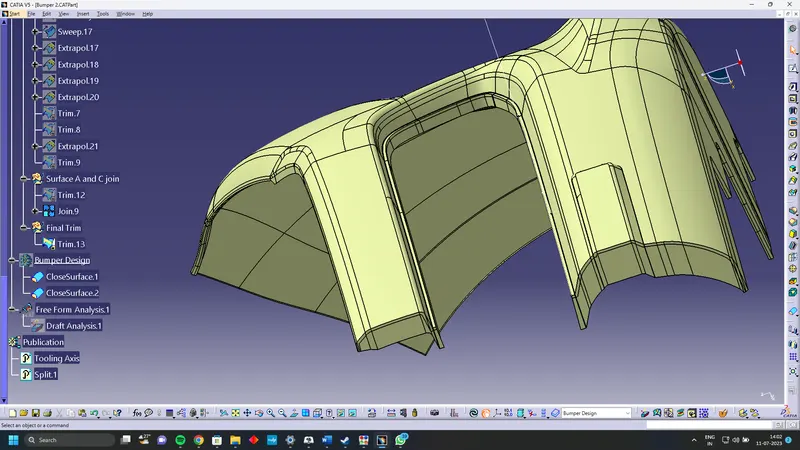

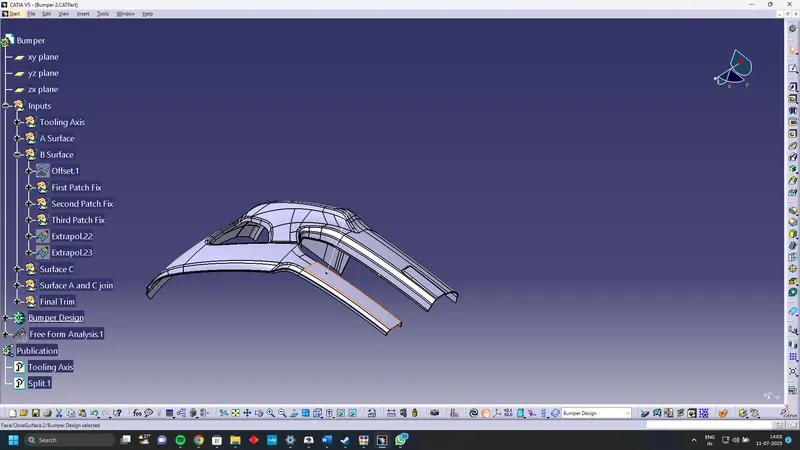

Design Tree

Giving Clear geometrical set will help in navigating when you have any issues.
