Week 9 - Challenge 3 - Bumper

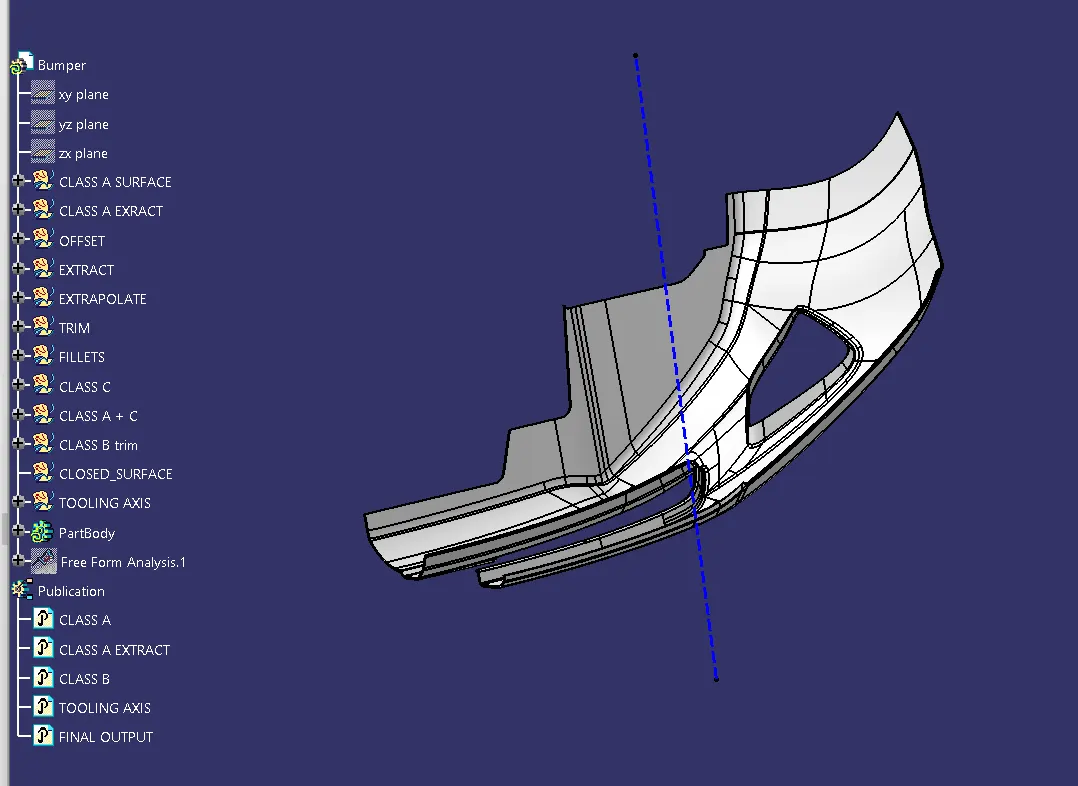

ISOMETRIC VIEW

CLASS A

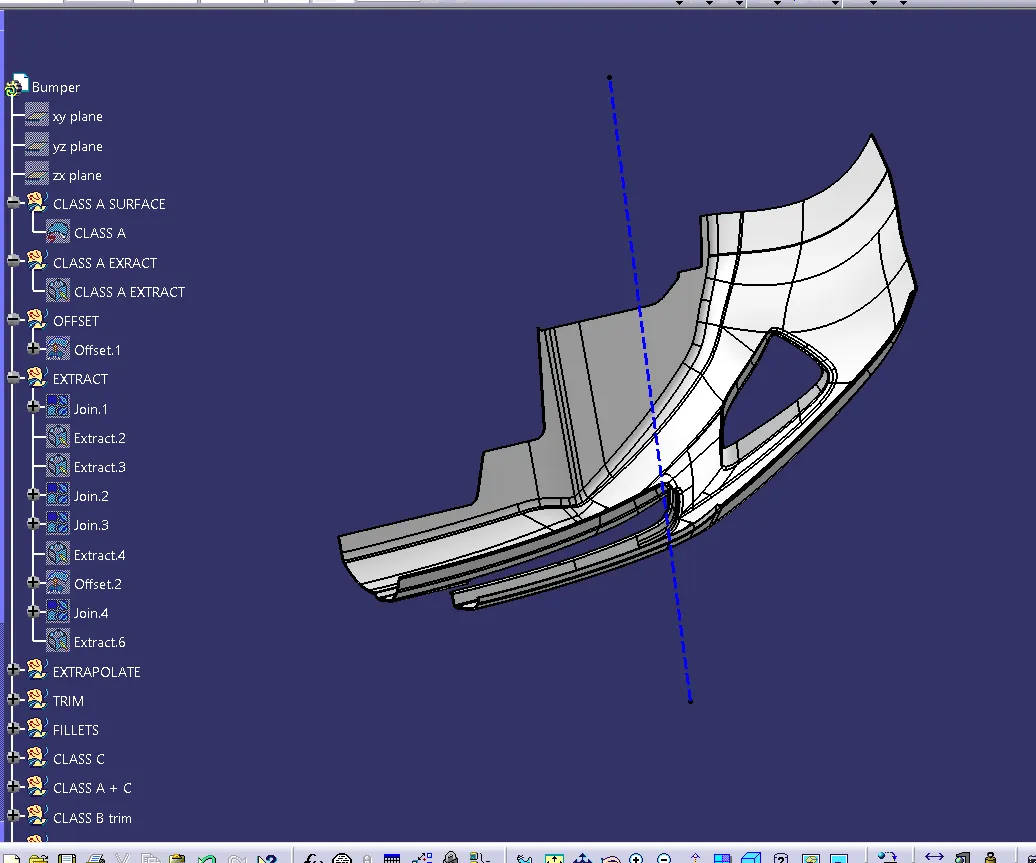

CLASS B SURFACE

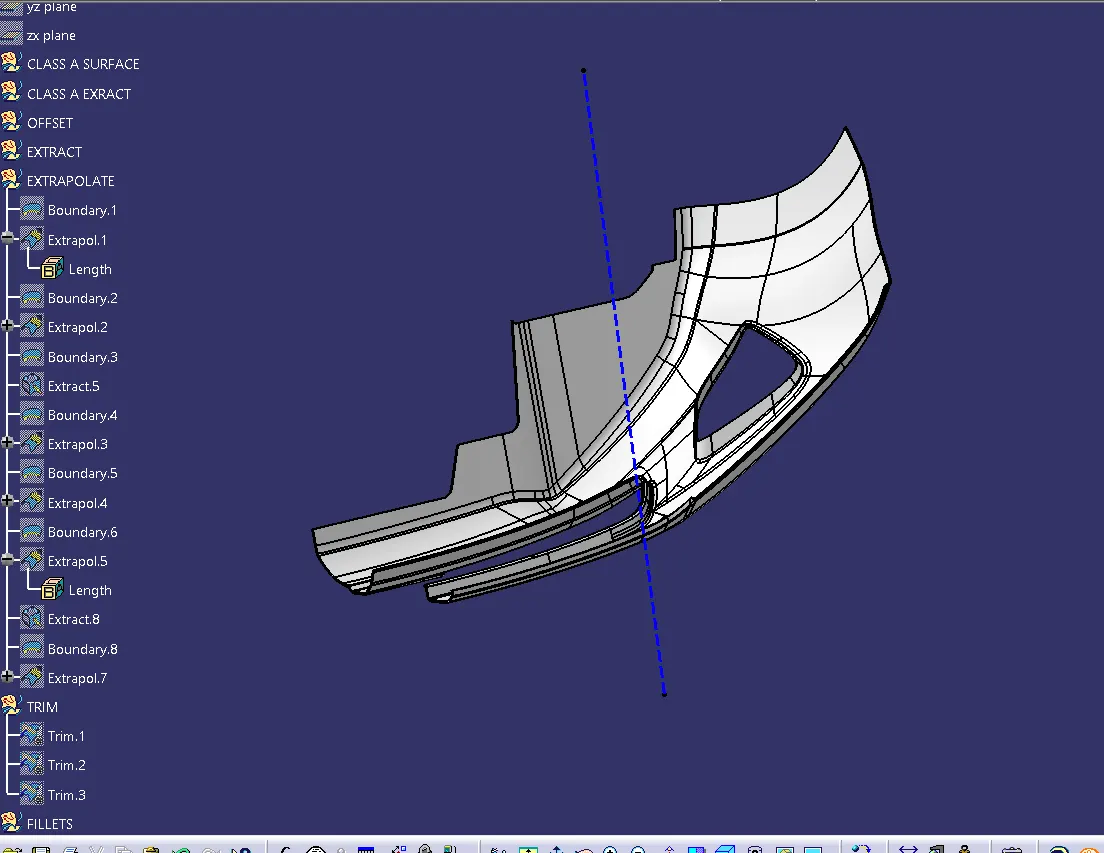

• CREATED USING OFFSET +EXTRACT+ EXTRAPOLATE+TRIM +JOIN

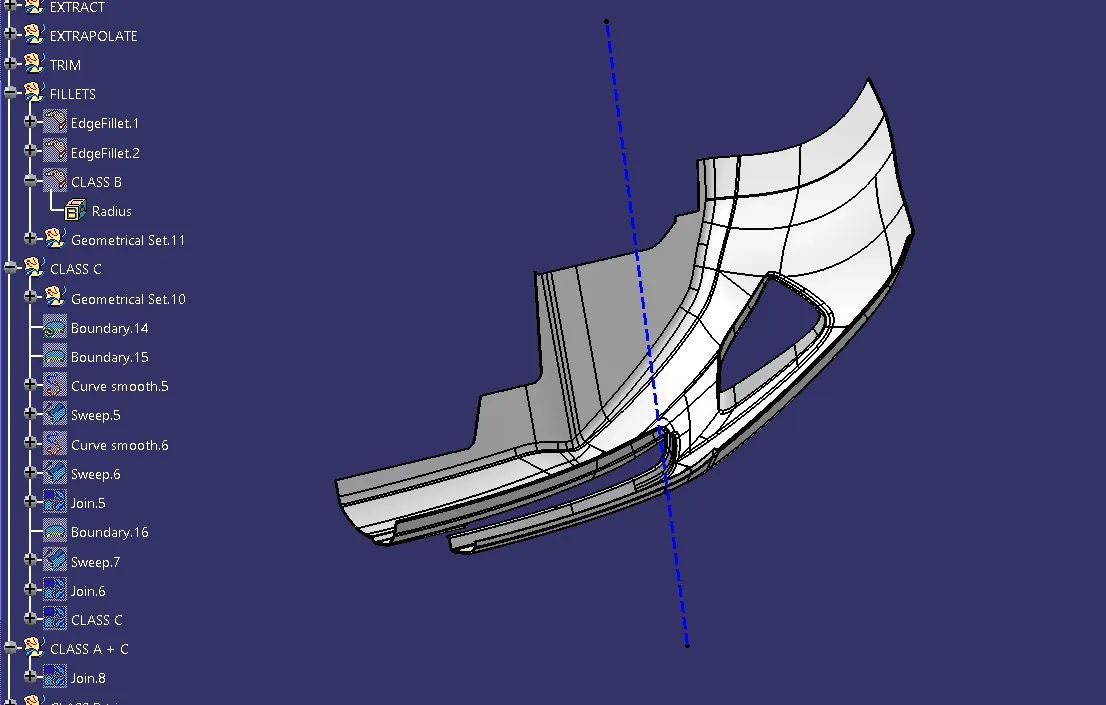

CLASS C SURFACE

• CREATED USING SWEEP COMMAND AND JOIN

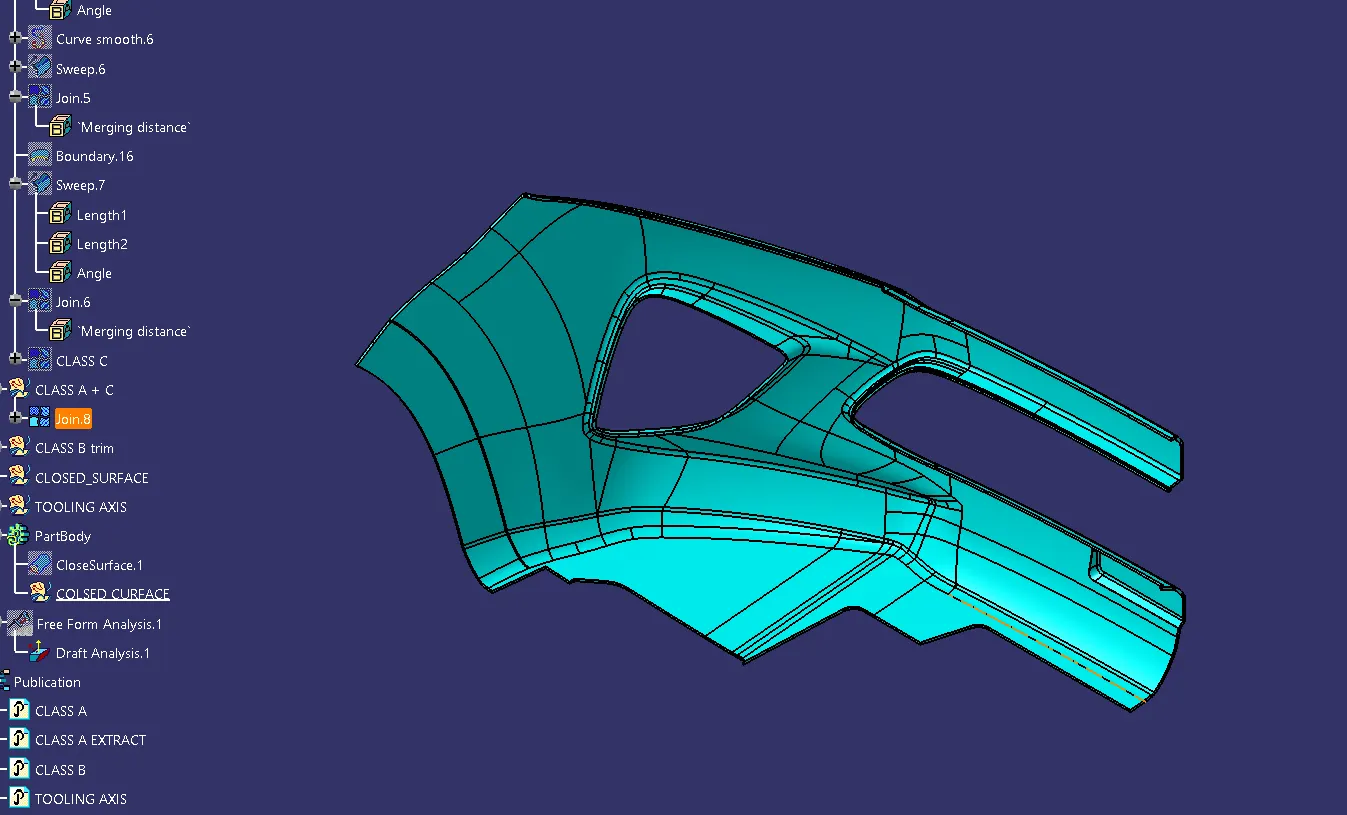

CLASS C +CLASS A

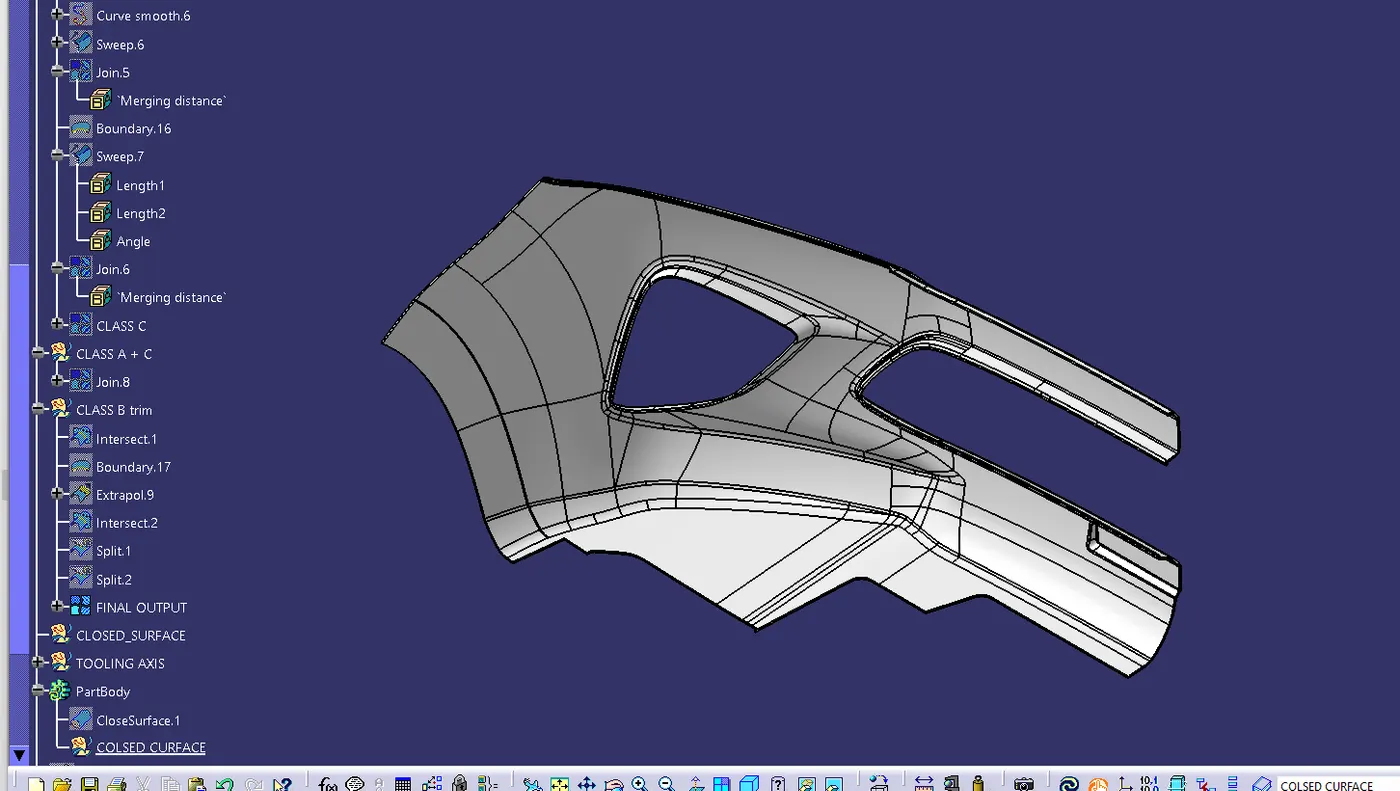

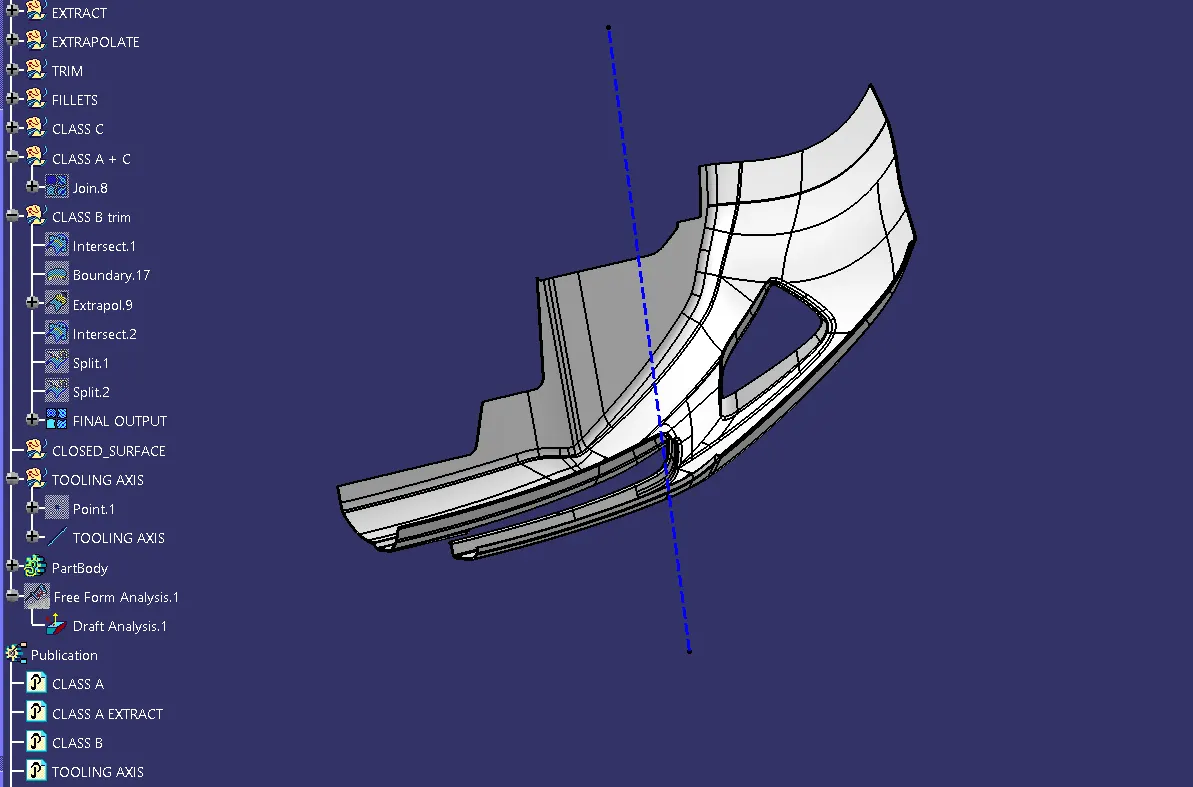

CLASS A+C TRIMED WITH CLASS B

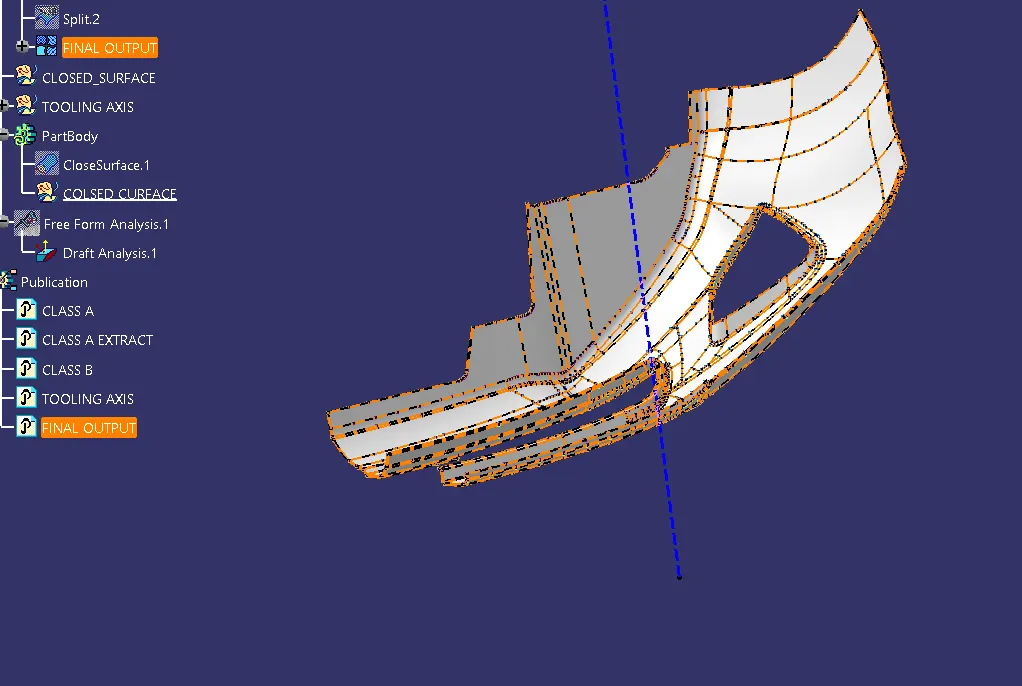

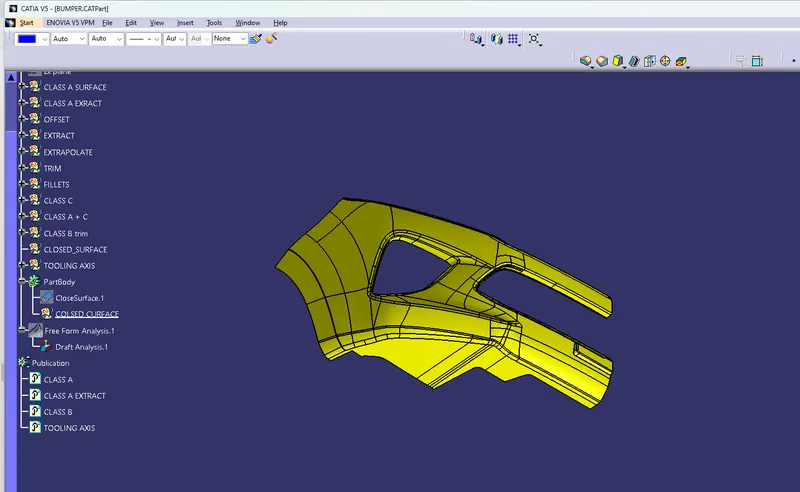

FINAL OUTPUT

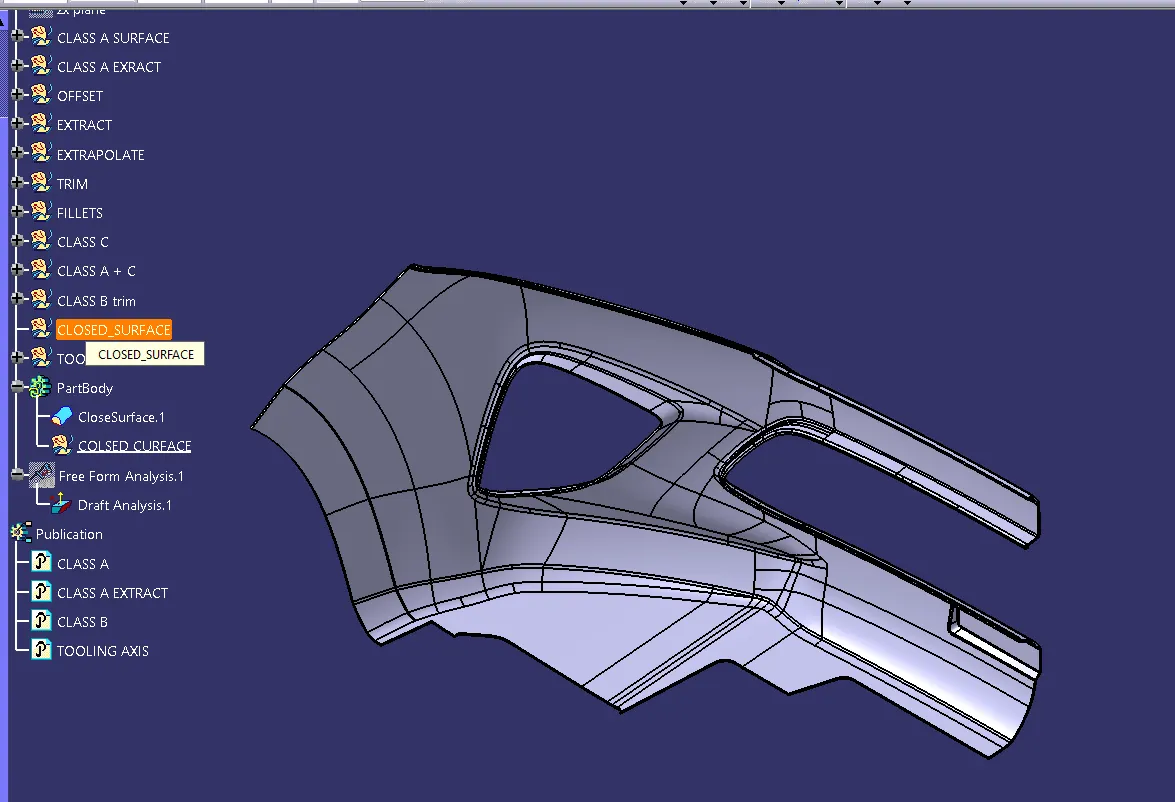

CLOSED SURFACE

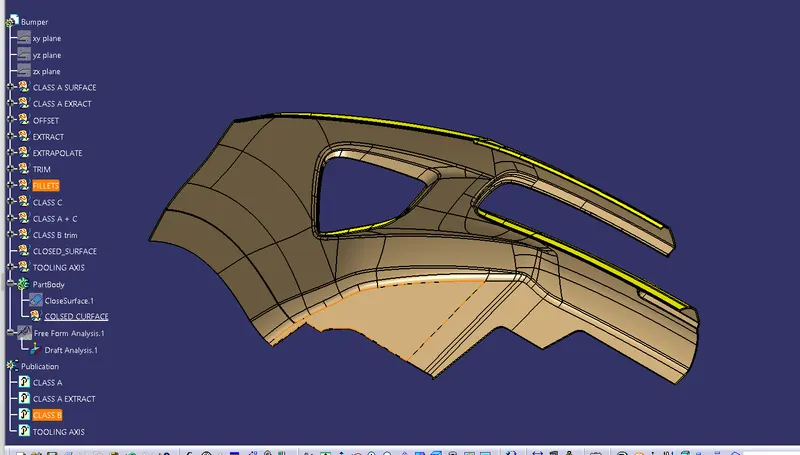

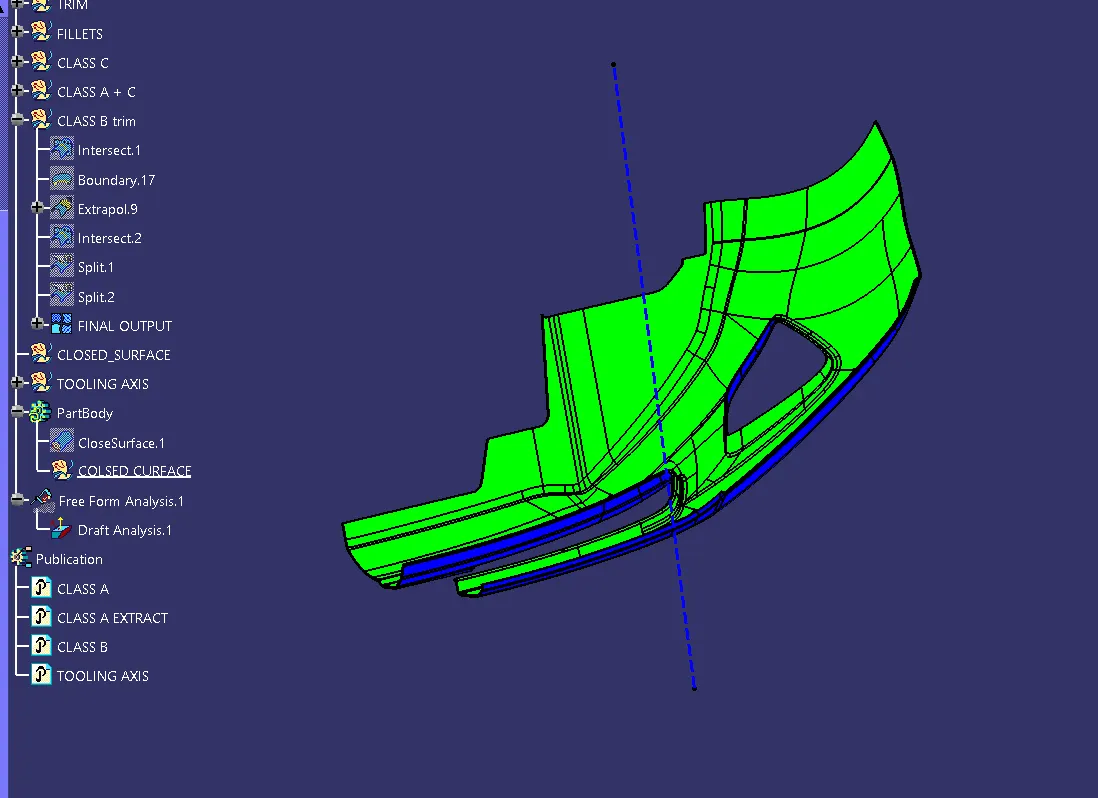

DRAFT ANALYSIS

PUBILICATIONS

TREE STRUCTURE
