Objective:-
Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
Take the Thickness of the component to be 3 mm
Tooling Creation

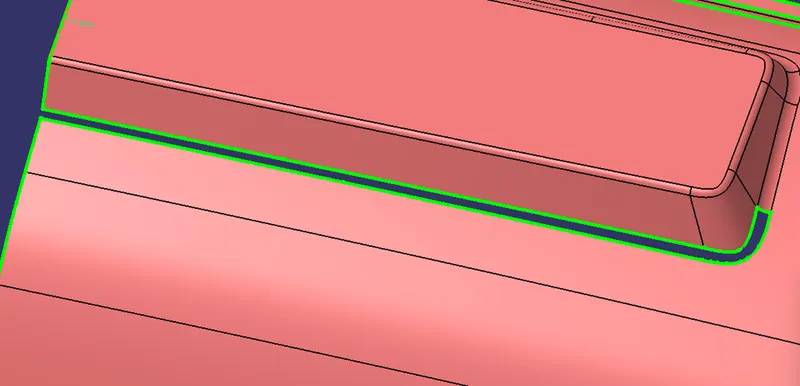

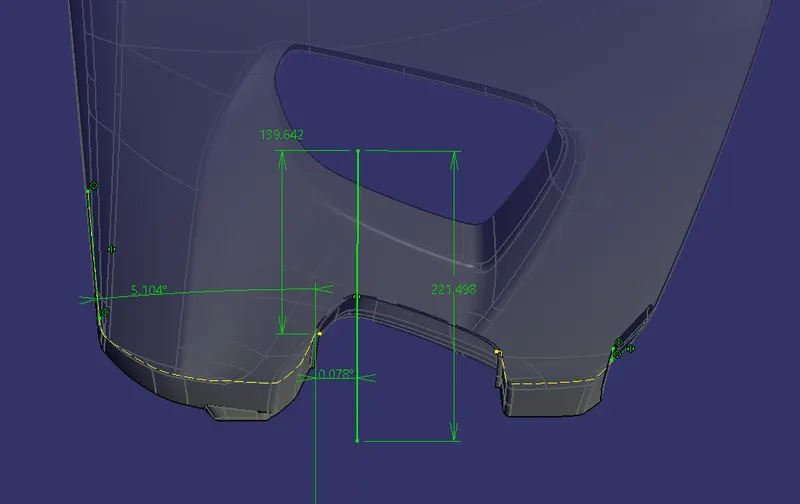

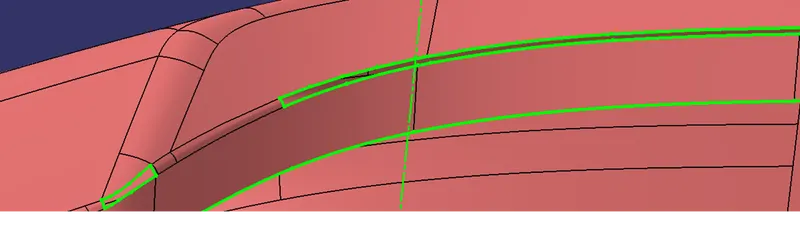

Interset the given surface with ZX plane .Using the intersecting curve create a Bisecting line.Check the draft analysis if it okaye all faces is clear using the line as tooling axis

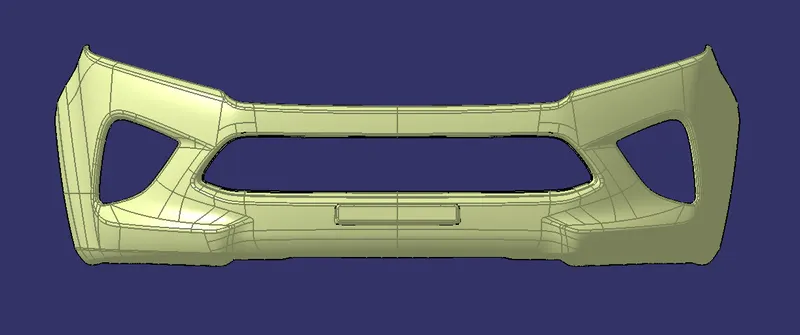

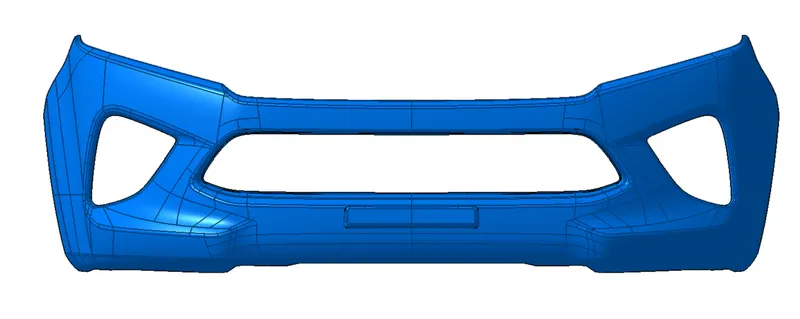

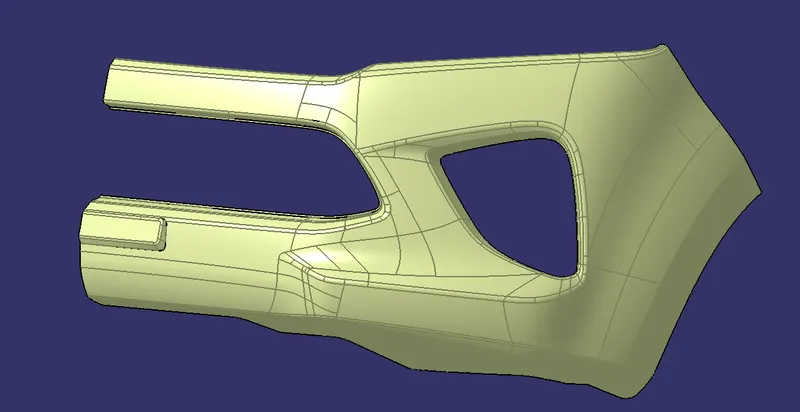

Given A Surface

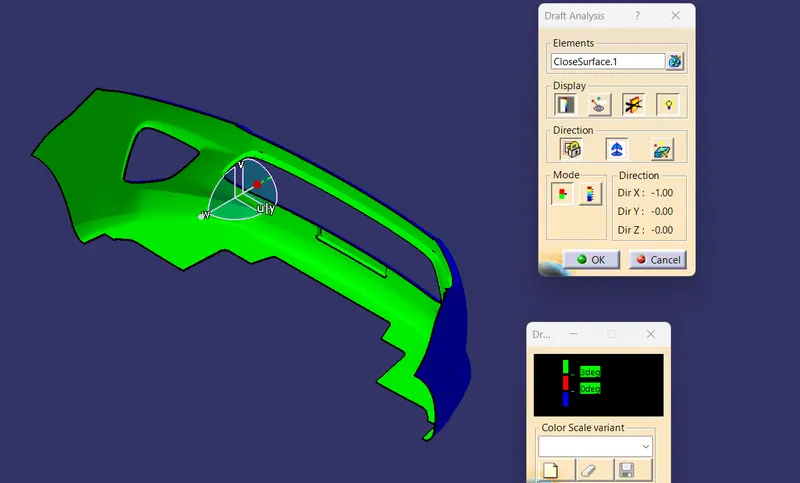

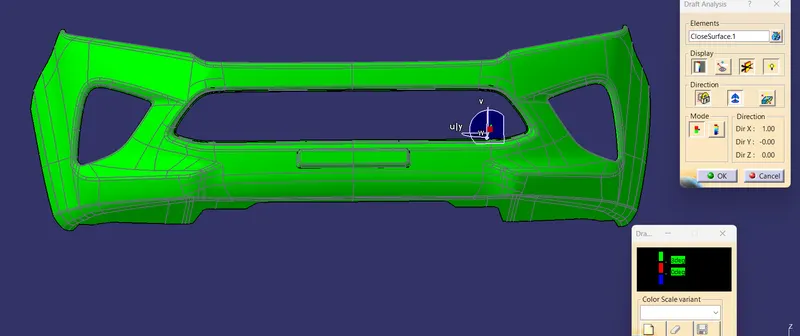

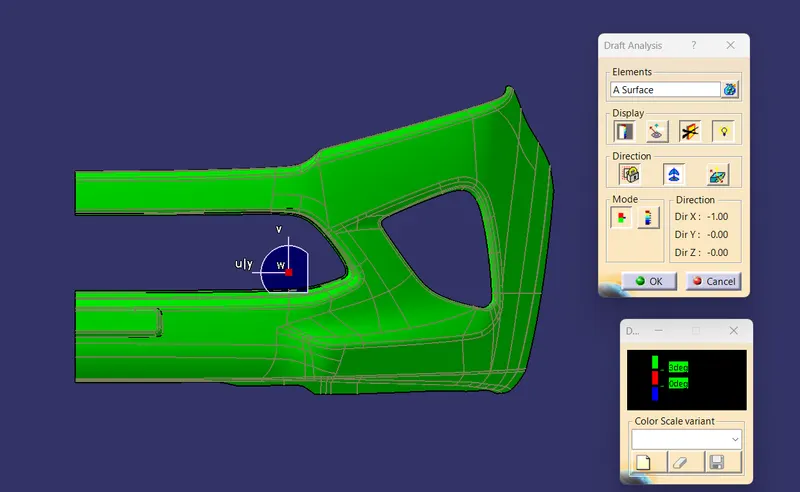

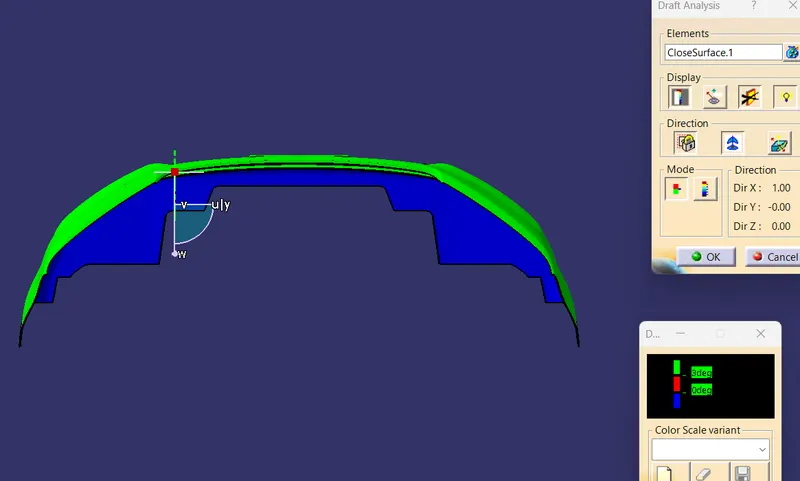

Checking the Draft Analysis for the A Surface

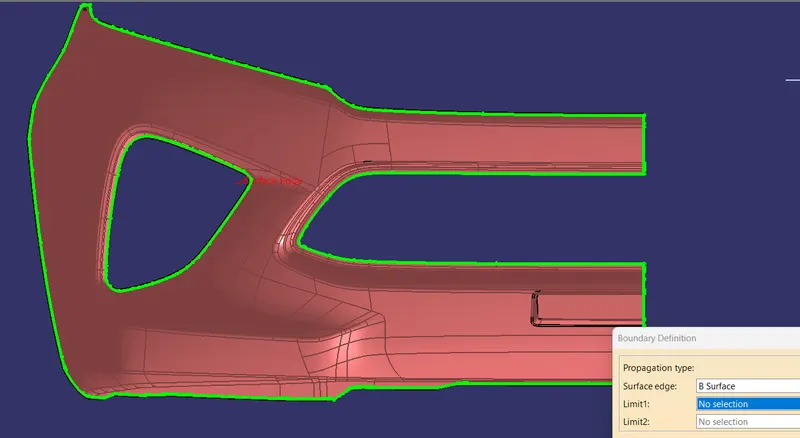

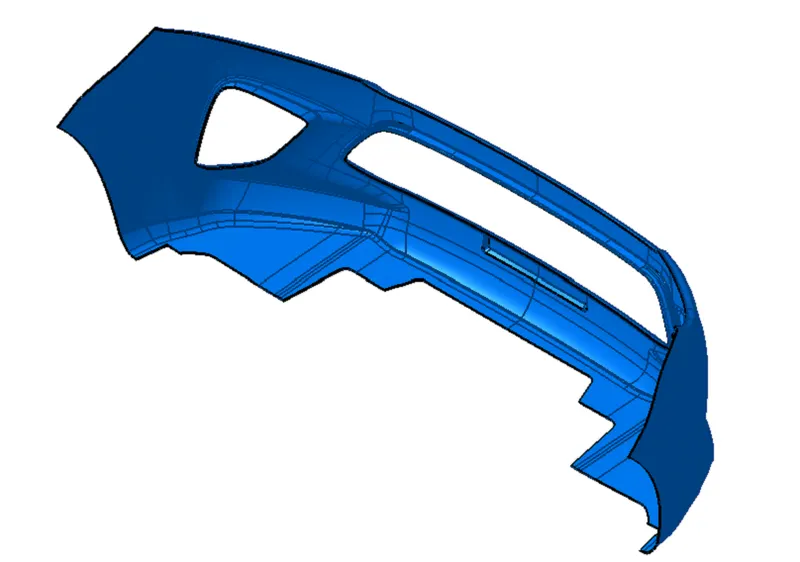

Creating B Surface
Offest to 3mm
C Surface

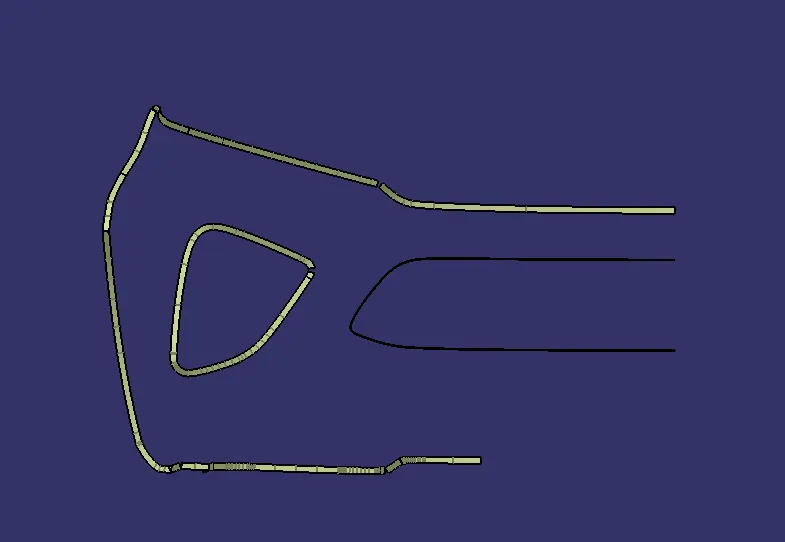

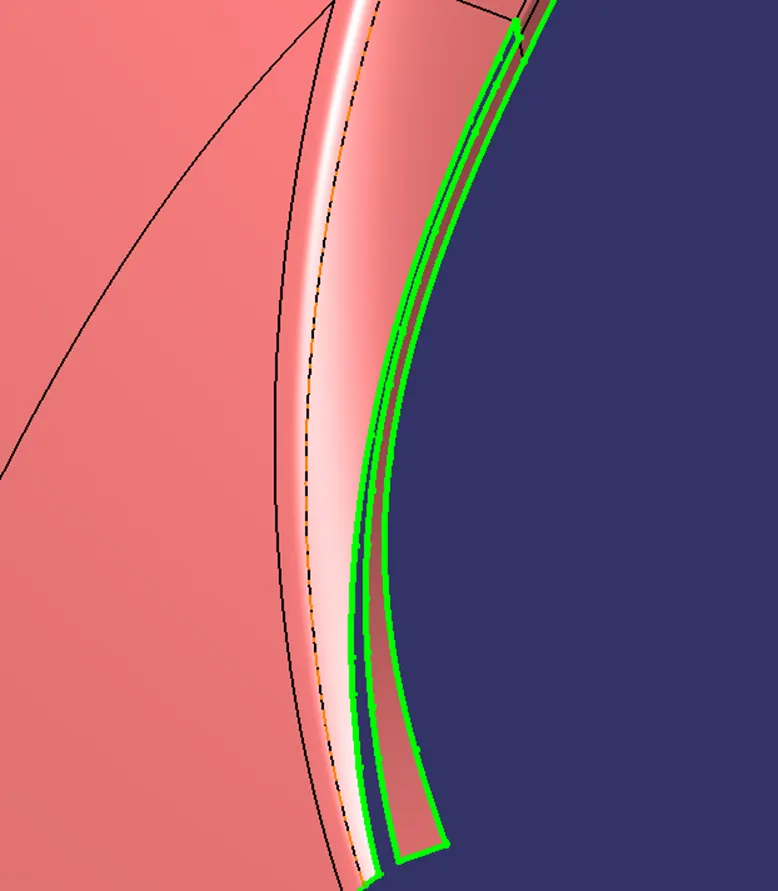

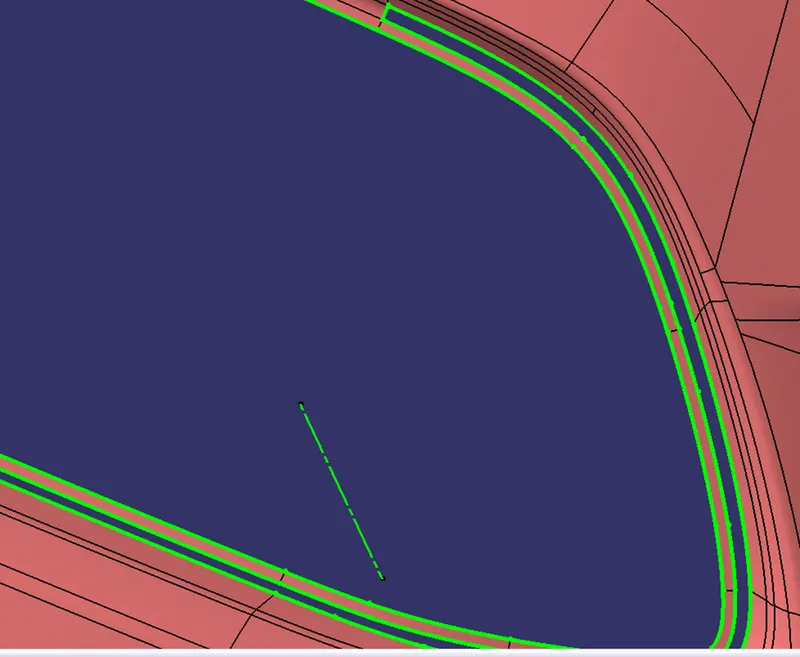

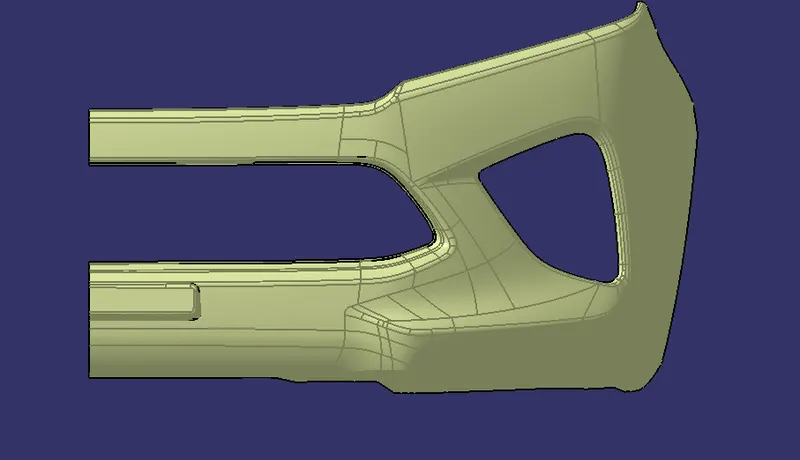

Create Sweep from the A surface boundary which cleared in the tooling axis

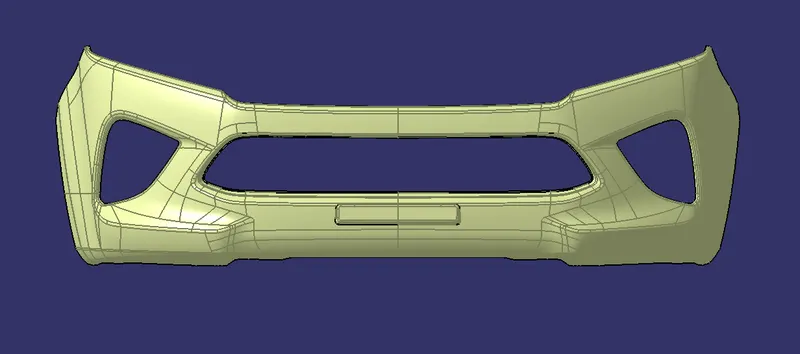

Closed Body
3D Part In Different various orientations

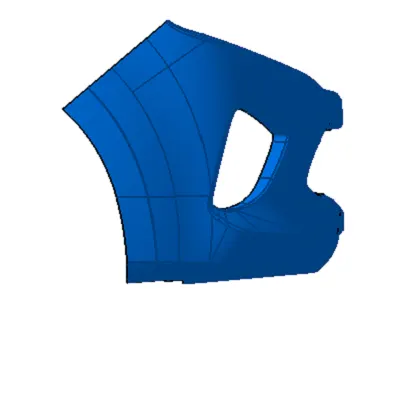

Isometric View

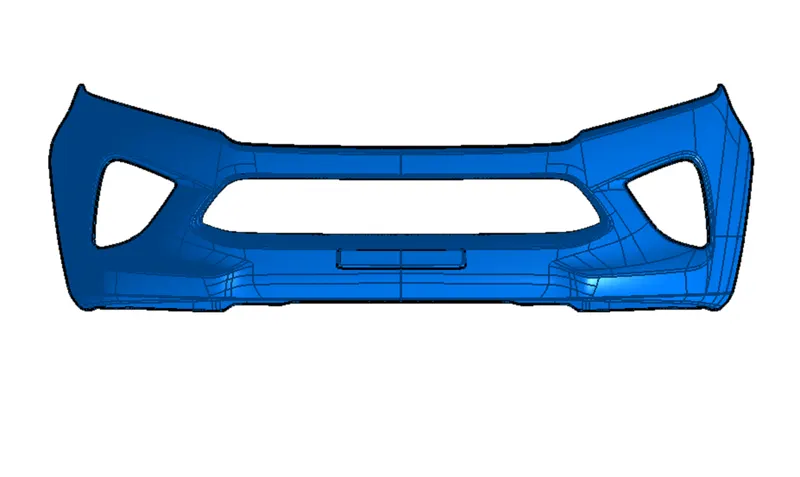

Front View

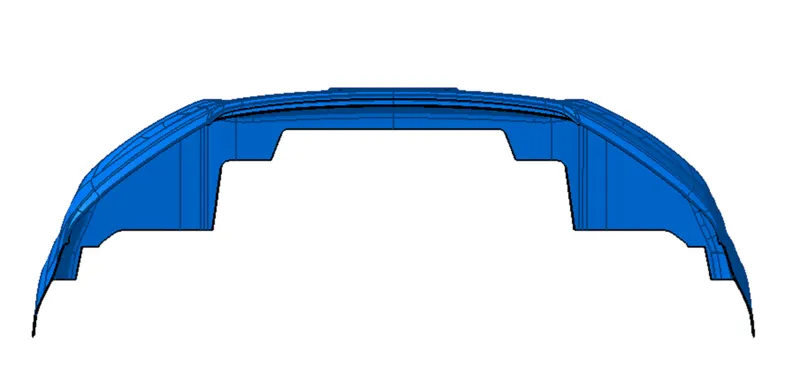

Side View
Top View

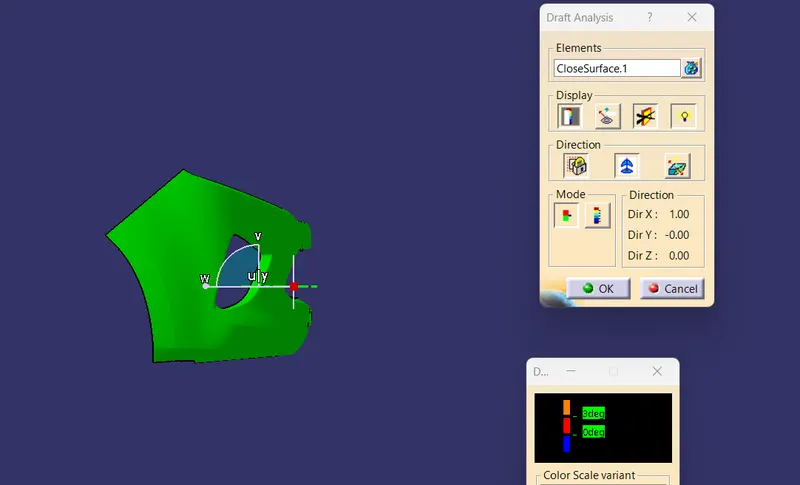

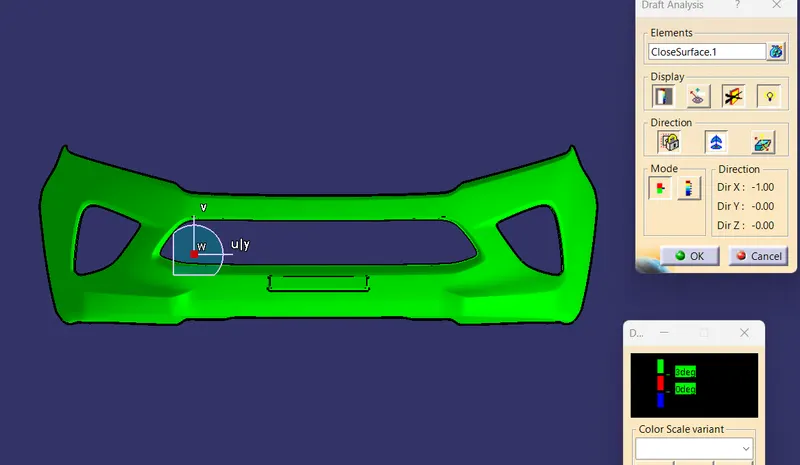

Draft Analysis For Close Body
Isometric View
Front View
Side View
Top View
Conclusion
The Bumper is created as per the given Guidlines
