Week 9 - Challenge 3 - Bumper
Tooling Axis
Tooling axis is a direction in which core and cavity opens and closes. Draft angle is provided with respect to the tooling axis.

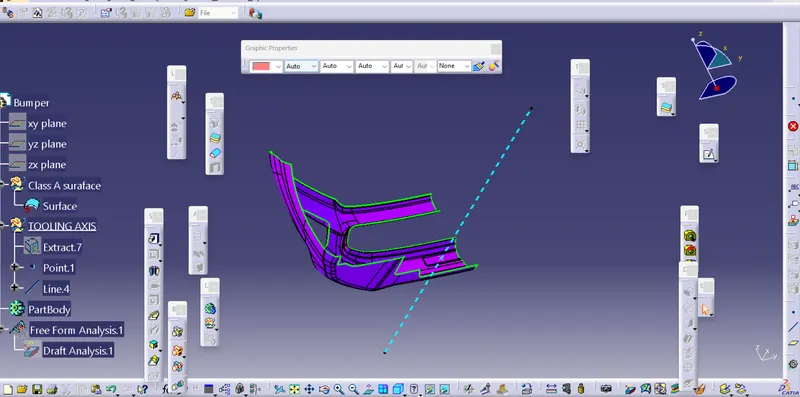

Tooling Axis created using Bisecting Method

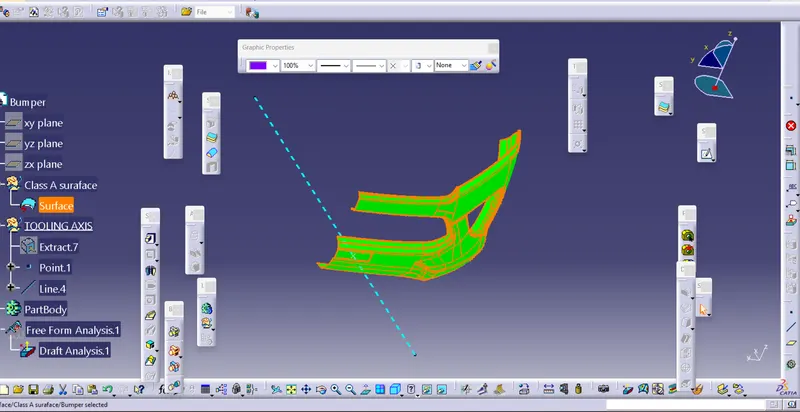

DRAFT ANALYSIS OF CLASS A SURFACE:
Green colour - above 3 degree positive draft
Red colour -between 3 and 0
blue colour- below 0 degree
View changed to material mode

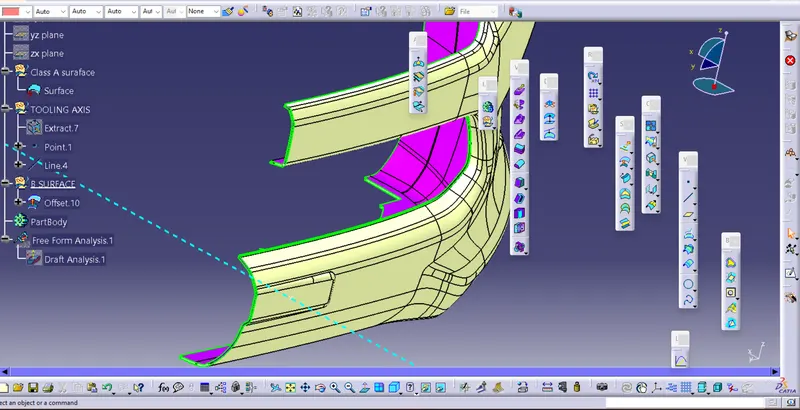

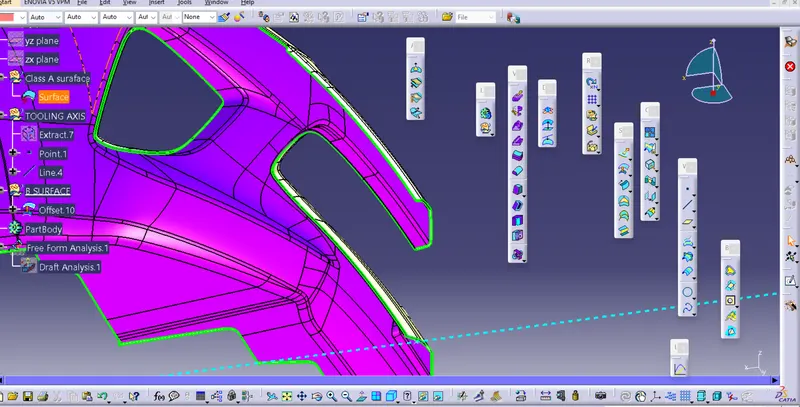

CLASS B SURFACE
B SURFACE is created by Offseting the class-A surface to 3mm outward direction.

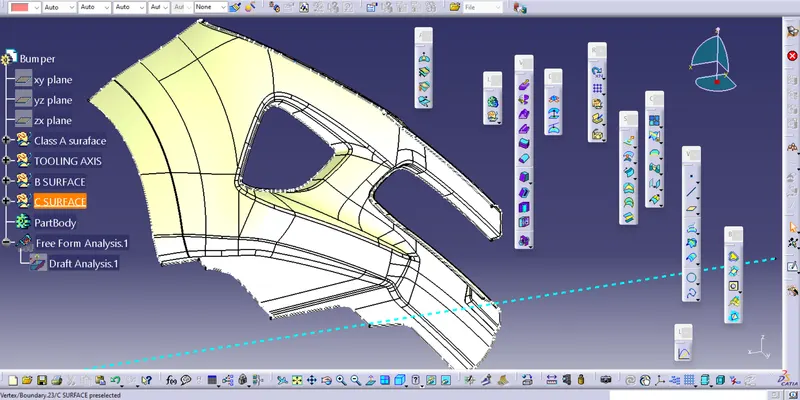

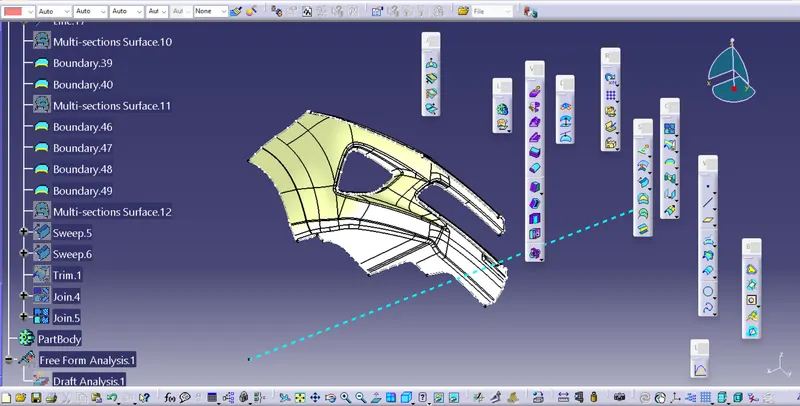

CLASS C SURFACE
The surface that joins class-A and class-B surfaces are class-C surfaces.

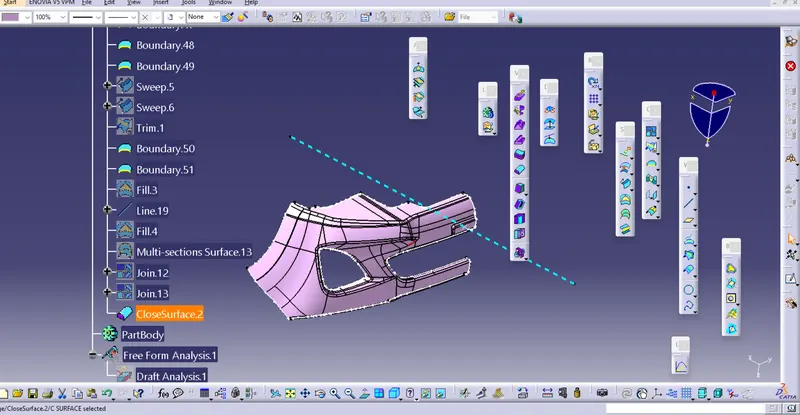

SOLID SURFACE FORMED
Close Surface feature usedto make a solid body from the surface.

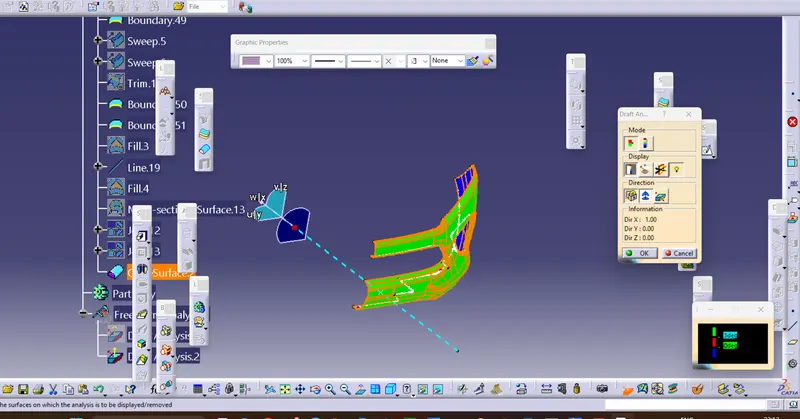

DRAFT ANALYSIS OF COMPONENT:
