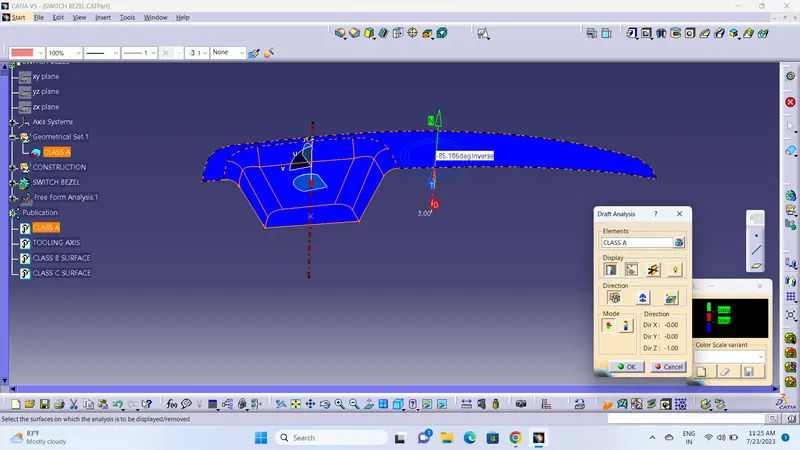

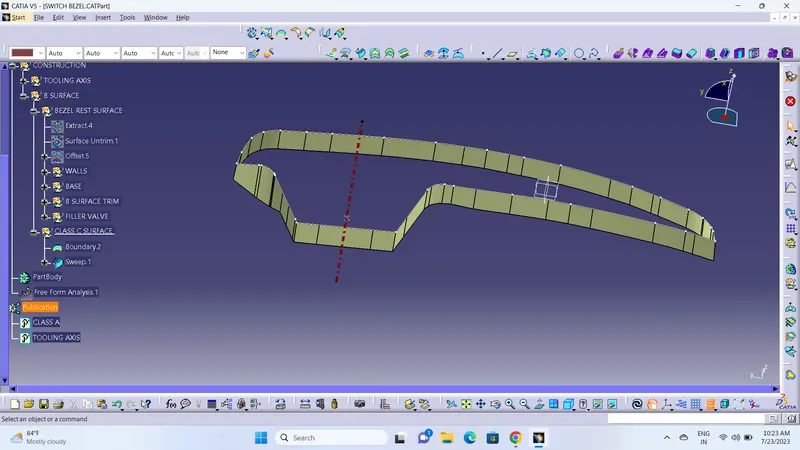

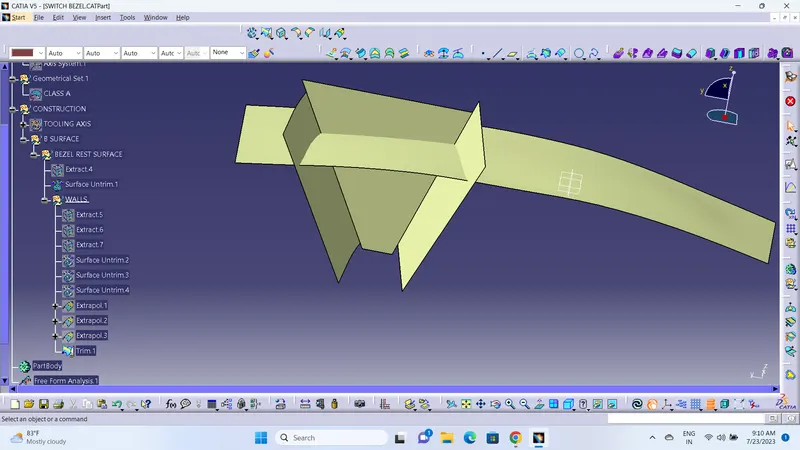

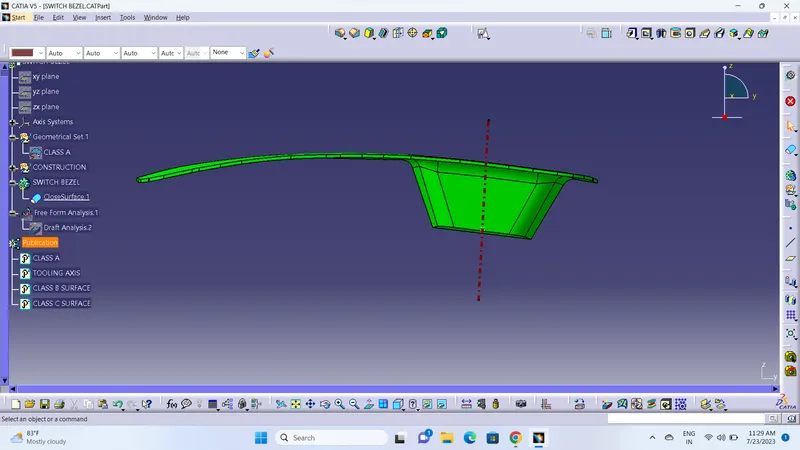

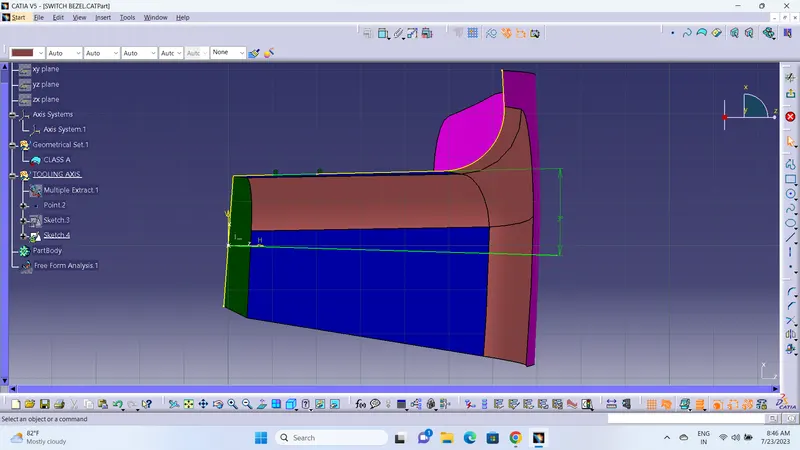

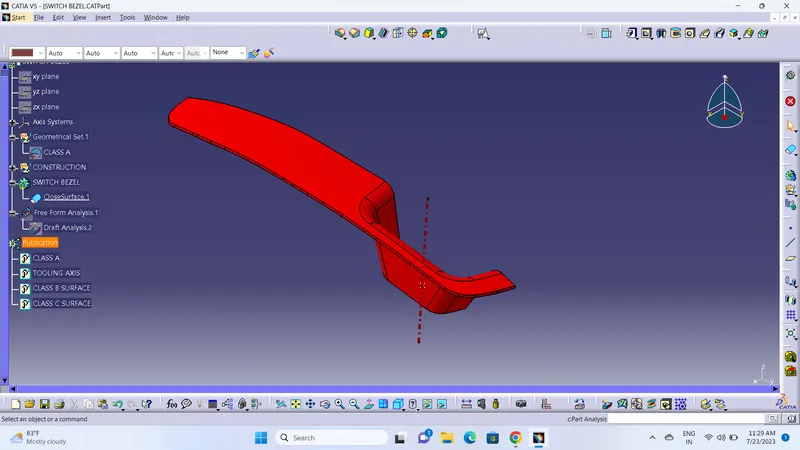

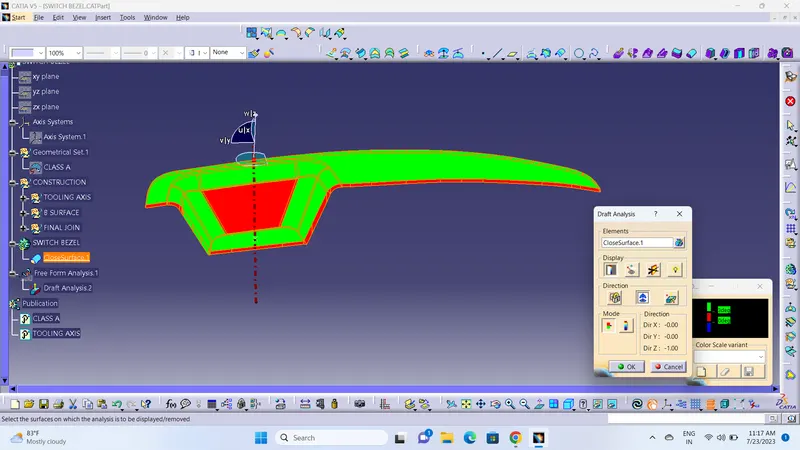

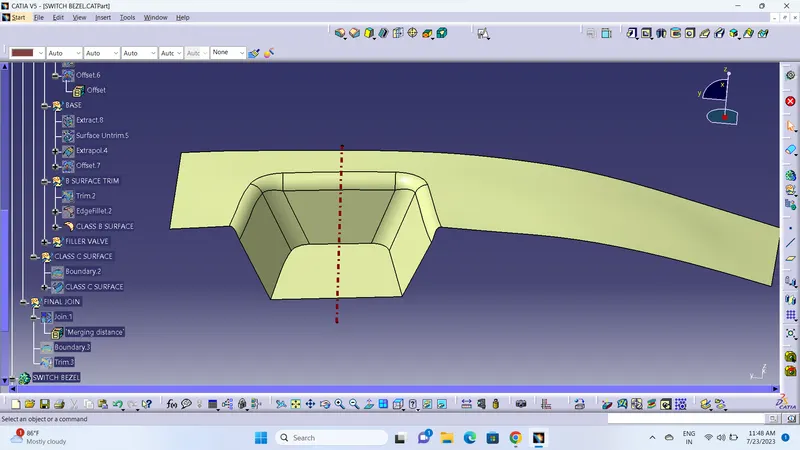

OBJECTIVE   The objective of the design the switch bezel and to do a draft analysis for it by creating the required tooling direction with the help of Bisecting method. DESIGN CONSIDERATION  Class – A surface should be aesthetically smooth and good. Class – B surface should have all the supporting…
