Week 9 - Challenge 2 - Switch Bezel Design

SShenbagaperumal S17 Jun 2023

Draft Analysis:

Draft analysis is a crucial step in plastic component design to ensure proper moldability and release of the part from the mold. It involves determining the angles or tapers on the part's surfaces to facilitate easy ejection from the mold.

Tooling Axis Creation:

The tooling axis is an essential element in the design of molds for plastic components. It defines the direction along which the mold opens or separates to release the part. The tooling axis is crucial for achieving optimal part quality and minimizing manufacturing challenges.

Bisecting Method in CATIA for Tooling Axis Creation

Step 1: Import the base Switch Bezel Plastic component into CATIA.

Step 2: Identify the reference points, reference lines, and reference planes required to define the tooling axis.

Step 3: Create the reference point(s) using the appropriate CATIA tools, such as "Point" or "Datum Point." Ensure that the reference point(s) are placed strategically on the component to establish the desired axis direction.

Step 4: Construct the reference line(s) using the "Line" tool in CATIA. These lines will serve as guides for the tooling axis direction. Align the reference lines according to the design requirements.

Step 5: Generate the reference plane(s) using the "Plane" tool in CATIA. These planes will define the initial orientation of the tooling axis. Ensure that the reference planes align with the reference lines and are appropriately positioned.

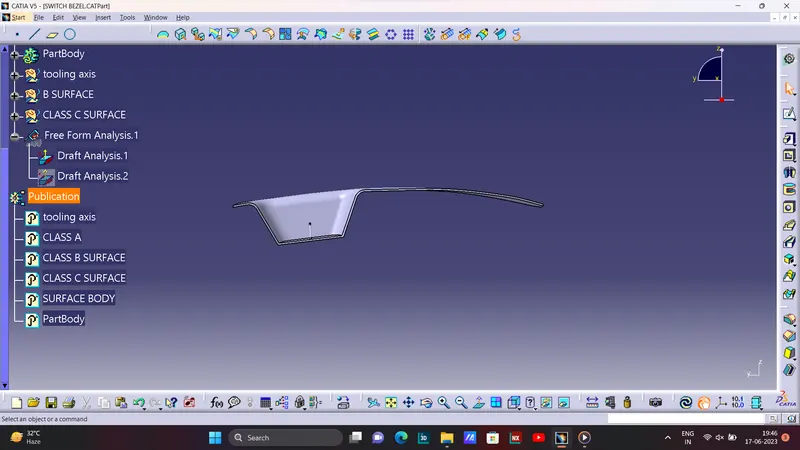

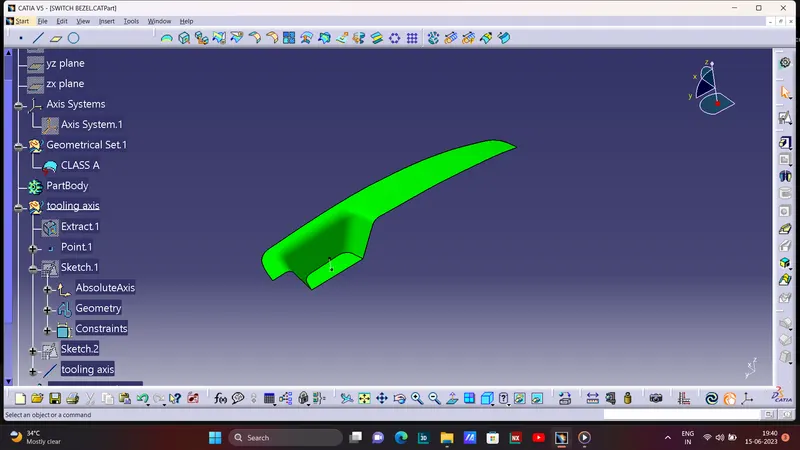

Step 6: Utilize the bisecting line concept to establish the final tooling axis direction. Identify the two reference lines that define the desired axis direction. Construct a bisecting line between these reference lines using the "Bisecting Line" or "Line Bisector" tool in CATIA.

Step 7: Validate and refine the tooling axis placement by analyzing the draft angles and performing simulations or tests if necessary.

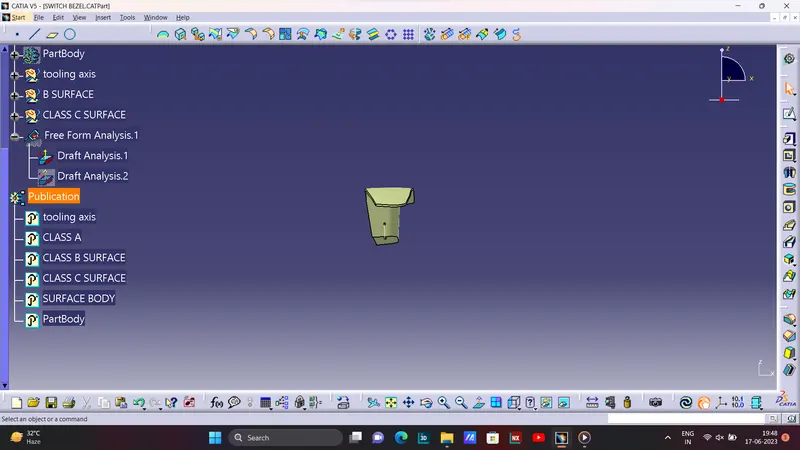

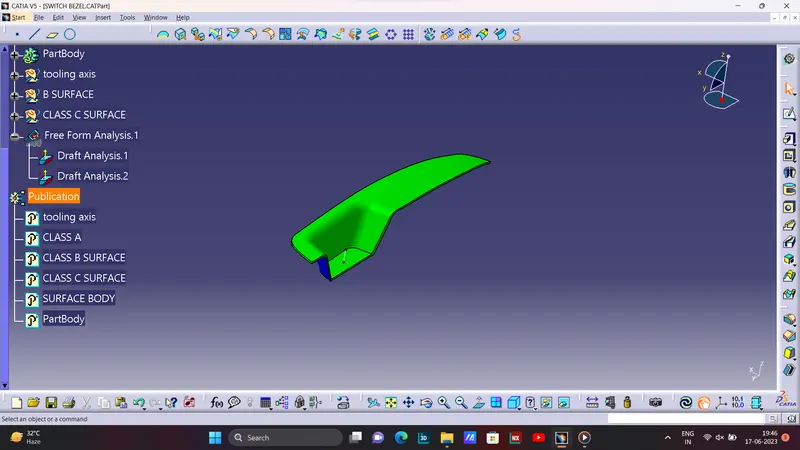

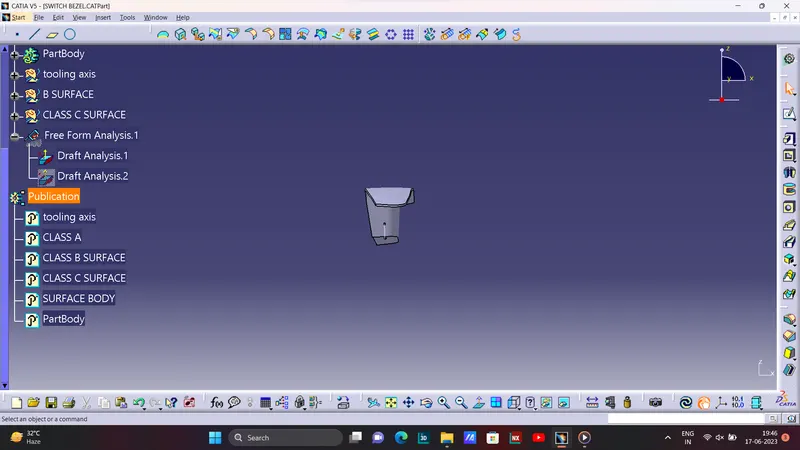

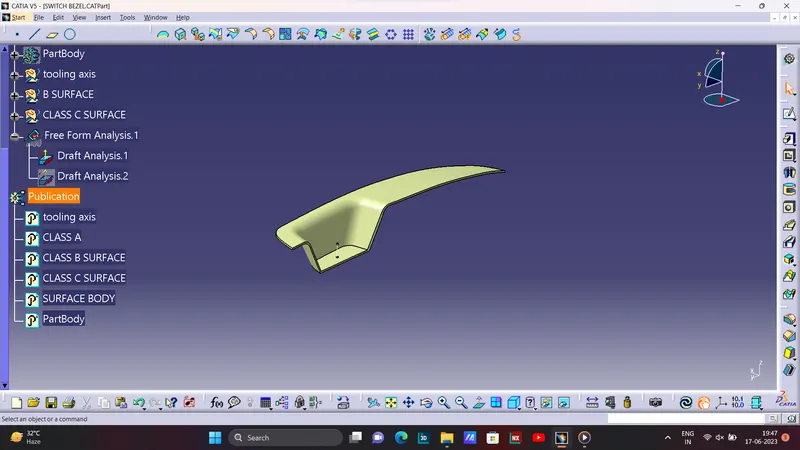

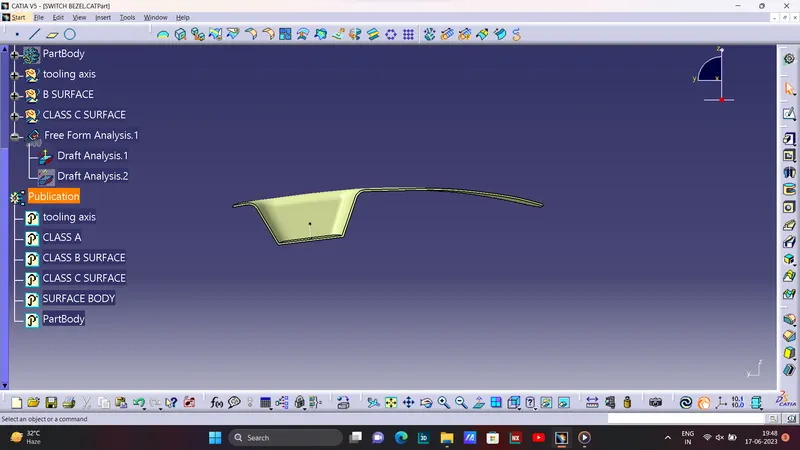

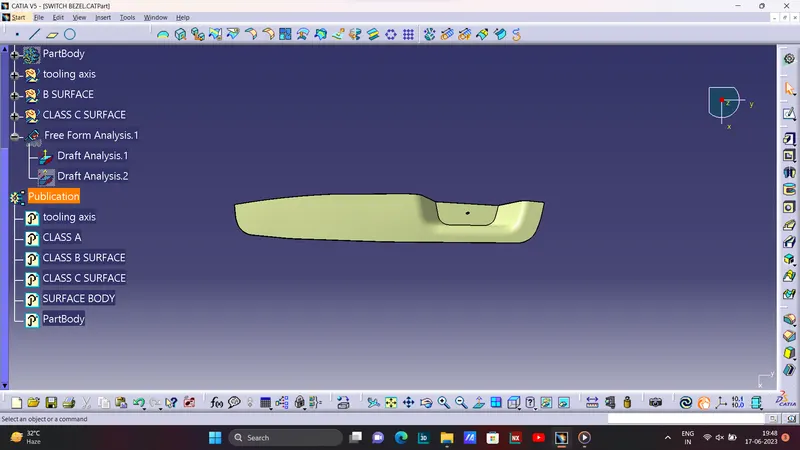

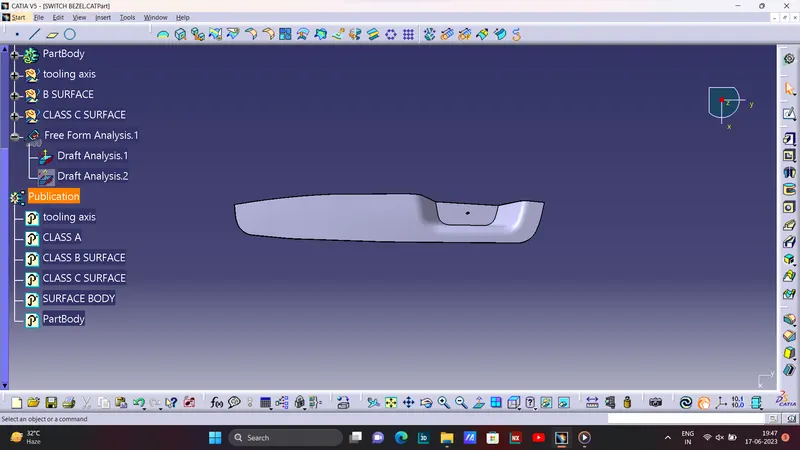

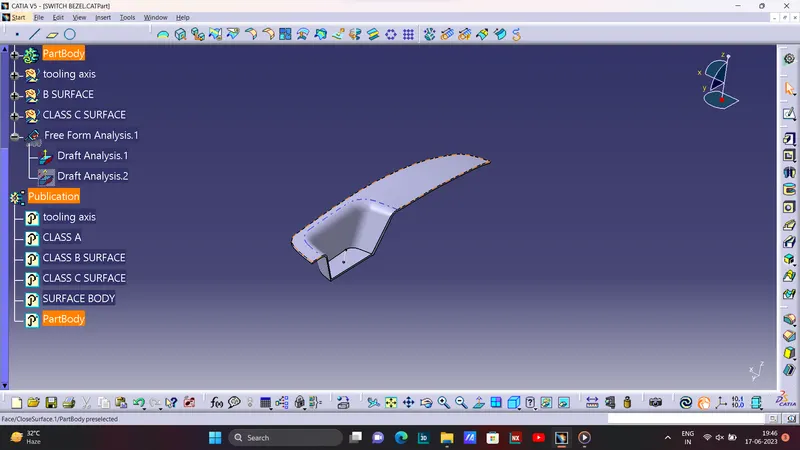

SURFACE A draft analysis :
