Week 9 - Challenge 2 - Switch Bezel Design

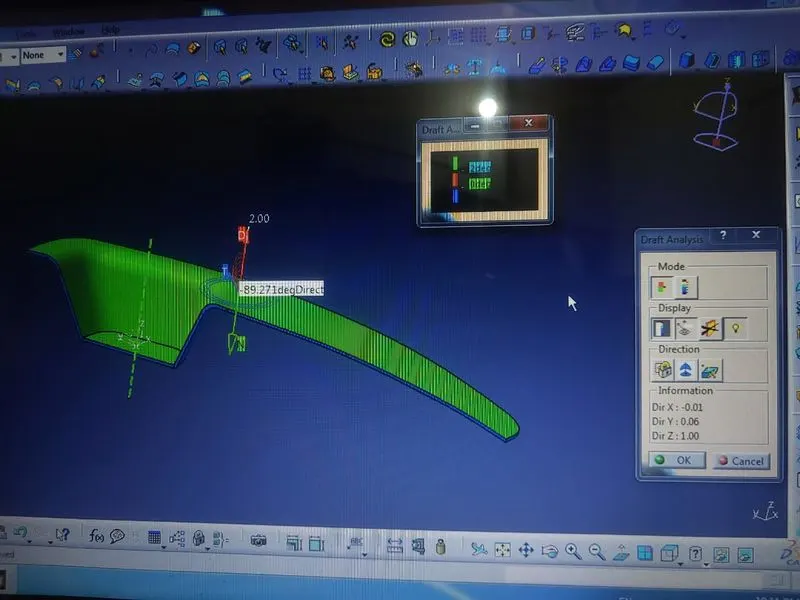

IN THIS KIND OF DESIGN WE FIRST NEED TO FIND DRAFT DIRECTION SO THE FINAL BODY CAN BE EASILY EXTRACTED FROM THE MOLD SO ONCE THE DIRECTON IS FIXED ON CLASS A SURFACE. WE NEED TO FIRST GO TO INTERSECT COMMND AND THE CHOSSE THE DIRECTION OF WHICH YOU NEED INTERSECTION ONCE THE INTERSECTION IS OBTAINED THEN WE NEED TO FIND THE LINES WHICH ARE PARALLEL TO THE TOOLING DIRECTION THE DRAW A LINE AND GIVE AT 3DRGEE SPACE BETWEEN THEM AND THEN OBTAIN THE TOLLING AXIS BY BISECTING LINE DRAWN SAME FOR THE OTHER FACE ALSO AFTER OBTAINING THE TWO LINES FIND BISECTING LINE OF THE TWO LINES AND THAT IS THE FINAL TOOLING AXIS WHICH NEED TO WORK ON.
