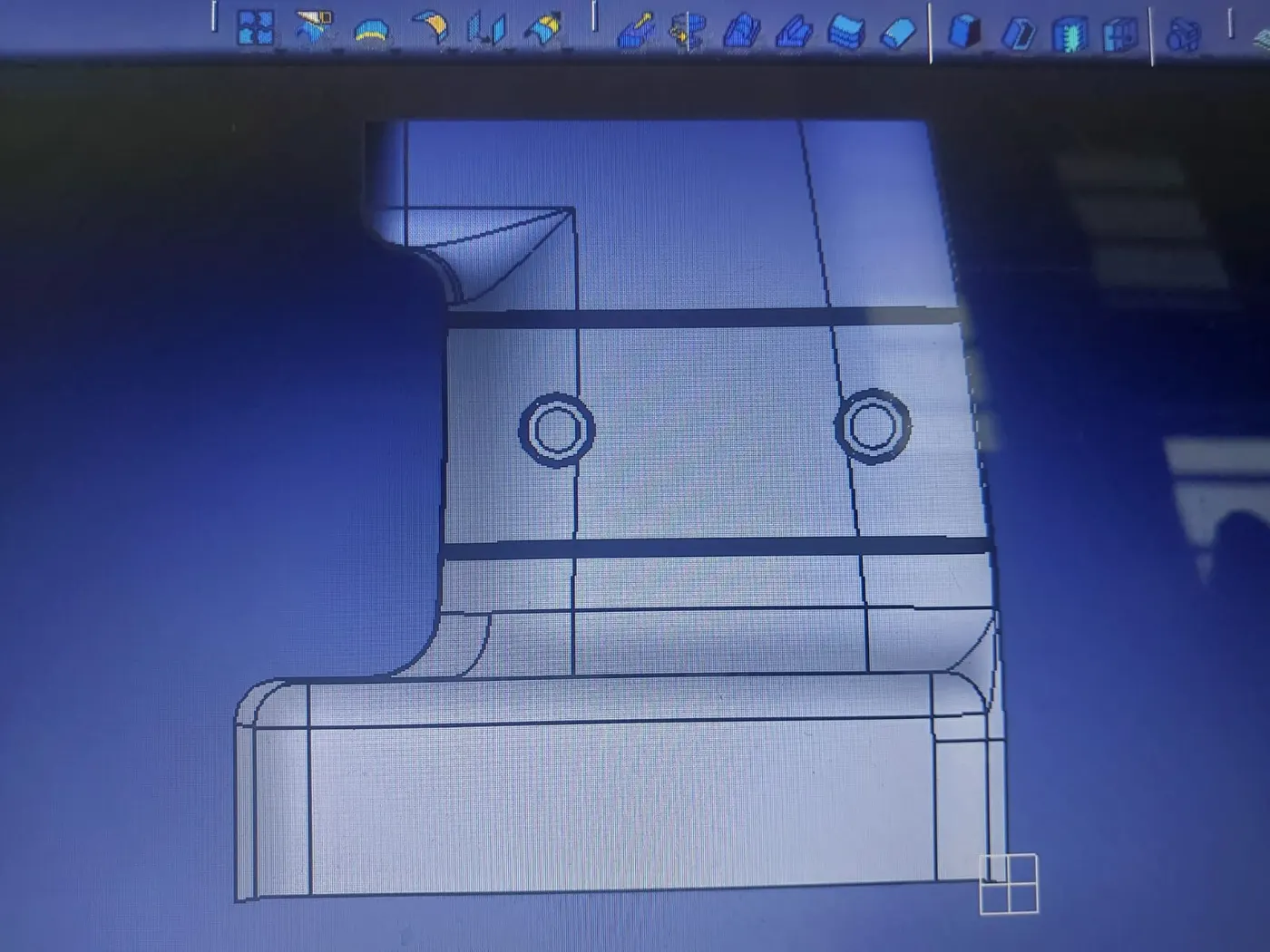

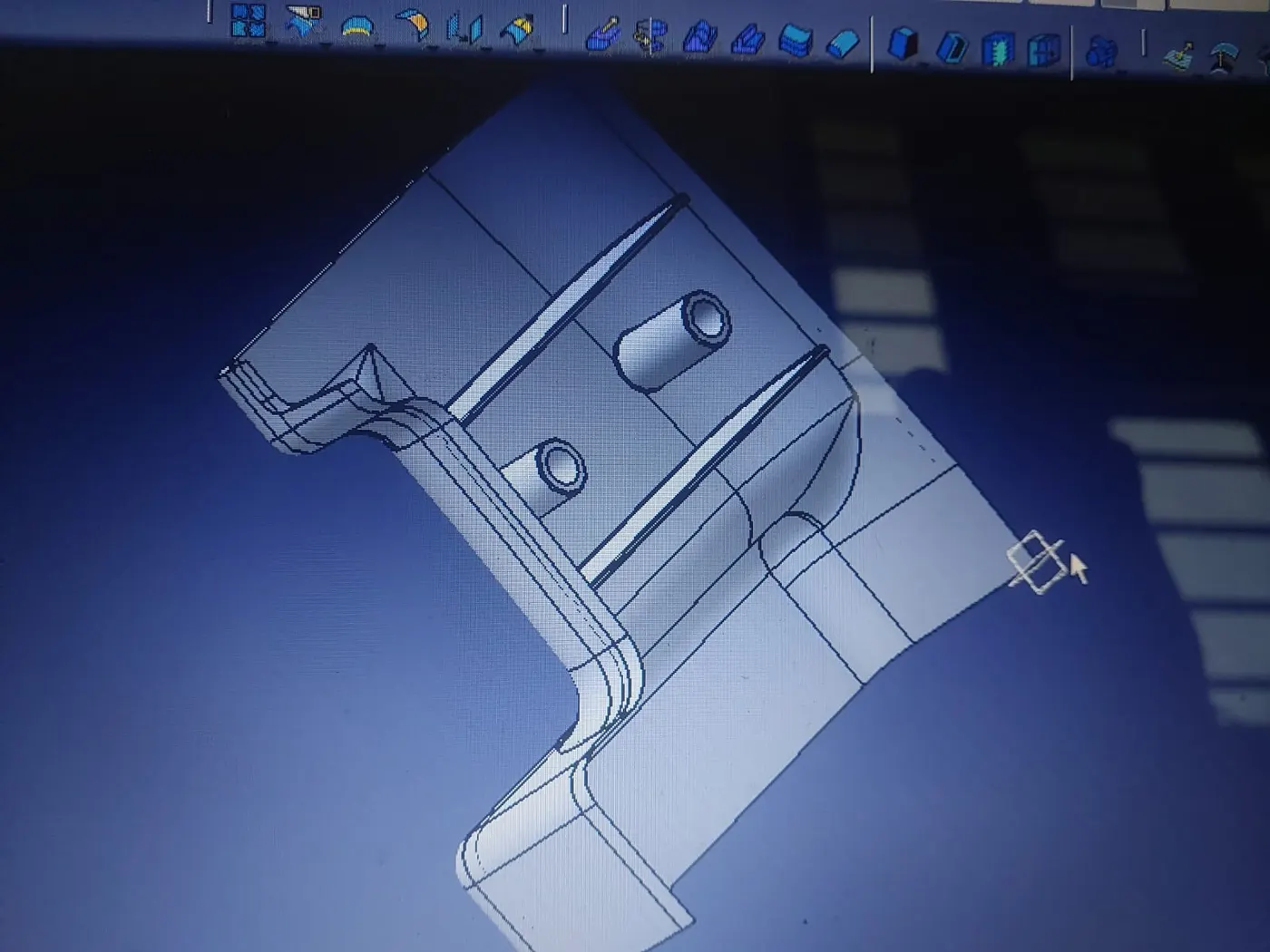

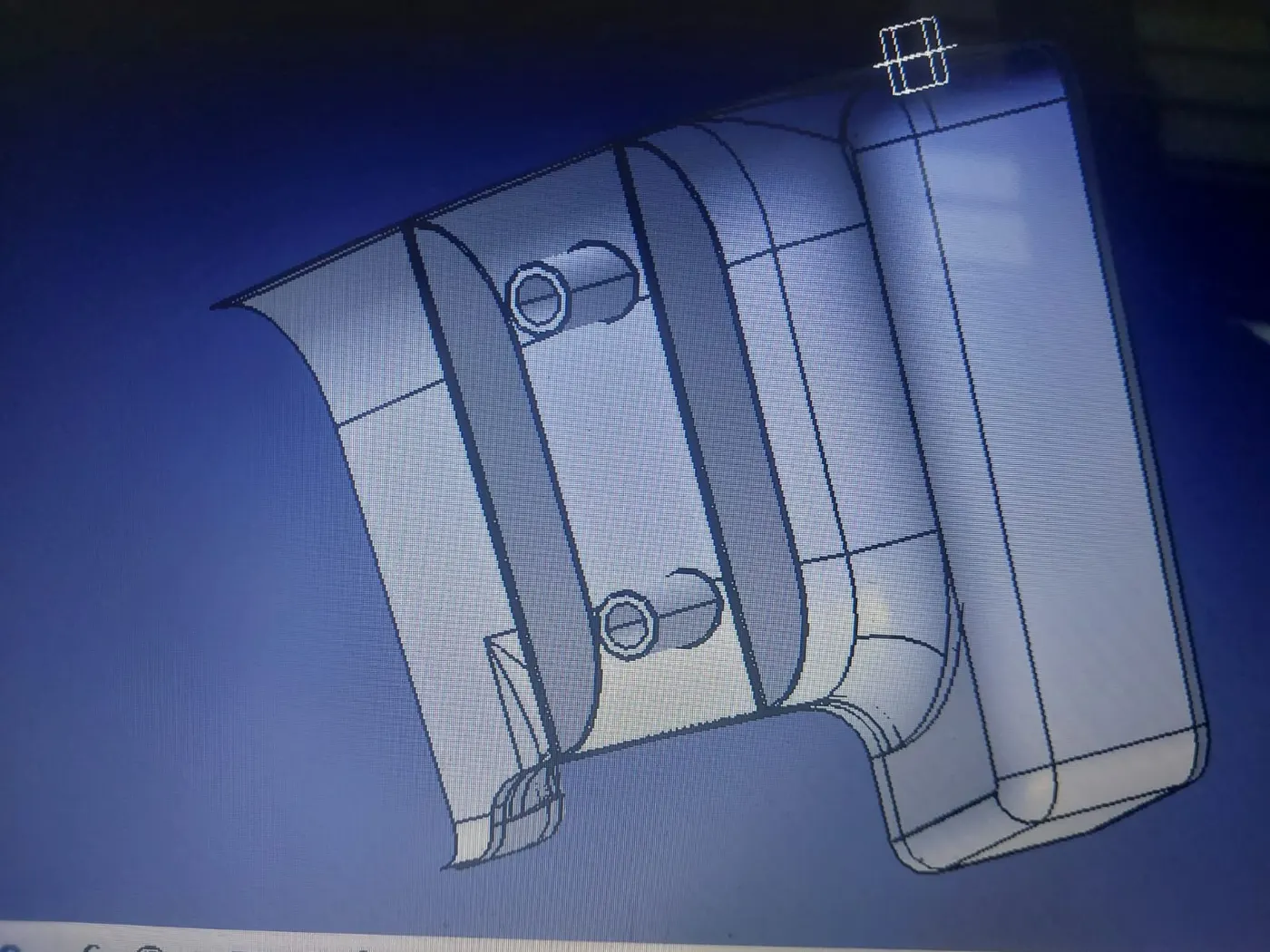

Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

IN THIS KIND OF DESIGN WE FIRST NEED TO FIND DRAFT DIRECTION SO THE FINAL BODY CAN BE EASILY EXTRACTED FROM THE MOLD SO ONCE THE DIRECTON IS FIXED ON CLASS A SURFACE. WE NEED TO FIRST GO TO INTERSECT COMMND AND CHOSSE THE DIRECTION IN WHICH YOU NEED INTERSECTION ONCE THE INTERSECTION IS OBTAINED THEN WE NEED TO FIND THE LINES WHICH ARE PARALLEL TO THE TOOLING DIRECTION THEN DRAW A LINE ON BOTH THE END POINTS OF INTERSECTION AND THE WITH LINE COMMAND DRAW A BISECTING LINE THAT WILL BE YOUR TOOLING AXIS AND THAT IS THE FINAL TOOLING AXIS WHICH NEED TO WORK ON.NOW GO TO DRAFT ANALYSIS TOOL THEN FIRST IT ASK FOR THE MATERIAL MODE CHANGE IT TO MATERIAL NOW JUST GO TO DRAFT ANALYSIS TOOL THERE CLICK ON THE TOOL AND THEN INSERT IT ON TOOLING AXIS AND NOW YOU WILL FIND A RED DOT ON THE BODY THEN CLICK ON IT.NOW FOR ALL THE DIRECTION YOU CAN CHECK DRAFT ANGLE AND ANALYSE THE BODY.
