Week 9 - Challenge 2 - Switch Bezel Design
AIM : Create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
REPORT ON DRAFT ANALYSIS:
Given Class A Surface:

STEP 1 : To check the connectivity of CLASS - A surface by ensuring there is no gap between the component by using Join or Boundary Command. Design check is completed.
STEP 2 : Find the tooling axis of the component. The tooling axis is the axis from which mold opens and closes or the cavity opens and closes.
STEP 3 : CREATION OF TOOLING AXIS
- The tooling direction is created by bisecting method is used.
- The base surface of the class – A was extracted and a point at the center is created and an axis system was inserted into the topic with the current feature disabled.
- Using project intersection along yz plane is created and the two inclined lines were drawn inside the positioned sketch.
- Then bisecting lines with the two inclined lines were drawn.
- Now the same procedure is done along the xz plane but on one side we don’t have inclined lines so the center point is used to extrude a line along the z-direction and gave a measurement of 6 degrees (Tentatively).
- With these two lines from sketches 1 and 2, the bisecting line is created.
Therefore the main tooling axis is created and published

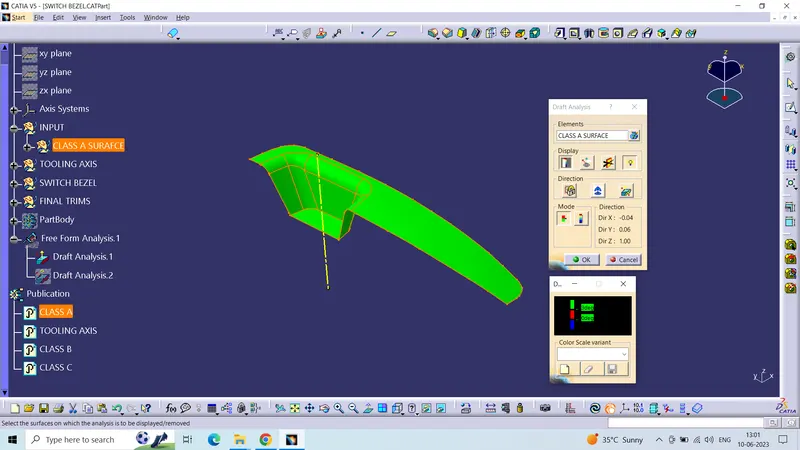

STEP 4 : DRAFT ANALYSIS OF CLASS A SURFACE:
- Now perform the Draft analysis using the Featured Draft Analysis tool in the tools. Before performing the draft analysis ensure the surface should be in material mode.
- Open the draft analysis toolbox and select the compass and try to align W-Component with the main tooling axis and later click on the lock symbol after aligning.

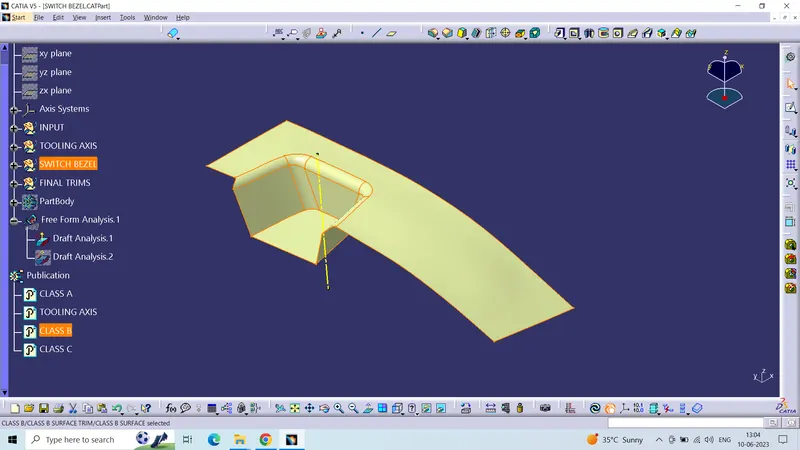

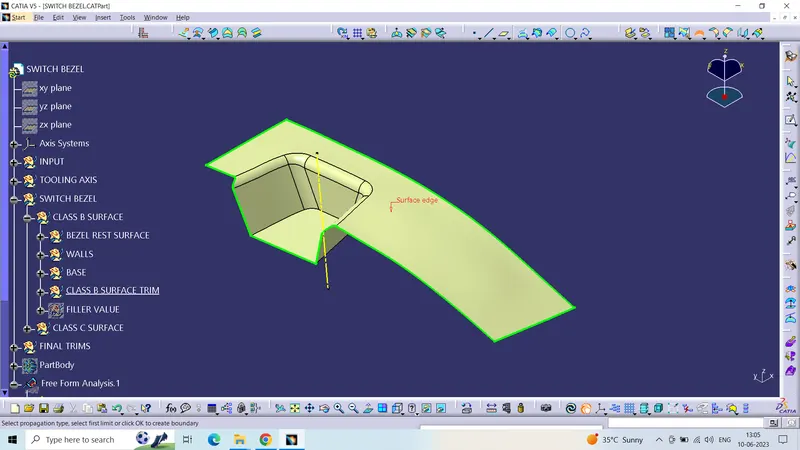

CREATION OF CLASS B SURFACE (B SURFACE):

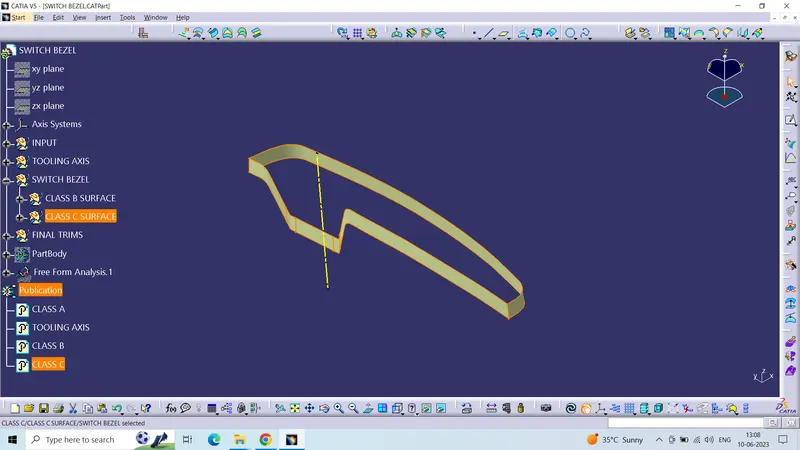

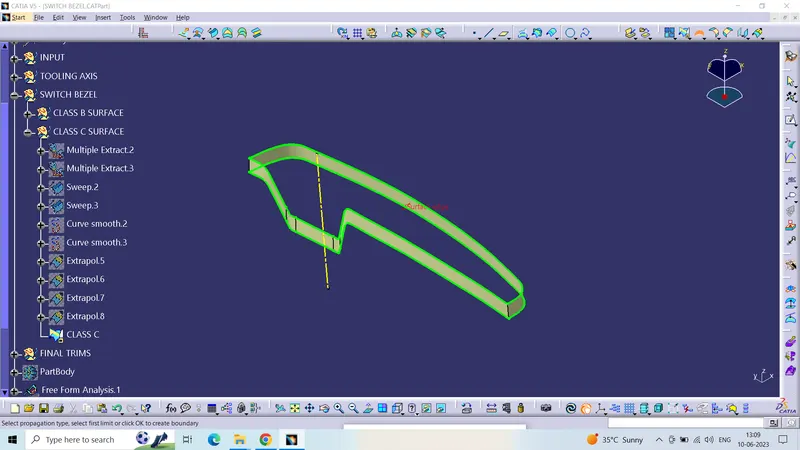

CREATION OF CLASS C SURACE (C SURFACE) :

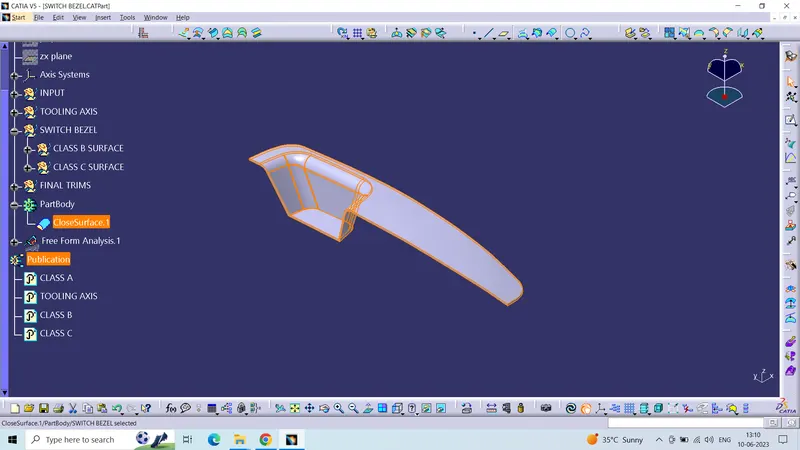

FINAL PLASTIC COMPONENT:

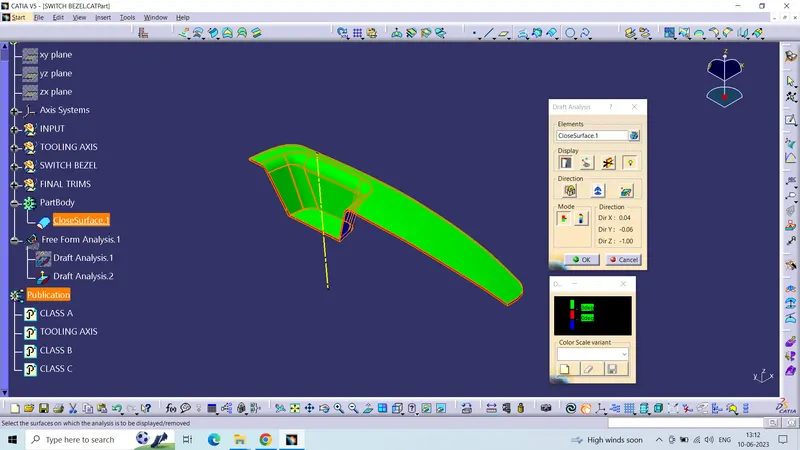

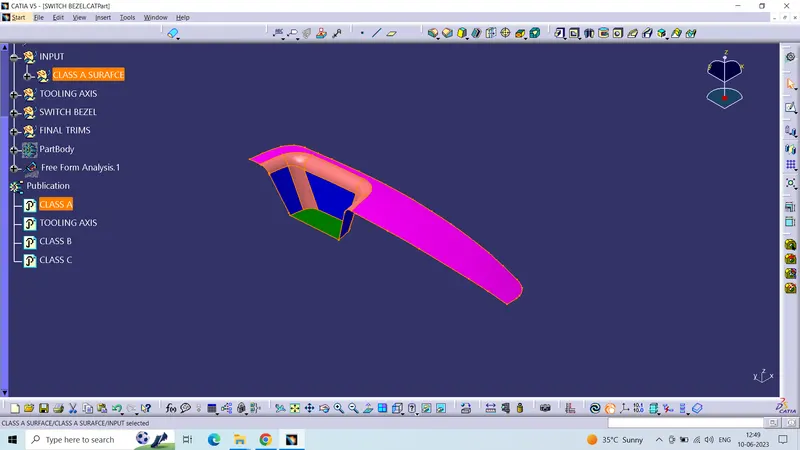

DRAFT ANALYSIS OF FINAL PLASTIC COMPONENT:

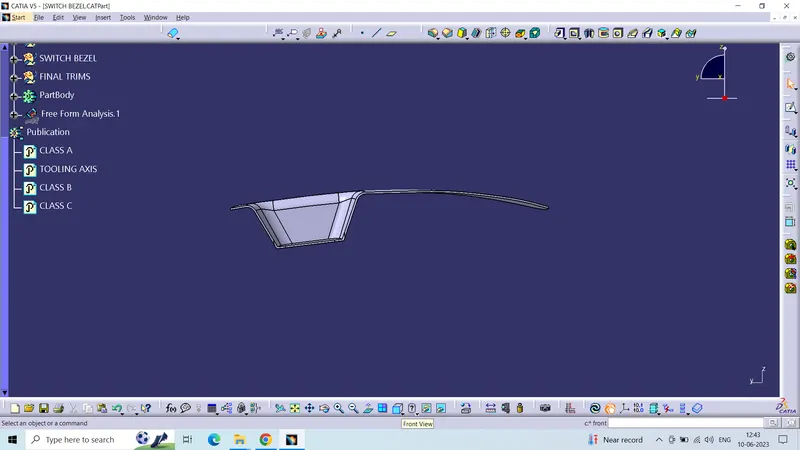

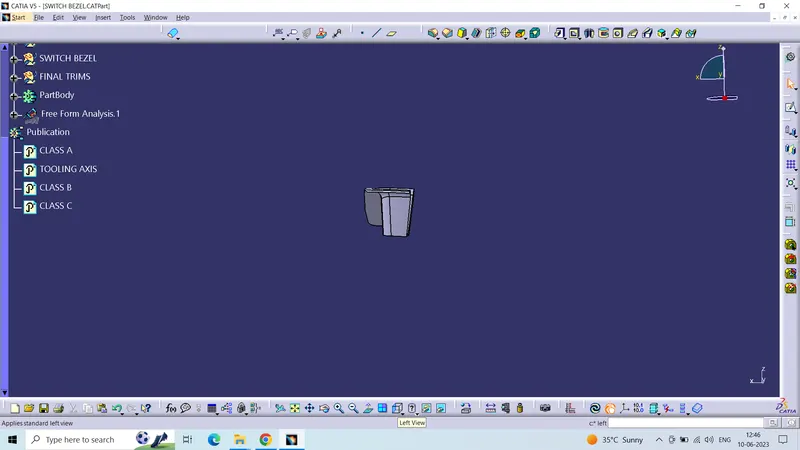

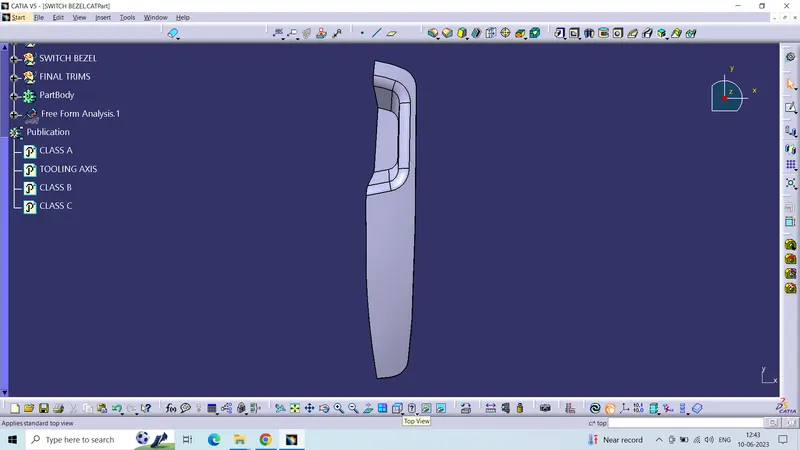

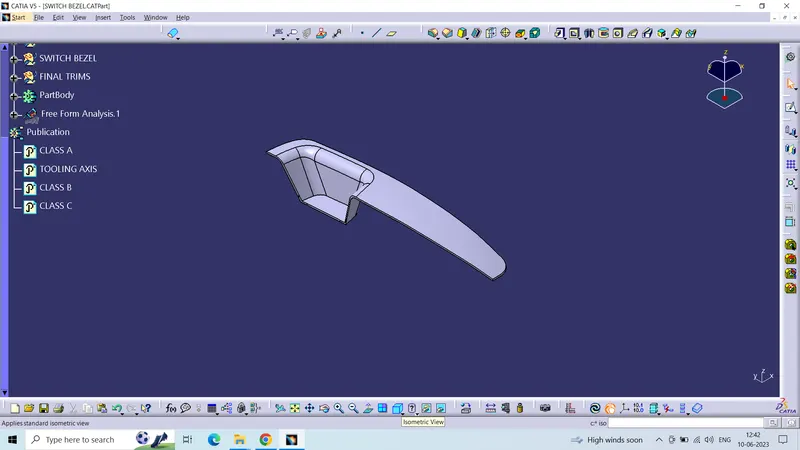

The FOLLOWING ARE THE 3D PART MODEL IN VARIOUS ORIENTATIONS IMAGES.
