Week 9 - Challenge 2 - Switch Bezel Design

Detailed report:-

from crating tooling axis by side walls and interseting line created center line then again taking line with the help of side wall and then by created bisecting line from these two line. which is the tooling axis.

now creating class B surface with the help of class A surface and then creating C surface and join them. and then by joining class A and C surace first and then by trimming class b we will get out final result.

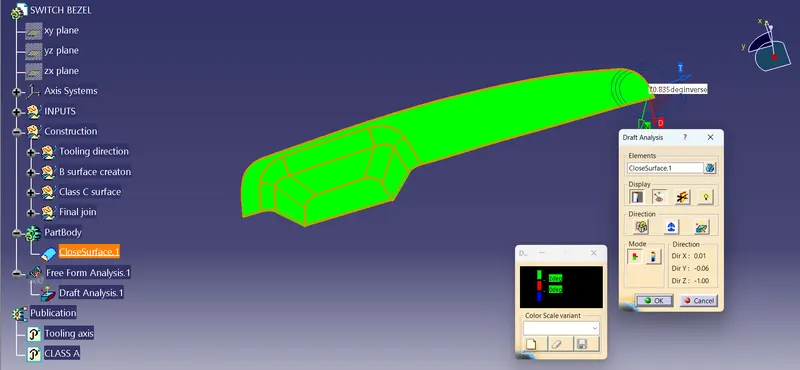

after this we will do draft analysis with the help of draft angle 3 deg and which represent in color code. green color shows draft angle greater then 3, and red shows angle between 0 to 3 deg and blue shows less then 0 deg.

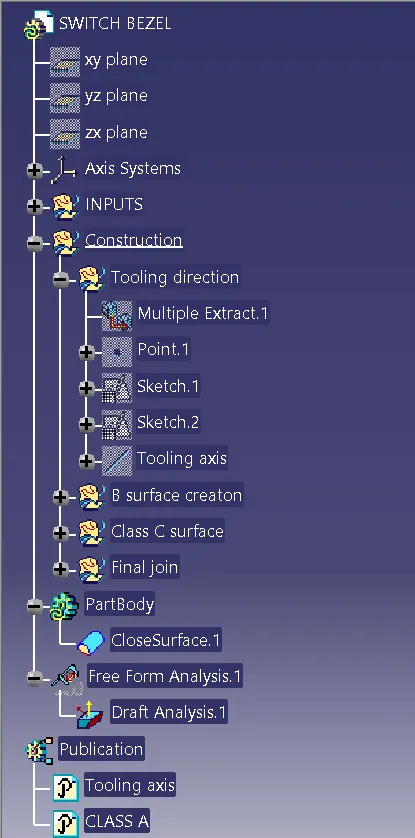

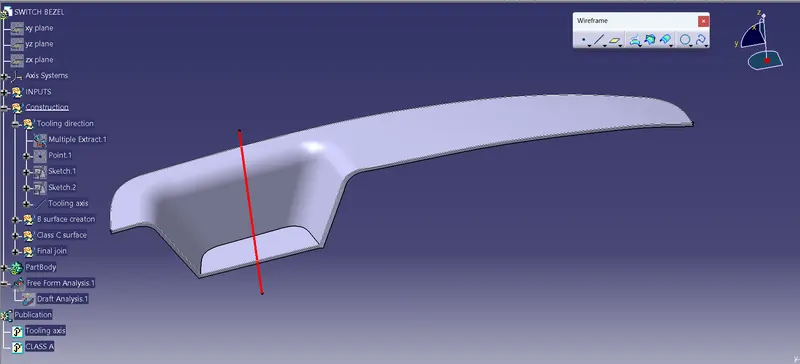

1. Tooling axis:-

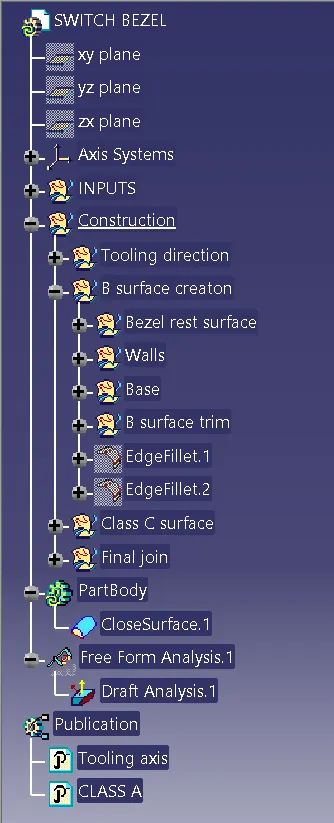

2. B surface creation:-

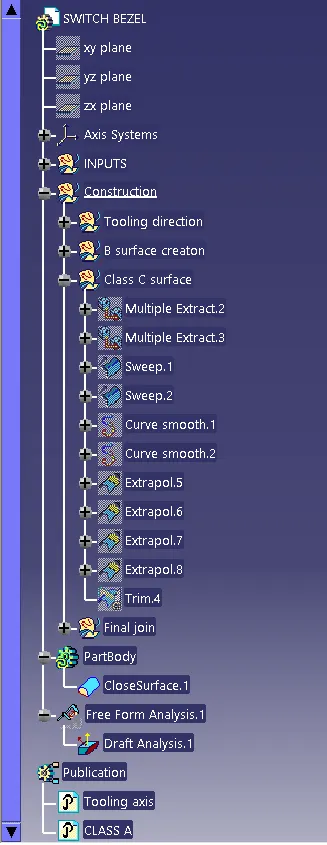

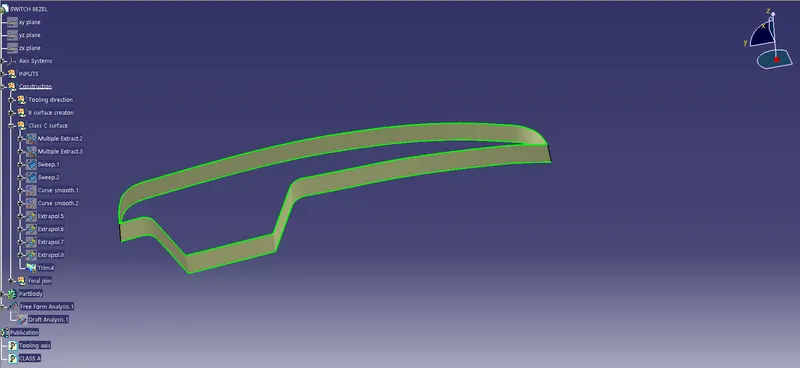

3. C surface creation:-

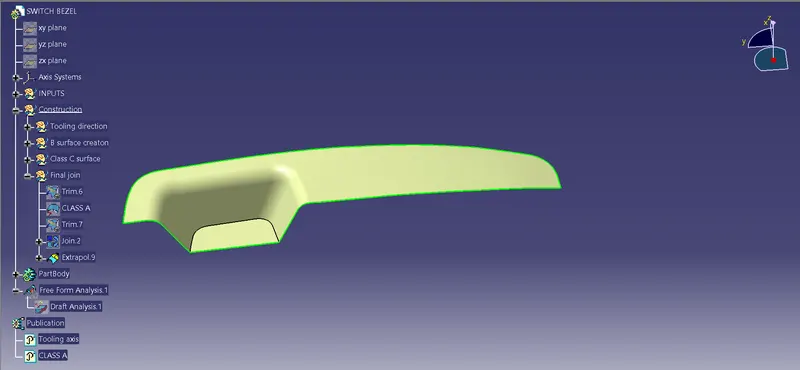

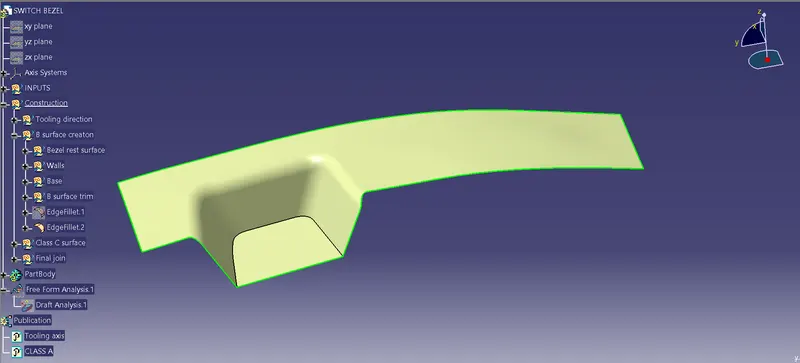

4. Final trim A,B, C surface:-

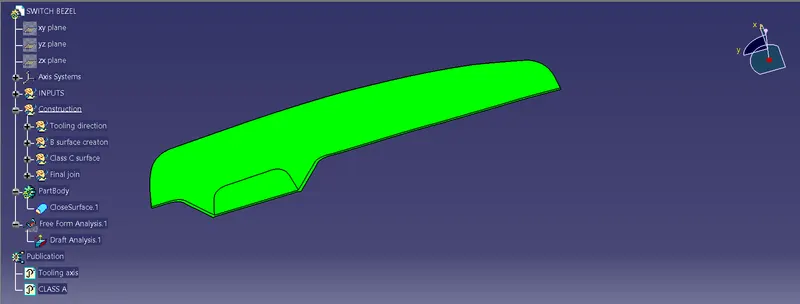

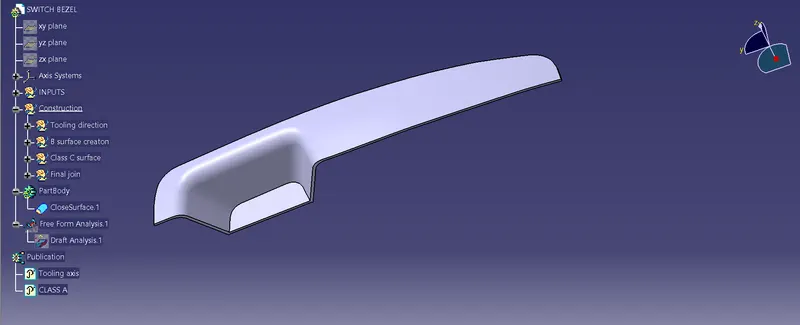

5. Close surface body:-

6. Draft analysis:-

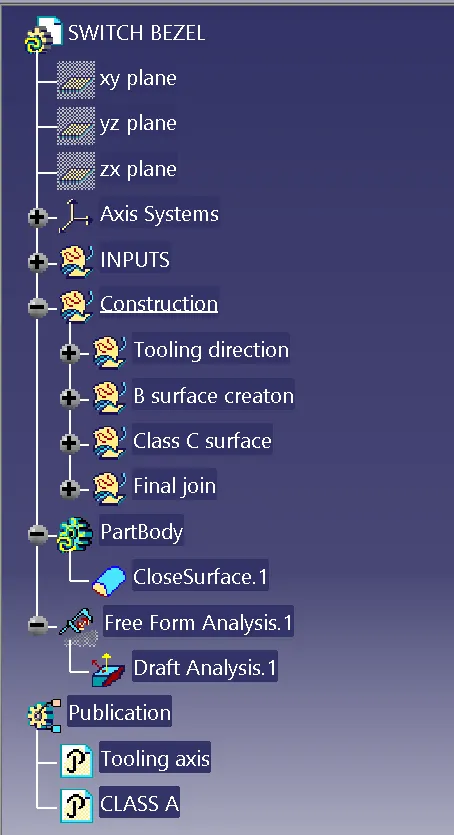

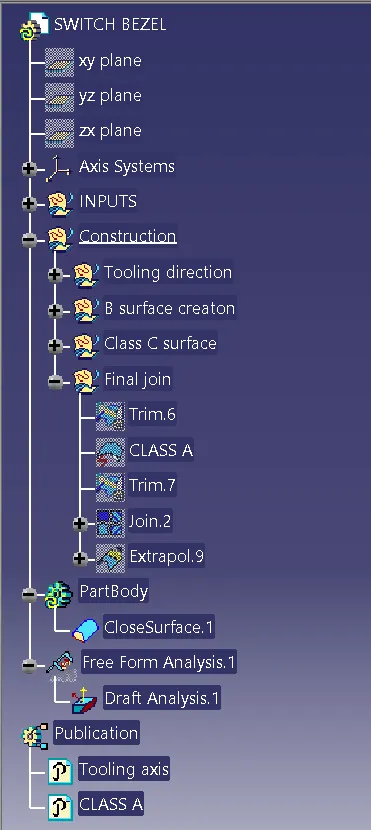

7. Tree structure:-
