Week 9 - Challenge 2 - Switch Bezel Design

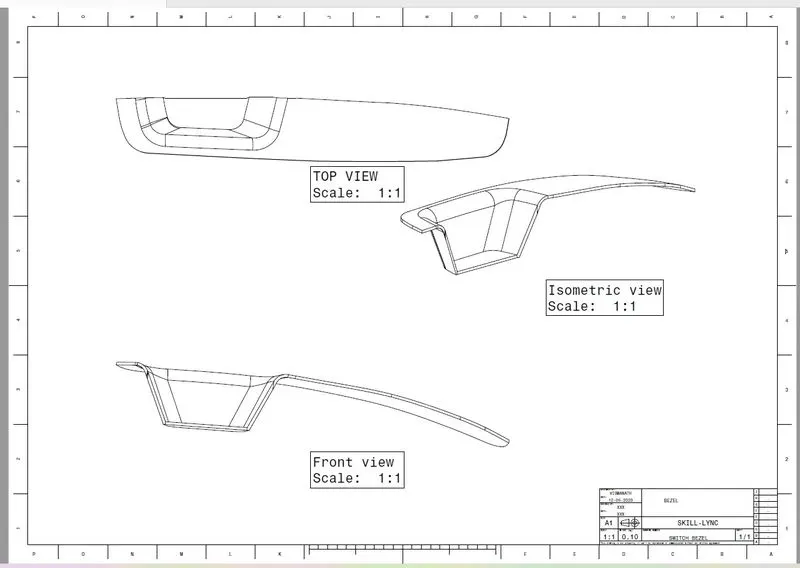

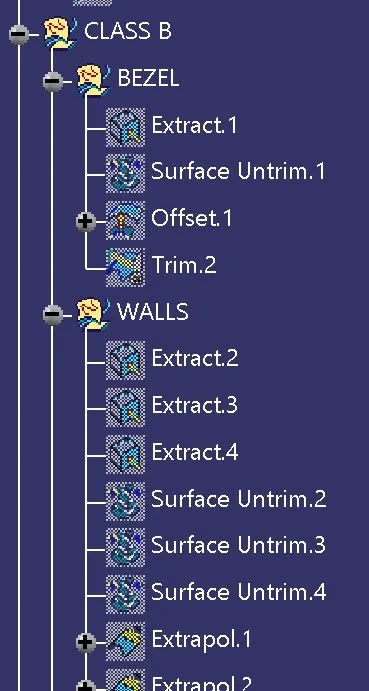

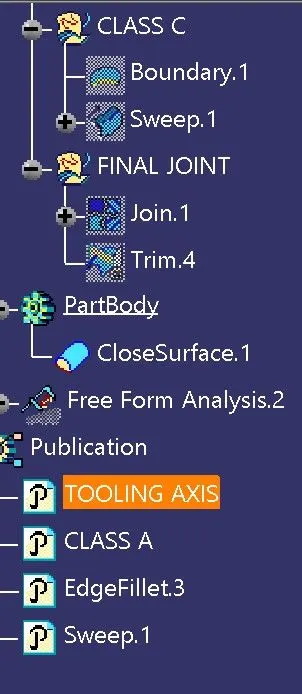

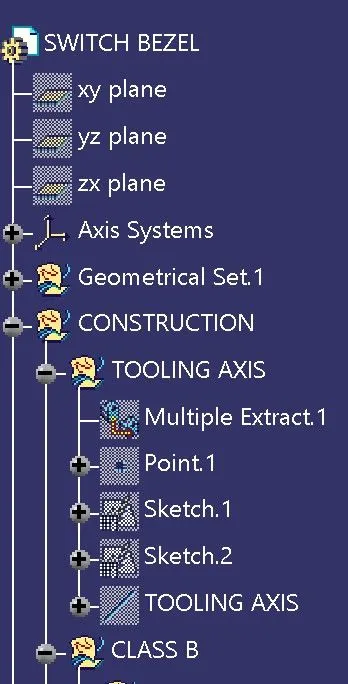

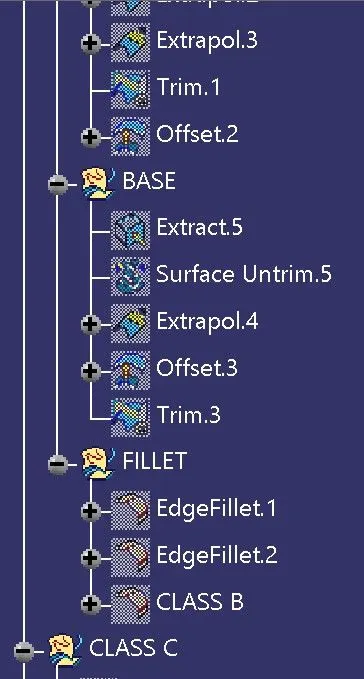

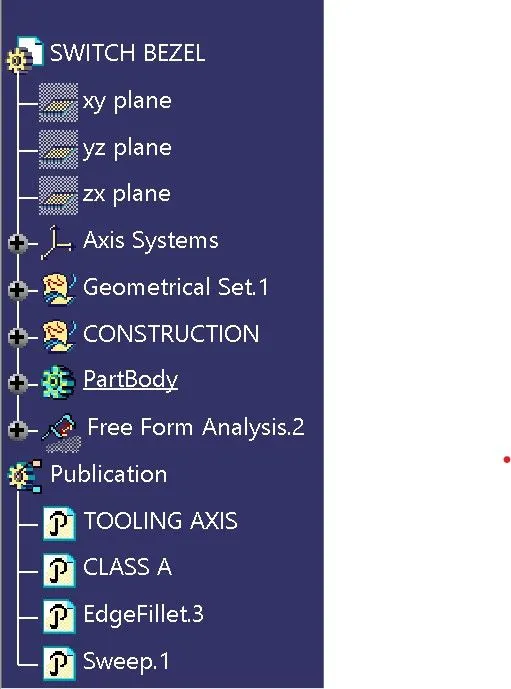

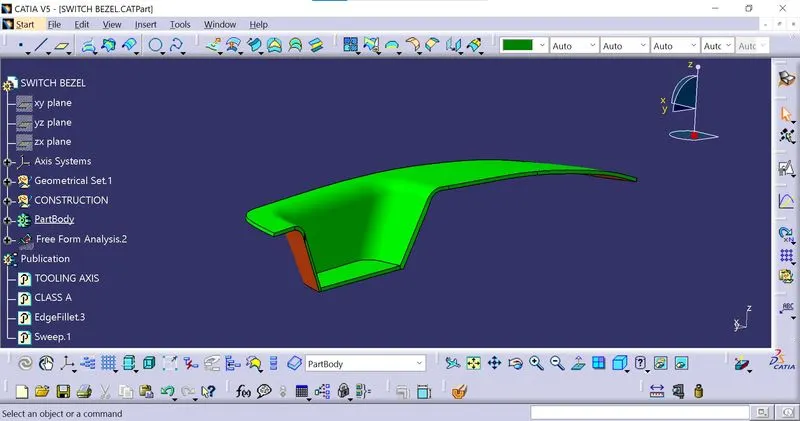

FROM THE GIVEN SWITCH BEZEL CLASS A PART I HAVE CREATED A TOOLING AXIS AND EXTRACTED EACH AND EVERY PART UNTRIMED THEM AND EXTRAPOLATED IF NEEDED OFSETT IT AND THEN TRIMMED WITH RESPECTIVE BESIDE PARTS TO GET THE DESIRED OUTPUT DESIGN . THEN A BOUNDARY LINE IS FORMED USING BOUNDRY OPTION AND TANGENTIAL AS SUB OPTION TO FORM THE REQUIRED BOUNDARY AND SWEEPED IT WITH RESPECT TO THE TOOLING AXIS DIRECTION WITH 3 DEGREE ANGLE SO THE CLASS C IS FORMED. THEN CALSS A & C WERE JOINED TOGETHER AND THEN THEY WERE TRIMMED WITH CLASS B TO FORM A PART. THEN THE FINAL PART IS FORMED INTO CLOSED PART IN THE PART BODY USING CLOSESURFACE OPTION. THEN IT WAS FUTHER ANALISED USIND DRAFT ANALISIS AND THEN THE FINAL DESIRED OUTPUT HAS BEEN OBTAINED WITH REQUIRED CORRECTIONS THAT HAS DONE TO GET IT.
