Week 9 - Challenge 2 - Switch Bezel Design

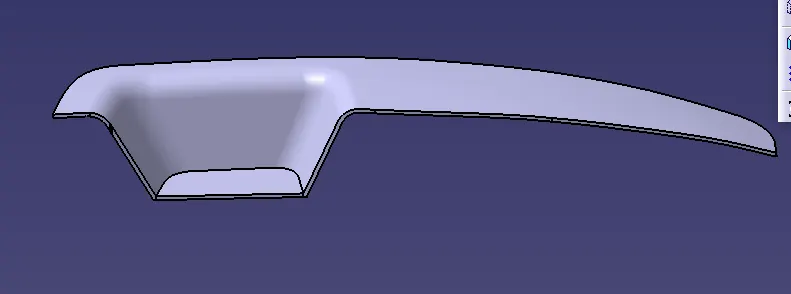

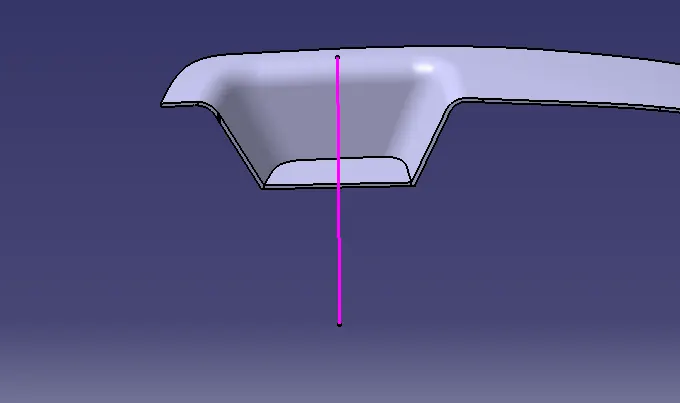

1)First we need to creat real tooling axis, for that we have to intersect the surface A in x and y axis then we got two dummy axis then we have to bisect the two lines in order to get the real tooling axis of surface .

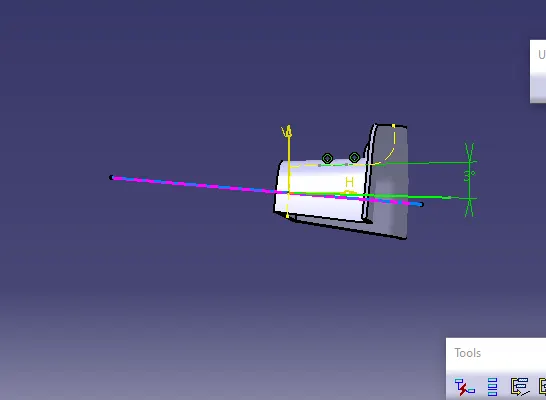

1st we extract the bottom base because we can easily creat the tooling axis in z direction , then creat point on base surface and go for position sketch and select zx and zy plane for creating the dummy aixis

for x axis

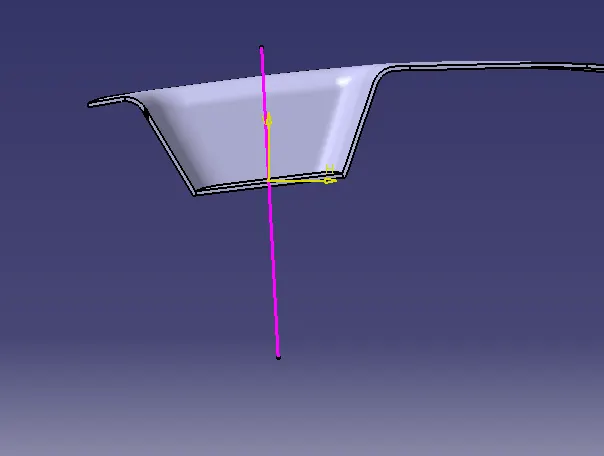

creat of surface B

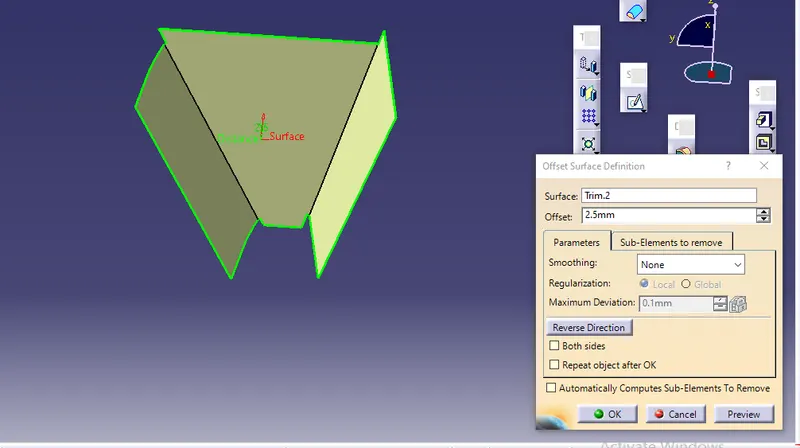

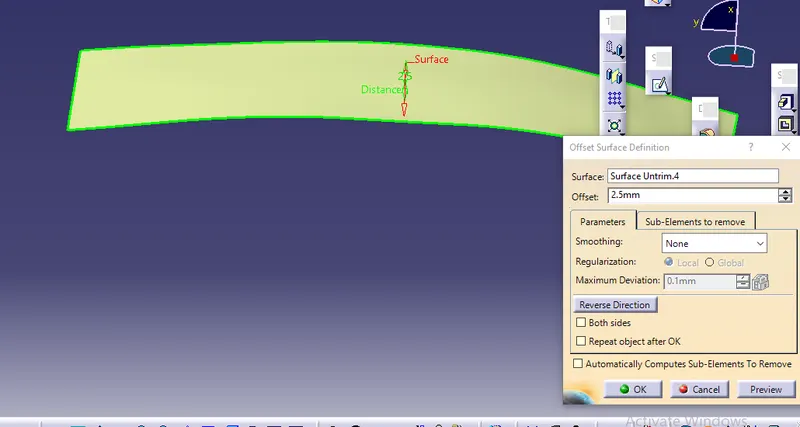

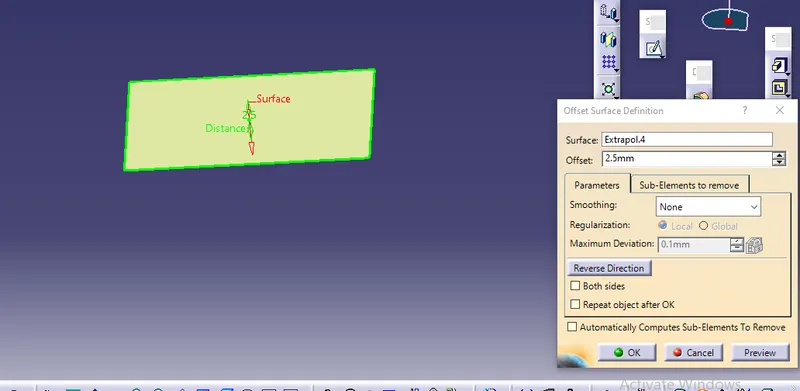

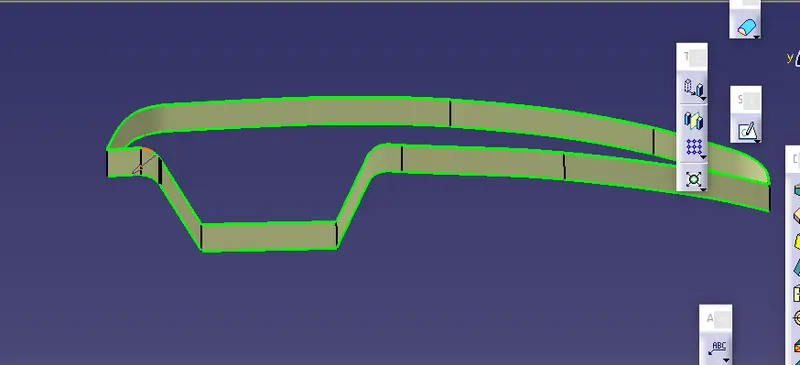

extract and untrim all side wall and offset to 2.5mm thicness

top surface

base

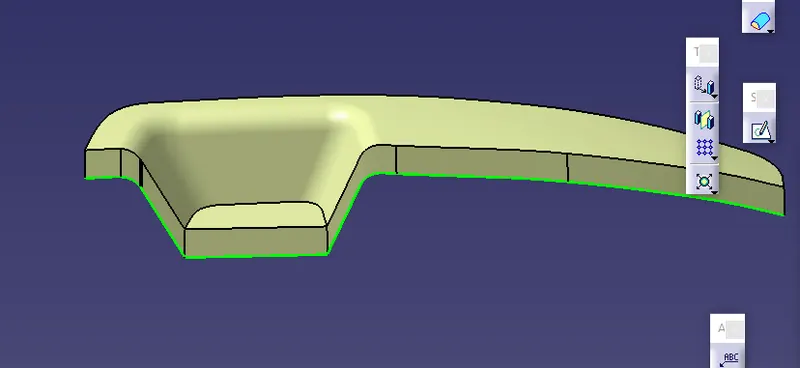

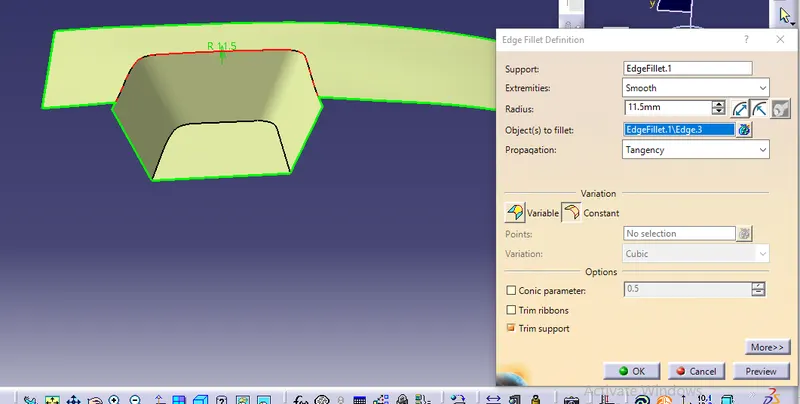

final trim and edge surface

c surface

join A and C surface

finaly trim with b surface

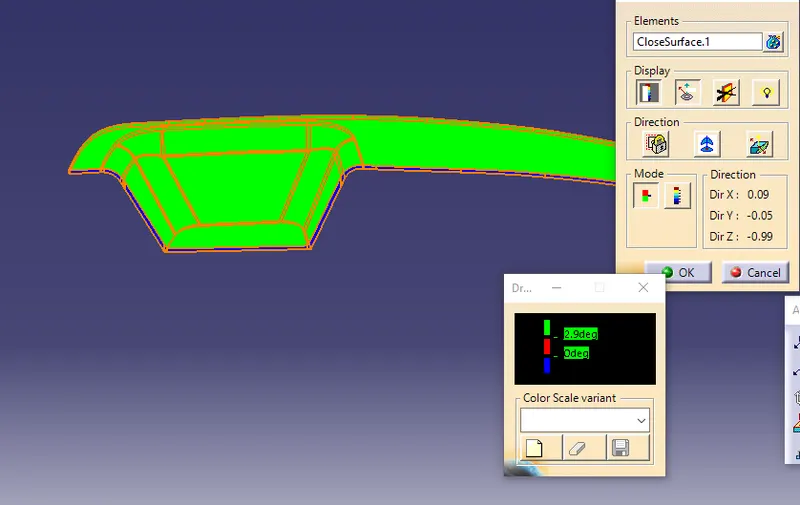

draft analysis

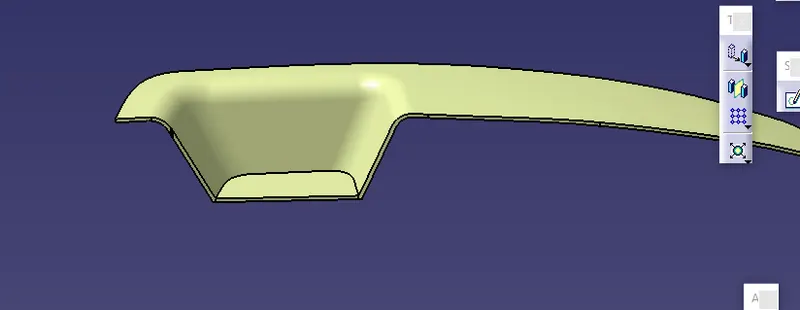

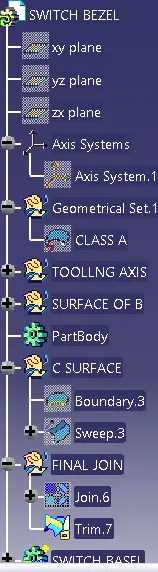

close surface body
