Week 9 - Challenge 2 - Switch Bezel Design

DRAFT ANALYSIS:-

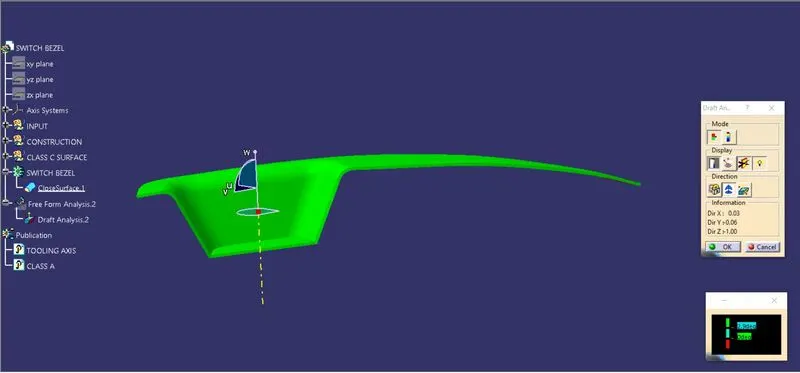

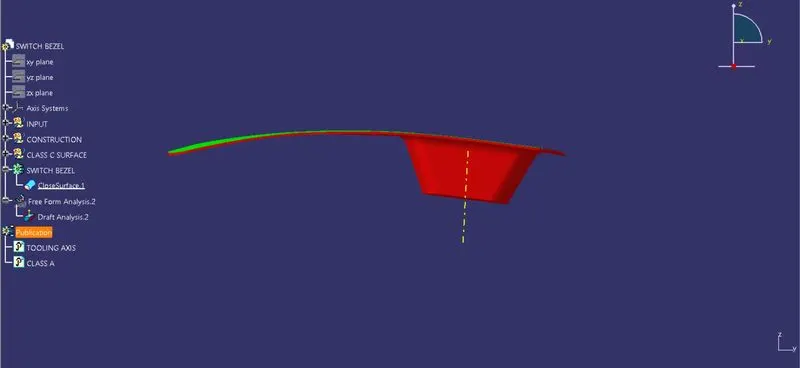

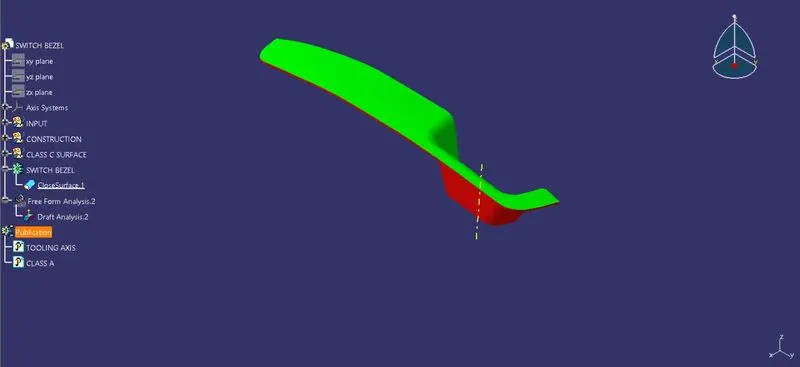

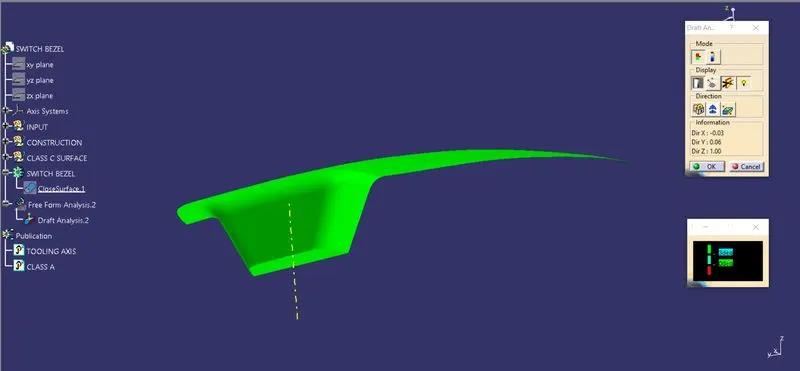

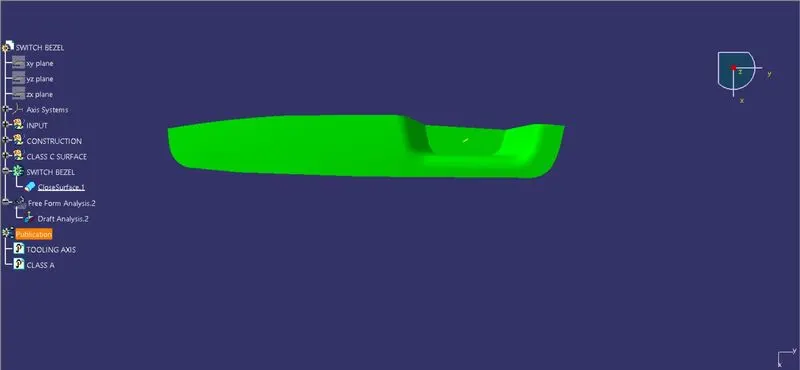

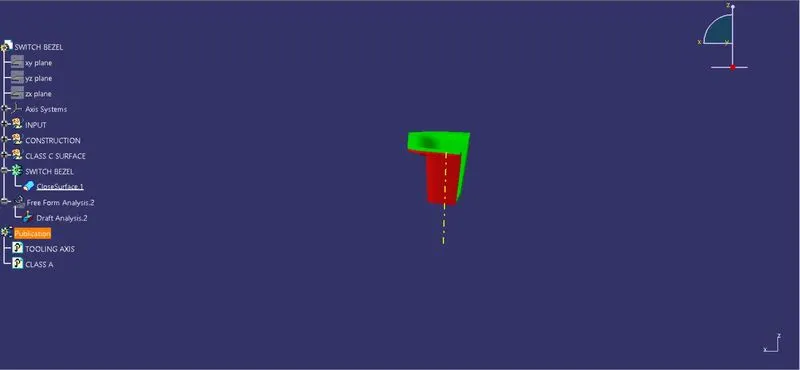

Draft analysis should be done to know the feasibillity for manufacturing. This can be done with help of tooling axis and daft analysis command.after that we will give the minimum draft angle for the component is 3 deg. then palce the compass on the tooling axis and then lock the compass. then will place the point on to the component. then it will dispalys in three colors. red,blue,and green. green color indicates the component is clearing the tooling direction. blue color indicates there i san undercut in the compnent.red color indocates negitive.

TOOLING AXIS CREATION, BI-SECTING METHOD:-

first we have to exract the base and then place the point using o=normal to surface command. after tht using line commnd give line. create the axis and take the yz palne using posiy=tion sketch and draw two lines after that using line command give the bisecting command then one line will be get in between.

after that take the zx palne using positon sketch and give the line through a suarface. here we have no down side line right bthen darw the line parallel to a surface line and give the angle 3 deg to 6 deg. adn then exit the workbecch and again use line command and bisecting line on eline will be craetd using previous line and these line. name these liane as tooling line and aftere that give as publucation for better use.
