Week 9 - Challenge 1 - Base Bracket Design

Aim:

To be able to create solid from the given Class-A surface, by considering tooling axis and draft analysis.

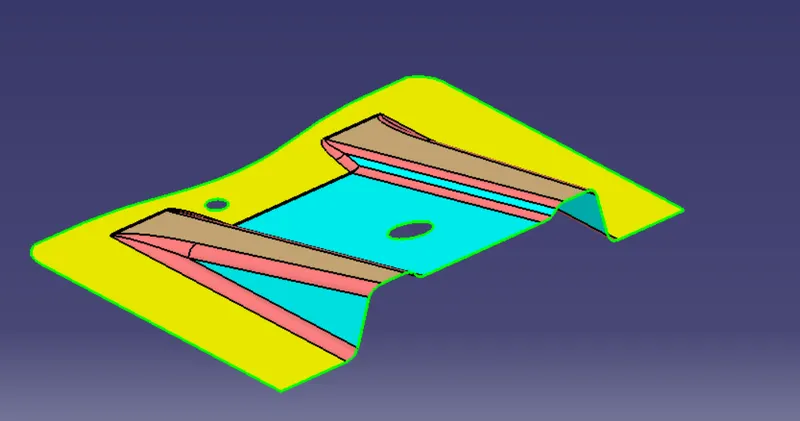

Class-A surface given:

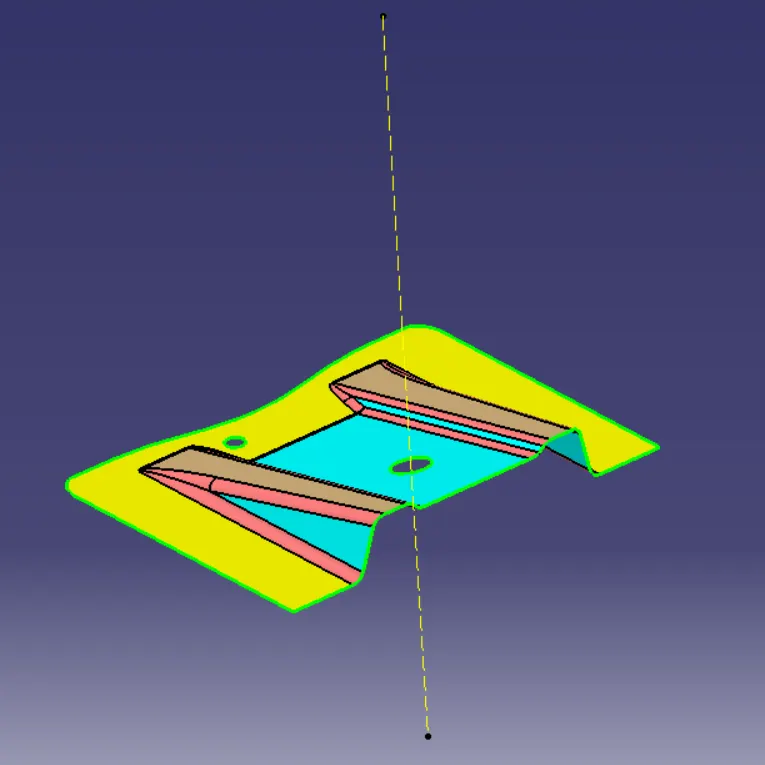

A point was created at the center of the large circle, Using that axis system is inserted,

Tooling Axis:

This axis will decide the draft direction.

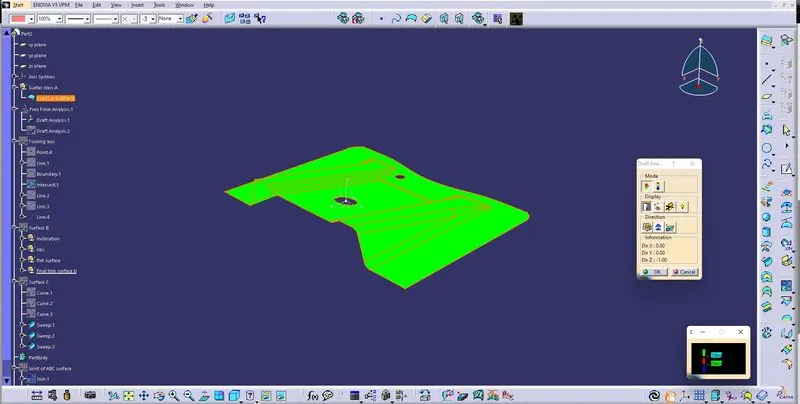

The above picture is the result of the draft analysis.

The draft is considered as 3 degrees.

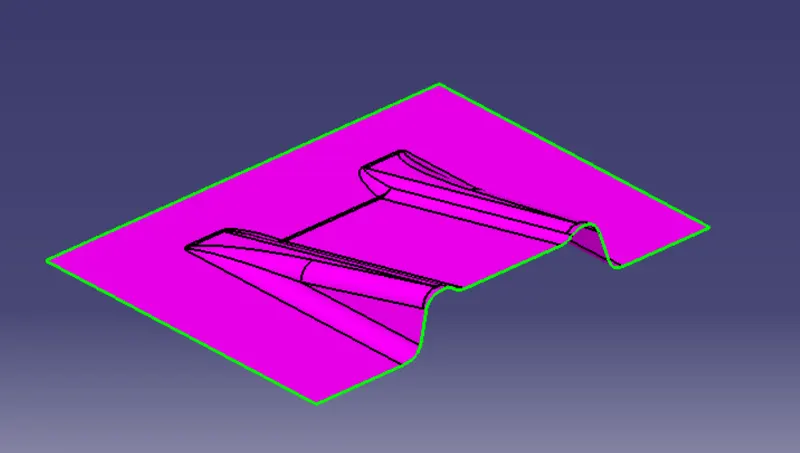

Class B surface:

by extracting the surfaces from class A and then offsetting the extracted surface we got a Class B surface that is 2mm below class A.

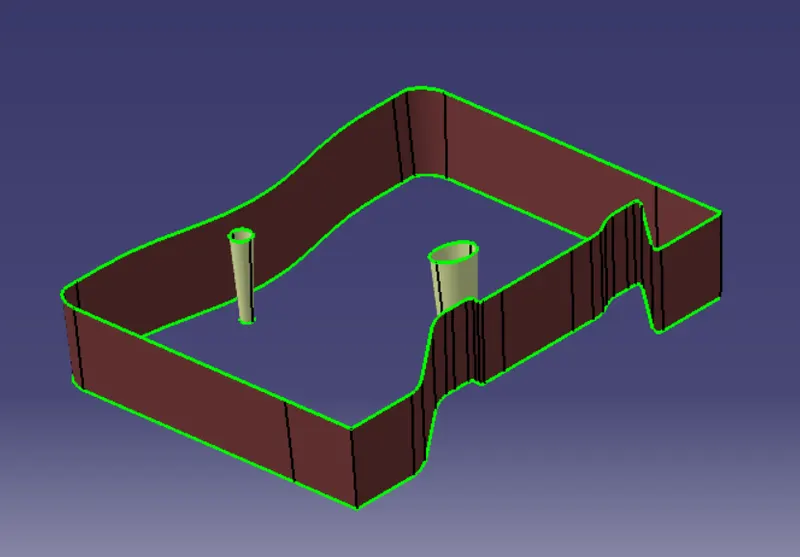

Class C surface:

Closed Surface:

The above surface is trimmed/join from the Class A,B,C surfaces.

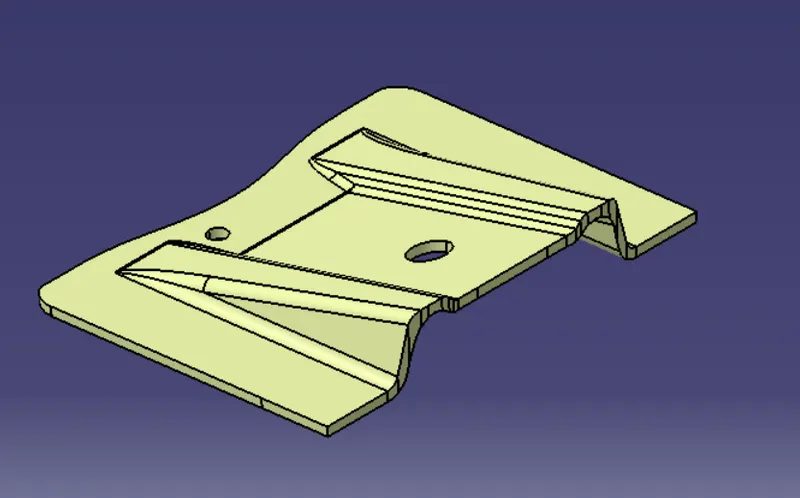

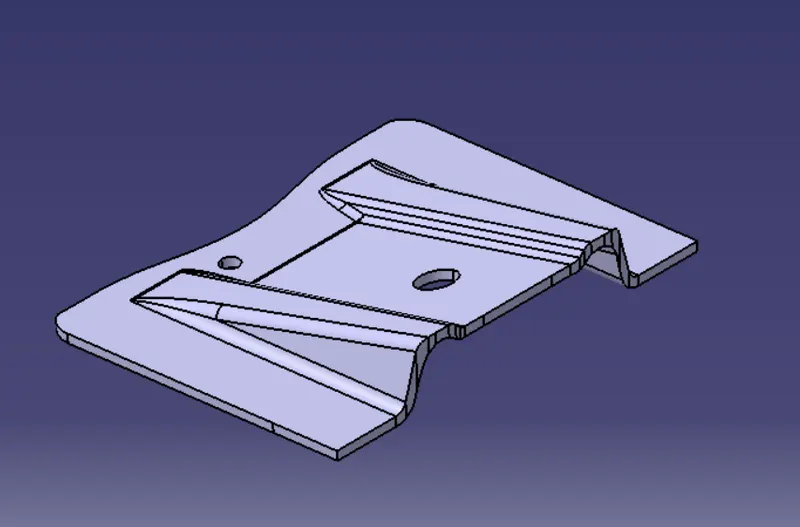

The Solid is made by using the Close surface tool.

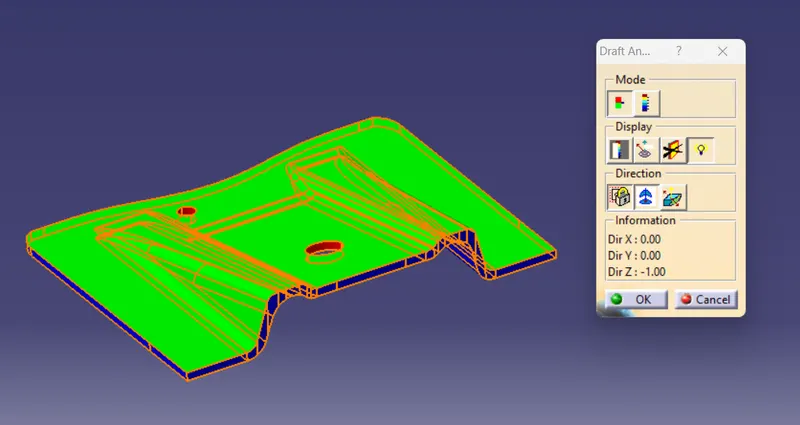

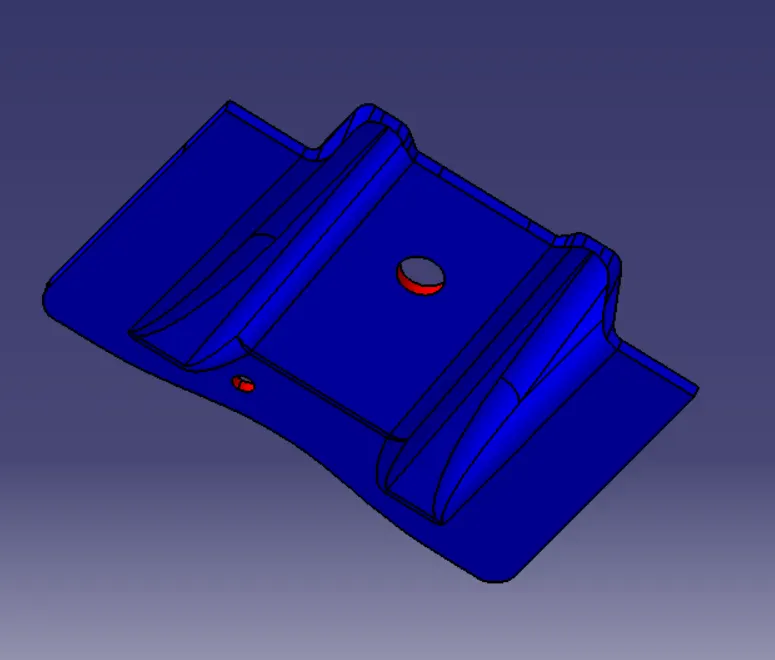

Draft Analysis for solid:
