Week 9 - Challenge 1 - Base Bracket Design

AIM: Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

REPORT ON DRAFT ANALYSIS:

INTRODUCTION:

CLASS-A SURFACE: a surface made by the designer which is given as an input to the plastic modeler to work on. It is aesthetic surface and the outer most surface.

CLASS-B SURFACE: a surface below a certain thickness from the class-A surface is class-B surface. This is the surface that contains engineering aspects of a model.

CLASS-C SURFACE: a surface that joins class-A and class-B surfaces is class-C surface.

METHODOLOGY:

In this model we have focused on the following things:

1. Tooling axis
2. Draft analysis
3. Class-B surface
4. Class-C surface
5. Making a solid model from surface.

Given Class A Surface:

STEP 1: Check the connectivity of the Class A Surface
Ensure that there is no gap between the component, using join command.
We can visually check it or by clicking boundary command.
It has 3 boundaries one outer and two inner circle boundaries.
Therefore first check completed.

STEP 2: Find the tooling axis of the component. The tooling axis is nothing but the mould opens or cavity opens.
Check visaully which is the best possible tooling axis.
Check all three axis.
Along x it possible but expensive and y is not possible.
z is the best possible tooling axis.

Creating a Tooling axis along z:

Therefore the main tooling axis is along z axis.

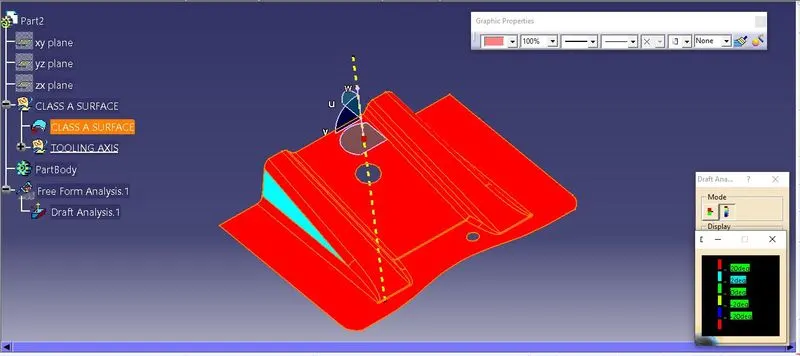

Now perform the Draft analysis using the Featured Draft Analysis tool in the tools.
Then after opening the draft analysis tool box go for the compass and place the compass alinged to tooling axis and click on the lock symbol after alinging and further click on the surface.

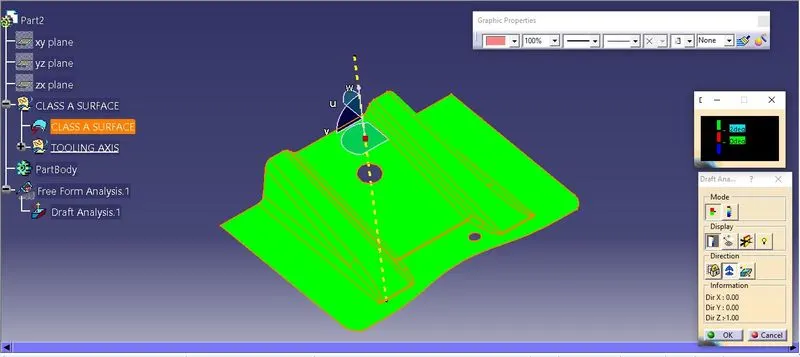

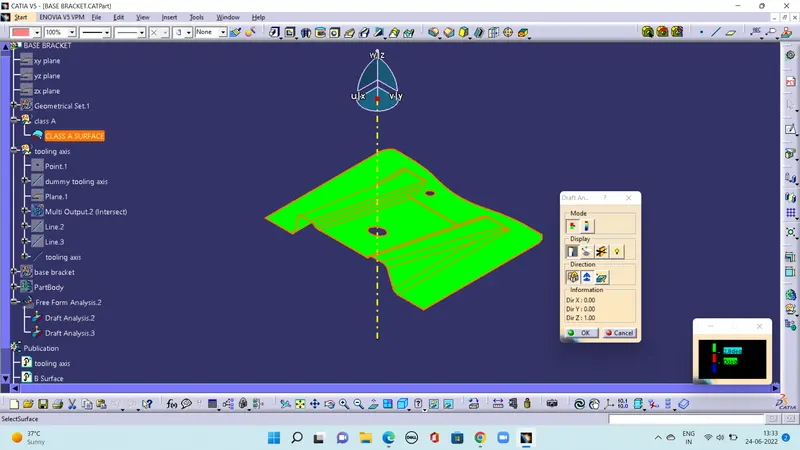

FOR DRAFT ANALYSIS:

1. Go to insert< analysis< feature draft analysis.
2. Align the tooling axis with the compass.
3. Click on the surface and see that the surface is within the permissible limit of the draft values.
4. The surface should be green and in the column proper value (3deg) should be inserted.

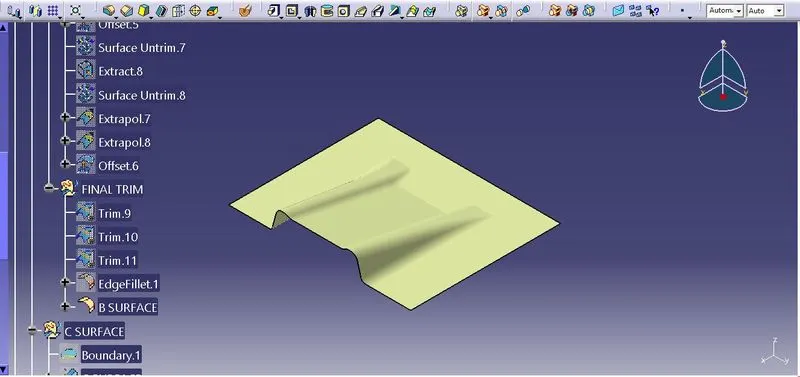

Now creating Class B Surface:

Intially extracting the right side rib using extract option from Class A surface.

Then perform Extrapolate inorder to increase the length

Now trim the surfaces to required surfaces

Then Offset the surface inorder to get the required thickness

Similary create the left side rib

Now Similarly get the slanted as well as the flat surface and offset it to desired value

And now trim inorder to get the required surface

Now fillet the surface to required amount

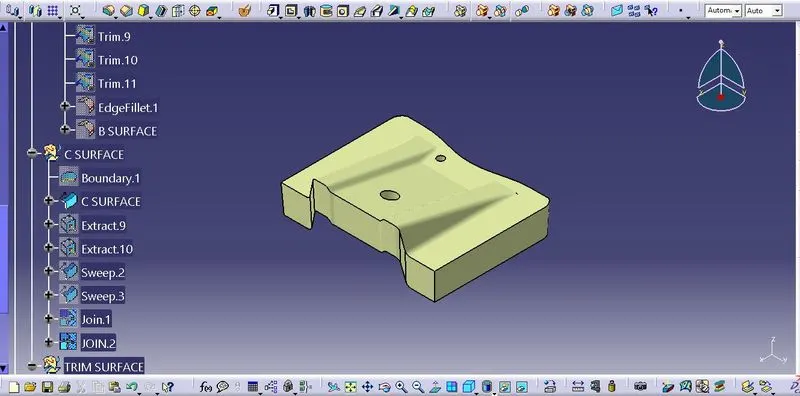

Now Creating Class C Surface:

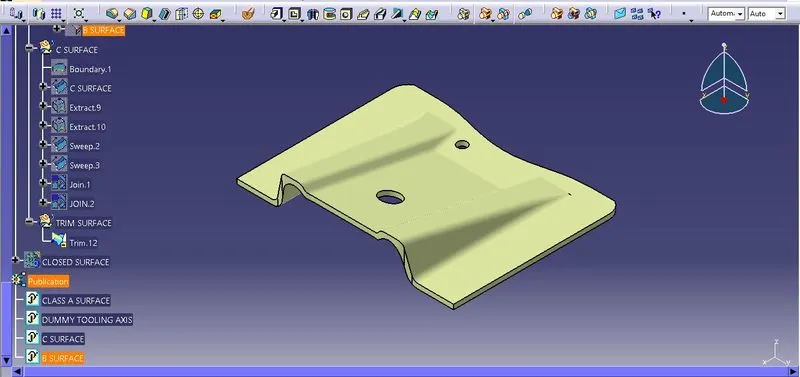

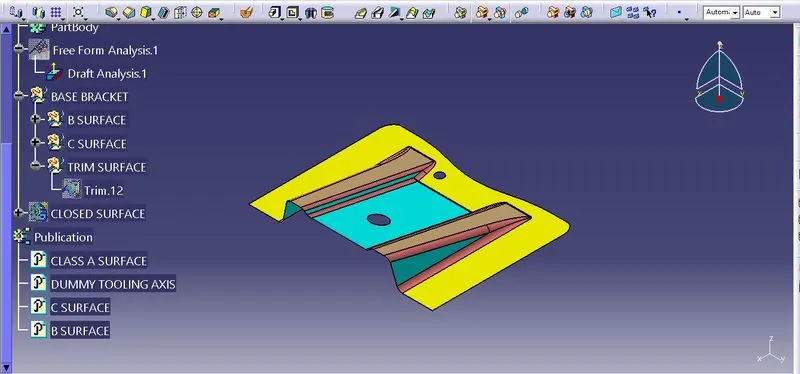

FINAL BASE BRACKET:

1. Join the class-A and class-C surfaces together.

2. Trim the class-B surface with the join created earlier.

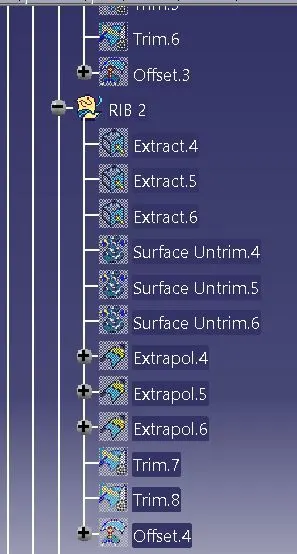

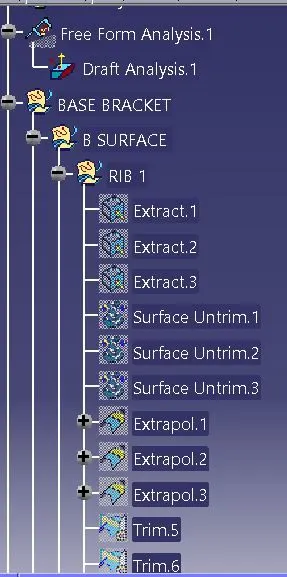

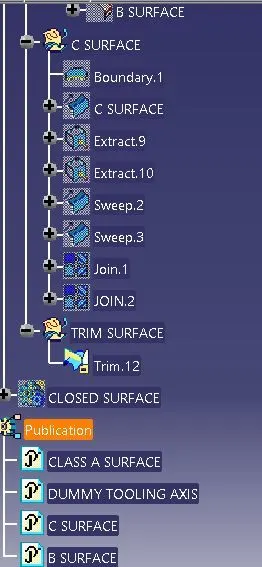

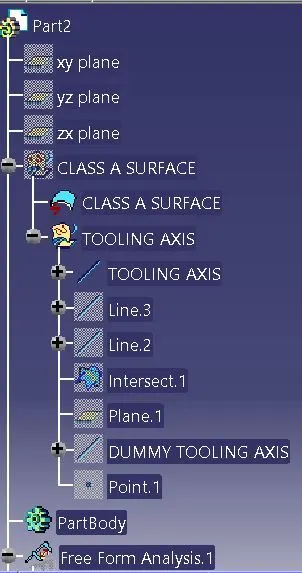

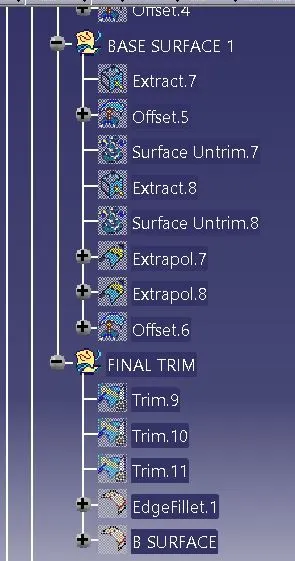

DESIGN TREE TABLE -

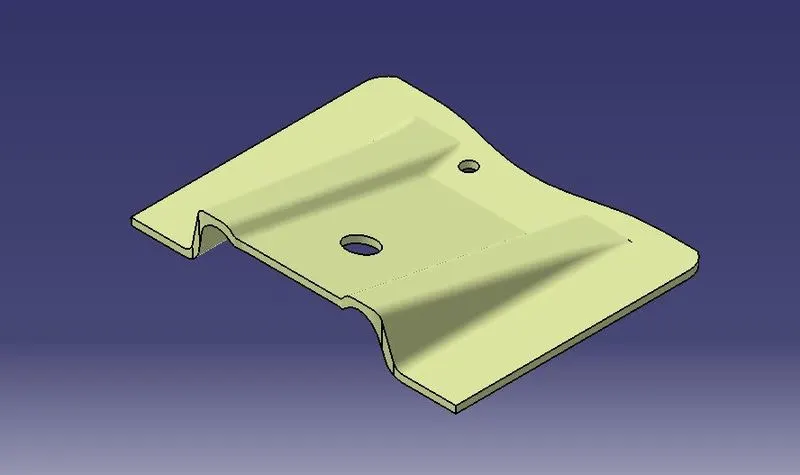

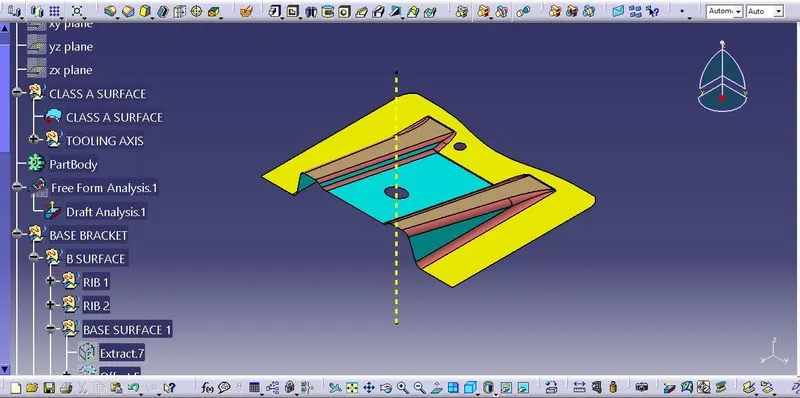

ISOMETRIC VIEW

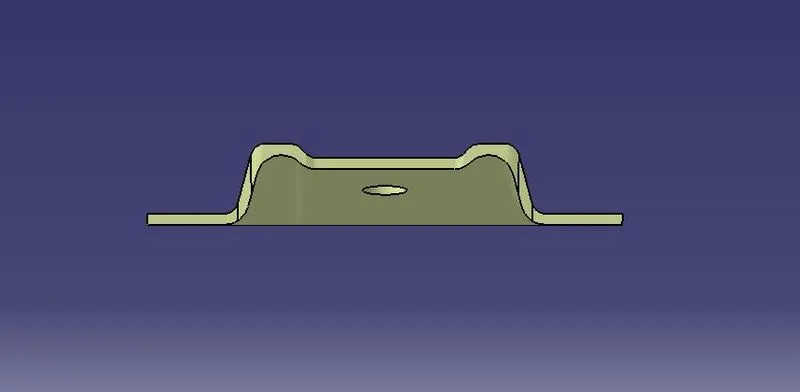

RONT VIEW

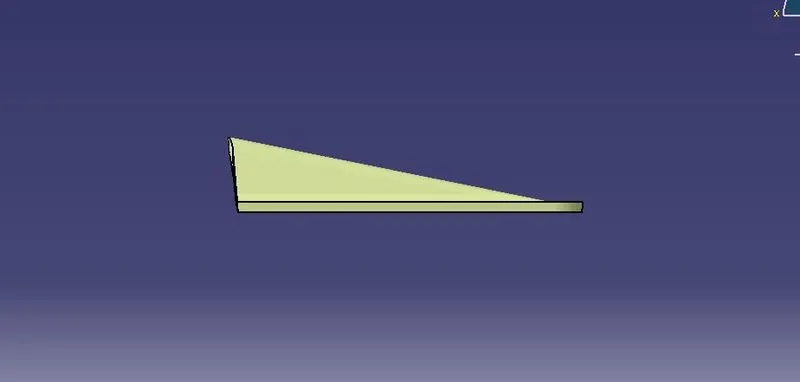

SIDE VIEW

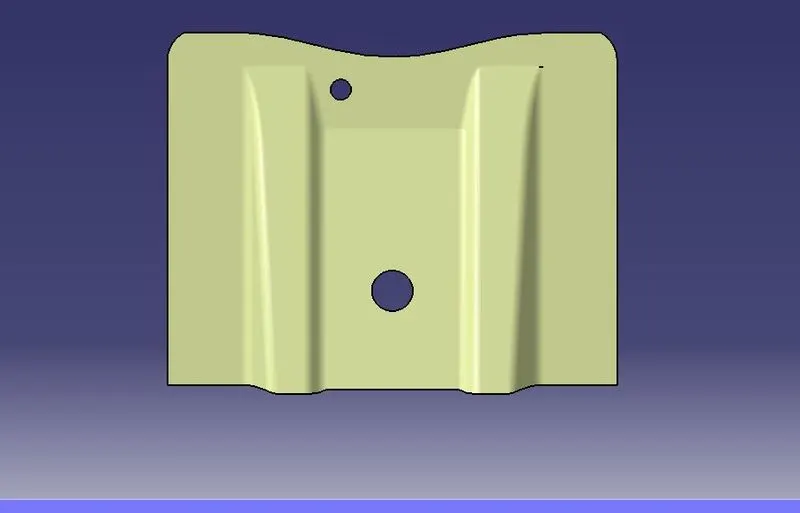

TOP VIEW
