Week 7 Challenge - Assembly Workbench

REPORT ON ASSEMBLY WORKBENCH

DRAWINNG 1 QUICK RETURN MECHANISM

COMPONNENTS MADE

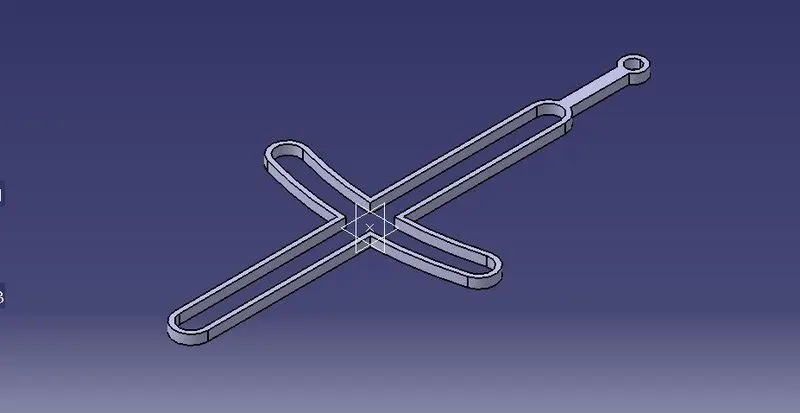

BODY 1

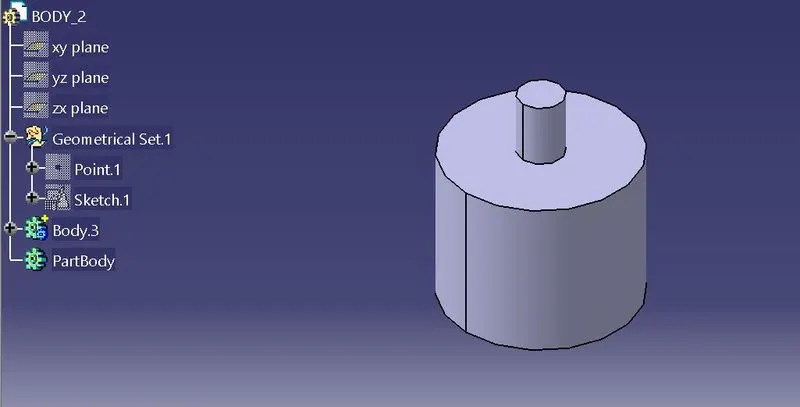

BODY 2

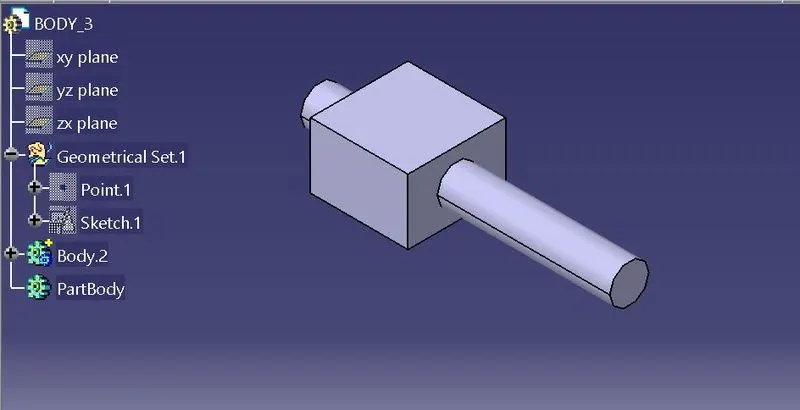

BODY 3

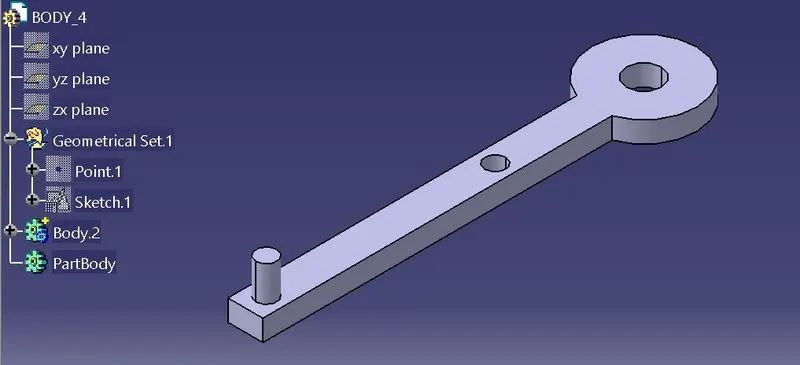

BODY 4

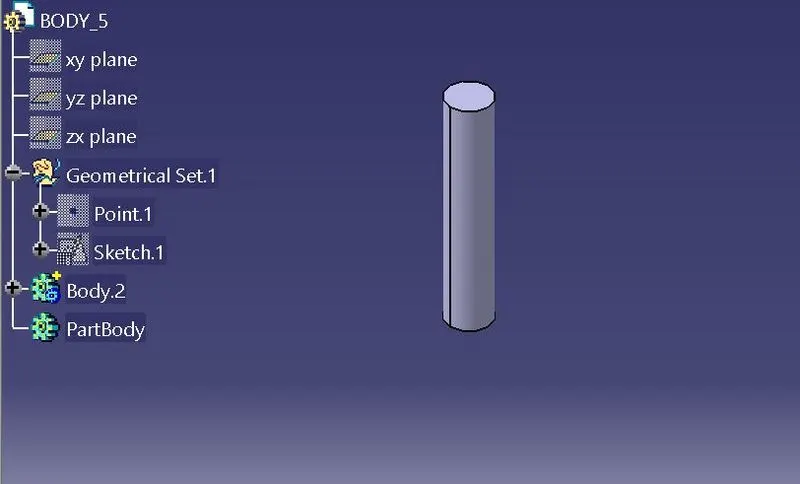

BODY 5

STEPS FOLLOWED

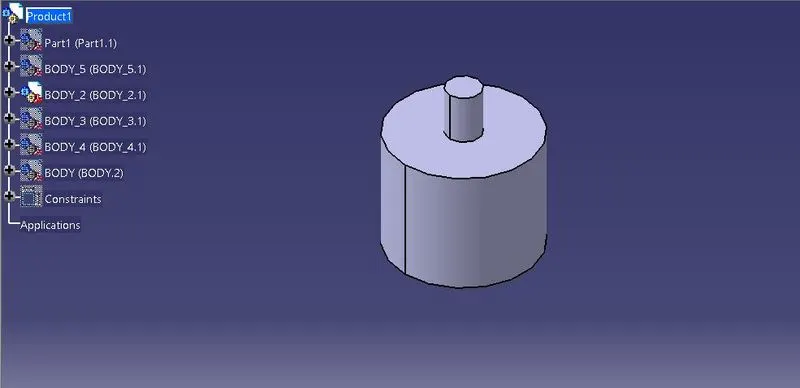

STEP 1

ADDING BODY 2 AND I MADE THIS PART AS FIX PART BY USING FIX CONSTRAINTS .

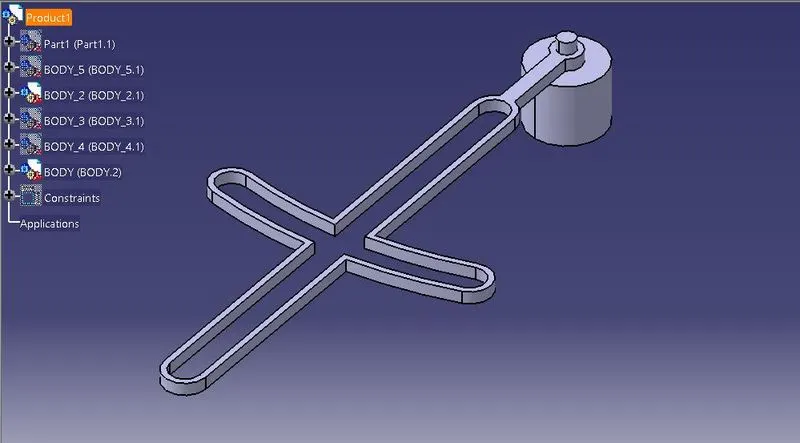

STEP 2

THEN AFTER I ADD BODY 2 AND MADE IT REVOLVE AROUND THE FIX PART BY USING SURFACE CONTACT AND AXIS CONSTRAINTS .

STEP 3

THEN I ADD BODY 3 AND MADE IT SLIDE INSIDE THE GROOVE IN THE BODY 1 BY USING SURFACE CONTACT AND OFFSET CONSTRAINTS .

STEP 4

THEN I ADD BODY 5 AND MADE IT SLIDE INSIDE THE GROOVE BY USING SURFACE CONTACT AND AXIS CONSTRAINTS .

STEP 5

THEN I ADD BODY 4 AND MADE IT AXIS CONTRAINTS WITH BODY 3&5 AND I USE SURFACE CONTACT BETWEEN THOSE BODY.

ASSEMBLY

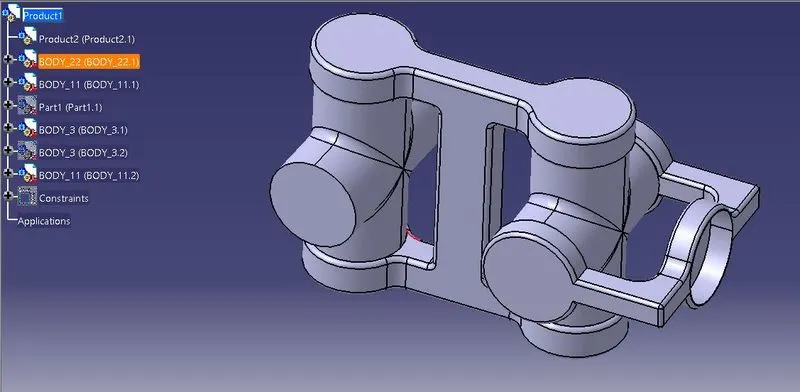

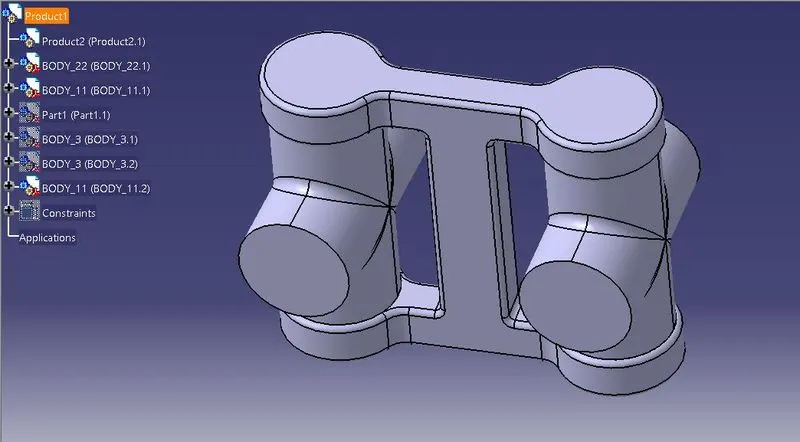

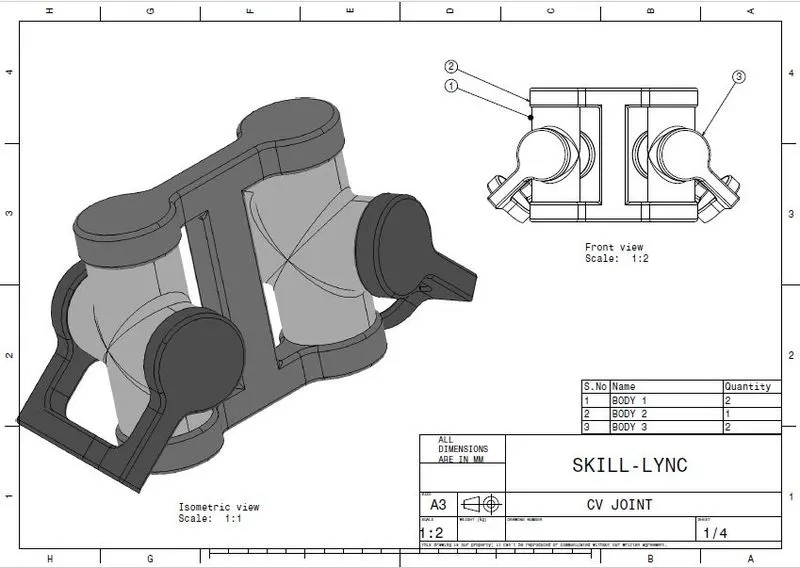

DRAWINNG 2 - CV JOINT

COMPONENTS MADE

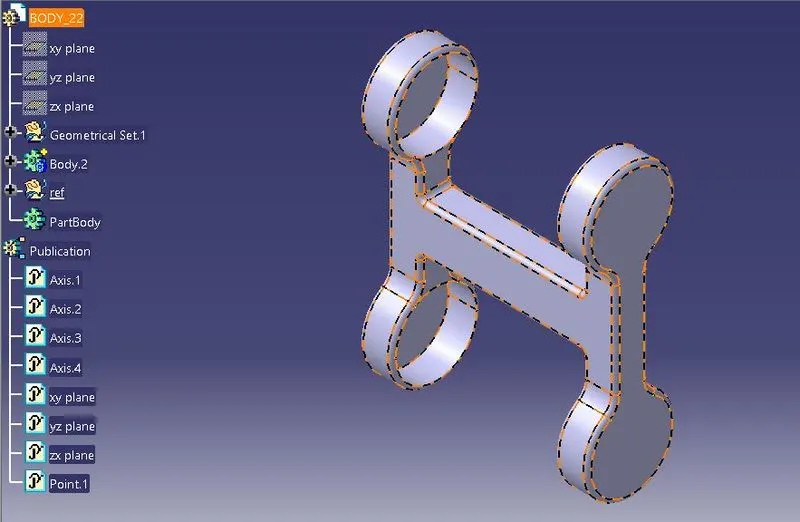

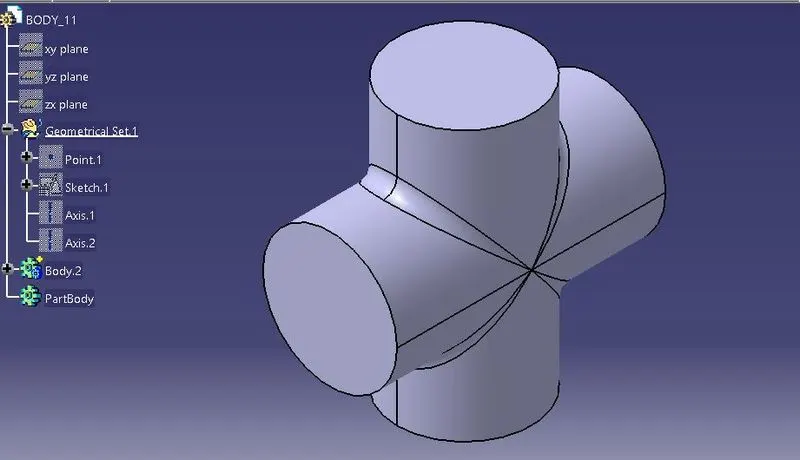

BODY 1

BODY 2

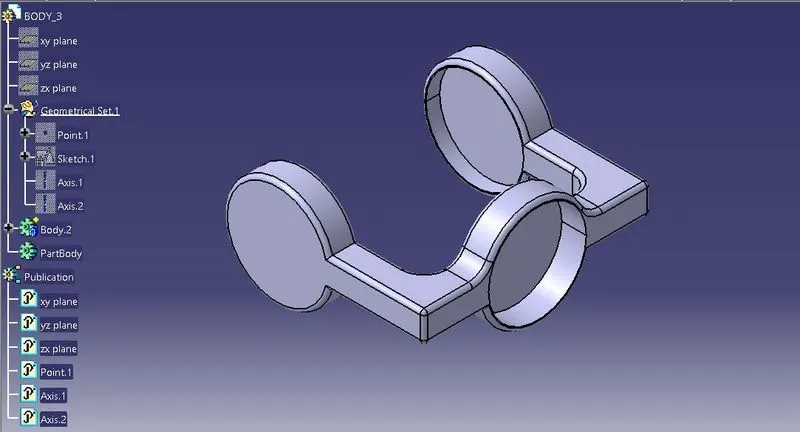

BODY 3

STEPS FOLLOWED

STEP 1

I ADD BODY 1 AND MADE IT FIX USING FIX CONTRAINTS .

STEP 2

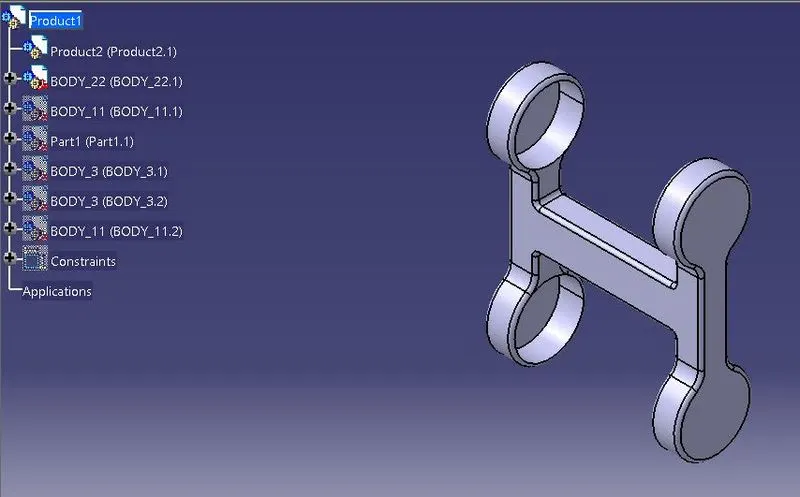

THEN I ADD BODY 2 TO ONE END OF THE BODY 1 USING AIXS AND OFFSET CONSTRAINTS .

STEP 3

THEN I ADD SIMILAR BODY TO OTHER END OF THE BODY 1 USING AIXS AND OFFSET CONSTRAINTS .

STEP 4

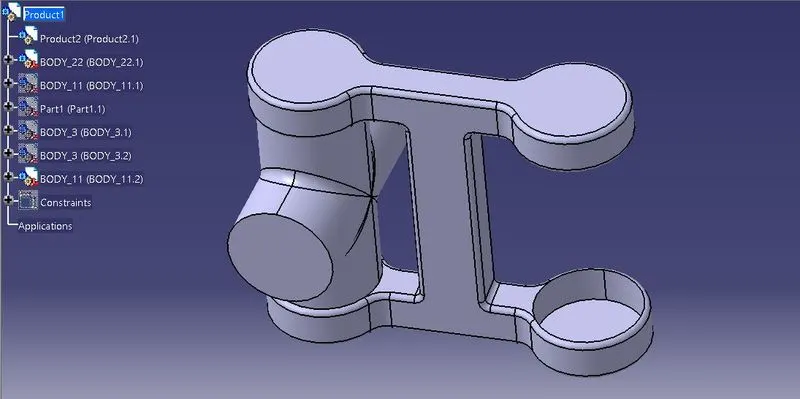

THEN I ADD BODY 3 TO ONE END OF THE BODY 2 USING AIXS AND OFFSET CONSTRAINTS .

STEP 4

THEN I ADD SIMILAR BODY TO OTHER END OF THE BODY 2 USING AXIS AND OFFSET CONSTRAINTS .

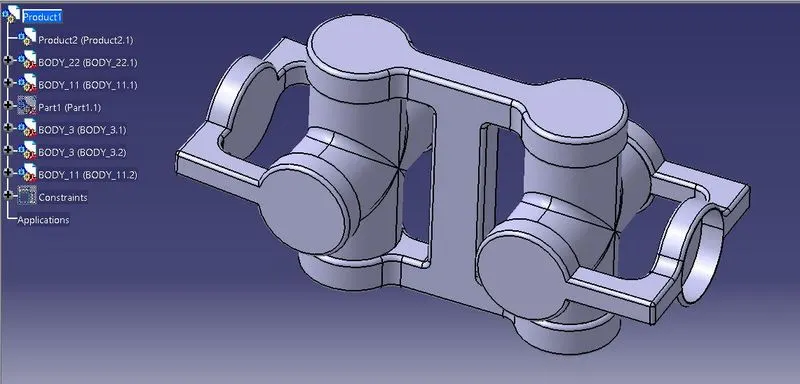

ASSEMBLY
