Week 9 - Challenge 1 - Base Bracket Design

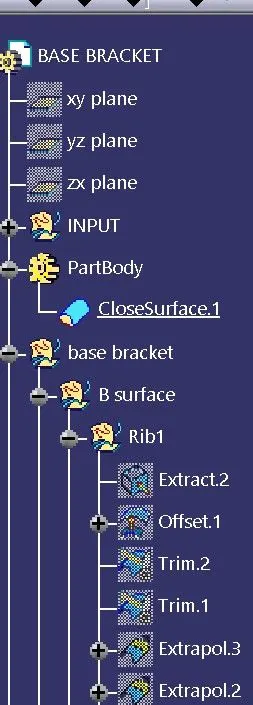

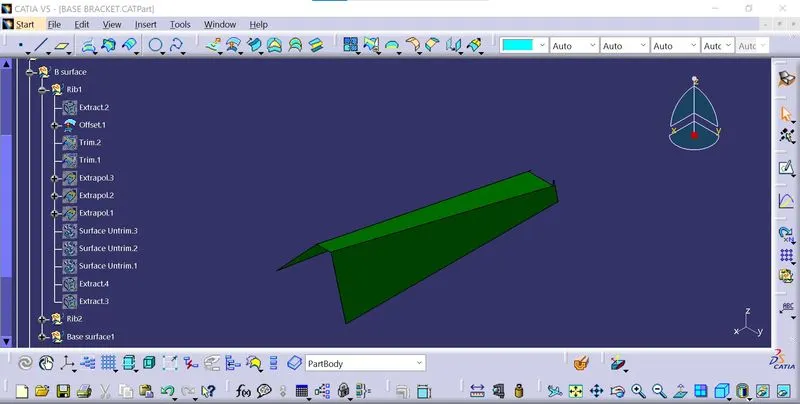

RIB1 IS IS EXTRACTED, OFFSETED,UNTRIM, EXTRAPOLATED AND TRIMMID WITH THE SIDE FACES

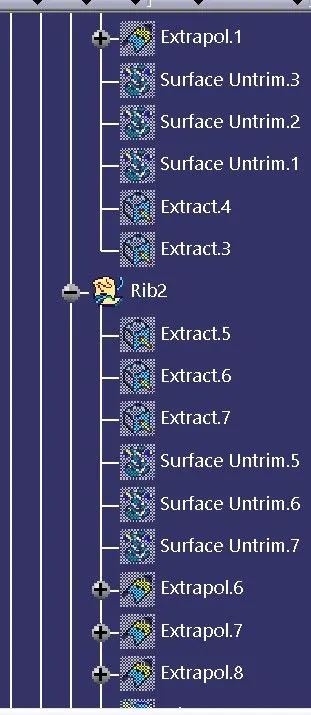

RIB2 IS IS EXTRACTED, OFFSETED,UNTRIM, EXTRAPOLATED AND TRIMMID WITH THE SIDE FACES

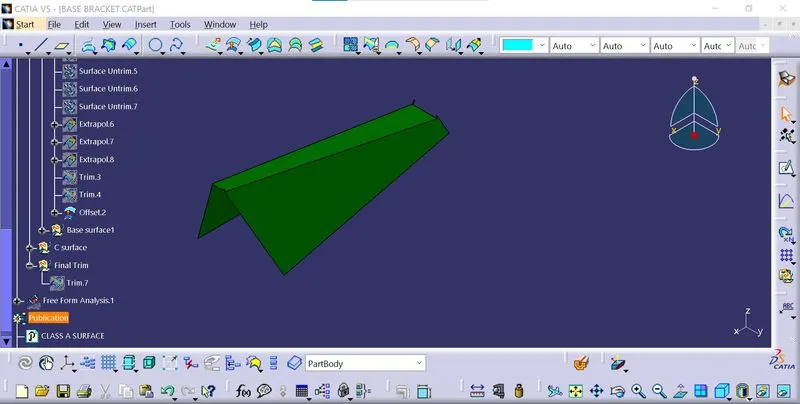

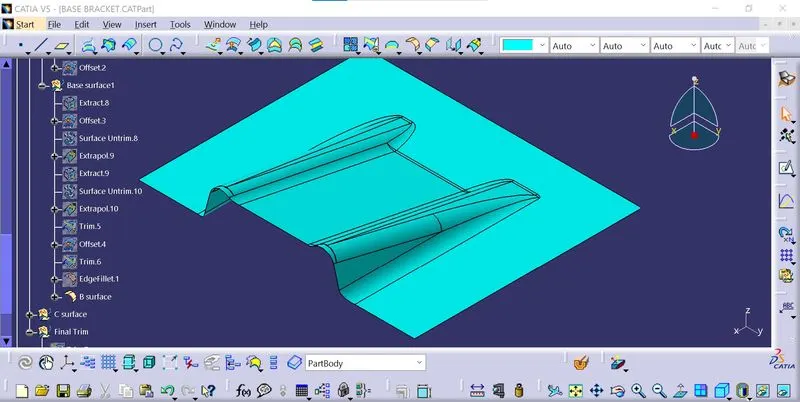

SURFACE IS EXTRACTED AND EXTRAPOLATED

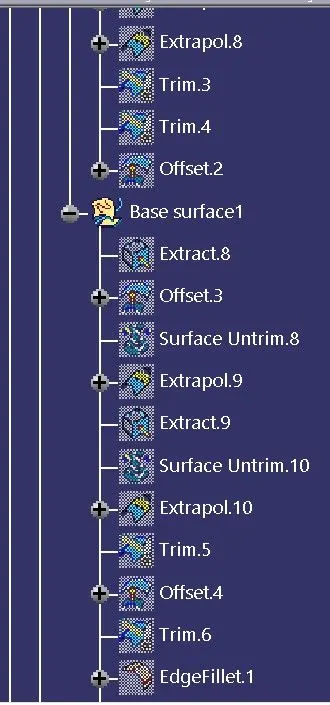

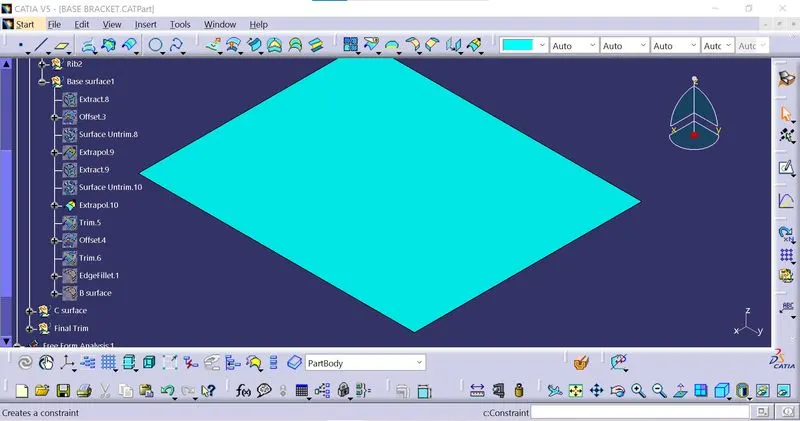

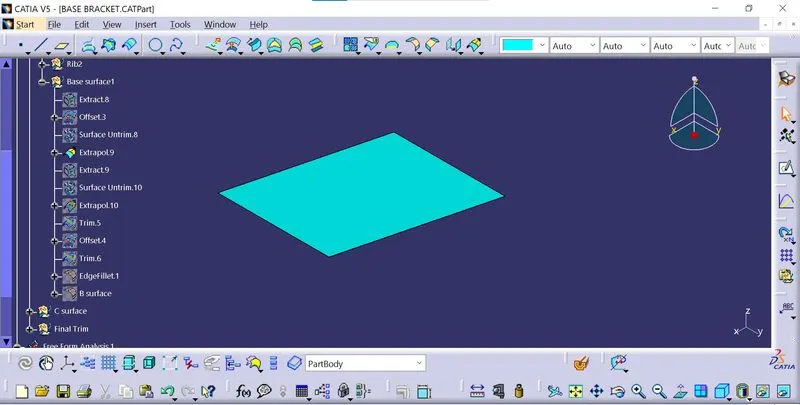

BASE SURFACE IS EXTRACTED AND EXTRAPOLATED

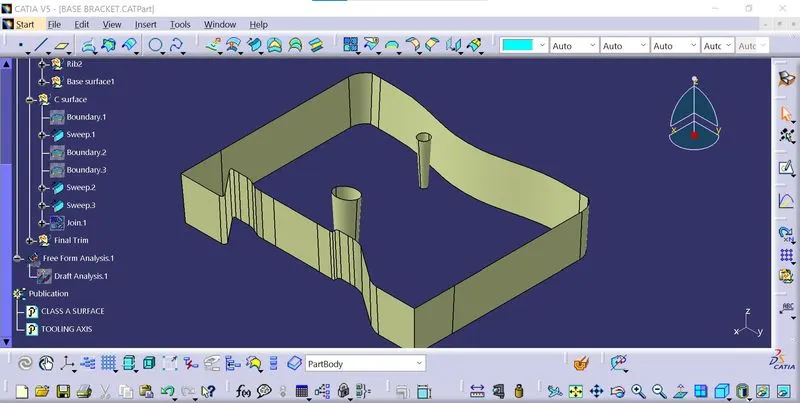

SWEEP

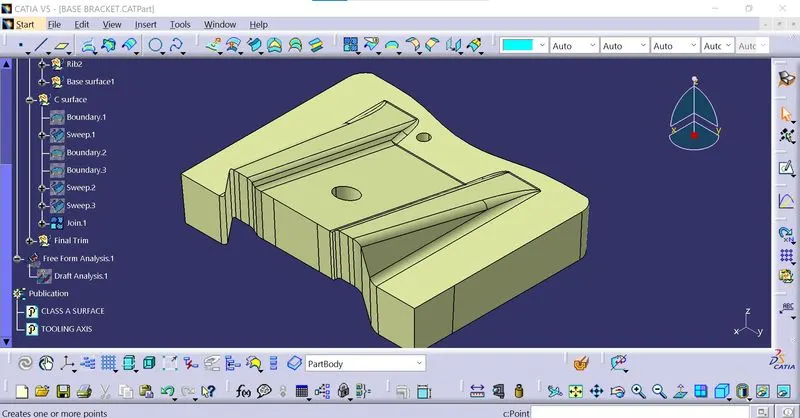

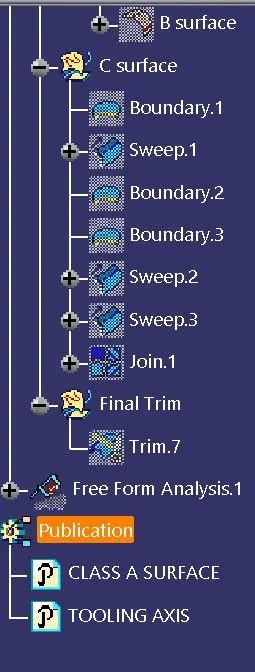

JOINING THE CLASS AND THE SWEEP

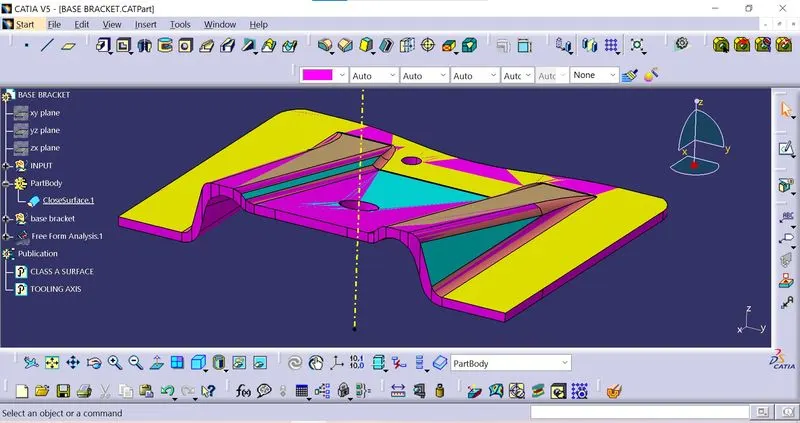

CLASS A AND CLASS C

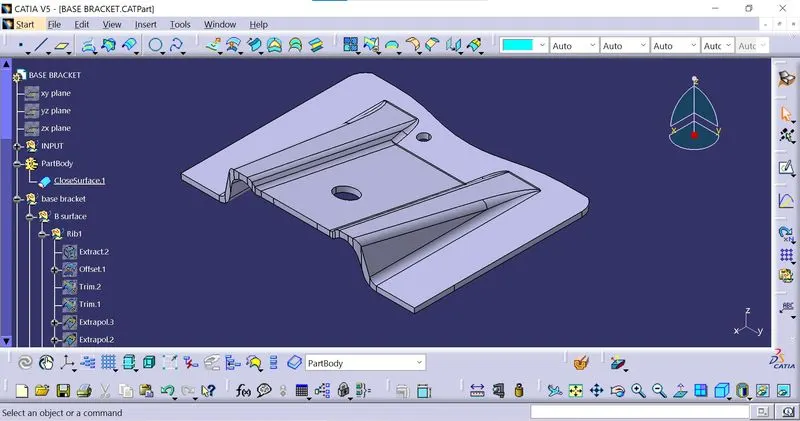

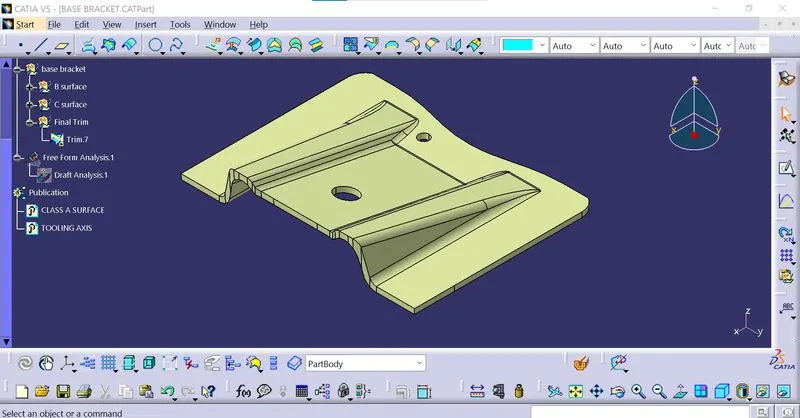

AFTER IT IS TURNED INTO CLOSED SURFACE IN PART BODY
