Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

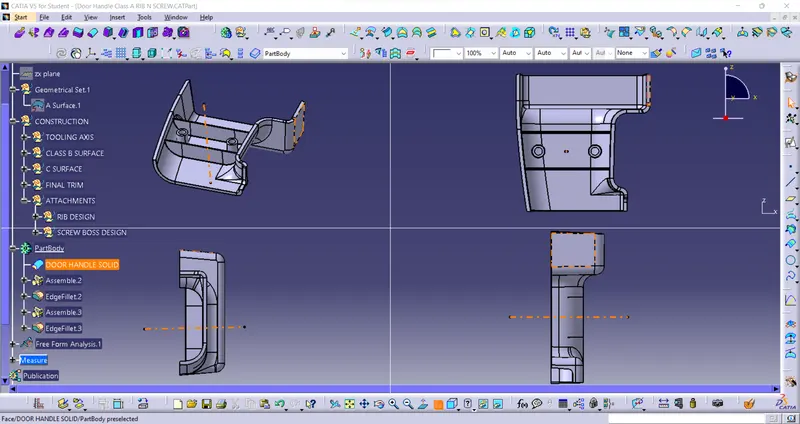

Screenshots of the completed design in various orientations (Isometric, Front, Side, and Top View)

Report:

1.) Creation of Tooling Axis

i.) First visually checked where does the tooling axis should be provide by checking the direction and holes.

ii.) In this surface there is a flat surface. so, decided to fix the tooling axis in surface then Dummy tooling axis are created on the hole for reference.

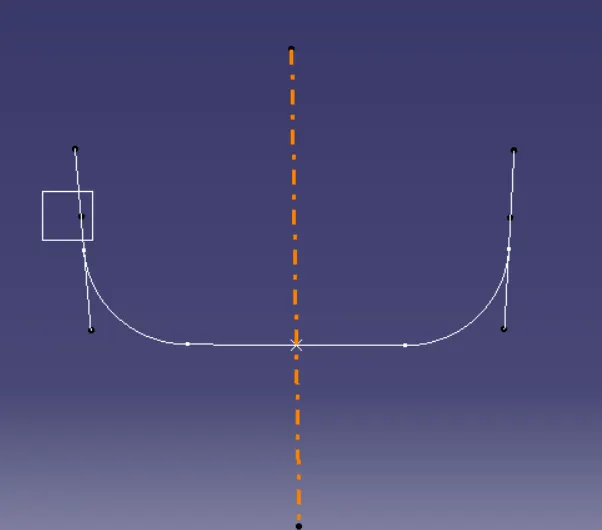

iii.) Intersection line are taken with xy plane along with the surface and two slanting vertical line in two sides are drawn as per the image.

iv.) Now draw the third bisecting line is created by choosing that two lines and point and indicates that third bisecting line as "Tooling Axis".

v.) Hence, the tooling Axis is created.

Class A- Surface Final plastic component

The given Class A- Surface evaluates false-color analysis (red) in draft-angle. So, the final plastic component is also in false term.

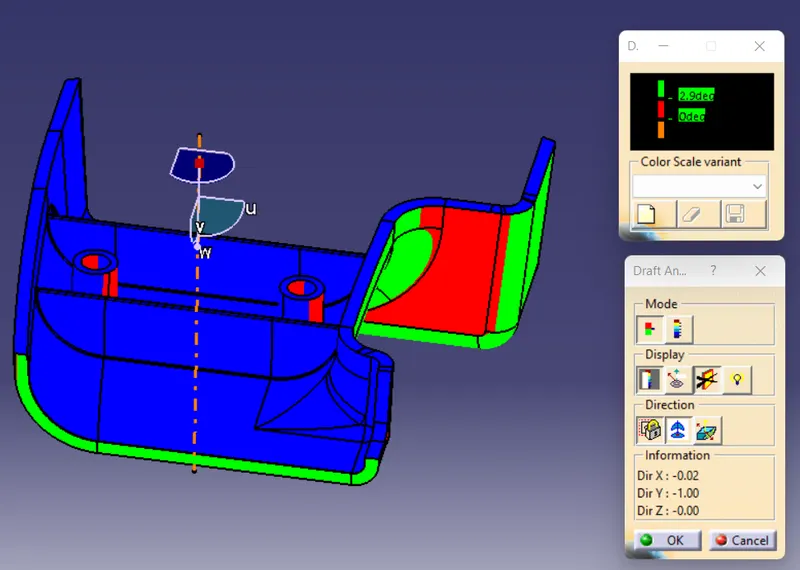

2.) Creation of Draft Analysis

i.) The draft analysis technique is used to analyze whether our part model created in Catia is manufacturable based on the draft condition applied.

ii.) First fix the compass in the tooling axis line by selecting the compass in the draft analysis and check the A surface first.

iii.) If there is any mistake it visually evaluates surface draft-angle using false-color analysis (red).when this A surface is cleared then only we have go to next step.

iv.) Angle also be checked in given class A surface then class B and class C surface are developed.

v.) After the development of class B and C again the Checking process in draft analysis are held.

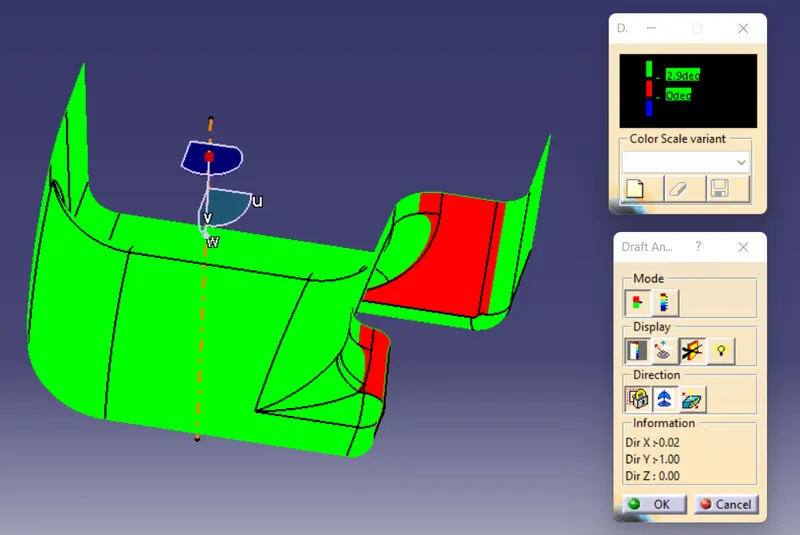

vi.) Then the mistakes are cleared and get back to draft analysis for checking it should be in green in upper cavity surface and blue in lower mould surface.

vii.) Hence, the process.

***

Note: It is not clearly mentioned that the attachment file should be in original or in zip file. so, attached that both kindly please check it.
