Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1
Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1
Aim:To create B side feature Ribs and Screw Boss for given Drill Handle Class A Surface by considering Design Rules.
DESIGN RULE FOR RIB
DESIGN RULE FOR SCREW BOSS
General Guidelines for Bosses:
- Draft - 0.5 degrees on the walls of boss
- Thickness - Typically 40%* of the nominal wall at the base.
- Height to Diameter Ratio - 3:1
- Radii - 0.25mm maximum radii.

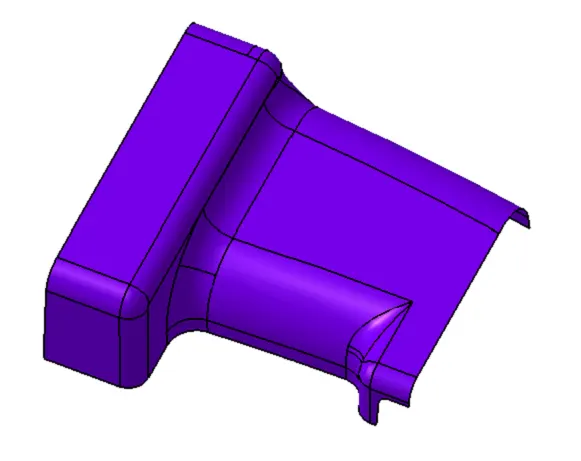

CLASS A SURFACE

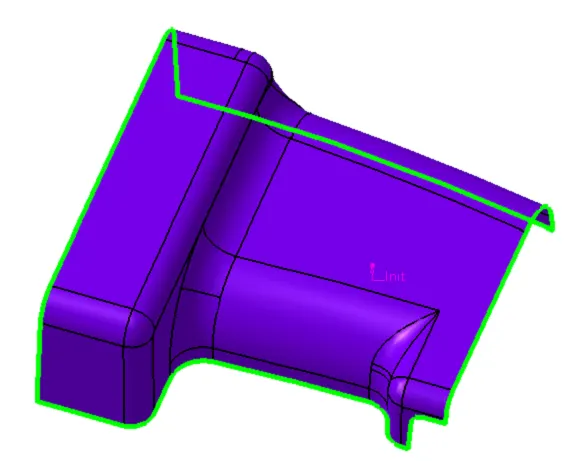

Checking Gaps In given A Surface
TOOLING AXIS CREATION
For creating tooling axis we have to choose correct direction where the given surface can be ejected and also considering the draft angle.

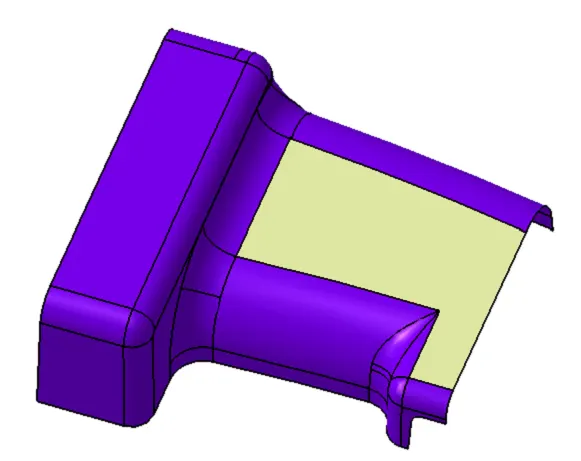

Extract

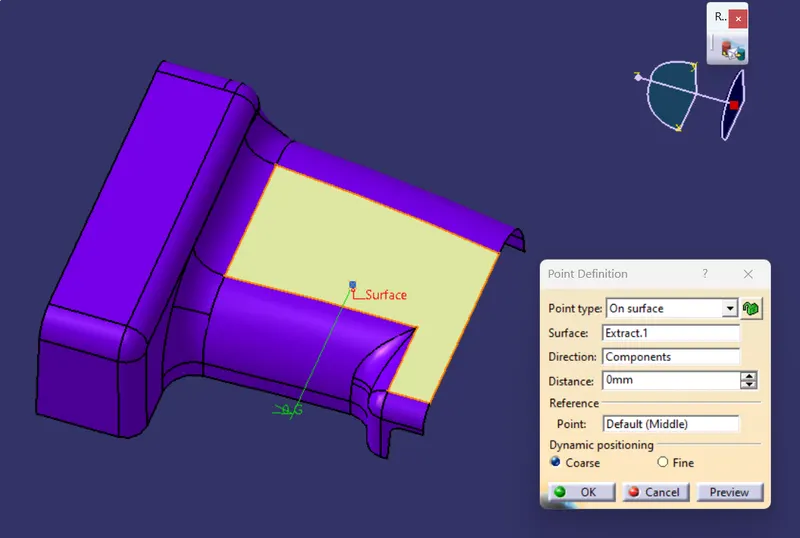

POINT

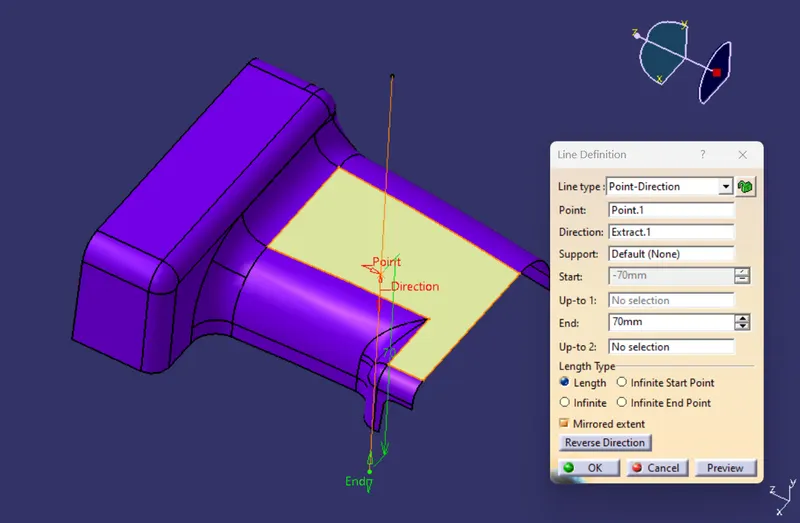

LINE THROUGH POINT
LINE 1
INTERSECTION

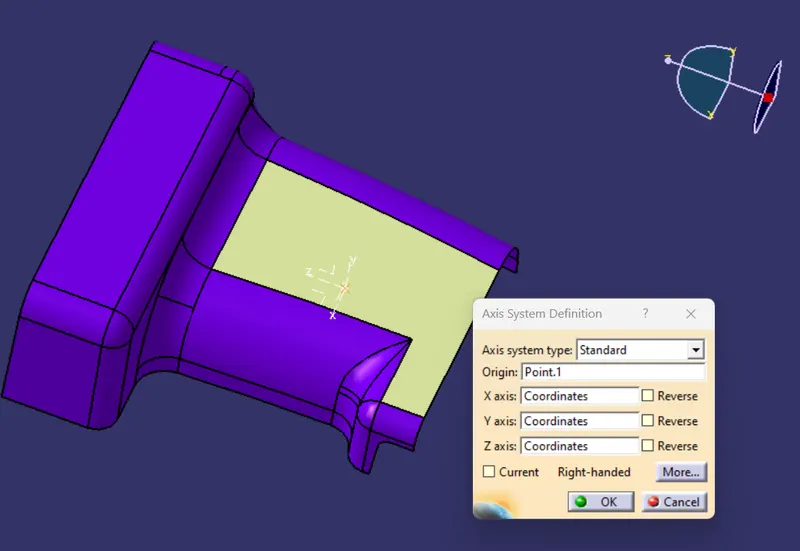

Create Axis System on Point

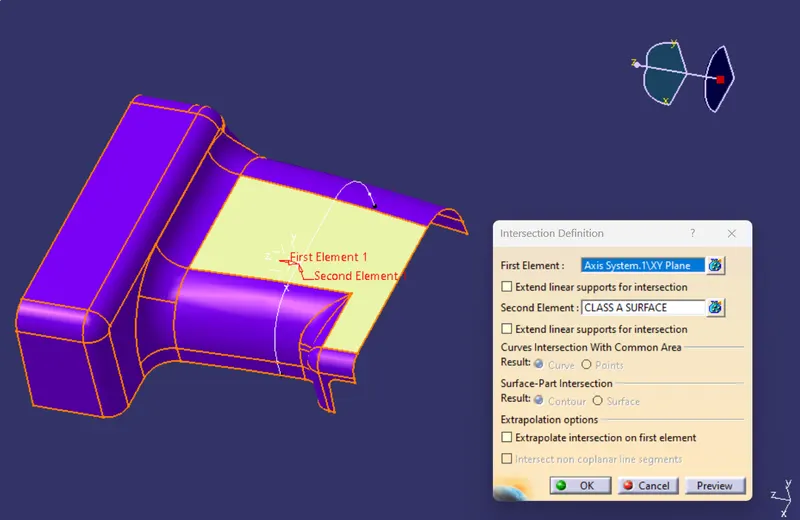

create intersection as shown in fig

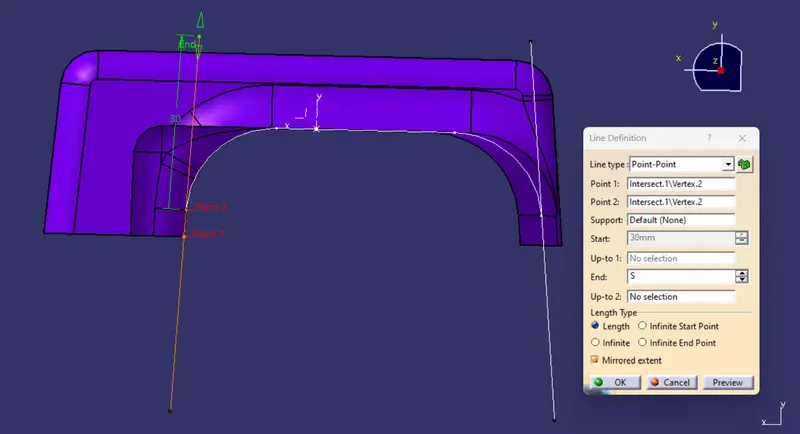

Create lines
LINE 02

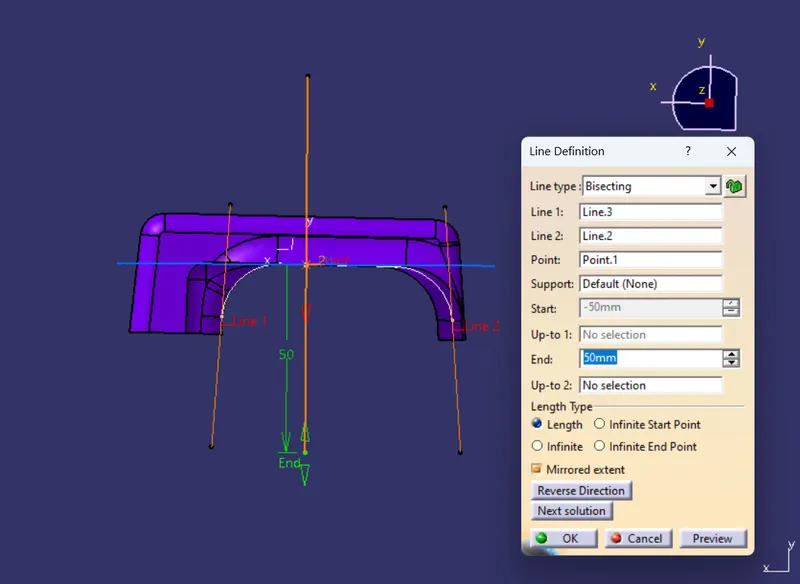

By using Bisecting create line 2

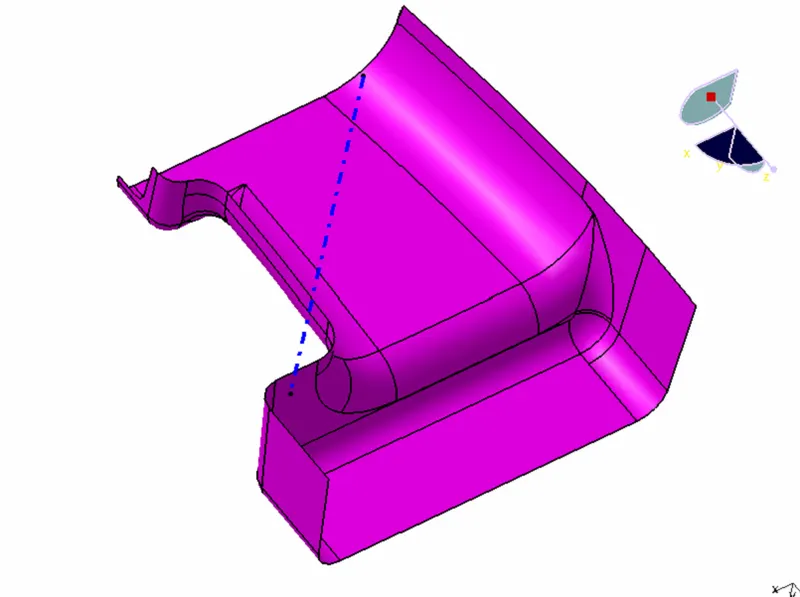

TOOLING AXIS
Bisecting LINE 01 AND LINE 02 tooling Axis is created

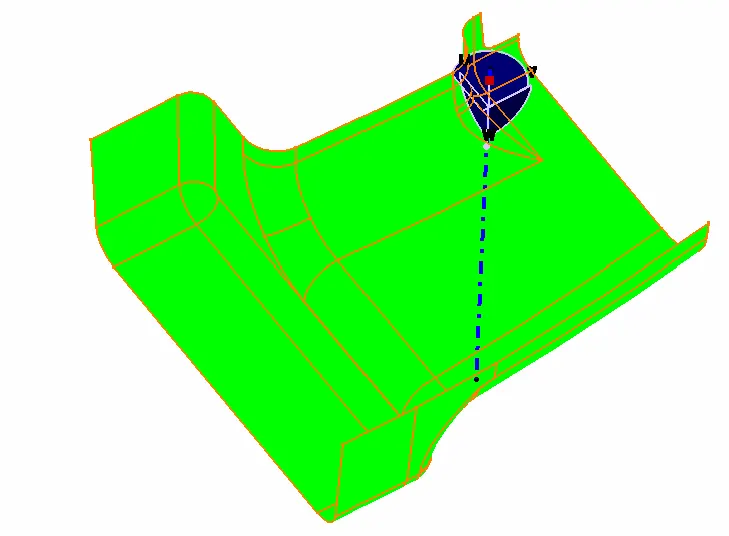

DRAFT ANALYSIS

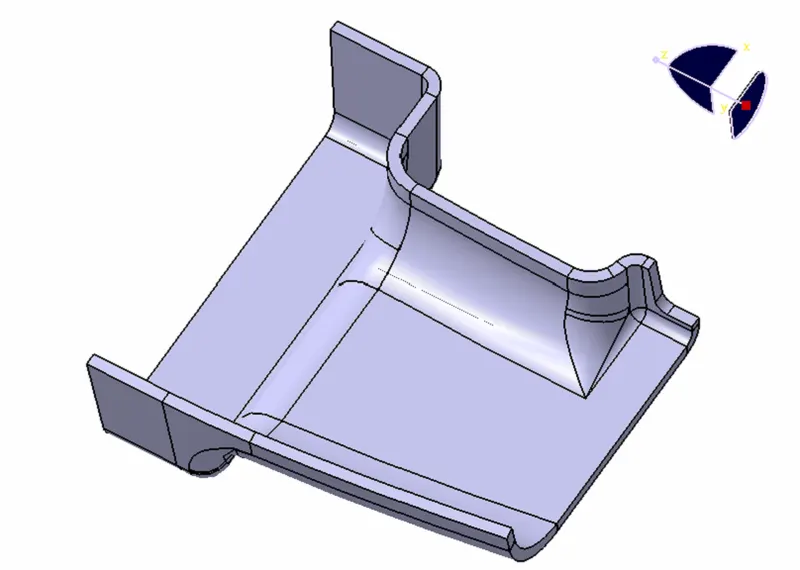

CLASS B SURFACE

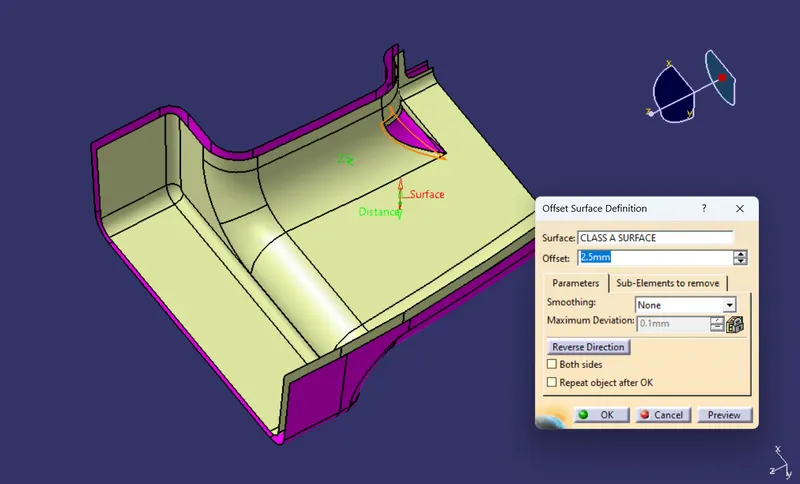

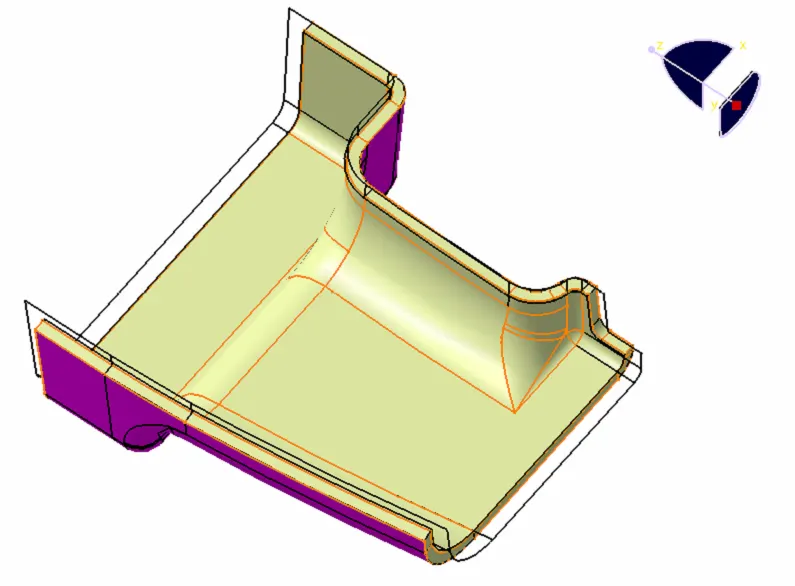

OFFSET

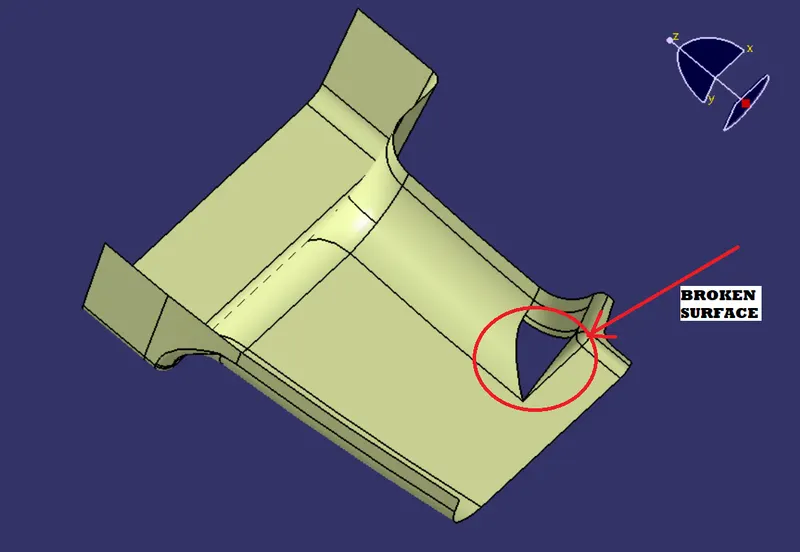

BROKEN SURFACE

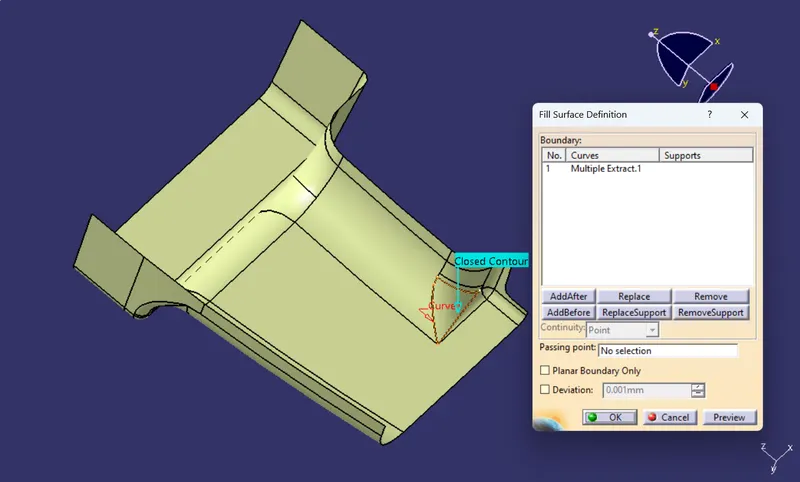

EXTRACT---> FILL
JOIN (CLASS B SURFACE)

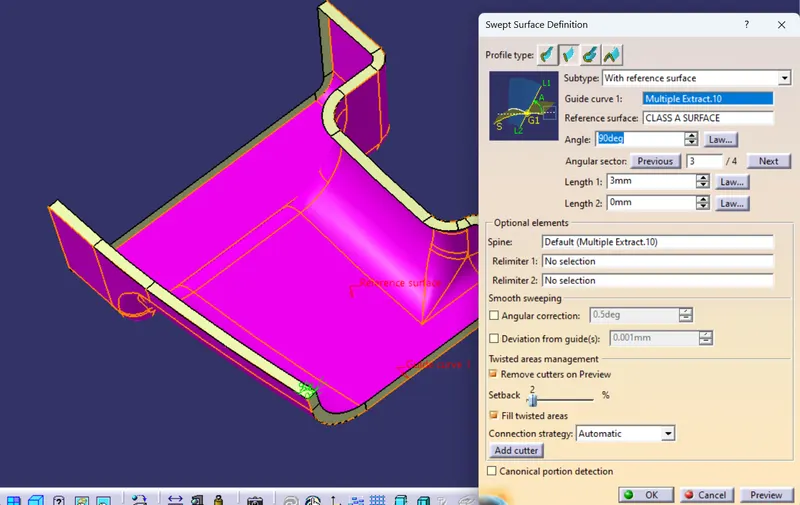

CLASS C SURFACE
JOIN
Join all Sweeps

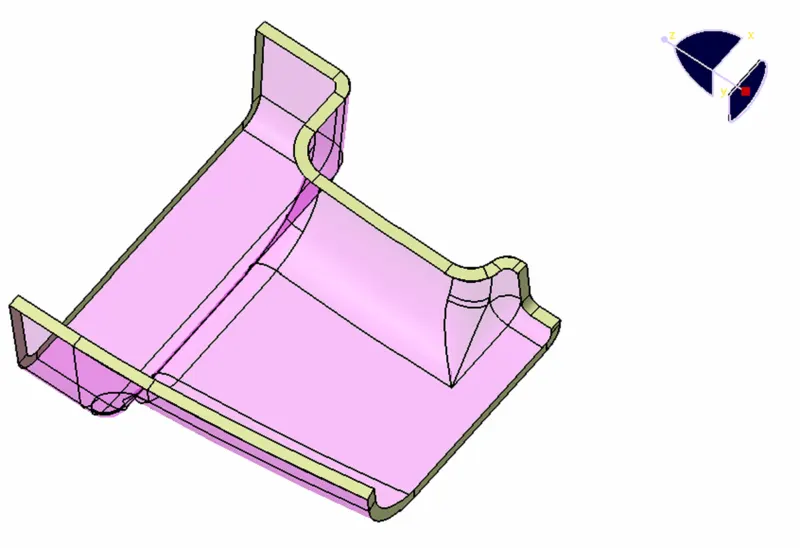

CLOSED SURFACE
TRIM
Trim is done to Class C to Class B Surface
after triming join to Class A
JOIN

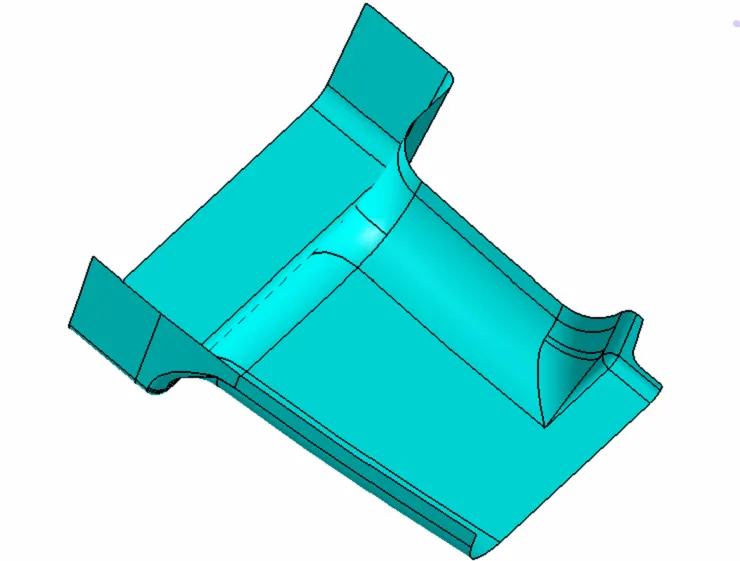

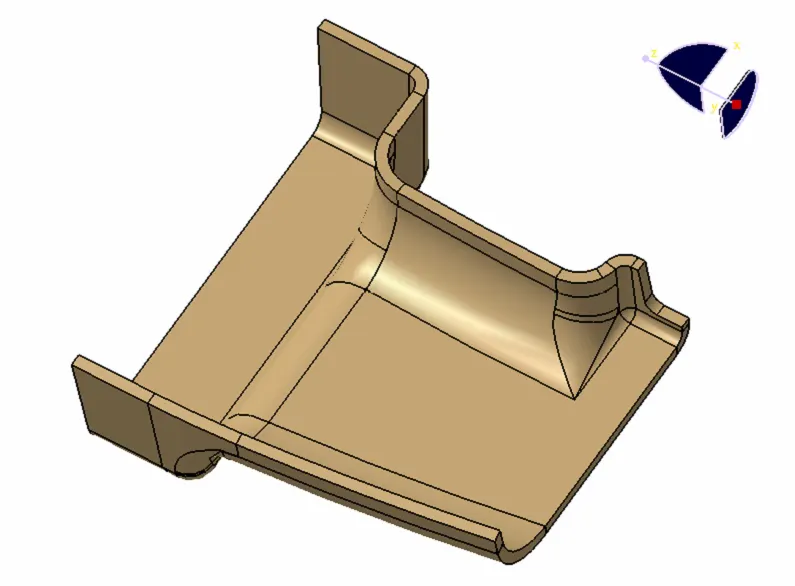

CLOSED SURFACE PART
CREATING B SIDE FEATURES
RIBS

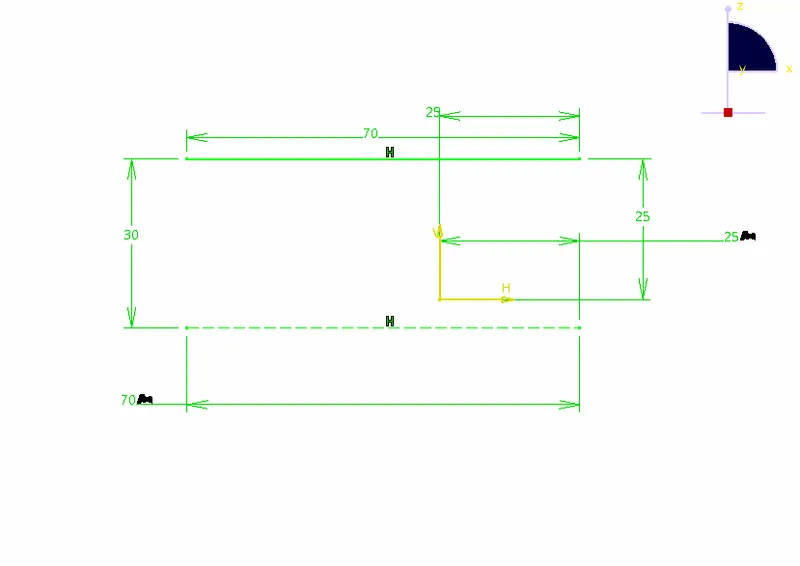

SKETCHES

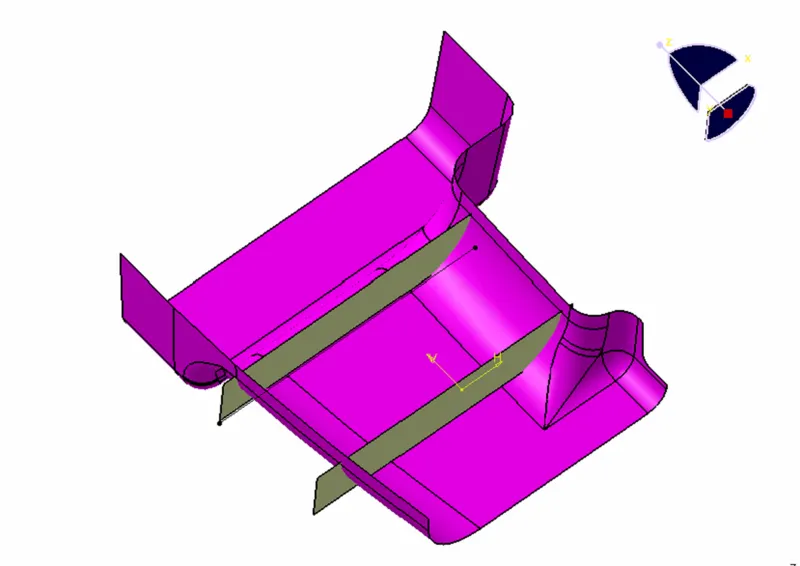

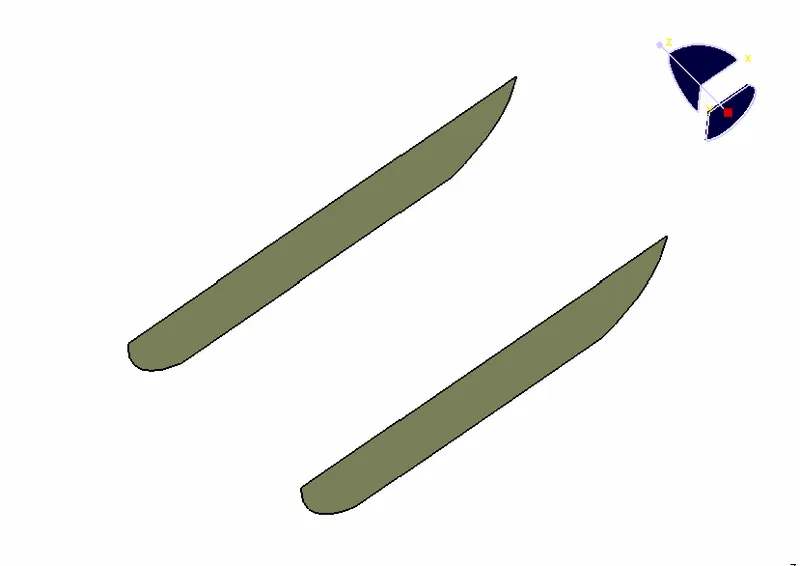

EXTRUDE
SPLIT

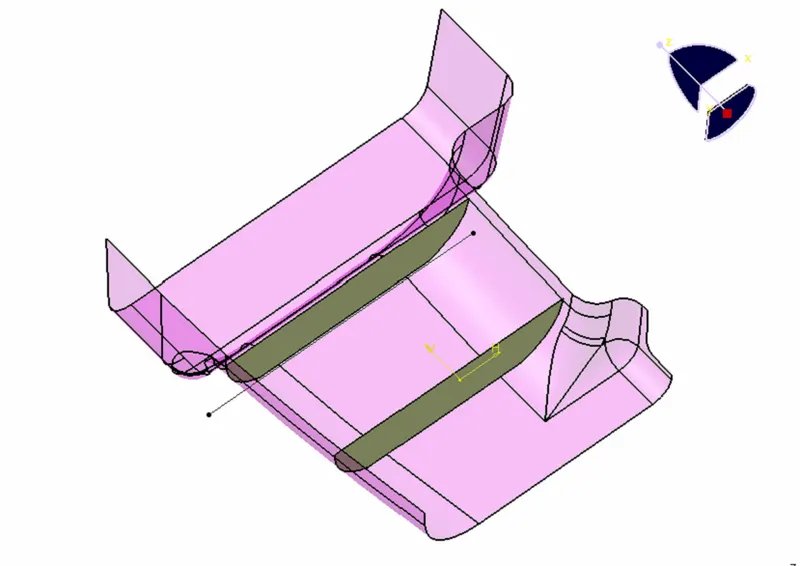

Extruded surface is Slipt With Respect to Class A Surface as shown in below surface fig

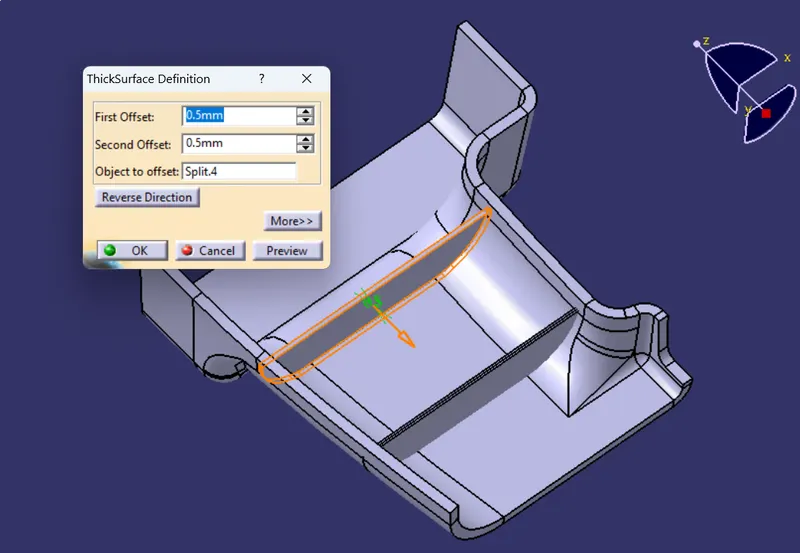

RIB Thickness as 1mm
By Considering Design Rule
i.e. 0.4 * t
wher t = Part Thickness=2.5
0.4*2.5=1mm
i given thickness on both sides 0.5mm.
By using Boolean Operation i.e assemble the ribs are added to main part body

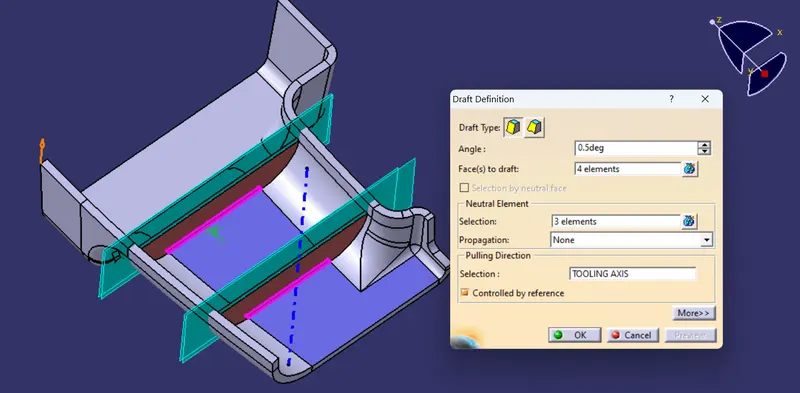

DRAFT
Draft is given as 0.5deg

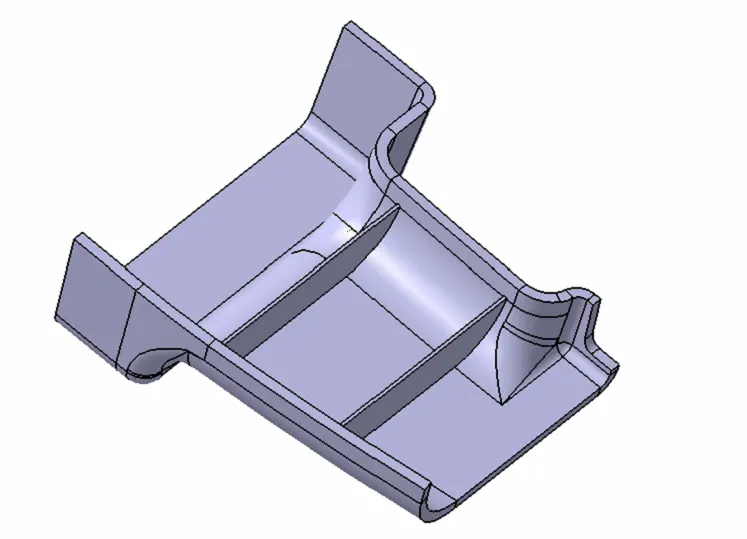

FINAL RIB
SCREW BOSS

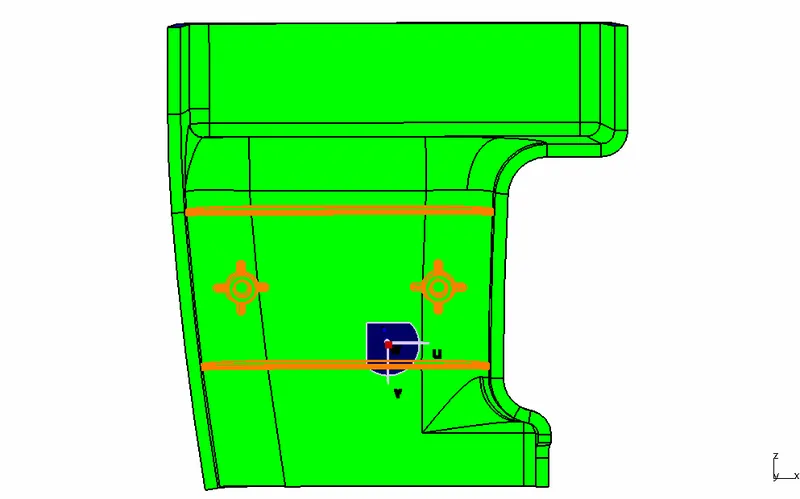

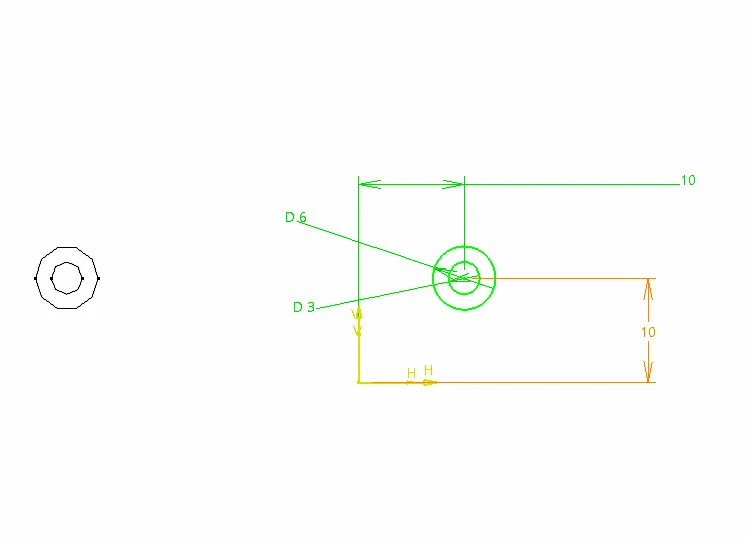

SKETCHES
For creating screw boss design rules are followed
here wall hole dia is taken as 3mm and wall thickness taken as dia 6mm
because the nominal wall thickness is given as 1.5mm
i.e w=0.6*t
=0.6*2.5
w=1.5 since it is circle we have to double the value finally we get 3+3=6mm for outer dia

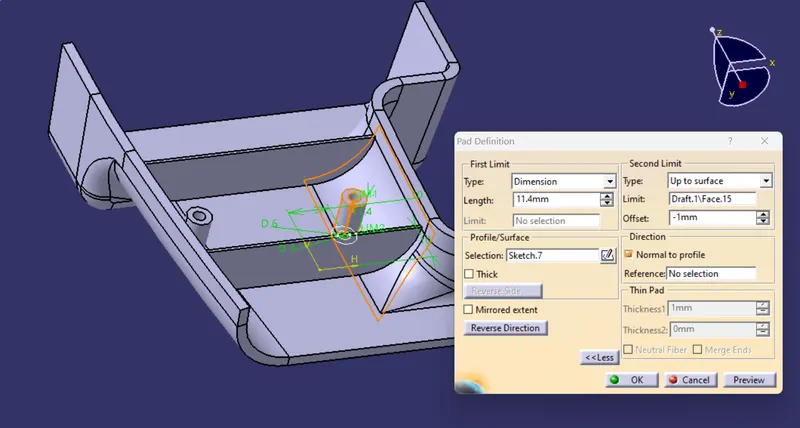

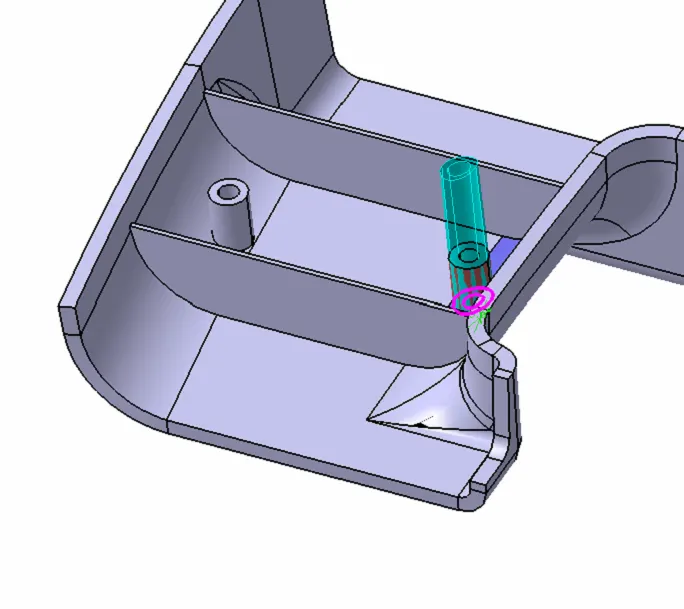

PAD
here also Height to Diameter ration is taken in to consideration
i.e H/B<3
`H/B=3`
Where B is dia of Hole
H is height of screw boss
`H=B*3`
H=3*3
H=9mm

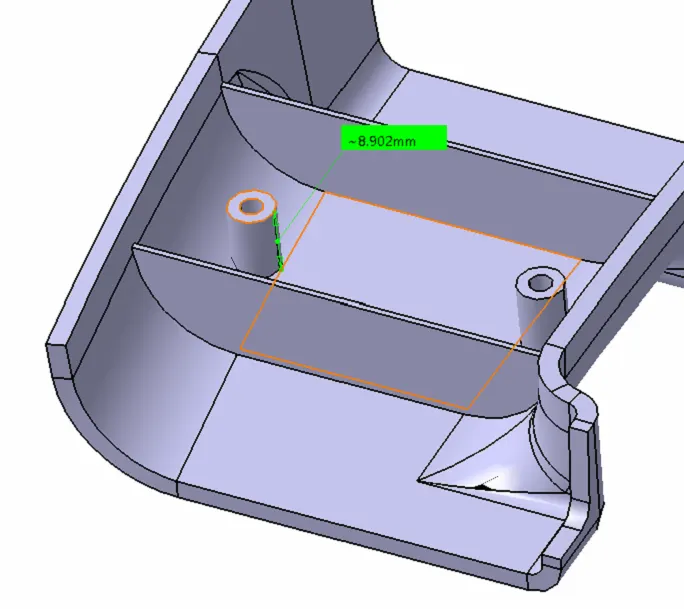

Measuring Distance
Draft
draft=.5 deg
Ribs to Screw Boss for Sriffness

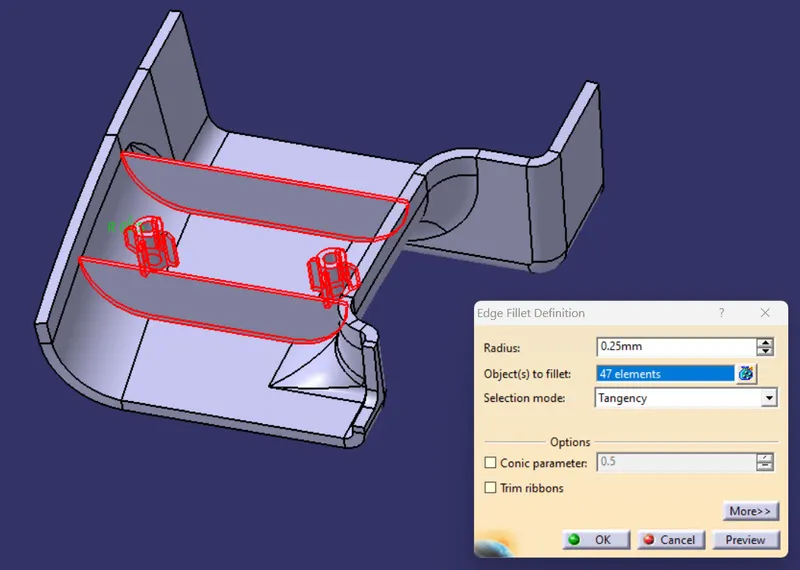

Fillet Radius

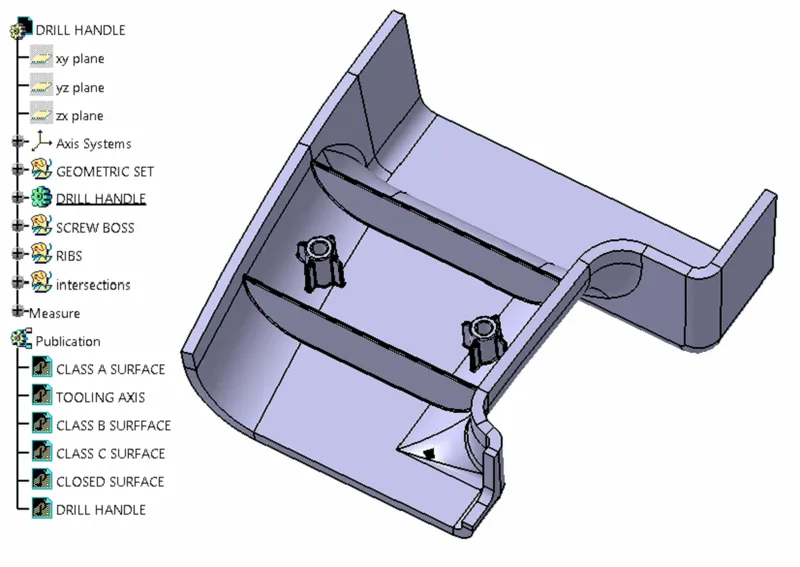

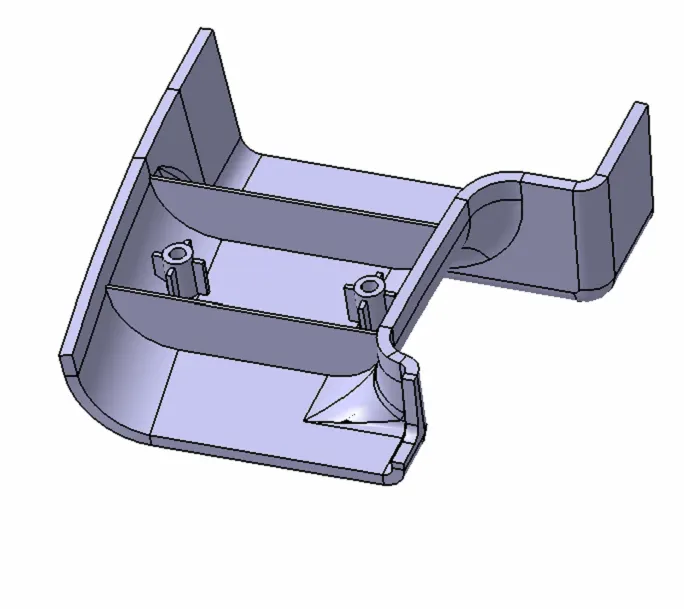

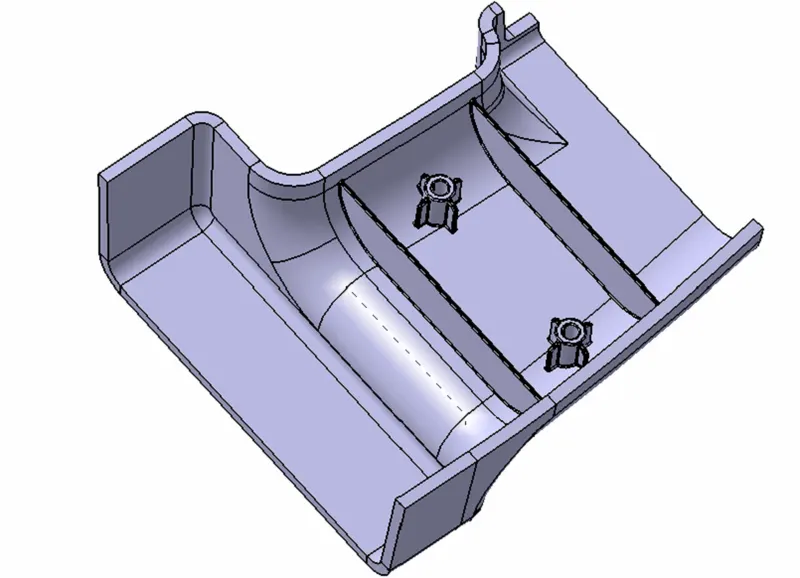

FINAL PART
DRAFT ANALYSIS

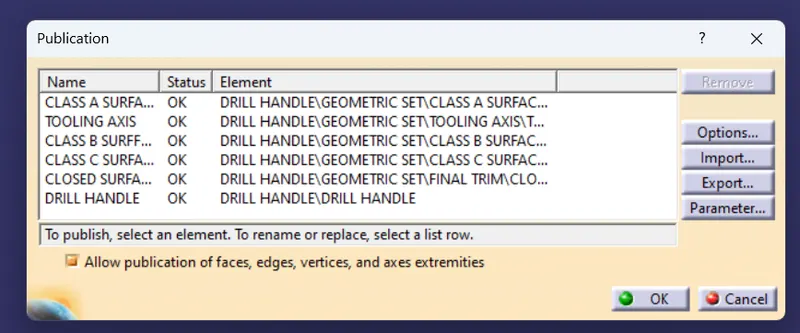

PUBLICATIONS
VIEWS

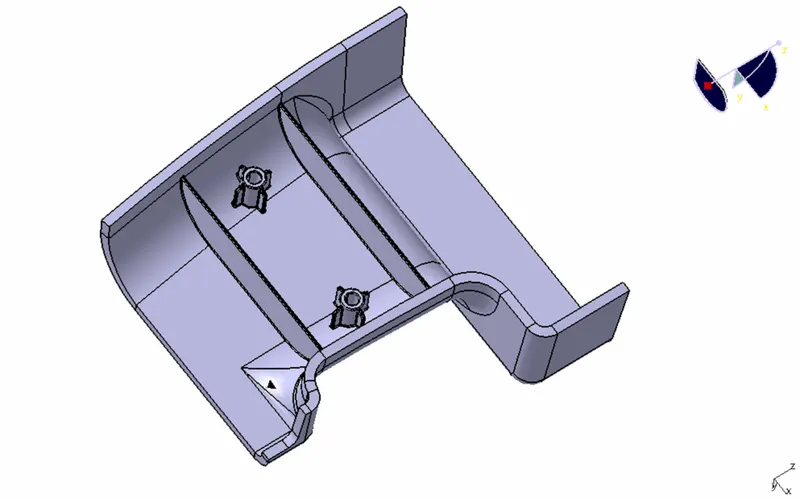

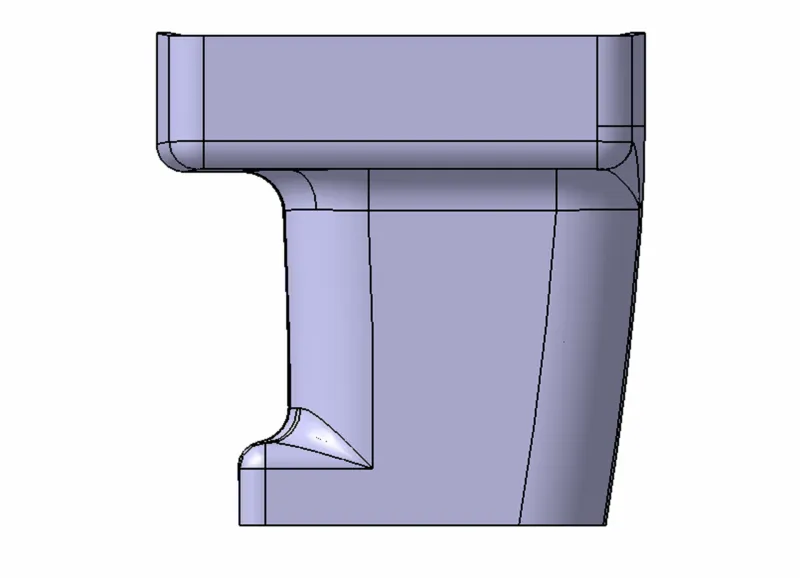

ISO VIEW

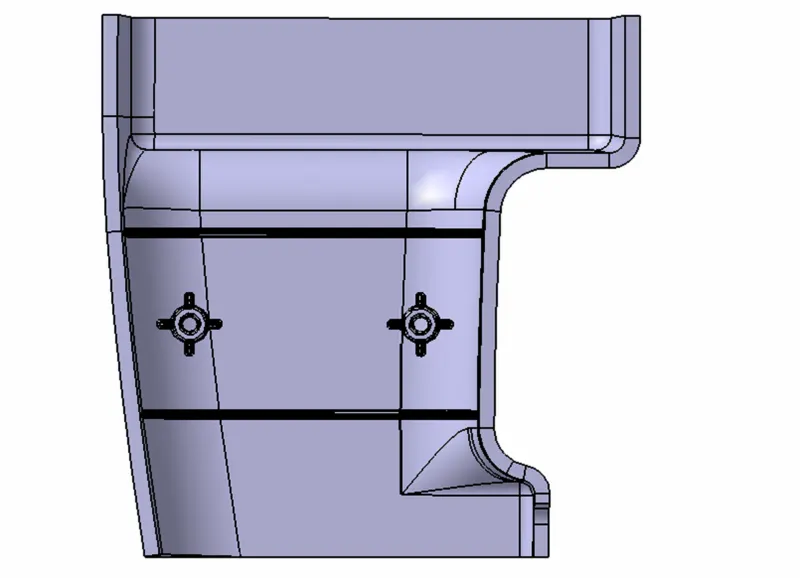

BOTTOM VIEW

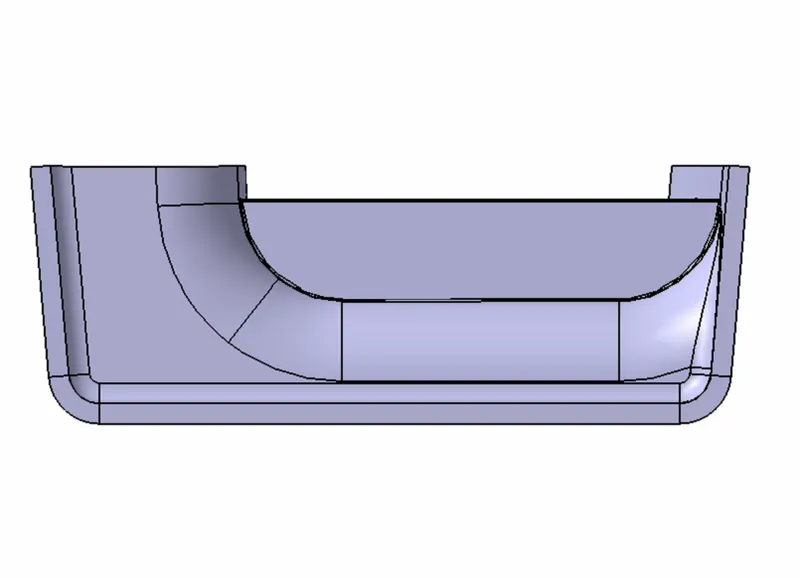

FRONT VIEW
TOP VIEW

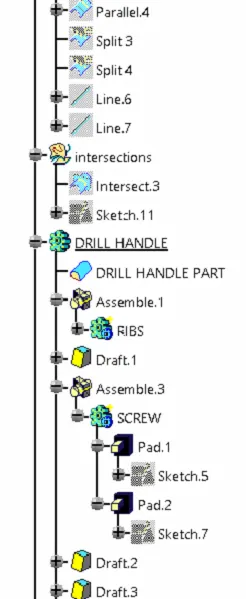

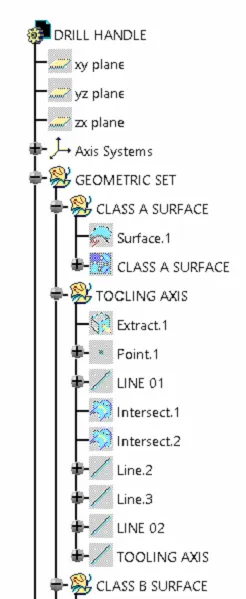

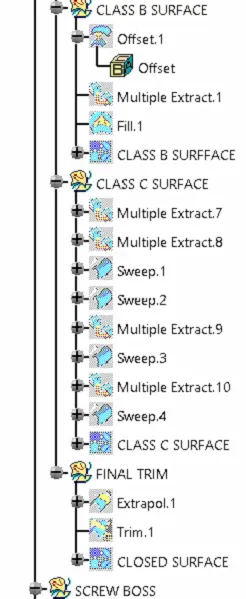

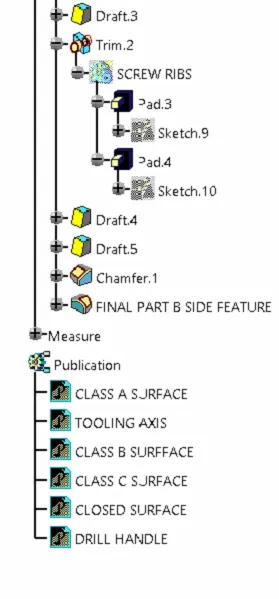

TREE STRUCTURE

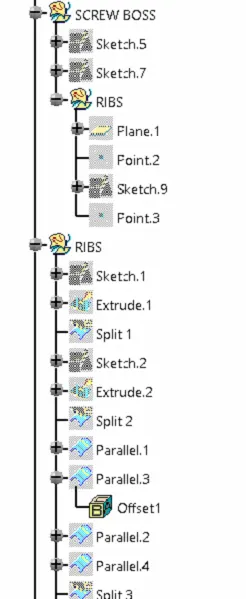

DETAILED TREE STRUCTURE
CONCLUSION
B side features are created for given Class A Surface
