Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

DOOR HANDLE

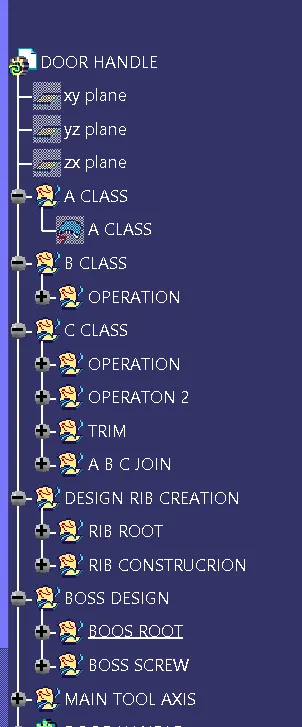

TREE STRUCTURE SET.

CLOSE SURFACE SET.

PUBLICATION SET.

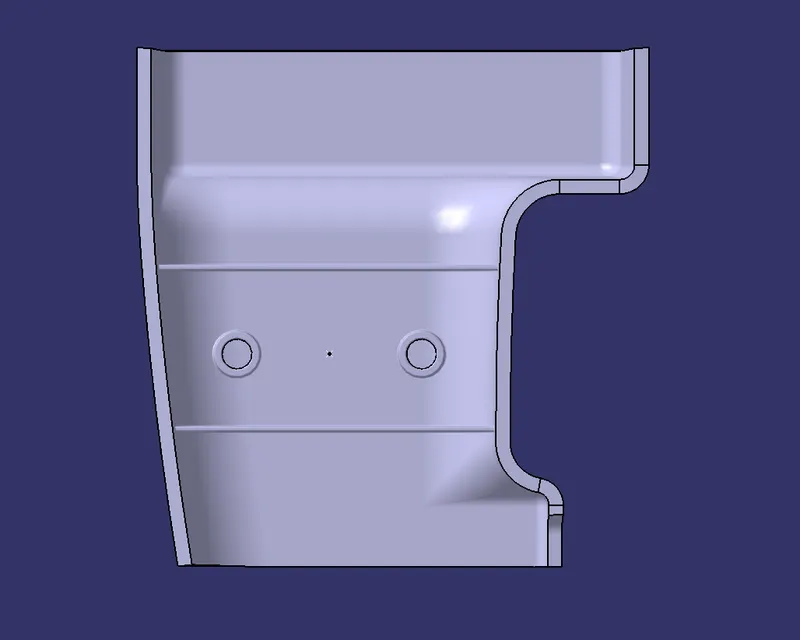

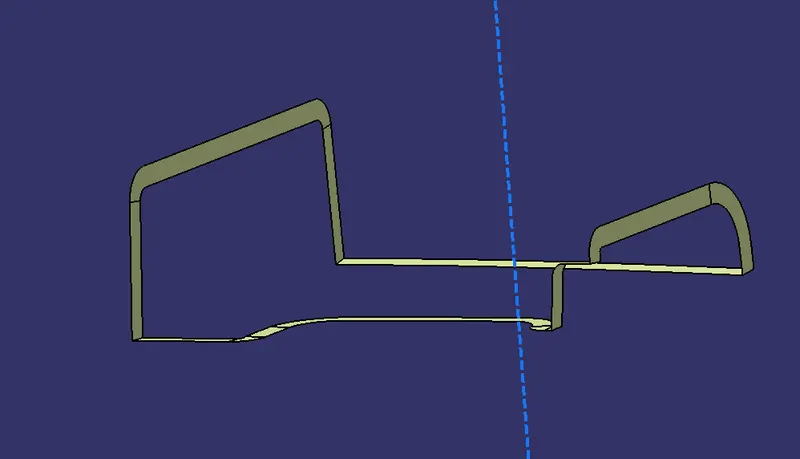

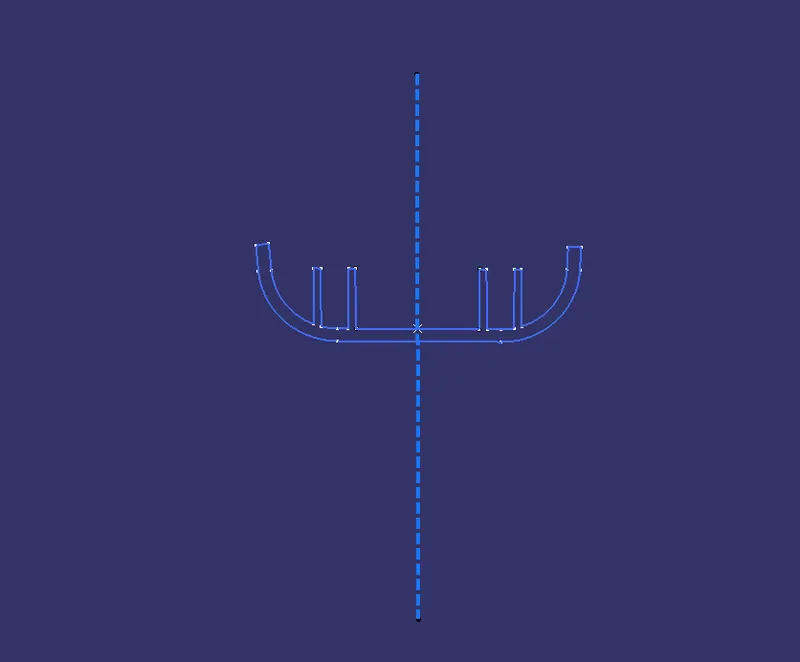

FRONT VIEW, SIDE VIEW, AND TOP VIEW OF SURFACE.

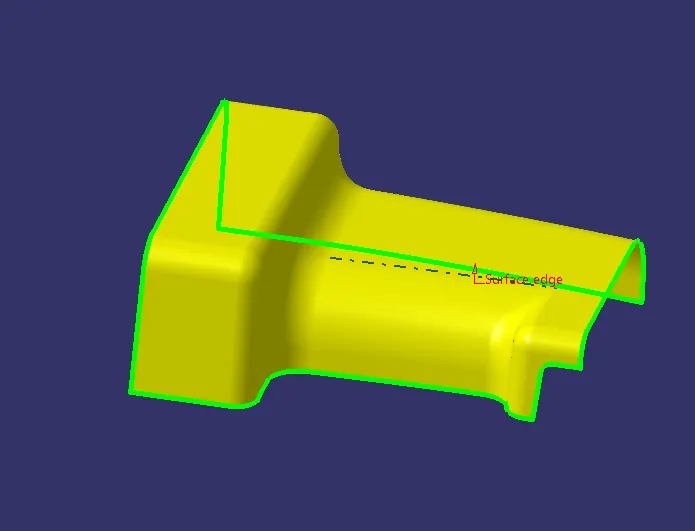

CHECK THE COMPLETE A SURFACE HAS NOT ANY OPEN BOUNDARY LINES.

THEN I CREATE THE MAIN TOOL AXIS LINE WITH THE HELP OF (A SURFACE).

CLASS A SURFACE.

CLASS B SURFACE.

CLASS C SURFACE.

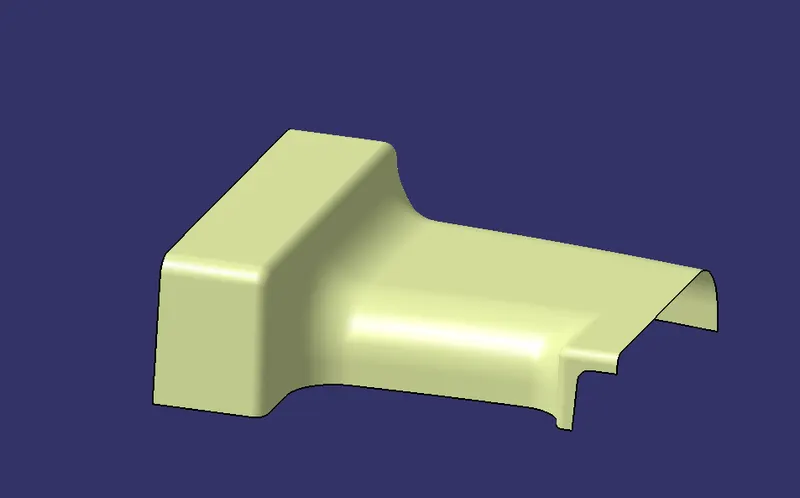

FINAL SURFACE AFTER TRIM OPERATION.

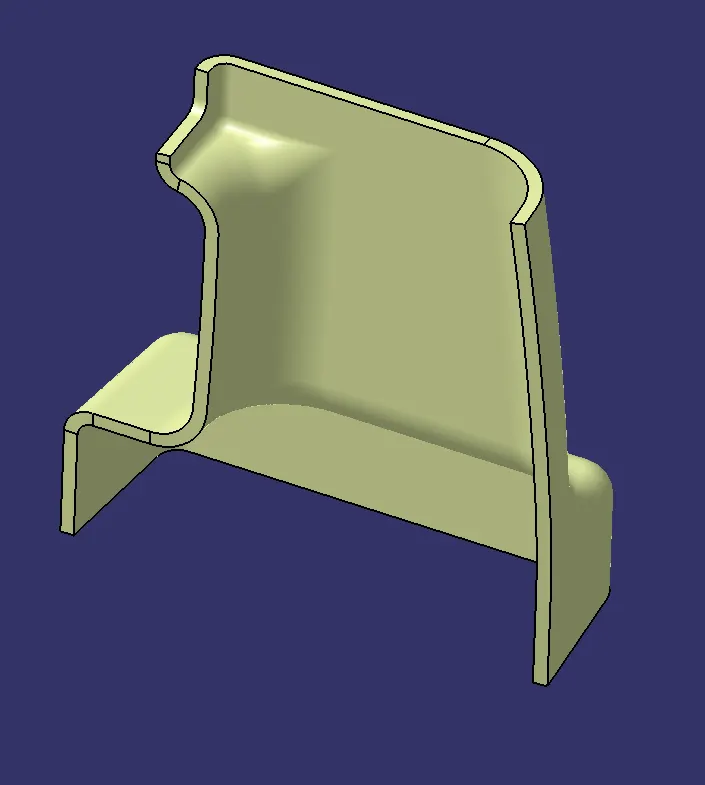

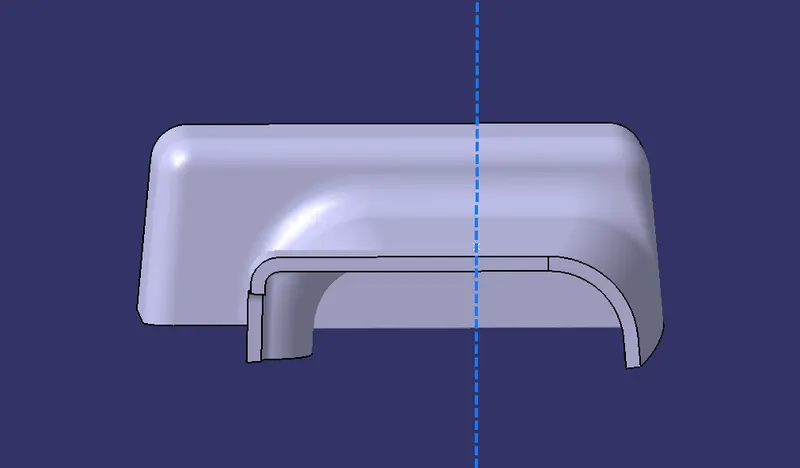

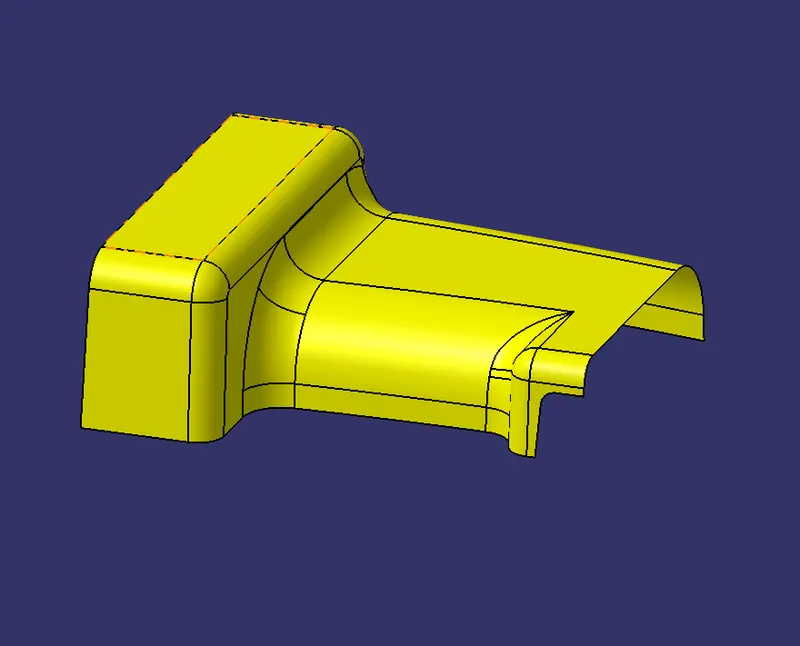

FINAL SOLID CLOSED SURFACE.

INTERSECTING LINE.

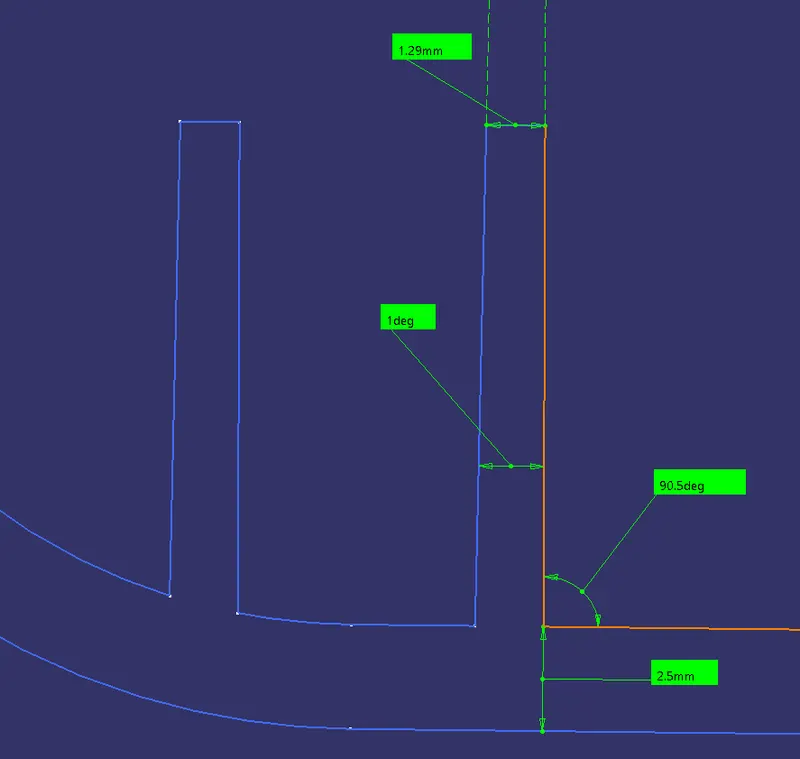

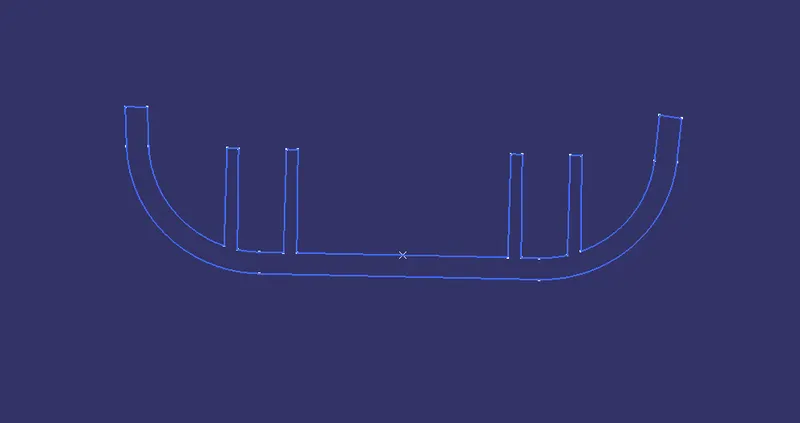

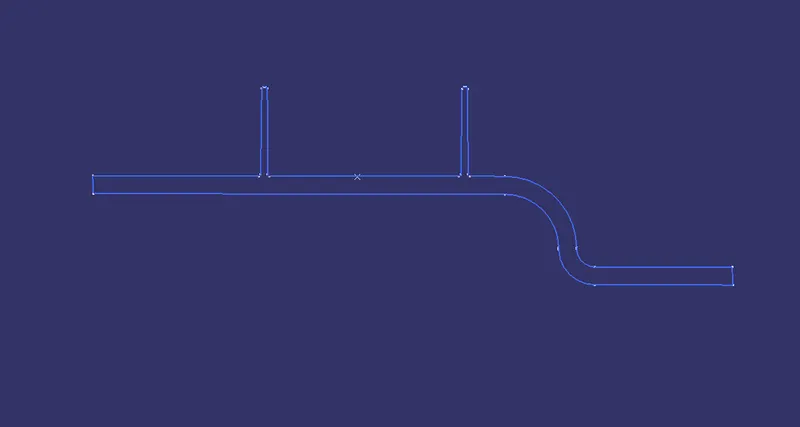

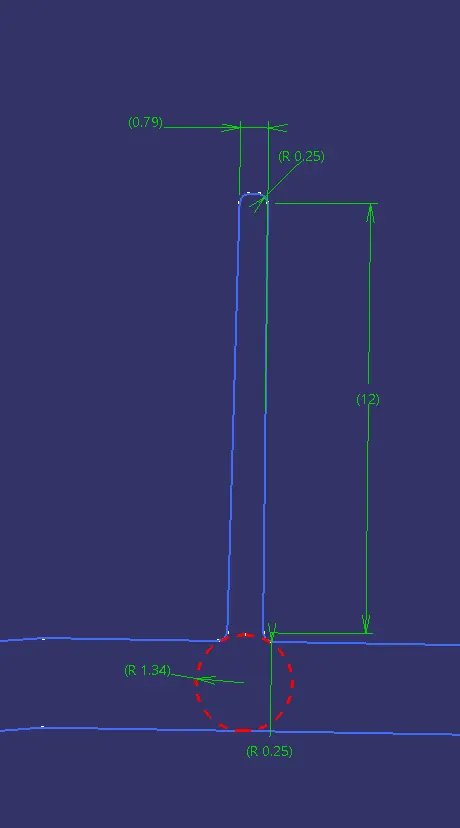

RIB OF THE DOOR HANDLE DESIGN.

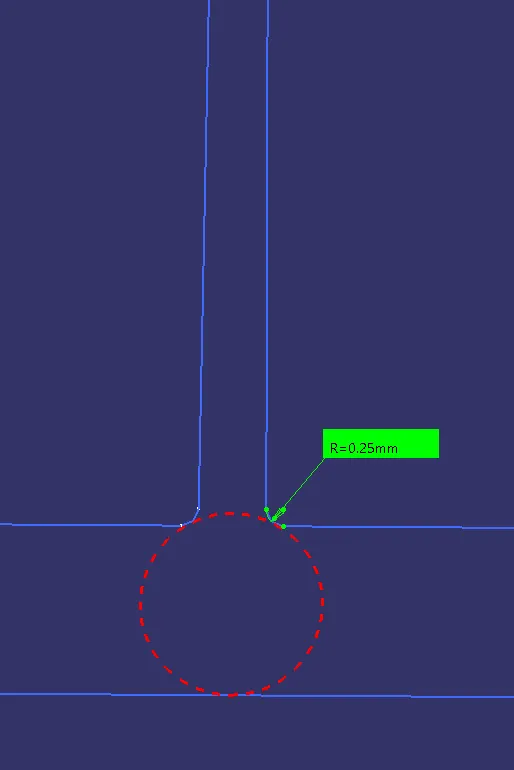

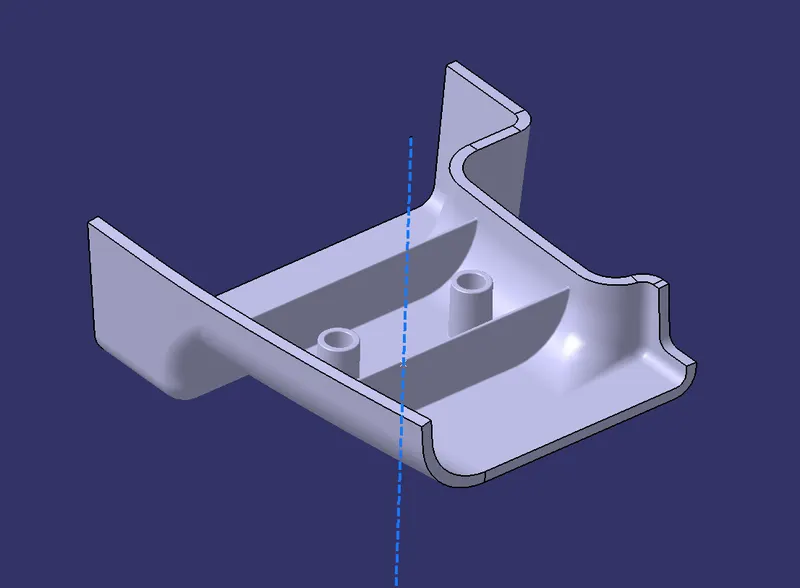

SCREW BOSS OF THE DOOR HANDLE.

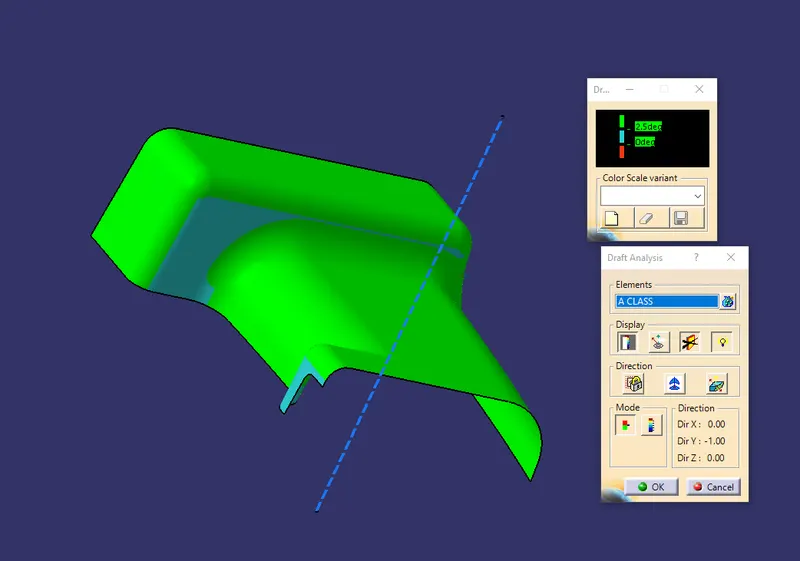

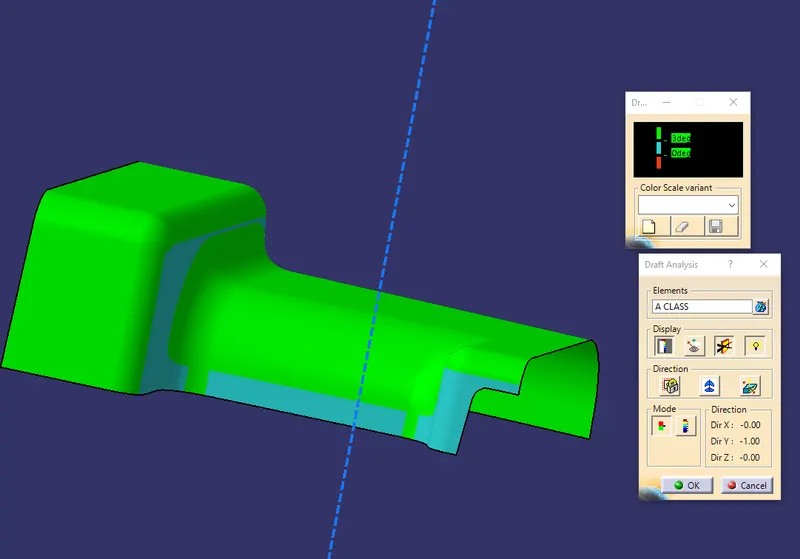

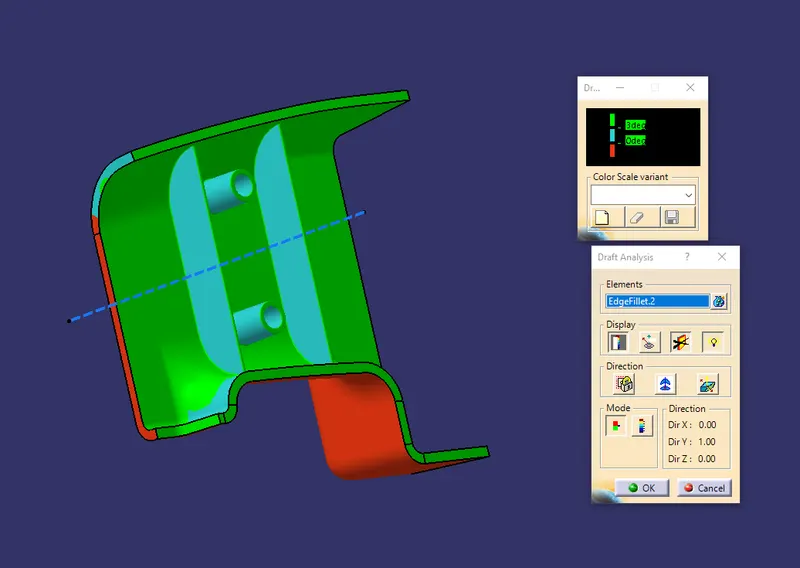

DRAFT ANALYSIS IS NOT DONE 3-DEGREE DRAFT ANGLE.

THEN I REDUCE THE VALUE BY 2.5 DEGREE DRAFT ANGLE. IT COULD NOT BE DONE (A SURFACE)

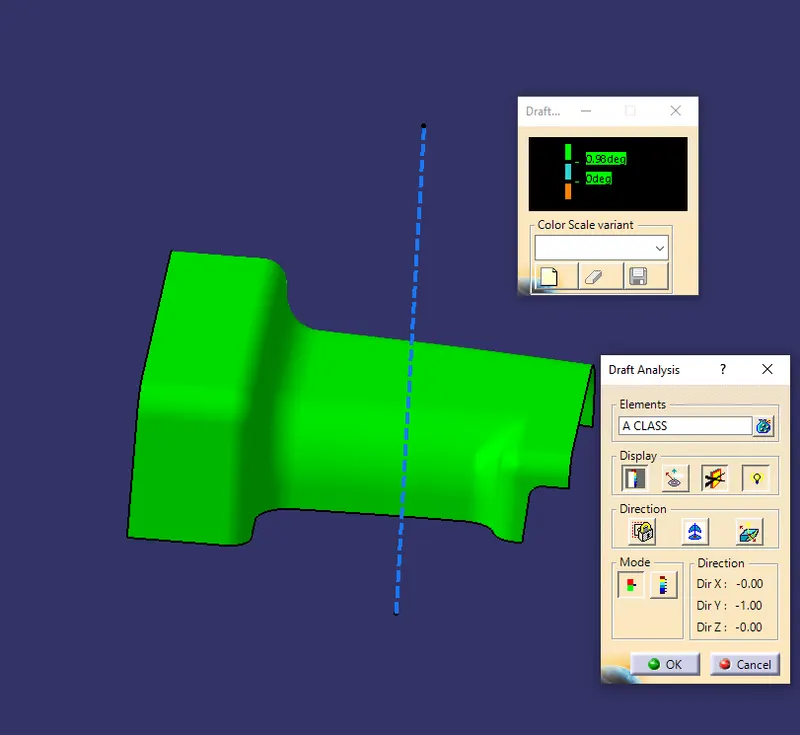

NEXT, I REDUCE THE VALUE BY 0.98 DEGREES OF DRAFT ANGLE COULD BE DONE (A SURFACE)

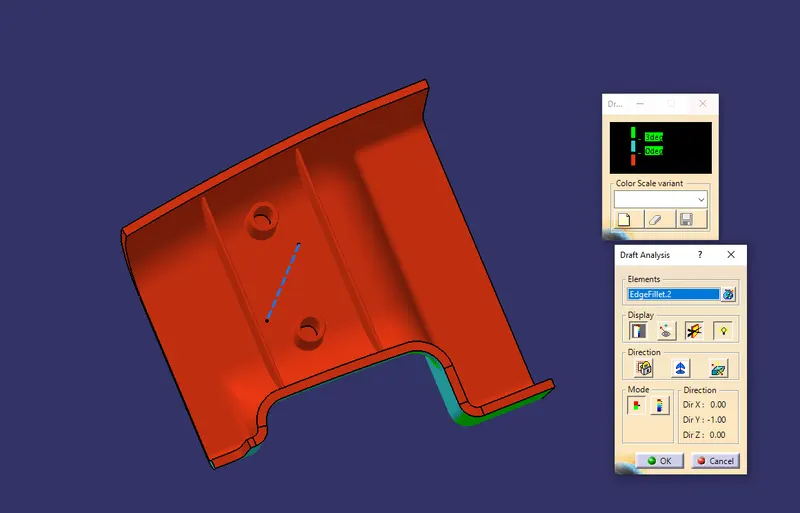

THE FINAL PRODUCT OF THE SOLD COMPONENT IS NOT DONE 3 DEGREES OF DRAFT. BECAUSE OF A SURFACE IS NOT CLEARED BETWEEN (2.5 TO 3) DEGREES.
