Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

tooling axis is selected in y direction.tooling axis is normal to zx plane .only through we can get a clear view to all section.no bisecting method is possible.

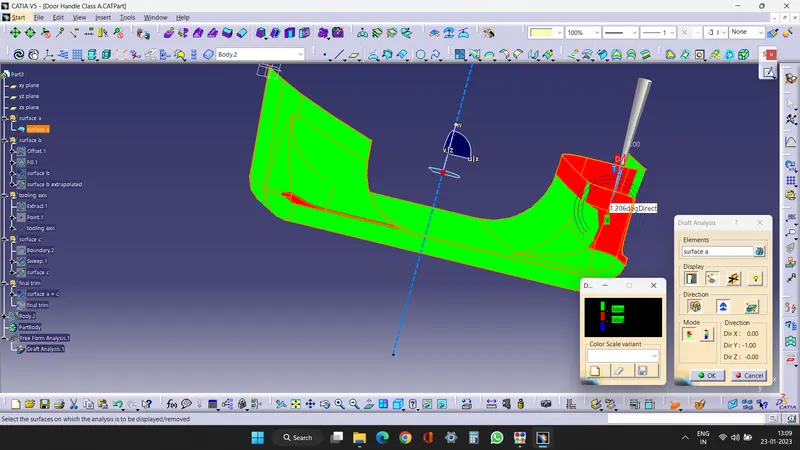

by conducting draft analysis ;found that the surface a is not proper .there are some region in surface a which is in between 0 and 3 degree to tooling axis.

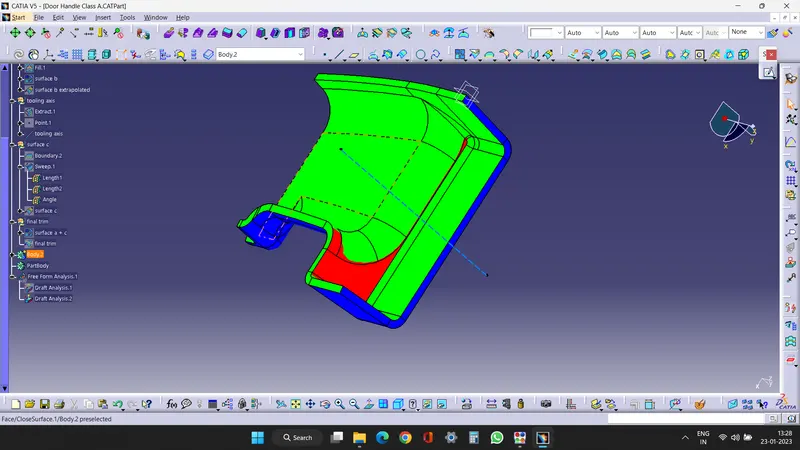

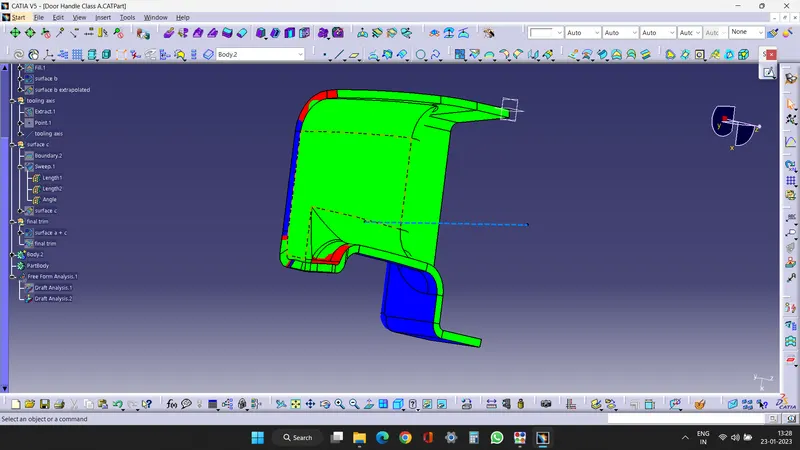

by conducting draft analysis in final trim product we found that there is some region where less than 0 degree to tooling axis and some in between 0 and 3 degree to tooling axis.
