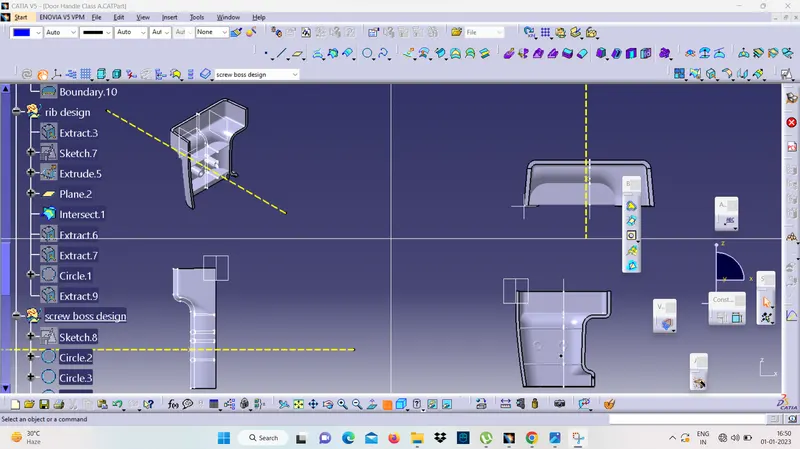

Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

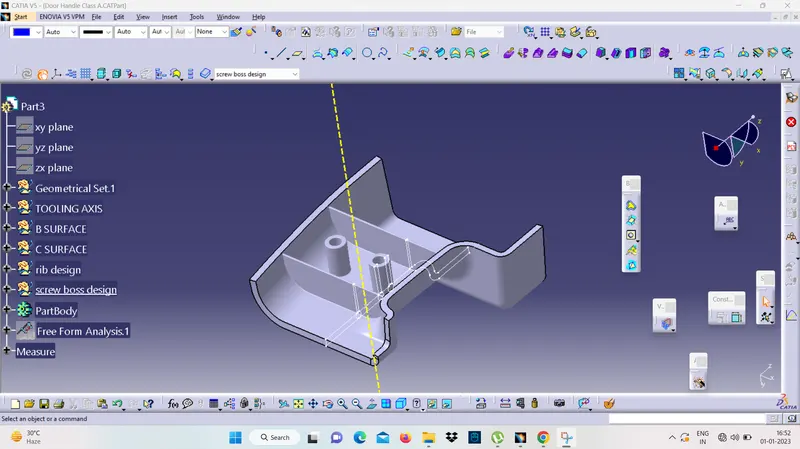

TOOLING AXIS -

in this componant tooling is made by simple method . first make draft analysis and then select a plane surface and crate o point on centre and made line this line is the tooling axis.

DRAFT ANALYSIS:-

Draft analysis is donr by the option present in catia .
