Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

REPORT:

1. This method for draft analysis is done similar to the previous elements we did.

2. First get the B surface with a c -surface encircling and enclosing it.

3. Then solidify it to enclose it completely.

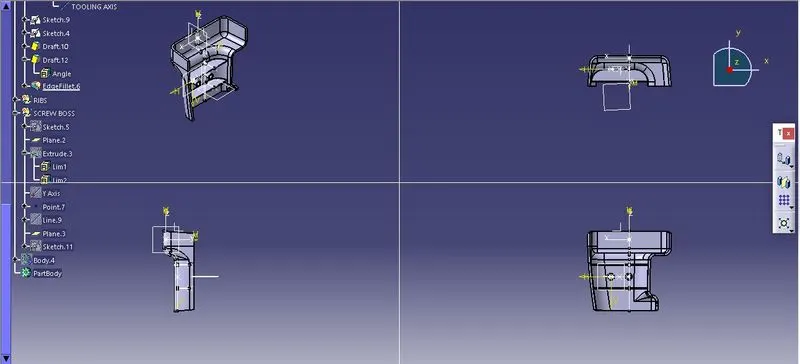

4. Then use it to body to build ribs and screw bosses

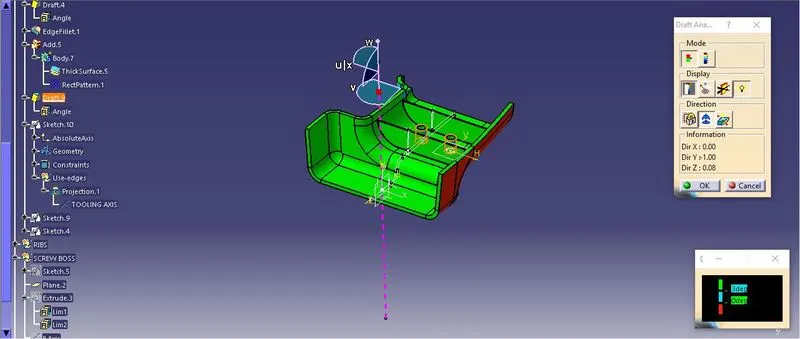

5. Then shift to material mode and check whether the body is manufacturable by usung draft analysis.
