Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

MMonish Raj1 Aug 2022

REPORT:

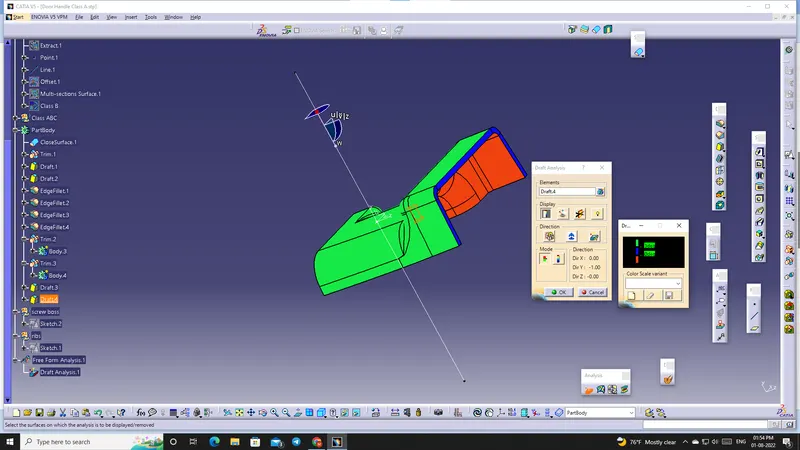

THE TOOLING AXIS MADE BY TAKING A POINT IN THE EXTRACTED SURFACE OF THE CLASS A AND THEN A LINE IS MADE FOR THE TOOLING AXIS. THE THICKNESS GIVEN IS 3 MM.THE GREEN COOUR IS THREE DEGREE AND THE RED IS BELOW 0 AND THE BLUE IS ONE DEGREE.
