Week 8 - Challenge 2 - Switch Bezel Design

REPORT:

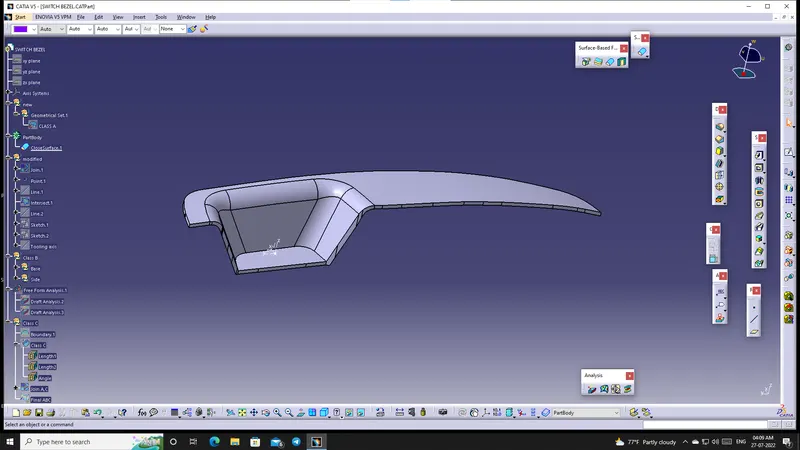

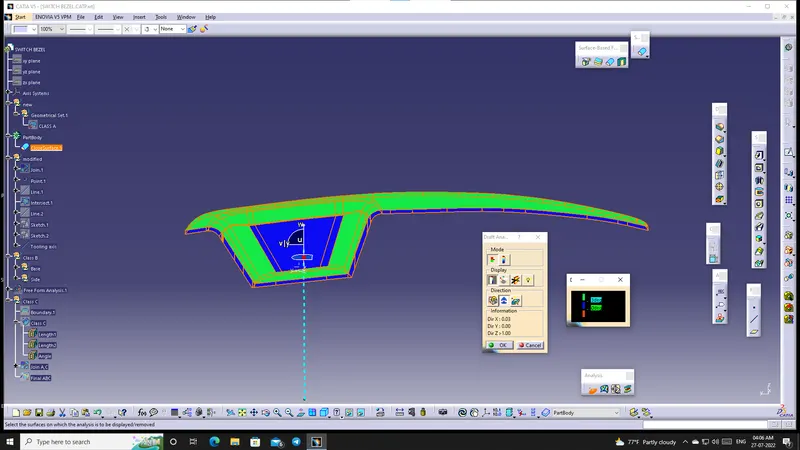

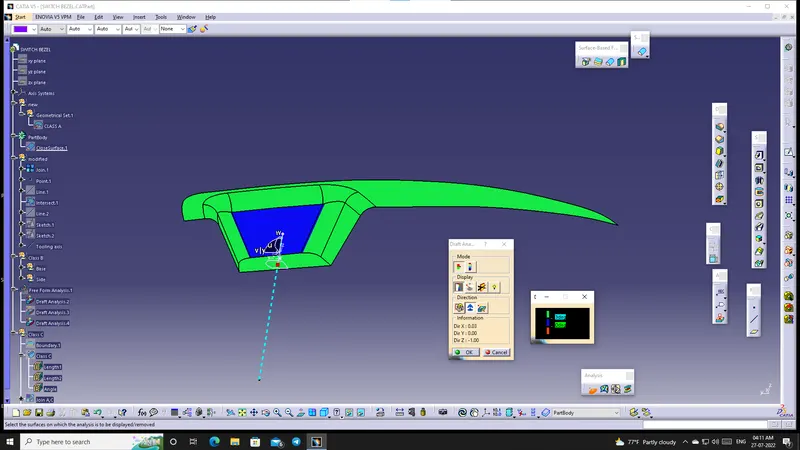

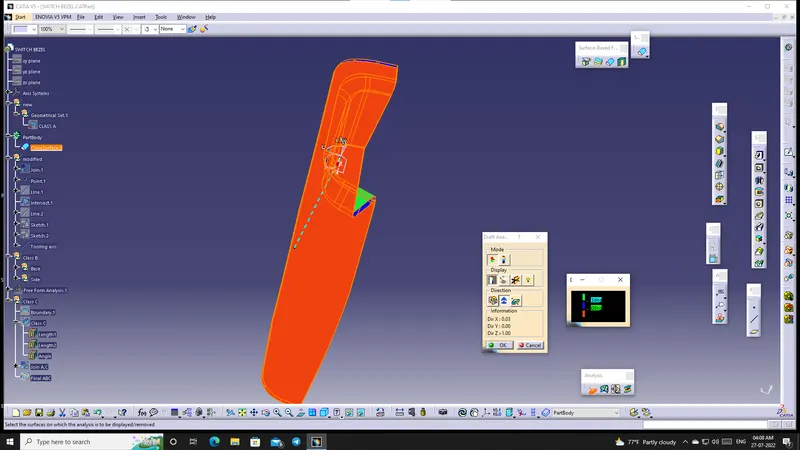

THE TOOLING AXIS IS CHOOSED BASED ON THE GIVEN SURFACE AND IT IS MADE BY TAKING THE AXIS SYSTEM BY PLACING THE POINT IN THE SURFACE OF THE CLASS A THEN CREATING A LINE ON THE ONE SIDE AND THEN A LINE IS MADE ON THE POINT AND GAVE THE ANGLE BETWEEN THE LINE AS 3 DGEREE AND THE OTHER WITH THE SAME ANGLE WITH THE THREE DEGREE AND THEN BISECTING THE TOOLING AXIS IS MADE. IN THE DRAFT ANALYSIS THE MIDDLE SECTION OF THE CUP PORTION IS WITH 0 DEGREE, IT IS FROM THE CLASS A SURFACE
