Week 8 - Challenge 4 - Bumper

Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Take the Thickness of the component to be 3 mm

GIVEN A SURFACE

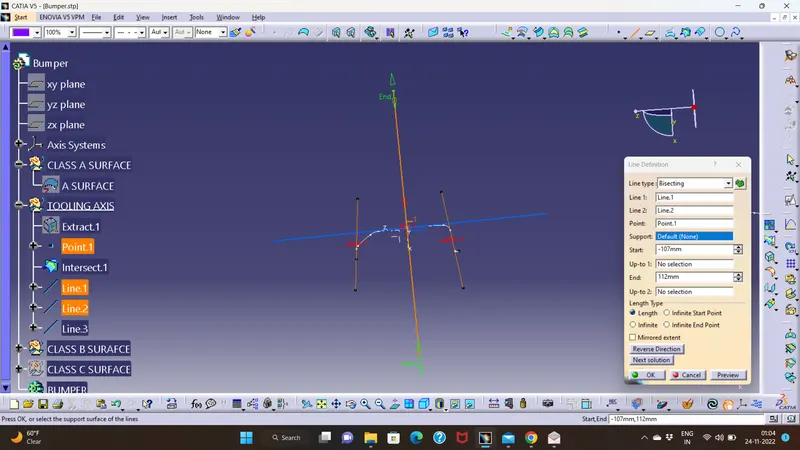

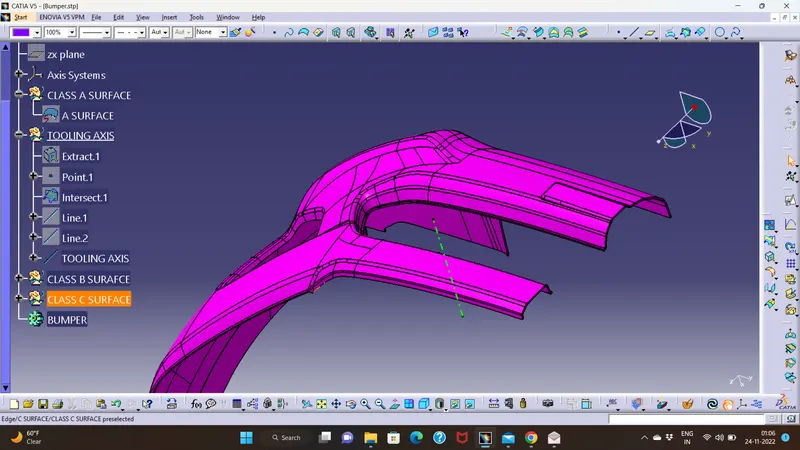

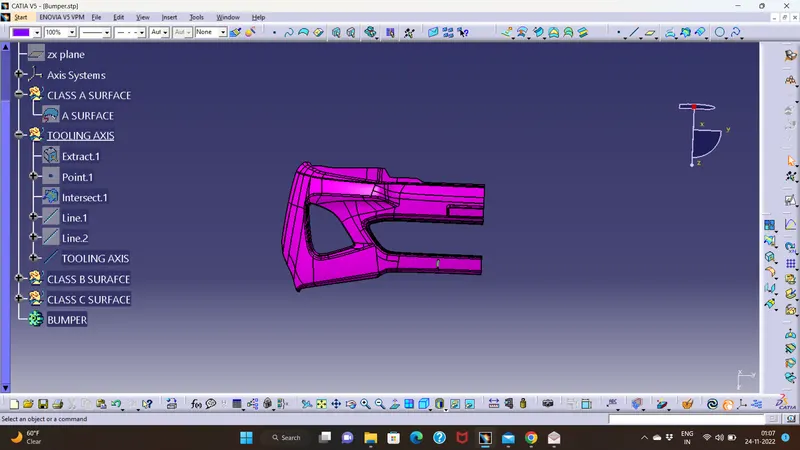

 creating the tooling axis, particularly the Bisecting method.

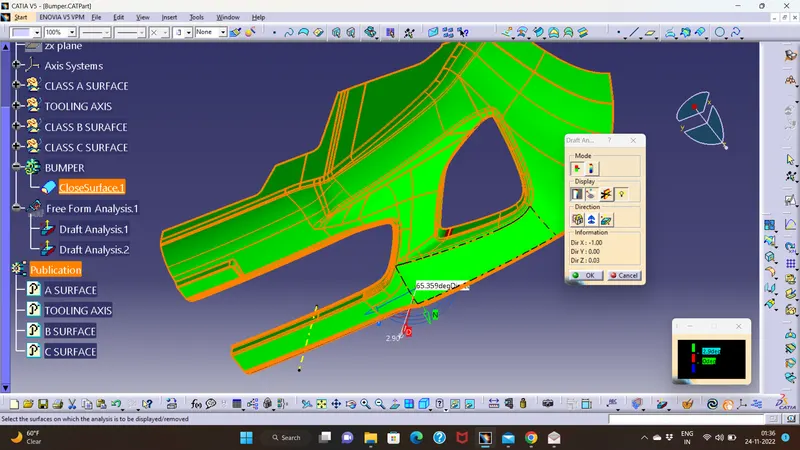

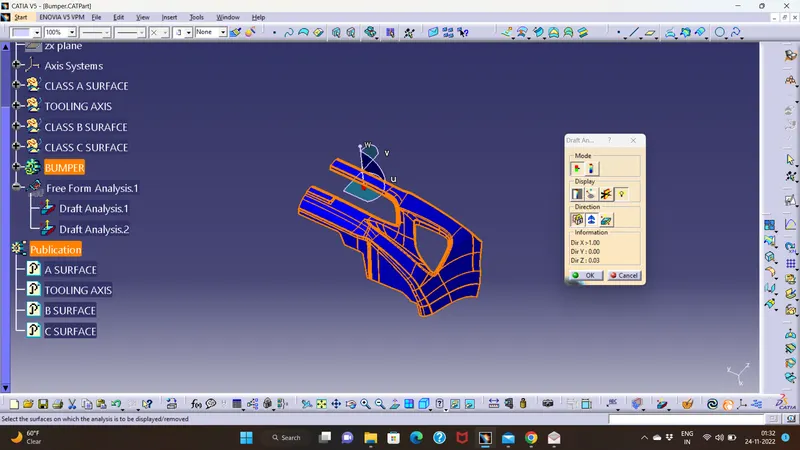

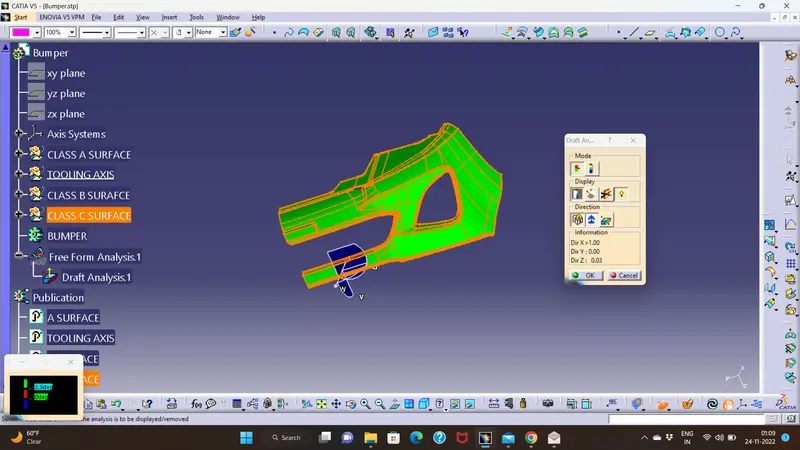

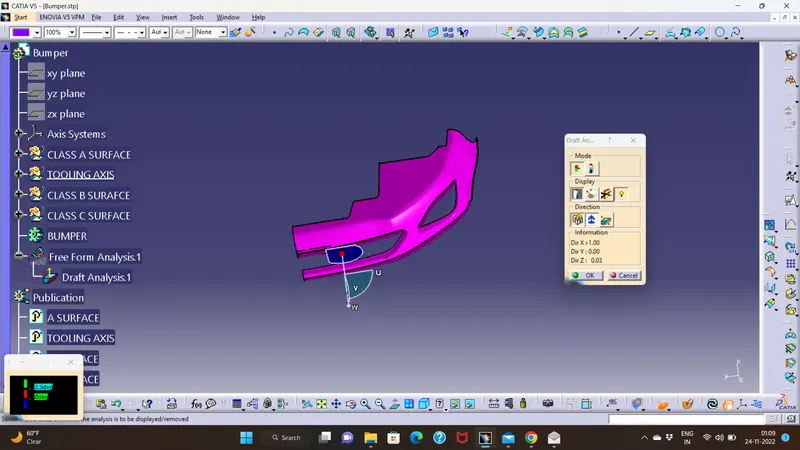

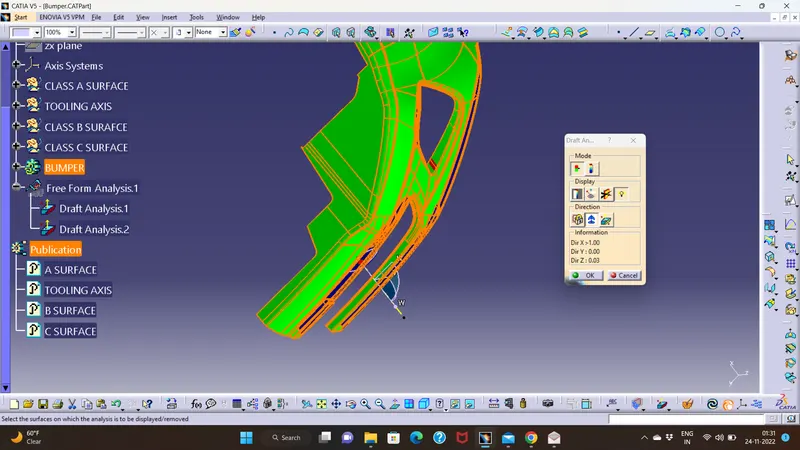

draft analysis



 the proper color code of the draft angle in various orientations

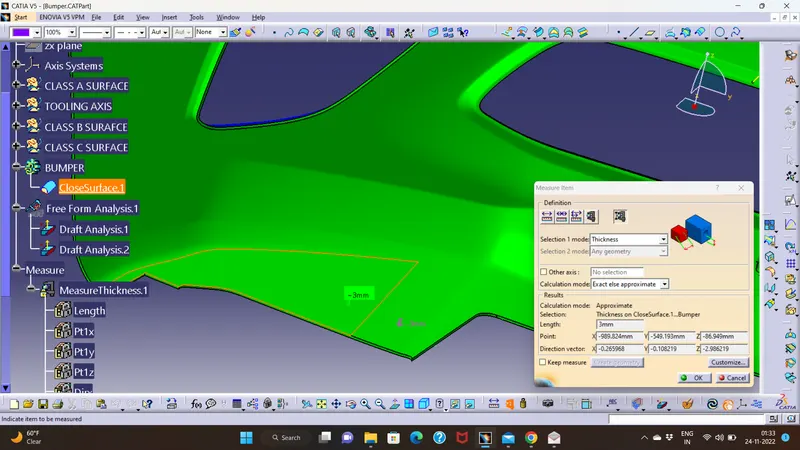

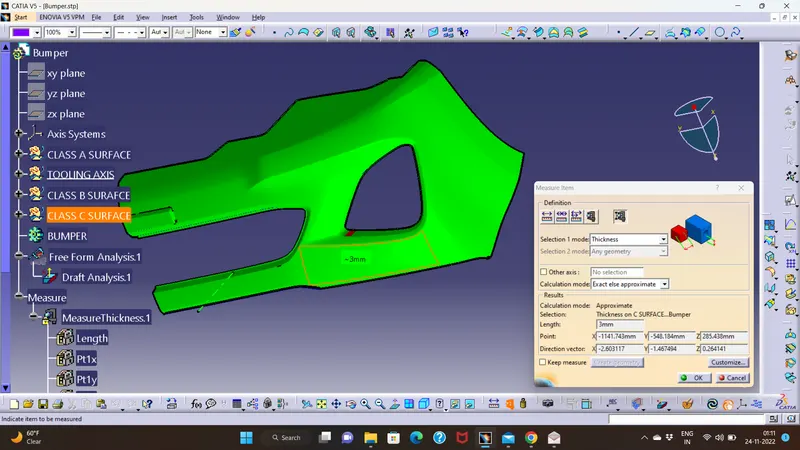

the Thickness of the component to be 3 mm

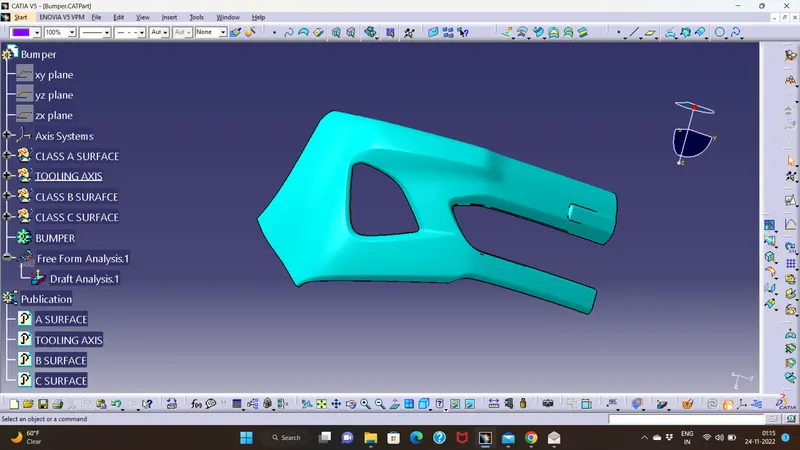

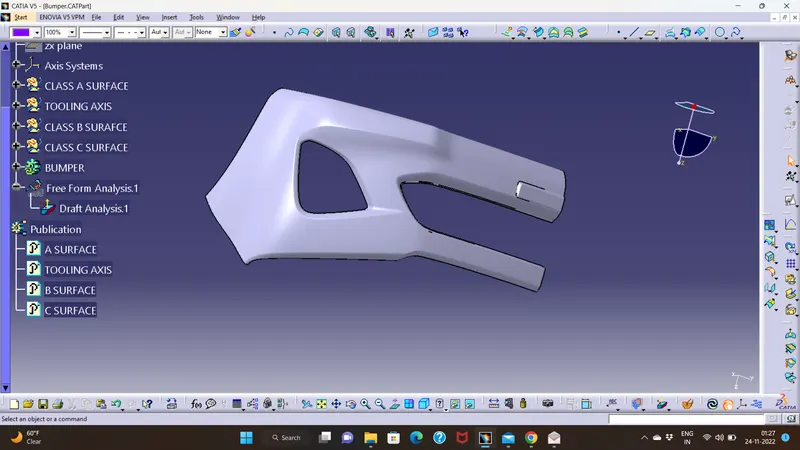

FINISH SURFACE
