Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1
AIM
Create the rib for the Drill Handle considering the design rules mentioned in the video.
Create the Screw boss for the Drill Handle considering the design rules mentioned in the video.
Report
Ribs
Ribs are a feature in plastic injection molded parts. They are thin extensions that run perpendicular from a wall or plane. They are commonly used to provide additional support and strength to a part.
Screw Bosses
Boss features are commonly found in injection molding designs. They are used to aid in the assembly of molded parts by providing a channel for a screw.

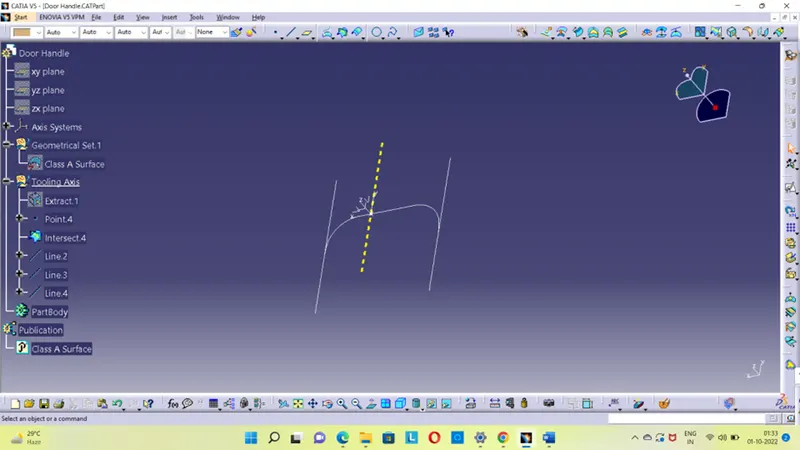

Tooling Axis
Tooling axis is a direction in which core and cavity opens and closes. Draft angle is provided with respect to the tooling axis. While creating mold component from Class-A surface, we need to decide the tooling direction. It can be decided by visual inspection, deciding complex surfaces and bisecting method.

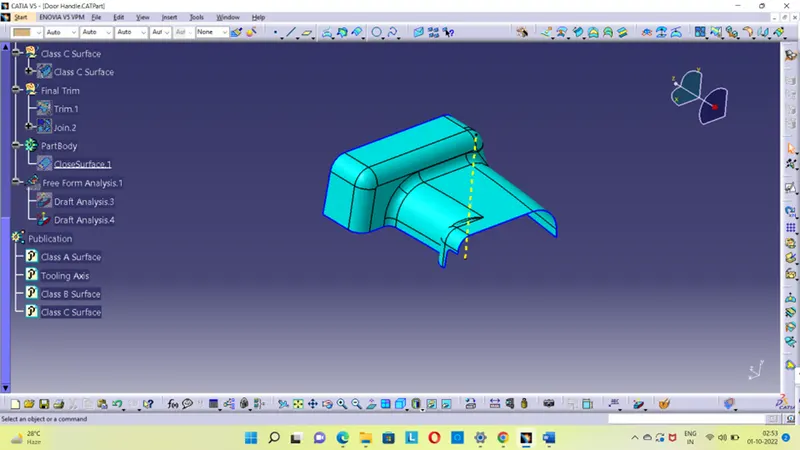

Class A Surface

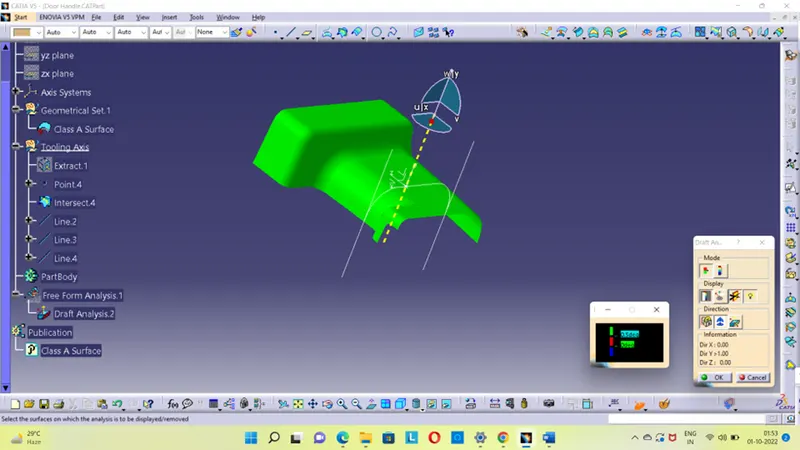

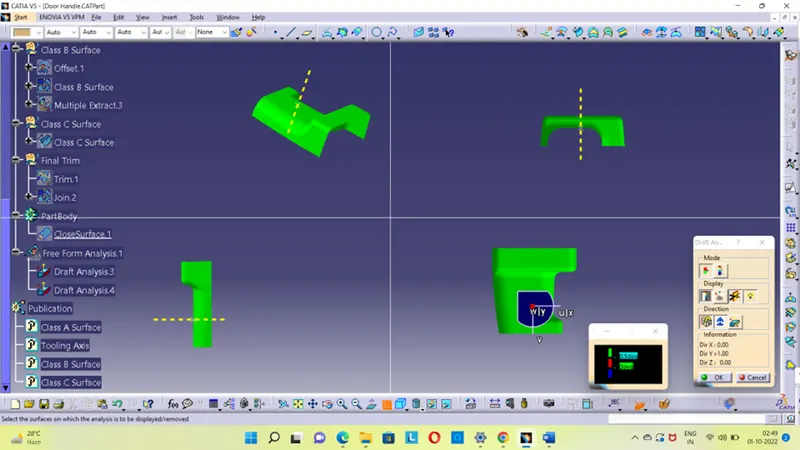

Draft Analysis of A Surface
NOTE
In some of the edges and corners of the class A surface we are not getting the clear drafting angle it shows a pop up error.

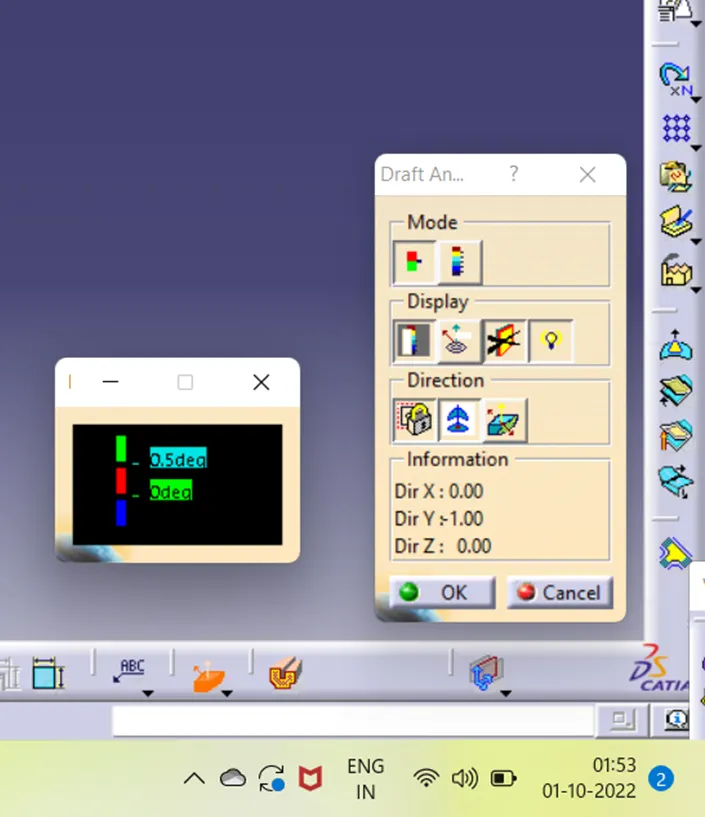

The Class A surface has only a draft of 0.5 degrees, hence it is not clearing for 3 degrees draft angle.

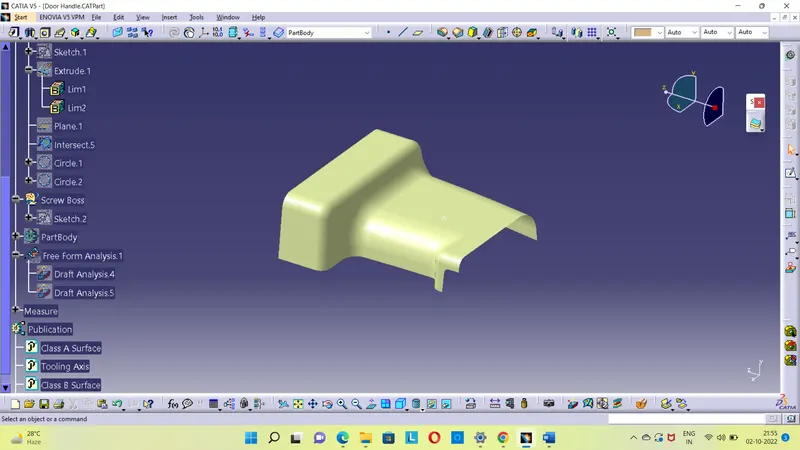

Class B Surface

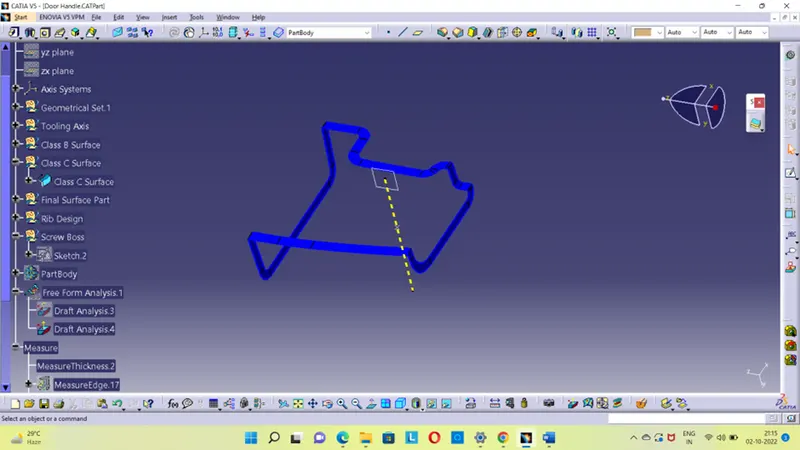

Class C Surface

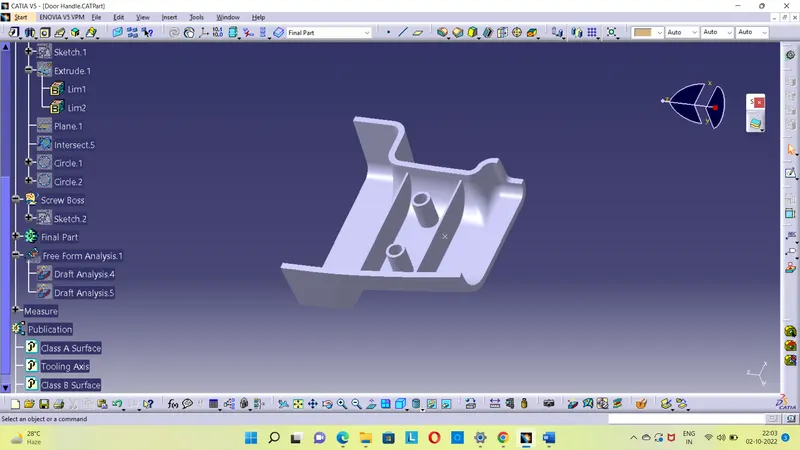

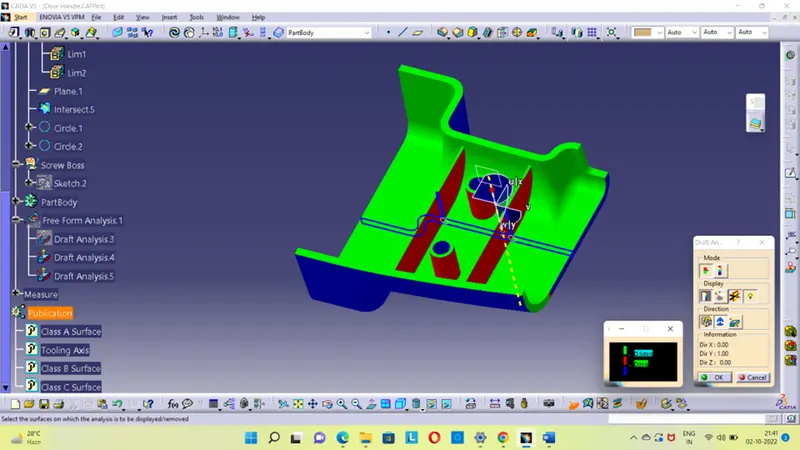

Final Part With Rib & Screw

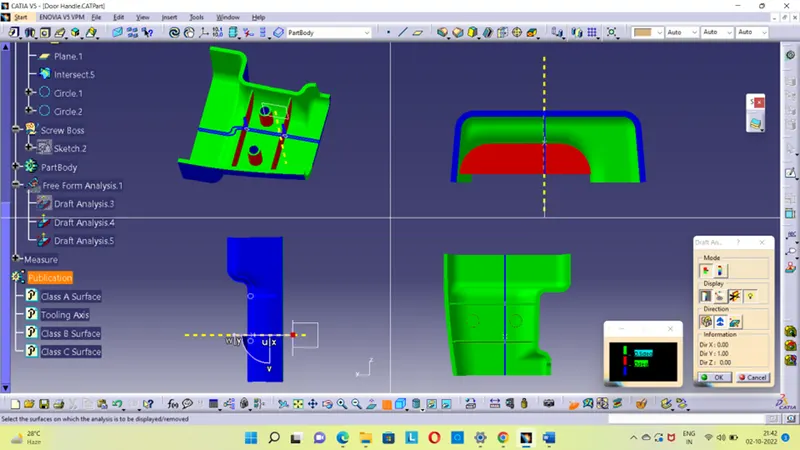

Draft Analysis of Final Part

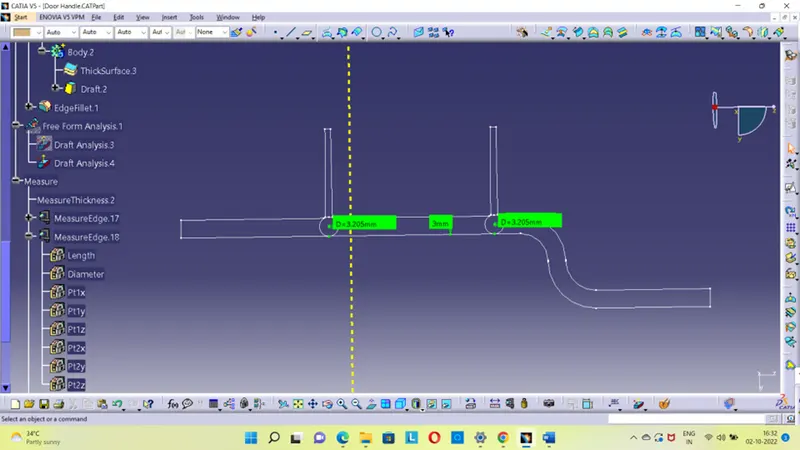

Intersection of Rib root thickness & Wall Thickness

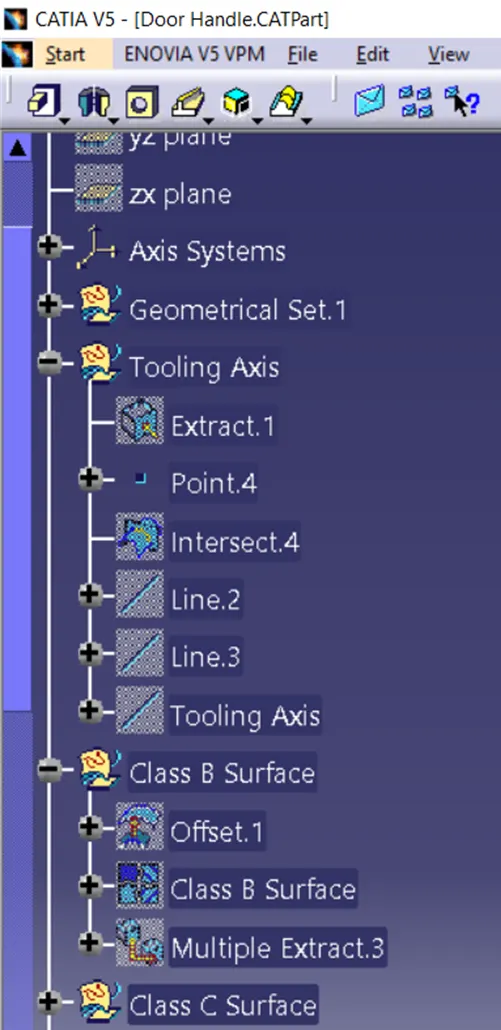

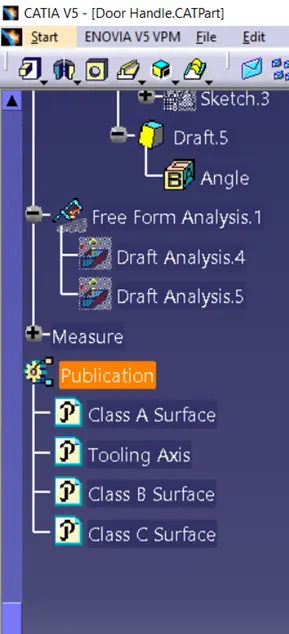

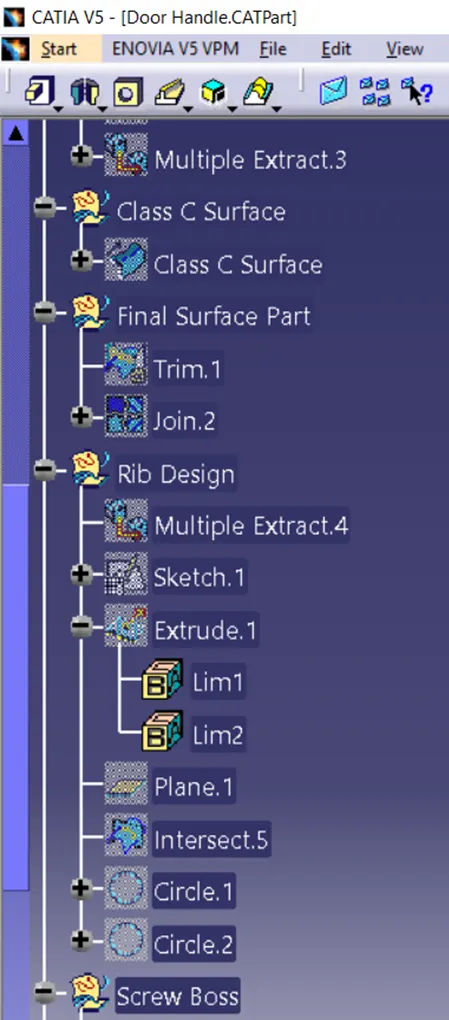

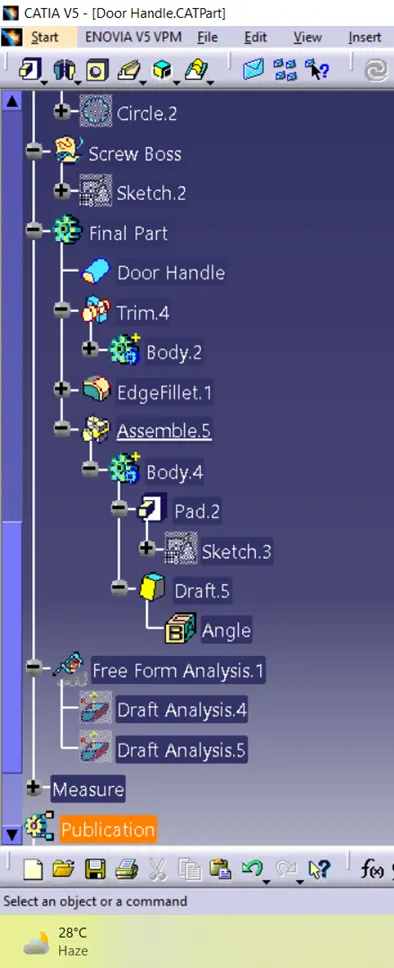

Tree Structure
