Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

DOOR HANDLE

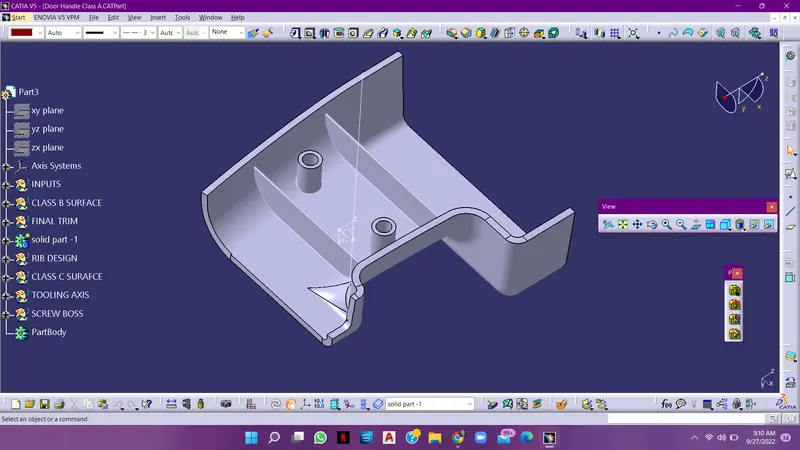

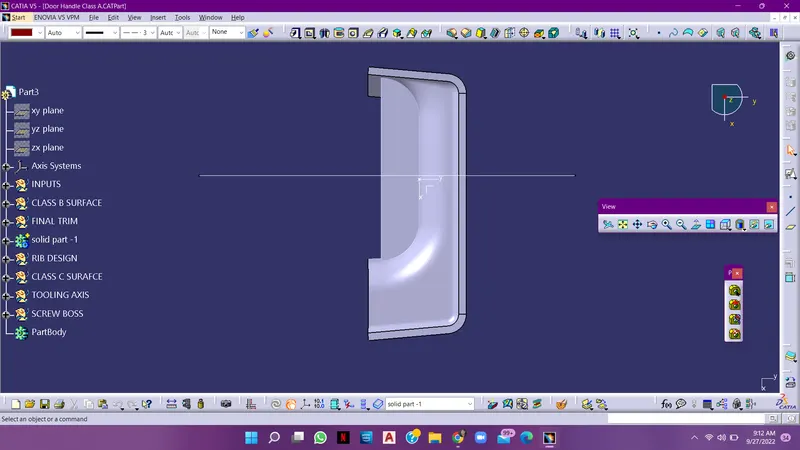

               ISO METRIC VIEW                                                                             FRONT VIEW

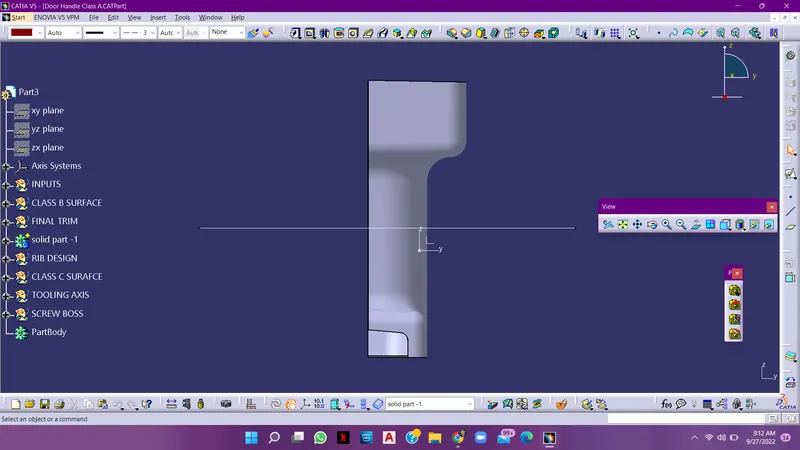

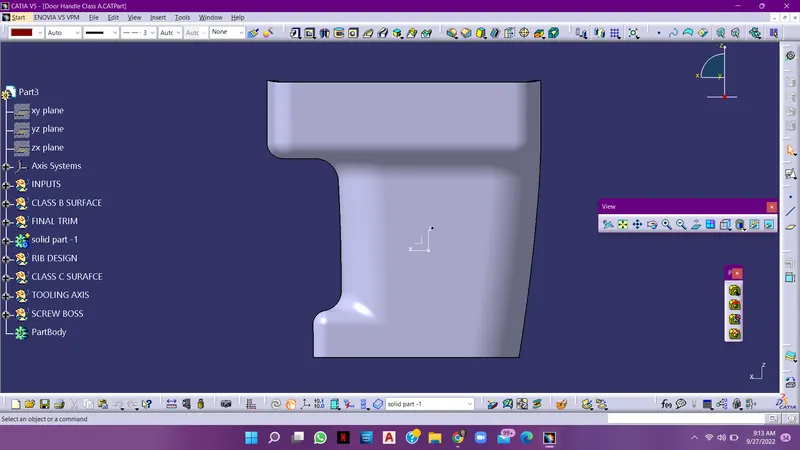

                 TOP VIEW                                                                                                 SIDE VIEW

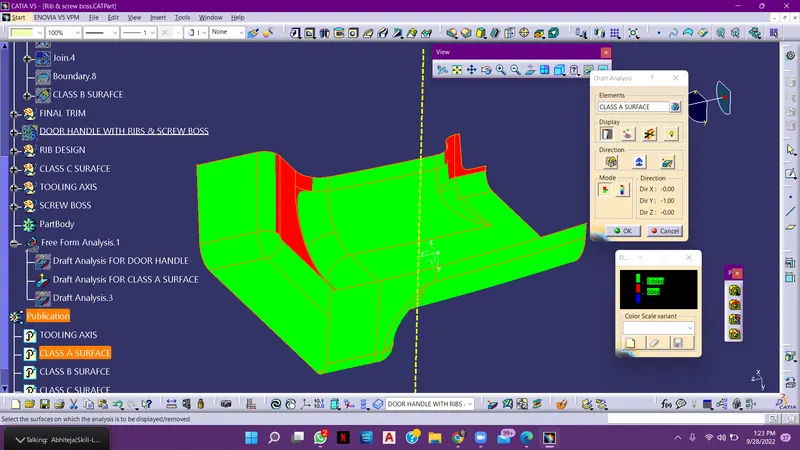

 DRAFT ANALYSIS OF A CLASS A SURFACE

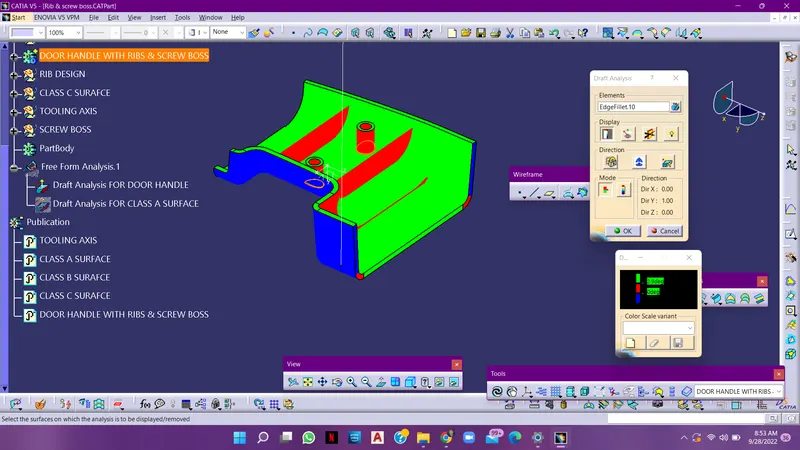

DRAFT ANALYSIS PERFORMED ON THE FINAL COMPONENT

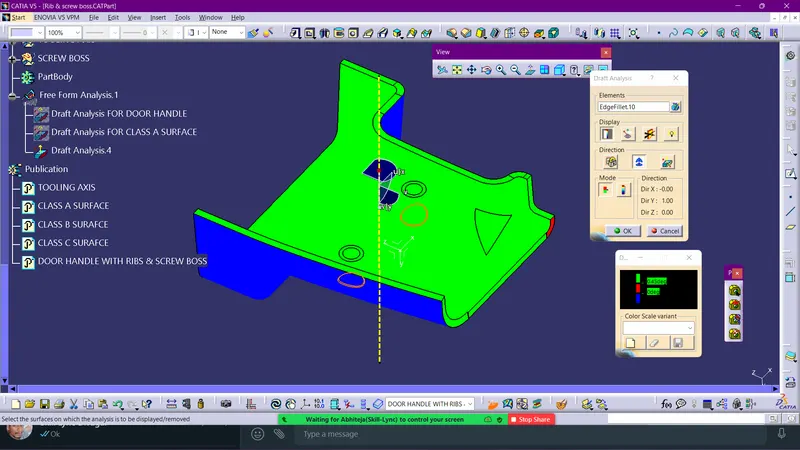

DRAFT ANALYSIS OF A RIBS AND SCREW BOSS

Report

Draft analysis -

 Draft analysis is used to check, wheather the component is under the given draft angle or not ( draft angle shoulsd be 3             degress)

TOOLING AXIS

Tooling axis Creation Draft Analysis on CLass A Surface

 The main objective is to create Draft Analysis by Providing the Tolling direction of a class a surface

-The draft analysis command enables you to identify wheather the component you drafted will be easily removed or not.

- After performing draft analysis we can able to recognize the material wih draft according to the colours allotted, according to the colours we can able to predecrt wheather the component is how much drafted.

 - Tooling direction defines you, that in which direction that the component is being removed and the tooling direction was the main consideration for both plastic parts andd mould parts.

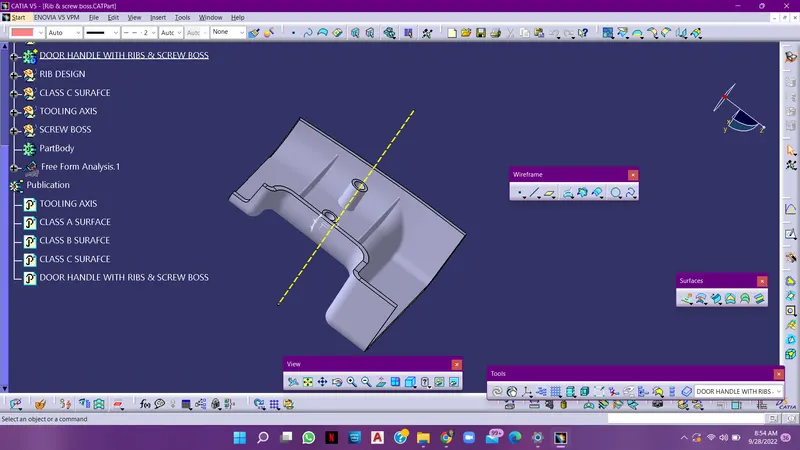

 The above image shows the tooling axis, i have taken tooling axis with reffernce to the class a surface. i have selected a point and placed on the normal to the surafce and inserted a line and extended a line towards and downwards ( upto certain limit).

 when the line is created, this will be your's tooling axis.

 And after complete drafting it willl turns into the complete green colour ( that is we arranged thorugh choices of different colours). it indicates that the component is ready to manufacture

 Creation of Class b surface-

 I have offsetted the class a surface and tried to filled the gap my removing the fillet surafces with jion command( sub elements to remove ) and extrapolated the flat edges till thE other extraplotaed reaches the present one and trimmed it and this is how i filled the all the patches and then i extrapolated the outer boundary seepratly. And my class b surafce is done

 Creation of Class C Suraface

 I have created the class c surafce by sweep command tool ( taking the refference as a tooling axis ) and exteneded it by sufficient length( required) and i tried to filled th patches accured between the creation of class c surface. and i joind the class c surafce with the class a surafce. and my final class c surface has been created.
