Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

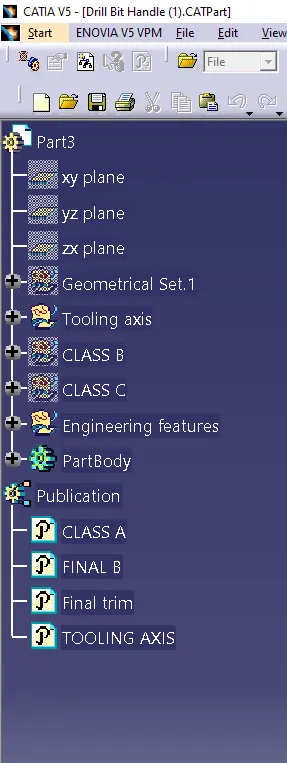

Tree structure.

Draft analysis.

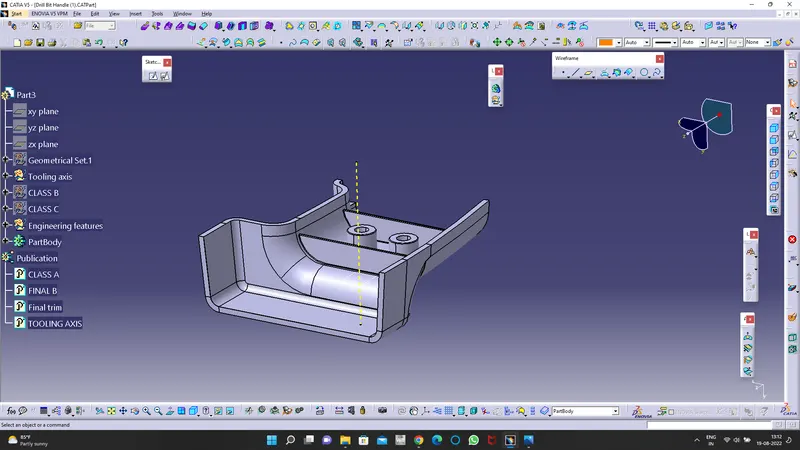

Attachment features.

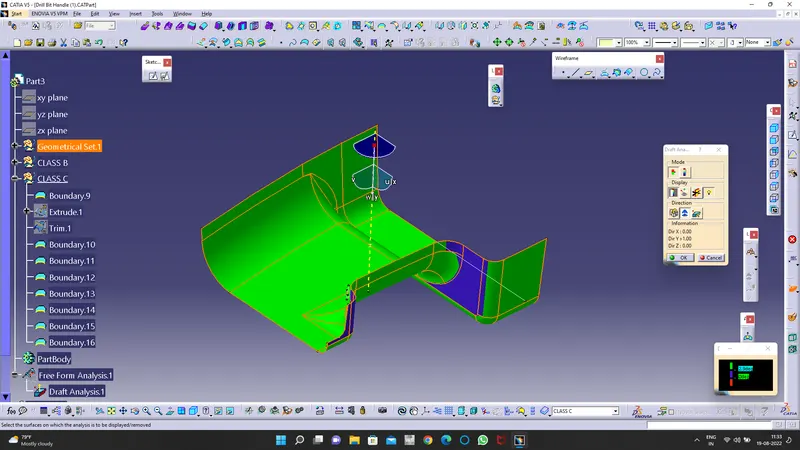

Draft analysis.

draft analysis is done on both surface and solid bodies.

The green color encodes the minimum draft angle of 2.99 degree

The blue color encodes the minimum draft angle 0 degree

The red color encodes the negative draft angle.

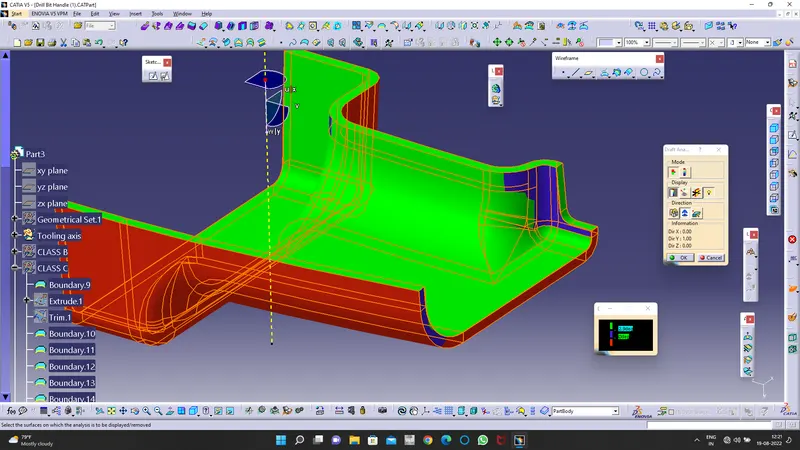

The tooling axis is taken along the Y axis initially.  I changed it to Normal to the surface; the blue region is more in this than in the previous one. So the tooling axis is taken as normal to the Y axis for draft analysis.

From the analysis, we found that almost all the parts of the solid body are showing green color.

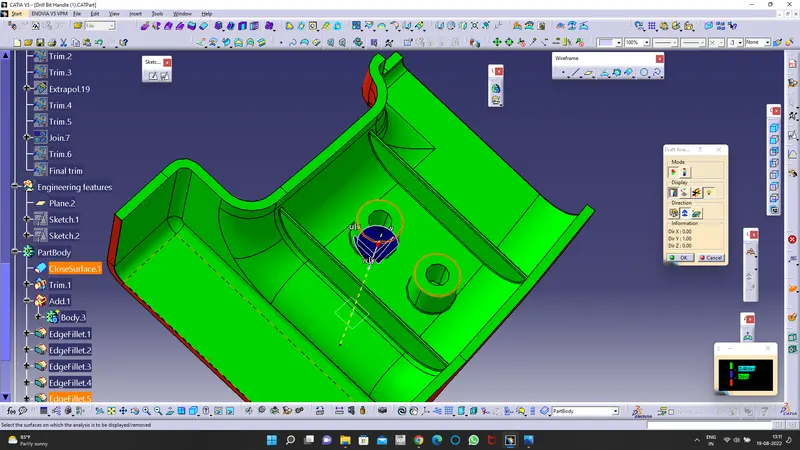

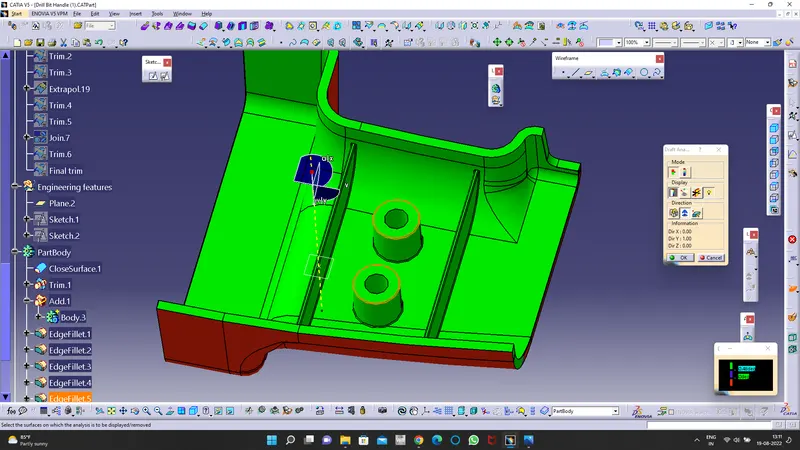

According to the tooling axis, the draft analysis is showing everything in green for attachment features.
