Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

to create a ribs and srew boss:

in this surface to create rib and srew boss to first create a tllo axis and with axis system ans point aton surface

the difference betweem the rib and boss is bosses are one of the most common features seen in plastic parts However similar to ribs if bosses get too thick relative to the nominal wall thickness sink can occur. A boss-rib combination can eliminate sink marks.

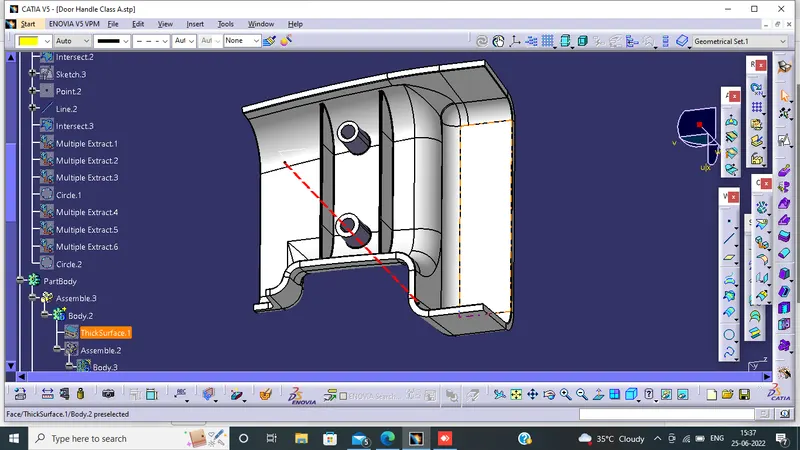

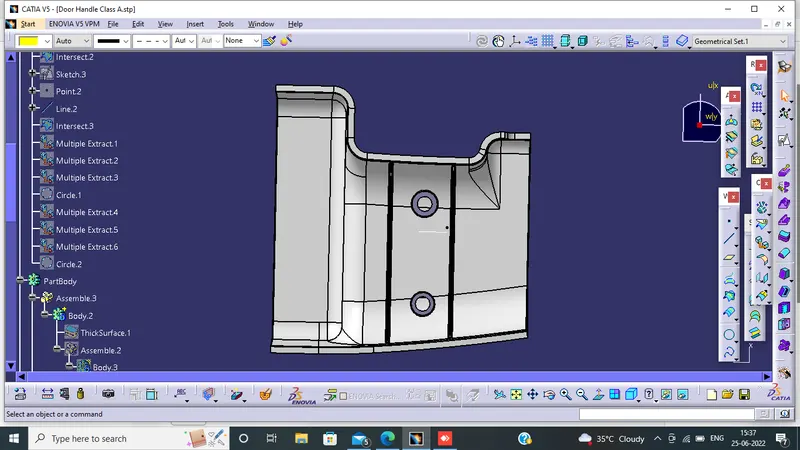

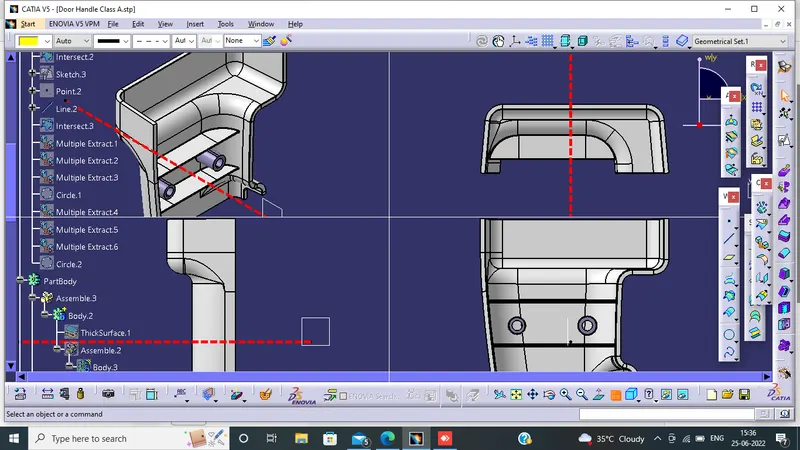

this is ribs at all front and side and top view and iseometric view:

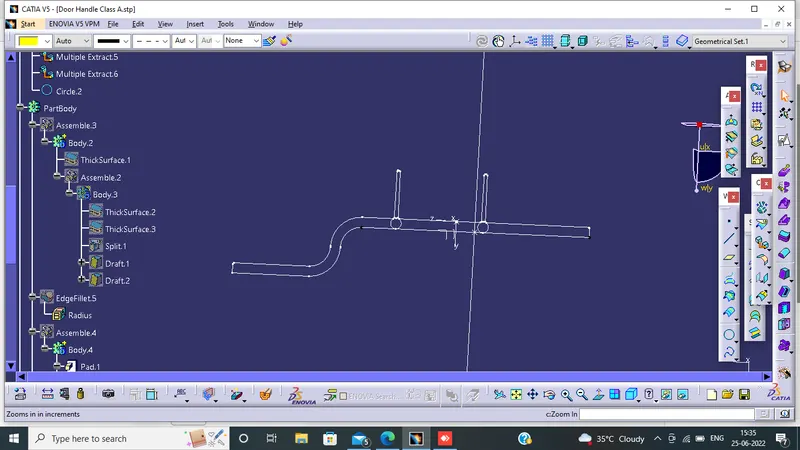

this is intersection of surface body:

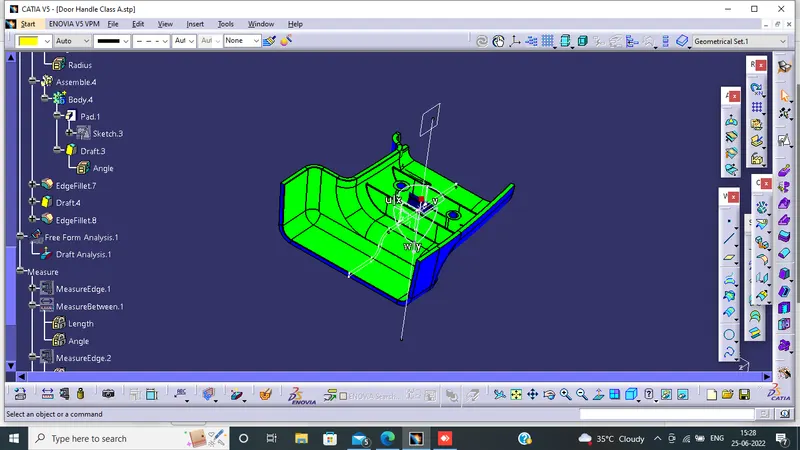

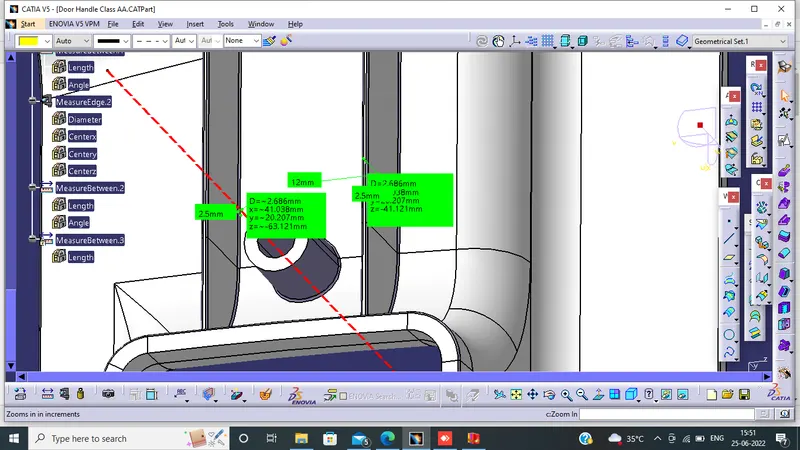

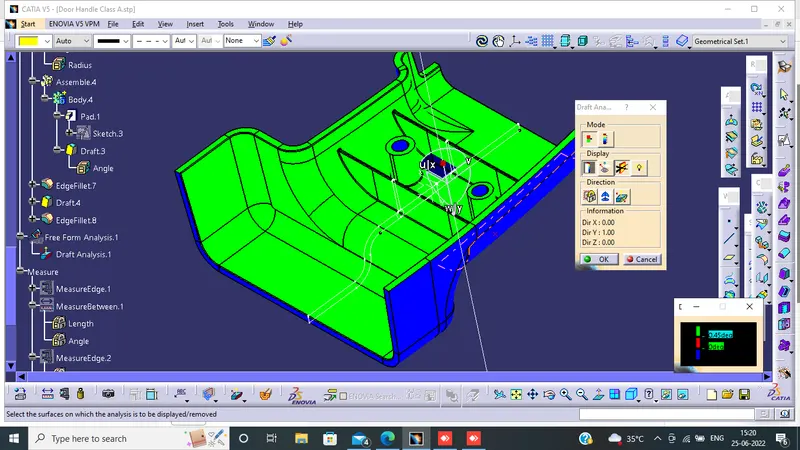

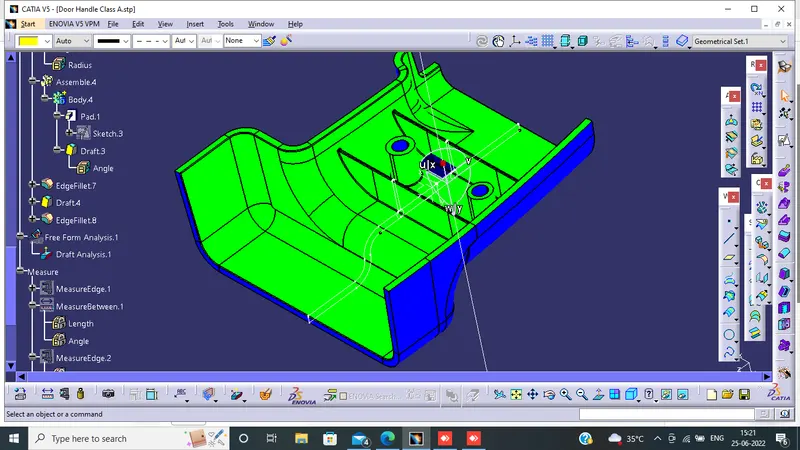

draft analysiis mesuremts of the part:
