Week 9 - Attachment Feature Creation - Challenge 2

A FULL DORE TRIMMER WITH DOG HOUSE .

AIM

• TO Make the model from the provided class A surface.

INTRODUCTION

• To create the model using the reference of class-A surface
• the class-B surface are created by the extraction of class-A surface
• the class-C surface are created by the extraction of outer boundry of class-B surface

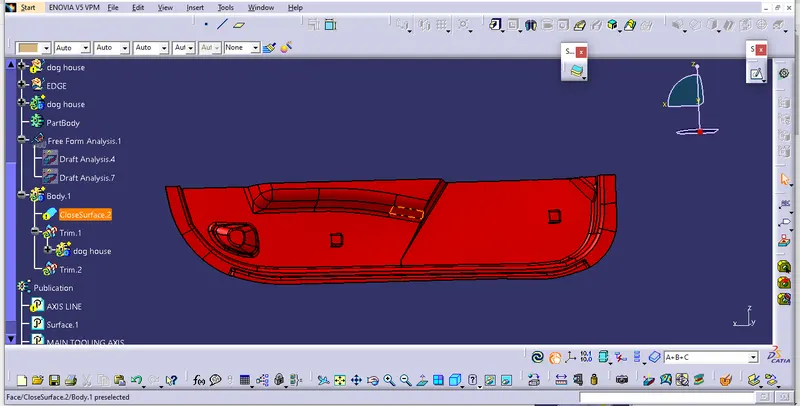

• After A+B+C the dog house should be create in back side of the class-B surface

METHODOLOGY

CLASS A SURFACE

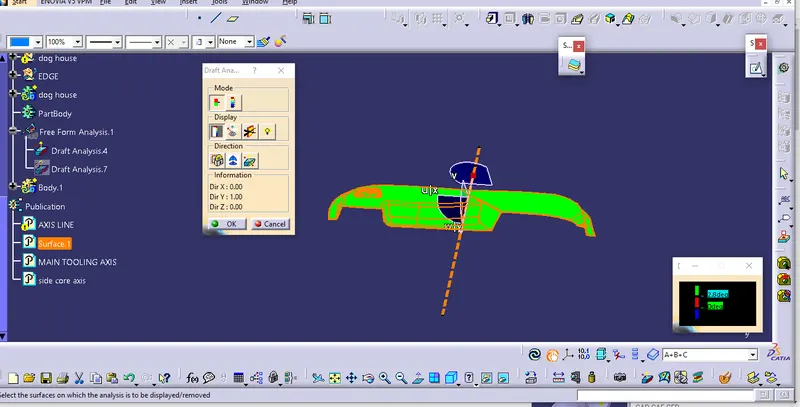

class-A surface put boundry 1st and analyis the axis line for the draft drection . In the draft direction value should be correctly matching for toolin axis line

CLASS- A B C

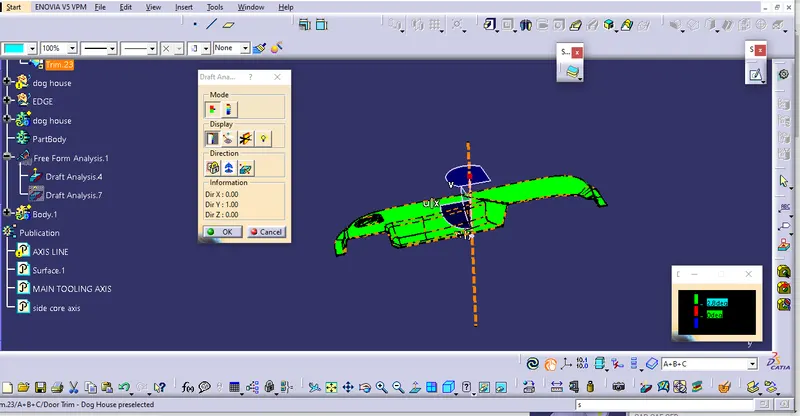

class A B C surface work done should be done perfectly and the draft analysis also perfectly done

SIDE CORE AXIS IN DOG HOUSE

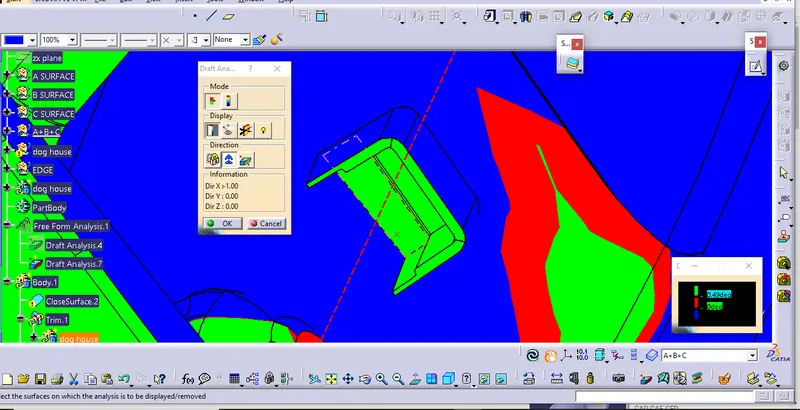

After finished ABC surfaces we do the dog house in back side of B surface , and applying side core axis we perfectly do this axis line
