Week 9 - Attachment Feature Creation - Challenge 2

Tooling axis to create y direaction at reference on Class A surface. because maximun of visulization is y direaction .

and I create tooling axis on site core at direaction of "x". at reference of part body.

Draft analysis: its to checking of product draft angle.

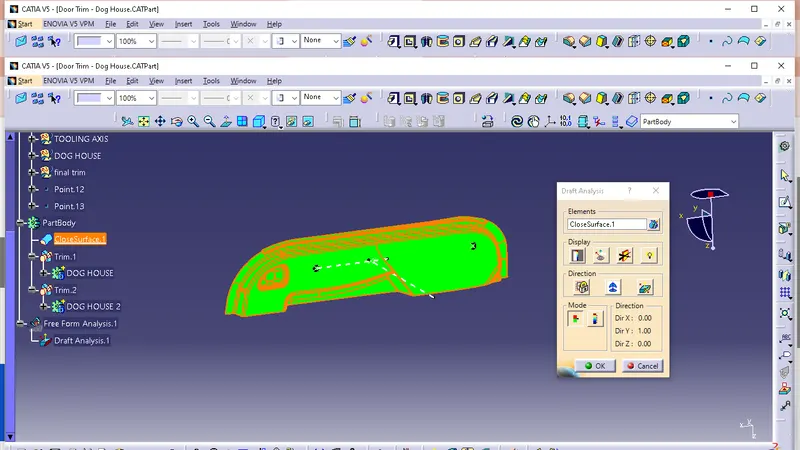

while i check the draft angles of product , to fix the tooling axis of compose and re- adjust the compose , then finally click the part body. my result is show in fig
