Week 9 - Attachment Feature Creation - Challenge 2

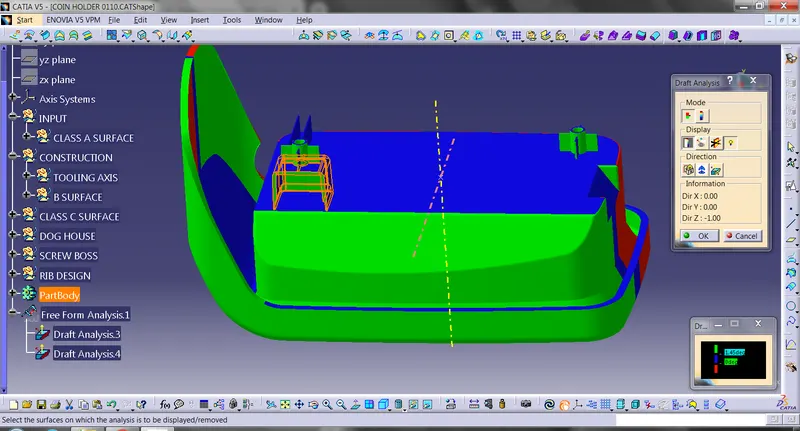

Draft analysis:

draft analysis is used to check component where are the area creates problem. Before manufacturing we will find out the area creating problems by this analysis. The critical areas will highlighted by colours

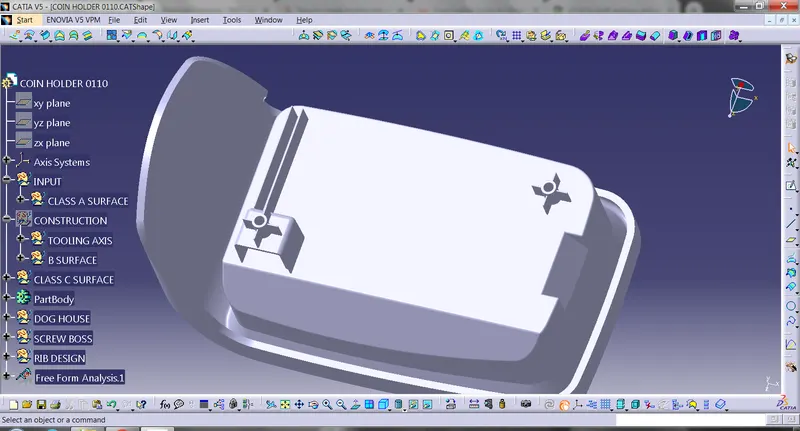

Tooling axis:

For Draft analysis we need tooling axis. Tooling axis is a direction which Core & cavity open. To create tooling axis first check the component which direction is possible for core & cavity open and select critical area and create two line and bisect them we will get tooling line.
